MermaidMaker

Inline GUI editor for Mermaid diagrams. Drag nodes, click [[wikilinks]] inside them, edit visually — all without leaving your note.

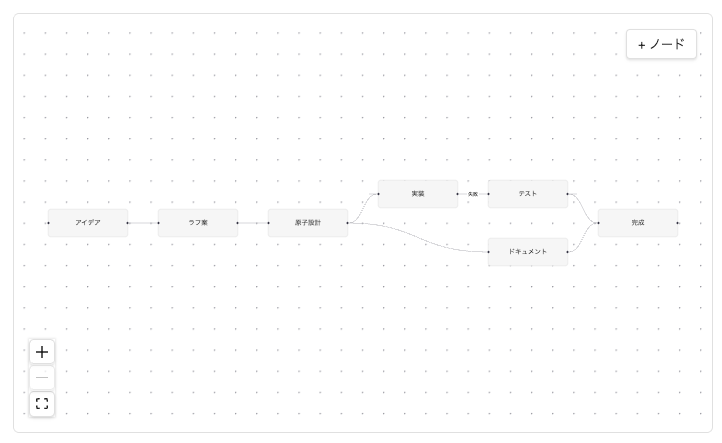

This plugin turns Mermaid code blocks into a visual canvas where you can drag nodes, add/delete/connect them, and edit labels — without switching to an external tool. Node labels render as real Obsidian markdown, so [[wikilinks]], #tags, $math$ and bold/italic all work inside the diagram.

The world's first inline GUI Mermaid editor for Obsidian.

Features

• 🖱 Drag nodes on a visual canvas, positions are saved as a Mermaid comment so the file stays portable Mermaid
• ➕ Add / remove nodes and edges with a toolbar button or Delete key
• ✏️ Edit labels by double-clicking a node
• 🔗 [[wikilinks]] clickable inside nodes — Obsidian's standard link click / hover preview / unresolved styling all work
• #tags, $math$, **bold** etc. render inside nodes
• 📐 dagre auto-layout for newly added nodes
• 💾 Two-way sync: edits write back to the Mermaid block, external Mermaid text edits flow back into the canvas

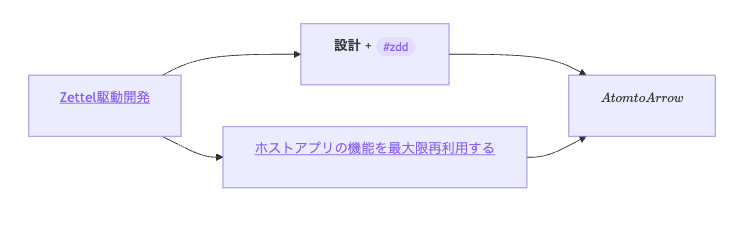

Node labels are rendered through Obsidian's MarkdownRenderer, so wikilinks, tags, math and bold all work inside the diagram.

The plugin is opt-in: regular ```mermaid blocks are untouched, only ```mermaid-maker blocks are processed.

Quick start

%%editable%%
graph LR
  A[Start] --> B[Auth]
  B --> C[End]

1. Add %%editable%% as the first line inside a ```mermaid-maker block.
2. Switch the note to Reading view (cmd+e / ctrl+e).

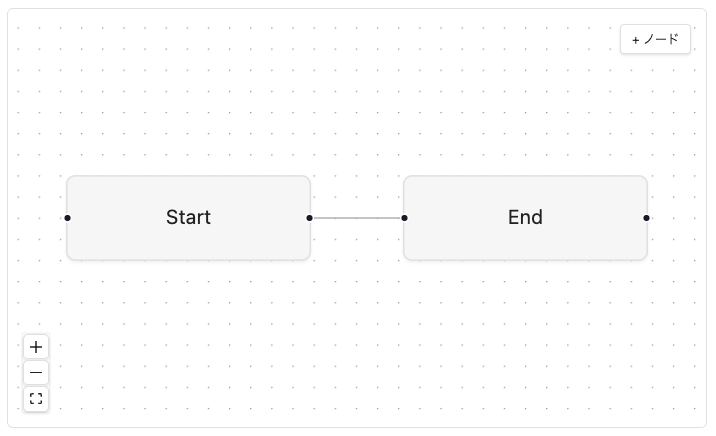

3. The diagram becomes an editable canvas. Drag, double-click, use the + Node button (currently labeled in Japanese — i18n pending).

Without %%editable%% the block is rendered read-only with rich labels (wikilinks etc. still work).

Install

Via BRAT (recommended for now)

The plugin is in beta. The fastest way to try it is via BRAT:

1. Install the BRAT plugin from Obsidian Community Plugins.
2. Open BRAT settings → Add Beta plugin.
3. Enter Akitaroh/obsidian-mermaid-maker and click Add Plugin.
4. Enable MermaidMaker under Community plugins.

Manual install

1. Download main.js, manifest.json and styles.css from the latest release.
2. Create <vault>/.obsidian/plugins/mermaid-maker/ and drop the three files in.
3. Enable in Settings → Community plugins.

Official Community Plugin store

Submission planned for late May 2026 after a short beta. Watch the repo for updates.

Usage notes

Special characters in labels

If your label contains [, ], (, ), {, }, | or " (e.g. wikilinks), use quoted form in your Mermaid source:

A["[[note]]"]  ✅
A[[[note]]]    ❌ — Mermaid parses [[..]] as subroutine shape

The plugin auto-quotes when you edit via the GUI — but if you write markdown directly, follow this convention.

Where positions are stored

After dragging, the plugin appends a comment line like:

%% mm-pos: A=10,20 B=200,30

This is invisible to other Mermaid renderers (it's a comment), so your diagrams remain portable.

Reading view vs Live Preview

GUI editing is Reading view only. In Live Preview (the default editor mode), you'll see a hint ✏️ GUI 編集は読み取りビューで利用できます. This is intentional — Live Preview's CodeMirror widget doesn't sandbox React mounts well.

Known limitations (beta)

• Edge labels (A -->|label| B) display but can't be edited via GUI yet
• Node shape selector is not yet in the UI; shape is preserved from Mermaid source ([box] / (rounded) / ((circle)) / (((double))))
• Mermaid flowchart variants beyond graph LR / graph TD are not supported
• File rename detection isn't optimal yet (resolved links update, but surrounding logic can lag)

Architecture

Source code in src/.

Implemented with Zettel-driven development:

• atoms/quote-extractor.ts — find "..." labels in Mermaid source
• atoms/markdown-renderer.ts — Obsidian MarkdownRenderer.render adapter
• atoms/label-measurer.ts — measure rendered HTML for Mermaid layout
• atoms/placeholder-injector.ts — splice placeholders into Mermaid source
• atoms/mermaid-loader.ts — load Obsidian's bundled Mermaid
• atoms/dagre-layout.ts — auto layout for new nodes
• atoms/xyflow-mounter.tsx — React + xyflow GUI canvas mount
• atoms/markdown-write-back.ts — debounced safe write back to editor
• atoms/label-edit-modal.ts — Obsidian modal for label editing
• arrows/mm-codeblock-render.ts — Stage 2b: rich labels in Mermaid SVG
• arrows/mm-editable-flow.ts — Stage 3: full GUI editor flow

Inspirations

• Mehrmaid — pioneered rich-markdown labels inside Mermaid nodes inside Obsidian (read-only)
• Excalidraw for Obsidian — the canonical embedded React canvas plugin pattern
• obsidian-enhancing-mindmap — bidirectional markdown ⇄ visual sync inside Obsidian

Contributing

Issues and PRs welcome. Please open an issue first for discussion of larger changes.

License

MIT — see LICENSE.
