Fingerprint Lock

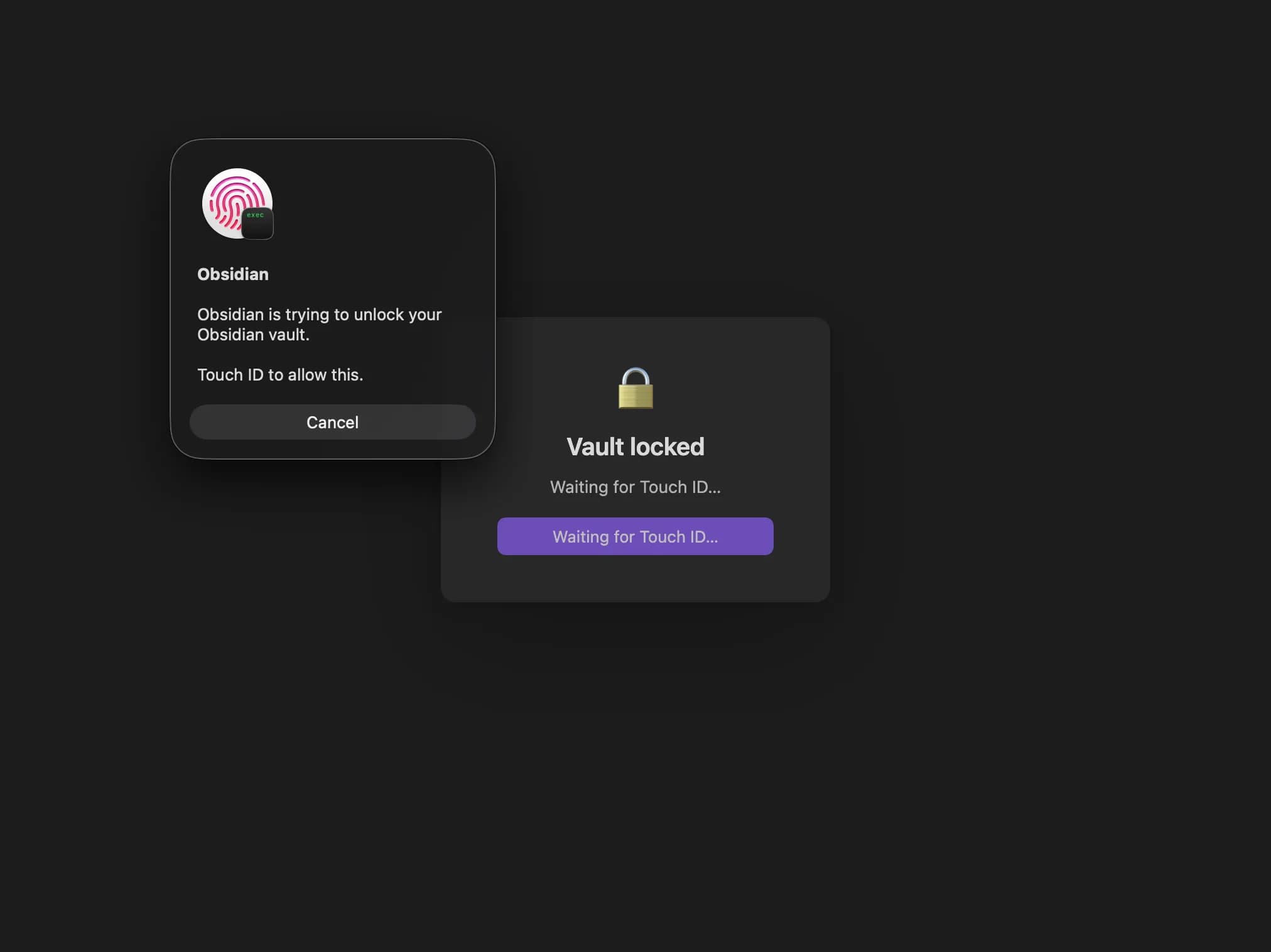

Locks Obsidian behind a full-screen lock screen and unlocks it with your fingerprint — macOS Touch ID or Windows Hello (fingerprint, face, or PIN). Hardware security keys (YubiKey and similar, via WebAuthn) and an optional password fallback are also supported.

What this is not: file encryption. Like every other Obsidian lock-screen plugin, this only hides the UI — your notes on disk are untouched. If you also want encryption at rest, pair this with FileVault/BitLocker or an encrypted disk image (see the "alternatives" note at the end).

How the biometric prompt actually gets called: Obsidian plugins can't call the OS biometric APIs directly — those are native APIs. So the plugin shells out to a tiny per-platform helper in its native/ folder:

• macOS — a Swift command-line helper (native/TouchIDAuth.swift) that talks to the LocalAuthentication framework. You compile it once, locally, with the included script.
• Windows — a PowerShell script (native/WindowsHelloAuth.ps1) that calls the WinRT UserConsentVerifier API. Nothing to build or install — Windows PowerShell 5.1 ships with every Windows 10/11 machine.

Either way, your fingerprint/face never reaches this plugin — the OS handles the scan and the helper only relays a yes/no answer.

1. Install the plugin files

Copy this whole folder into your vault's plugins directory, so it becomes:

<YourVault>/.obsidian/plugins/obsidian-fingerprint/
├── main.js
├── manifest.json
├── styles.css
└── native/
    ├── TouchIDAuth.swift      (macOS)
    ├── build.sh               (macOS)
    └── WindowsHelloAuth.ps1   (Windows)

Then in Obsidian: Settings → Community plugins → make sure "Restricted mode" is off → find "Fingerprint Lock" in the list → enable it.

2a. Windows setup

There is none. If Windows Hello works on your machine (Settings → Accounts → Sign-in options — a fingerprint, face, or PIN is enrolled), the plugin works. Open Settings → Fingerprint Lock → Test Windows Hello to confirm: you should get the standard Windows Hello dialog.

You can also test the helper standalone from a terminal:

powershell.exe -NoProfile -ExecutionPolicy Bypass -File "<YourVault>/.obsidian/plugins/obsidian-fingerprint/native/WindowsHelloAuth.ps1" -Reason "test run"

It prints SUCCESS (exit 0), FAILURE:<reason> (exit 1), or UNAVAILABLE:<reason> (exit 2) — the same protocol the macOS helper speaks.

2b. macOS setup — build the Touch ID helper (one-time)

You need Xcode or the Xcode Command Line Tools installed (xcode-select --install if you're not sure).

cd "<YourVault>/.obsidian/plugins/obsidian-fingerprint/native"
./build.sh

This compiles TouchIDAuth.swift into a binary named Obsidian right next to it and ad-hoc code-signs it (required for LocalAuthentication to allow the prompt). The binary is deliberately named Obsidian because macOS displays the requesting process's name in the Touch ID dialog. You can test it standalone before touching Obsidian at all:

./Obsidian --reason "test run"

3. Configure in Obsidian

On the very first launch (before any settings exist), the plugin opens a setup dialog prompting you to create a fallback password — and it will not lock the vault on startup until at least one unlock method can actually succeed, so you can never be dead-ended on a fresh install. This works the same on macOS and Windows 11.

Open Settings → Fingerprint Lock:

• Test Touch ID / Test Windows Hello — confirms the plugin can call the helper, without locking anything.
• Set a password fallback — strongly recommended. If biometrics ever fail (sensor issue, external display, whatever), this is your way back in without touching the file system.
• Encrypt password data (end-to-end) — optional. Instead of a salted PBKDF2 hash, data.json stores only an AES-256-GCM encrypted verifier; the key is derived from your password on your device and never written anywhere. Toggle it, then (re-)save your password to apply. Uses the built-in Web Crypto API, so it behaves identically on macOS and Windows.
• Security keys — register a YubiKey or other WebAuthn security key, then a "Use security key" button appears on the lock screen. Only keys you registered can unlock the vault. On Windows, the security-key prompt goes through the same native Windows security dialog as Hello.
• Lock on startup / lock on blur / lock on idle — pick whichever triggers you want, each with its own delay.

Once a password fallback is set, use the ribbon lock icon or the command palette ("Lock vault now") to test the full flow.

Rebuilding from source

If you want to modify the plugin itself rather than just use it:

npm install
npm run build      # type-checks with tsc, then bundles main.js with esbuild

npm run dev runs an esbuild watcher for iterative development.

Troubleshooting

macOS

• "Native helper not found" — you haven't run native/build.sh yet, or the vault isn't backed by the local filesystem (this plugin is desktop-only and won't work on mobile).
• Touch ID prompt never appears / immediate failure — re-run native/build.sh; codesigning can be invalidated if you move or edit the binary afterward. Confirm Touch ID works for anything on your Mac first (System Settings → Touch ID & Password).

Windows

• "Windows Hello unavailable: not set up" — enroll a fingerprint, face, or PIN in Settings → Accounts → Sign-in options first.
• Helper script missing — the plugin folder should contain native/WindowsHelloAuth.ps1; if it doesn't, reinstall the plugin.
• The prompt is slow to appear — the first call spins up PowerShell, which can take a second or two; subsequent calls are usually faster.
• Hello dialog offers PIN, not just fingerprint — that's by design: UserConsentVerifier uses whatever Hello methods you have enrolled. Your Windows PIN is hardware-backed and machine-local.

Security keys

• Registration fails immediately — your Obsidian build's Chromium may not expose WebAuthn to plugins; the settings page will say so. Biometrics and the password fallback are unaffected.
• Key not recognized at unlock — only keys registered in this vault's settings are accepted. Re-register the key if you've reset it.

Any platform

• You're locked out with no password set — quit Obsidian, then delete or rename the plugin folder (<YourVault>/.obsidian/plugins/obsidian-fingerprint) from your file manager or a terminal. Reopening the vault will start it without the plugin. This is exactly why the settings page nags you to set a password fallback.

An alternative worth knowing about

This plugin (like all Obsidian lock-screen plugins) only controls the UI. If your actual goal is protecting the notes themselves, not just hiding the window, consider storing the vault on an encrypted volume instead — an encrypted APFS disk image unlocked with Touch ID via Keychain on macOS, or a BitLocker/VeraCrypt volume on Windows — so Obsidian never sees the files until the volume is mounted.
