Timeline Canvas

Timeline Canvas is an Obsidian plugin that generates vertical timeline backgrounds as scalable SVG images and places them on a Canvas. You lay out notes, cards, and media on top of a shared time axis, so events stay aligned by date while you organize the story however you want.

Use it for a single clean timeline, or for several parallel tracks (columns) so you can compare different streams of events on the same calendar.

Why use it?

Obsidian Canvas is excellent for spatial thinking, but it has no built-in time grid. Without a background, cards drift and “when” becomes hard to see at a glance.

Here's the problem I'd have.

Once a timeline like this starts including many items in parallel related timelines, I can see how they all fit together in time visually and quickly... But... half the time is spent stretching out old timelines and tweaking things so that everything fits and everything aligned left to right across the page still lines up as a single point in time as you're going down the timeline.

My solution was to create a simple but customizable canvas background that keeps everything in it's final location from the start.

If necessary, it is possible to do some editing after the fact without starting over with a new canvas just because you want to edit the background image. As long as you leave the incremental spacing representing months (or days, or years, etc.) all your cards will stay put if you add another column to make it wider, or crop things down smaller.

How it works

This plugin draws the time axis for you:

1. You choose a date range and how time is divided (months, years, custom periods, …).
2. The plugin creates an SVG timeline and a Canvas that uses it as the background.
3. You place normal Canvas cards on top. Project notes, people, sources, images are still aligned to the grid.

The background is a real vault file (SVG), so it stays sharp when you zoom and can be widened or edited later without starting over.

Use cases

Single timeline

• Project history - Milestones from kickoff to launch on one vertical spine
• Biography or research log - Life events or source chronology
• Course or reading plan - Weeks/semesters as the axis; notes as cards

Parallel timelines (columns)

Split the background into vertical bands so multiple sequences share the same dates:

You can see a family event in the context of the wider world, or a product launch against industry news, without juggling separate canvases.

Planning and review

• Map a year by month and drop tasks or meetings onto the grid
• Export or screenshot a section for a report; crop the canvas to content first so the frame is tight

Getting started

1. Enable the plugin (Settings → Community plugins → Timeline Canvas).

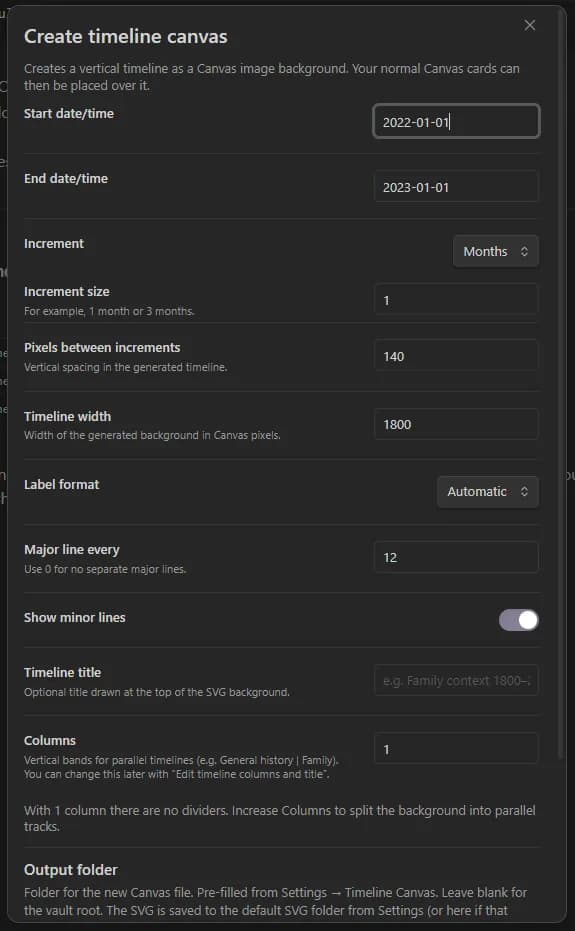

2. Run Create timeline canvas from the command palette, or click the calendar ribbon icon.
3. Set start and end dates (and other options as needed).
4. Choose an output folder (or rely on defaults from Settings).
5. Click Create timeline.

A .canvas file opens with the SVG timeline at the back. Add cards from the Canvas UI as usual and position them along the axis.

Date format: YYYY-MM-DD or with time, e.g. 2022-01-01 or 2022-01-01 08:00.

Creating a timeline

Time range and increments

Custom increments

Choose Custom when the axis is conceptual rather than calendar-based:

• Custom increment name - e.g. Semester, Phase, Chapter
• Number of occurrences - how many equal bands between start and end

Example: start 2025-01-01, end 2025-12-31, name Semester, count 4 → four labels (Semester 1 … Semester 4) spaced evenly between the year boundaries.

Sections (skipped time)

Use multiple sections when you care about disconnected spans of time:

• Example: Section 1 2000-01-01 → 2001-01-01, Section 2 2003-01-01 → 2004-01-01
• Between sections, the SVG inserts a fixed-height gap (default = your increment spacing) with a zig-zag break and a short “omitted” label
• Gaps are not proportional to calendar time — that is the point of skipping empty years

You can change sections later with Edit timeline sections (see Command palette). Cards that still fall on remaining time are shifted to keep date alignment. Cards whose time was removed are moved outside the background so they are easy to spot and need manual attention.

Title and columns

With more than one column, dashed vertical dividers separate the tracks. Horizontal date lines still run across the full width so every column shares the same time axis.

Output location

• Output folder - where the .canvas file is created (pre-filled from plugin settings; leave blank for vault root).
• Browse - pick an existing folder.
• Missing folders are created automatically.
• The SVG is written to the default SVG folder from Settings, or next to the canvas if that setting is empty.

Working on the canvas

Cards on top of the grid

Place text cards, notes, images, and groups on the Canvas. Align them to tick marks so their vertical position means “when.” Use columns to keep different themes in different horizontal bands.

Background at the back and locked

Obsidian draws Canvas nodes in array order (first = back). The plugin marks the timeline SVG as the background and can:

• Keep it at the back so cards are not hidden behind it
• Lock it (pointer-events: none) so clicks select your cards instead of the background

Obsidian does not lock individual cards natively; lock here is the plugin’s way to make the background non-interactive while you work.

Editing after creation

Most structural edits regenerate the SVG in place. The background’s top-left stays fixed so existing cards keep their canvas coordinates unless the command intentionally repositions them (sections / date-range remapping).

After these commands, open canvas tabs reload so the new SVG appears without closing the tab by hand.

Commands (command palette)

Open a timeline .canvas file first (most of these only appear when a canvas is active):

Settings

Settings → Timeline Canvas:

Tips

1. Start wider than you think, or create narrow and Widen later — the origin stays put.
2. Columns for comparison. Even two columns (Context | Detail) make parallel stories easier to read.
3. Sections for focus. Skip empty decades instead of scrolling through blank space; edit sections later if you discover events in a gap.
4. Lock the background while placing cards; unlock only when you need to move or resize the SVG node.
5. Crop before export to trim empty margin for a cleaner PDF or screenshot.
6. Metadata is stored on the SVG and in a .timeline-meta.json sidecar so columns, title, width, date range, and sections can be edited later. Prefer timelines created with the current plugin version for full edit support.
7. Orphan notices after section or date-range edits mean those cards no longer sit on valid time — they were moved off the side on purpose so you can place them again.
8. Zoom freely. The timeline is SVG, so labels stay sharp at any Canvas zoom level.

Installation

Manual install:

1. Copy main.js, manifest.json, and styles.css into:

   <vault>/.obsidian/plugins/timeline-canvas/


2. In Obsidian: Settings → Community plugins → enable Timeline Canvas.

3. Reload the app if the plugin was already installed and you updated files.

Requires Obsidian 1.5.0 or newer.

Files the plugin creates

You can rename files in the vault; keep the canvas node pointing at the correct SVG if you move them by hand.
