TreeGen

Generate and copy ASCII folder/file trees directly from your Obsidian vault.

Inspired by the JetBrains TreeGen plugin.

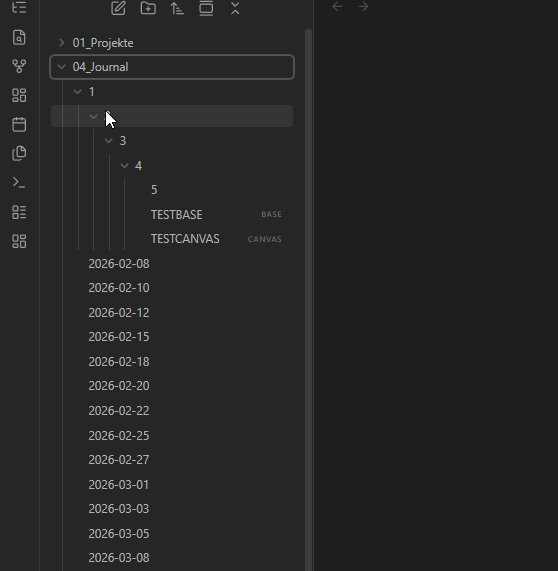

Preview

Features

• Side panel — interactive tree view in the right sidebar, opened via ribbon icon
• Right-click menu — "Copy as tree" on any folder in the file explorer
• Live search — filter the tree by name, matching files are highlighted
• Expand / Collapse all — one click to open or close the entire tree
• Copy formats — switch between Tree, Paths, and JSON before copying
• 5 tree styles — Lines, Rounded, ASCII, Minimal, Compact
• File count badges — see how many files each folder contains at a glance
• Click to open — click any file in the panel to open it; Ctrl+click opens in a new tab
• Per-folder copy — copy button appears on hover for any folder
• Configurable — max depth, exclude patterns, tree style, root label, show/hide files

Tree styles

Lines (default)

my-project/
├── src/
│   ├── main.ts
│   └── TreeView.ts
├── styles.css
└── manifest.json

Rounded

my-project/
├── src/
│   ├── main.ts
│   ╰── TreeView.ts
├── styles.css
╰── manifest.json

ASCII

my-project/
+-- src/
|   +-- main.ts
|   \-- TreeView.ts
+-- styles.css
\-- manifest.json

Minimal

my-project/
· src/
·   · main.ts
·   · TreeView.ts
· styles.css
· manifest.json

Compact

my-project/
  src/
    main.ts
    TreeView.ts
  styles.css
  manifest.json

Copy formats

Paths

my-project/src/main.ts
my-project/src/TreeView.ts
my-project/styles.css
my-project/manifest.json

JSON

{
  "src/": {
    "main.ts": null,
    "TreeView.ts": null
  },
  "styles.css": null,
  "manifest.json": null
}

Installation

Manual

1. Download main.js, manifest.json, and styles.css from the latest release
2. Copy them into .obsidian/plugins/obsidian-treegen/ in your vault
3. Enable the plugin in Settings → Community Plugins

Usage

Settings

Development

git clone https://github.com/30jannik06/Obsidian-TreeGen
cd Obsidian-TreeGen
pnpm install
pnpm dev        # watch mode
pnpm build      # production build
pnpm lint       # ESLint
pnpm lint:fix   # ESLint + auto-fix

Stack: TypeScript · esbuild · ESLint · Obsidian API

License

MIT — see LICENSE
