MDSync

Features · Quick start · Privacy · Relay

MDSync syncs your vault through an S3 bucket, a WebDAV server or Google Drive. There is no MDSync server: your devices talk straight to your storage, and everything they upload is encrypted on the device with a key derived from your passphrase. Sync is manual until you turn on automatic sync, so you can review each change before it leaves the device. An optional relay, a Cloudflare Worker you deploy to your own account, adds instant sync, live editing, shared folders and share links.

Features

Sync

• Storage you choose: any S3-compatible service, WebDAV or Google Drive.
• Encryption: file contents and the file list, with a passphrase that never leaves your devices.
• Source control view: local changes, remote changes and conflicts, with a diff for every file.
• Manual push and pull, or automatic sync on a timer and after edits.
• Conflict resolution: automatic merge, a three-way merge editor, or pick a side.
• Renames and moves sync as moves.
• Change marks in the editor for lines changed since the last sync.
• Ignore rules: a shared syncignore.md, patterns per device, symlinks and a size limit.
• Obsidian settings sync: hotkeys, plugins, snippets and themes, per device.

History

• File history: every saved version of a note, diffed against the current one.
• Timeline: every push, and putting the whole vault back to one of them.
• Deleted files: restore anything history still holds.

Real time (needs the relay)

• Your other devices pull the moment you push.
• Live editing: notes and Excalidraw drawings edit together, keystroke by keystroke.
• Presence: who has which note open, and following someone through the vault.
• Shared folders: share a folder with other people without handing them your storage keys.
• Share links: publish one note as a link anyone can read, with an optional passphrase, a view limit and an expiry.

Setup and upkeep

• Device transfer: move your setup to a new device with an encrypted link or QR code.
• Integrity check of the remote, and cleanup of objects nothing references.
• Remote reset that rebuilds the remote from this vault (you type RESET to confirm).
• A local diagnostics log in the settings.

Quick start

1. Install MDSync from Settings → Community plugins and enable it. The setup wizard opens on its own; later, run MDSync: Set up sync.
2. On the first device, choose Start syncing this vault: pick a storage, choose a passphrase (12 characters or more) and, if you want real time, deploy the relay. Sync now on the last step does the first upload.
3. On every other device, choose Connect to a vault set up on another device and paste a setup link from the first one.

Give each vault its own bucket prefix. MDSync refuses a prefix that already holds another vault.

Set up the first device alone and let its first sync finish. That sync creates the vault's key. On storage without conditional writes (Google Drive, some WebDAV and S3-compatible servers), two devices starting at the same moment can each create one, and files encrypted by one become unreadable to the other.

Sync

Storage

Encryption

• Cache passphrase between launches keeps it on the device, so you are not asked at every start. MDSync: Forget cached passphrase clears it.
• Rotate passphrase re-wraps the vault's data key under a new passphrase. Notes are not re-encrypted, so it is instant. Every device has to switch to the new passphrase afterwards.

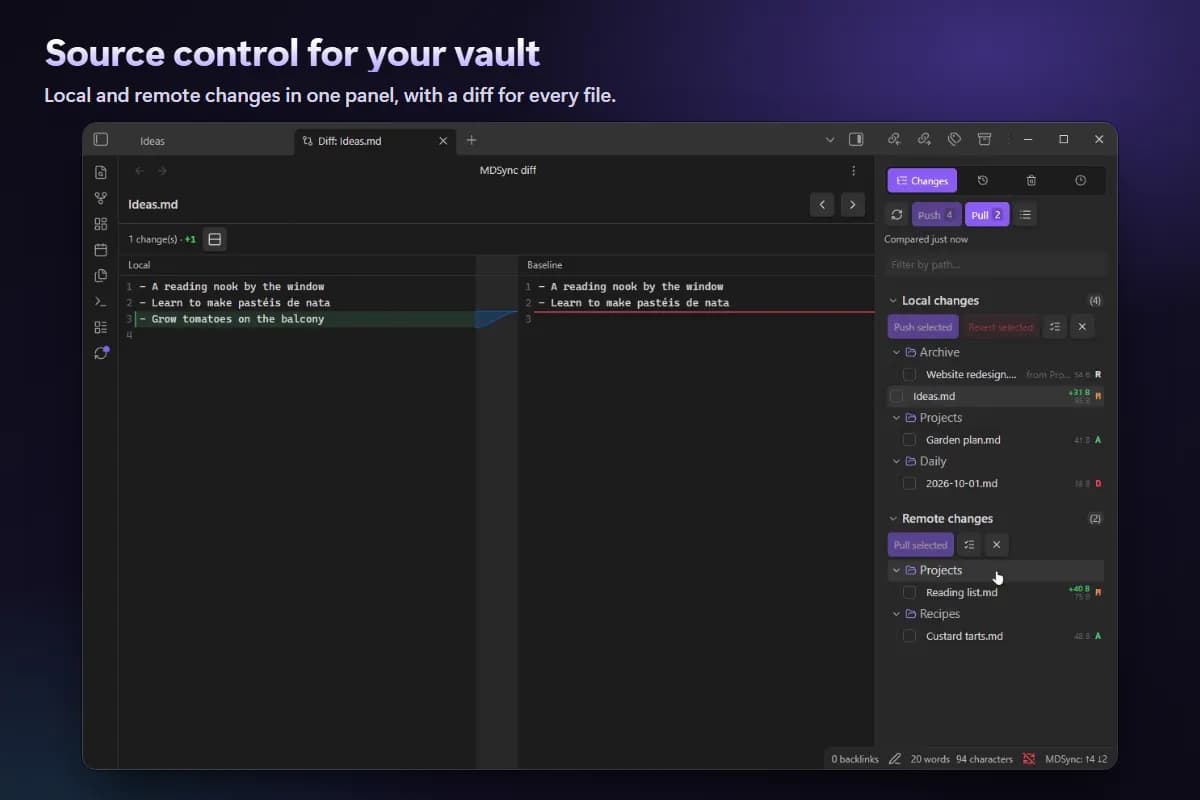

Source control view

The panel has four tabs: Changes, History, Timeline and Deleted.

Changes lists local changes, remote changes and conflicts, with a path filter. Open any file for a side-by-side diff (combined on narrow screens or on request). In a text file you can revert a single local change or accept a single remote one, then apply your choices. Binary files show the size change instead, with Show differences anyway where the file can be read as text.

Automatic sync

In Settings → MDSync → Sync you can turn on:

• Autosync: compare, pull and push every few minutes.
• Push after changes settle: push once the vault has been quiet for a set delay. It never pulls, so conflicts and incoming changes wait for you.
• Push after successful pull.

Conflicts

A conflict is a file changed both here and on the remote. For each one you can Keep local, Accept remote, Keep both versions (the remote copy lands next to yours as todo (conflict from Phone 2026-07-05).md) or Merge….

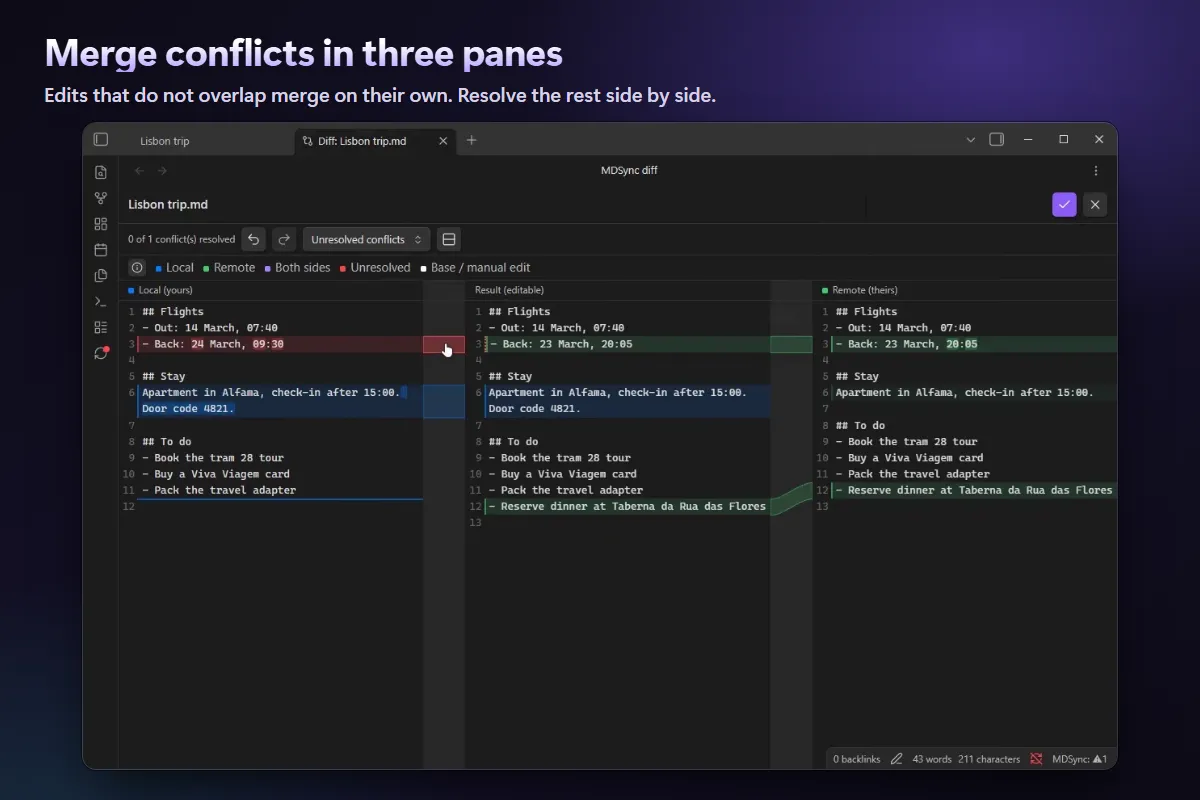

Merge… opens a three-way editor: your version, the result and the remote version side by side. Changes that do not overlap are merged up front, and you review and save. Autosync merges such conflicts on its own and leaves the rest to you.

Change marks in the editor

The gutter marks lines added, changed or removed since the last sync. Click a mark to see the old text and revert that change.

Ignore rules

Both sources use gitignore syntax:

• syncignore.md in the vault root syncs like a normal note, so every device follows it. A shared folder has its own in its root.
• Device-local exclusions → Patterns applies to this device only.

drafts/
*.tmp
README.md

Ignoring never deletes anything: a matching file stops syncing, and copies on the remote and other devices stay. To remove a file everywhere, delete it first and then ignore it.

Ignore symlinks (on by default) skips symbolic links and Windows junctions, which Obsidian shows as ordinary folders. Max file size skips anything larger.

Obsidian settings sync

Under Obsidian configuration scope you choose what else to sync: core settings, hotkeys, the list of enabled plugins, plugins with their settings, CSS snippets and themes. Every category is off by default and chosen per device. Turning one off deletes nothing. Clear on remote removes a category from the remote without touching local files. MDSync's own plugin folder never syncs.

History

Every push records what it changed. Versions to keep sets how many pushes history holds; pinned versions are kept until you unpin them.

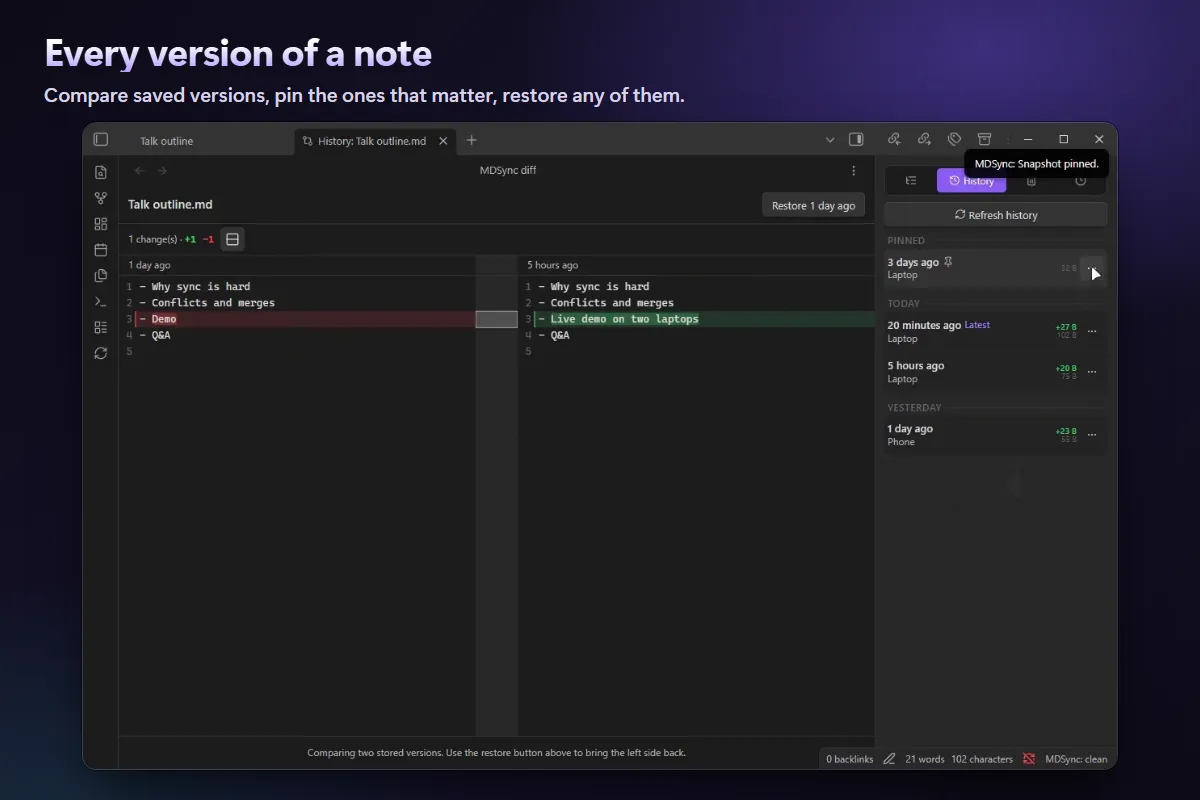

File history

The History tab lists the open file's past versions. Click one to diff it against the current file, or use its menu to restore it, compare it with the version before, or pin it under a name. A restore always shows the diff first.

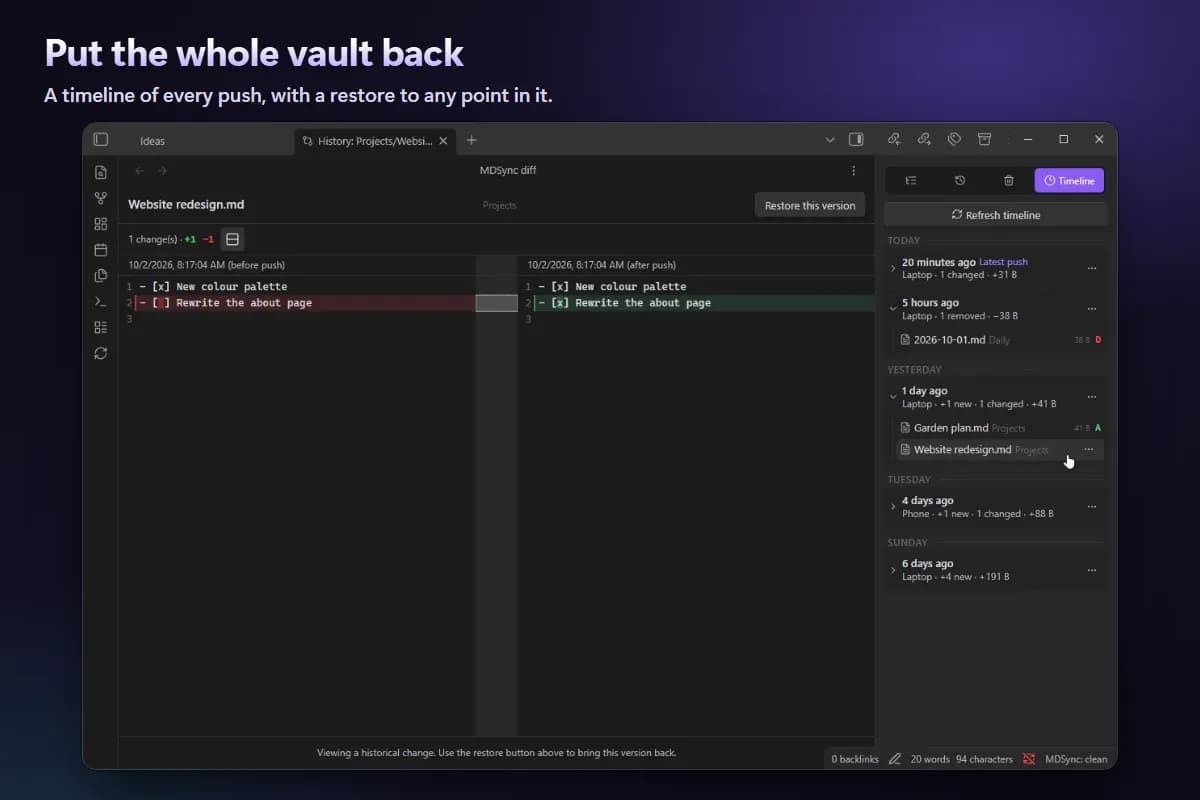

Timeline

The Timeline tab lists every push to the vault with the files it changed. From any of them you can see its changes or put the whole vault back to that point.

Deleted files

The Deleted tab (or MDSync: Restore deleted files) lists files gone from the vault that history still holds: when each went, which device removed it, and how many more pushes the record survives. Restore puts a file back where it was, Restore to… somewhere else. Pin a version to keep a deleted file for good.

Real time

These features run through the relay. Turn them on with Real-time sync and Live editing. If the relay is down, devices fall back to periodic sync.

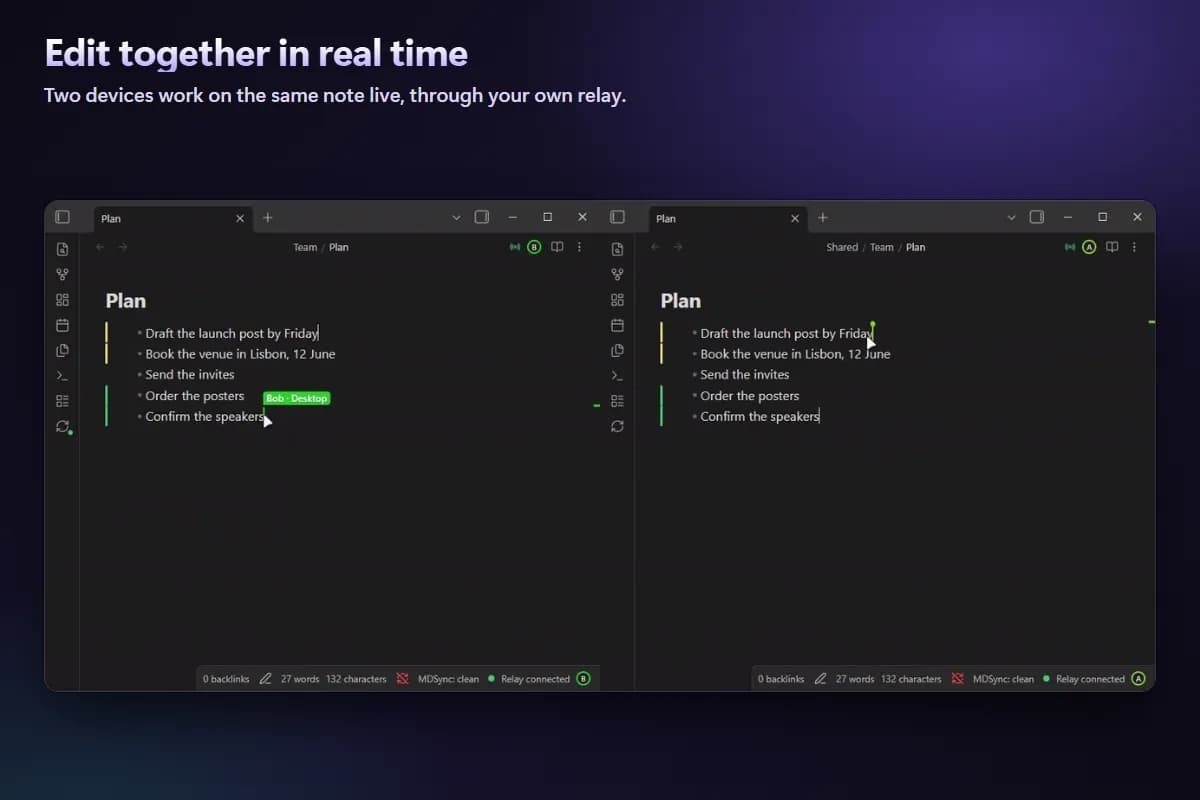

Live editing

A note open on two devices edits together, keystroke by keystroke, with the other person's cursor. It works between your own devices and with the people in a shared folder. Excalidraw drawings sync the same way (Excalidraw plugin 2.x).

• Show who typed what tints text by the person who typed it.
• If someone deletes a note you have open, MDSync asks whether to delete it here too or bring it back everywhere.

Presence

The note header shows who else has the note open, as coloured initials. Click one to follow that person: your tab opens the notes they open and keeps their cursor in view. The file explorer shows headcounts on shared folders and a dot on files others changed that you have not opened yet. On desktop, the status bar shows the relay state.

Turn off Show my open note to others to stay online without showing where you are.

Shared folders

Share a folder from its menu in the file explorer. Owning a share needs S3-compatible storage.

1. Invite gives you an obsidian://mdsync-share link and a password. Send them separately.
2. The other person opens the link (or pastes it in Accept an invite), enters the password and picks an empty folder. They need no storage of their own and never see your credentials.

A read-only invite pulls changes but can never push. From the share's window you can see who is in it, revoke a person, pause the share on this device or on all your devices, and stop sharing. When a share ends, its files stay and sync with your vault again. Renaming a shared folder renames it on your other devices too.

Share links

Publish one note as a link anyone can open in a browser with nothing installed, from its menu in the file explorer (MDSync: Share link) or with Share this note as a link.

• Expires (5 minutes to 30 days, an exact date, or never), Views and an optional passphrase limit who can read it and for how long. Once the time or the views run out, the relay erases the note.
• The note is drawn as Obsidian's reading view draws it, then encrypted on your device.
• The page has an outline, folding headings, copyable code, wide text and Copy as Markdown.
• Left out: properties, comments, links to other notes (their text stays) and embedded notes. Vault images are embedded and shrunk; Include images turns that off. The window lists what was left out before you create the link.
• Manage share links, on any of your devices, shows the views left. From there you can copy a link, Update it to the note as it is now (the link stays the same) or stop it at once. A globe in the file tree and in the note's header marks a shared note; a dot means it changed since.

A link is a copy: later edits do not reach it until you update it. Anyone who has the link (and the passphrase) can read the note and pass it on.

Device transfer

Settings → MDSync → Connection → Export setup creates an encrypted link and QR code with your main sync settings, storage credentials included. It leaves out the cached passphrase and display preferences. The link is encrypted with your passphrase, so the new device needs the same passphrase and confirms the import before anything is applied.

Commands

Privacy and network

MDSync has no telemetry. It connects only to:

• Your storage (S3 endpoint, WebDAV server or the Google Drive API), which gets encrypted files and the encrypted file list.
• Your relay, if you set one up. It is a Cloudflare Worker you deploy to your own account.
• The Cloudflare API (api.cloudflare.com), only when the setup wizard deploys the relay or creates R2 storage for you. The token you paste can edit Workers, KV and R2 on that account. If the account has no workers.dev address yet, the wizard registers a random one.
• GitHub (raw.githubusercontent.com), only when you open Show me how in the setup wizard, to play a short clip of creating the Cloudflare token.

You need an account with your storage provider. The relay needs a Cloudflare account, and Google Drive needs your own Google Cloud OAuth client.

Storage credentials, share keys, share links, the relay secret and the Cloudflare token are stored in the plugin's data.json on each device, encrypted with a key kept in Obsidian's keychain for that vault, outside the vault folder. A copy of the vault (a backup, git, a cloud folder) carries none of them; on a copied or moved vault, import a setup link from another device. Diagnostics logs stay on the device and never sync.

The Cloudflare token. The wizard keeps it on the device where you paste it, to update the relay later, and never syncs or exports it. The R2 storage the wizard creates uses S3 keys derived from this token, so they can read and write every R2 bucket on the account, including buckets MDSync did not create. Deleting the token in Cloudflare stops sync. For keys limited to one bucket, set up R2 by hand as the manual setup under Quick start describes.

What the relay sees. It never sees file contents, file names or keys: live edits and presence travel encrypted under each space's key. It does see a hash of your storage identity, a device id per connection, and when each sync and note switch happens. For a shared folder with participants, it keeps your S3 access key in its storage to sign requests for them, plus the names you invited people by. With Google Drive, it exchanges your sign-in for tokens and sees your Drive refresh token.

Share links. Creating one sends a rendered copy of that note to your relay, encrypted on your device. The relay stores the ciphertext, a fingerprint of the passphrase check, the view limit and the expiry, and counts views. It never sees the key (it stays in the part of the link after #, which browsers never send), the passphrase, or the text. The page a recipient opens is served by your relay and decrypts in their browser. Your other devices get the links, with their keys, through your storage, encrypted with the vault key.

<prefix>/manifest.json.enc        encrypted file list
<prefix>/history.json.enc         encrypted change log, one entry per push
<prefix>/salt.bin
<prefix>/keys.json                vault key wrapped by your passphrase
<prefix>/objects/<sha256>.enc     encrypted file contents
<prefix>/pins/<id>.json.enc       full file list of a pinned version
<prefix>/spaces/<id>.json.enc     shared folder records
<prefix>/links/<id>.json.enc      share links, with their keys
<prefix>/shares/<id>/...          each shared folder's own storage

Self-hosting the relay

The relay is packages/relay: one Cloudflare Worker that handles instant sync, live editing, invites to shared folders, share links and the Google Drive sign-in. It fits in the Workers free tier.

From MDSync (recommended). Select Deploy relay in Settings → MDSync → Connection → Relay server, or Deploy to my Cloudflare in the setup wizard, and paste a Cloudflare API token. MDSync uploads the relay and connects to it. When a new MDSync version brings a newer relay, the same button reads Update relay.

From GitHub Actions.

1. Fork this repository.
2. In Settings → MDSync → Connection → Relay server, select Generate. The secret is copied to your clipboard.
3. In your fork, under Settings → Secrets and variables → Actions, add CLOUDFLARE_API_TOKEN (the Edit Cloudflare Workers template is enough), CLOUDFLARE_ACCOUNT_ID and RELAY_SECRET.
4. Run the Deploy Relay workflow. The run summary shows the worker URL.
5. Paste the URL into Relay URL and select Test.

Development

pnpm install
pnpm dev        # watch build
pnpm build
pnpm lint
pnpm typecheck
pnpm test

The plugin lives in packages/plugin, the relay in packages/relay, the page share links open in packages/viewer (built into the relay's static assets), and the format both share in packages/protocol.

License

MIT
