Logic circuits

Draw digital logic circuits directly inside Markdown notes in Obsidian. The desktop plugin stores each circuit in a logic-circuit fenced block, with no separate diagram files, network requests, or simulation.

See DESIGN.md for the design and examples/Logic circuits.md for sample diagrams.

Installation

1. Run npm install, then npm run package with Node.js 22 or newer.
2. Copy main.js, manifest.json, and styles.css from dist/logic-circuits/ into <Vault>/.obsidian/plugins/logic-circuits/.
3. Reload Obsidian and enable Logic circuits in Settings → Community plugins.

This checkout is already in a test vault's plugin folder. Running npm run build places installable files directly at its root. Reload the plugin to load a new build. Generated main.js and dist/ are excluded from version control.

The permanent plugin ID is logic-circuits; the installed folder must use that name. Obsidian 1.8.0 or newer is required. The first release supports desktop only.

Usage

• In an editable Markdown note, use Cmd + Shift + L on macOS or Ctrl + Shift + L on Windows/Linux, run Logic circuits: Insert logic circuit from the command palette, or select Insert logic circuit from the note's right-click menu. Change the default shortcut through Settings → Hotkeys if desired.
• In Live Preview, the new block opens for editing without adding an extra blank line after it. Source mode shows the JSON instead of changing your note mode.

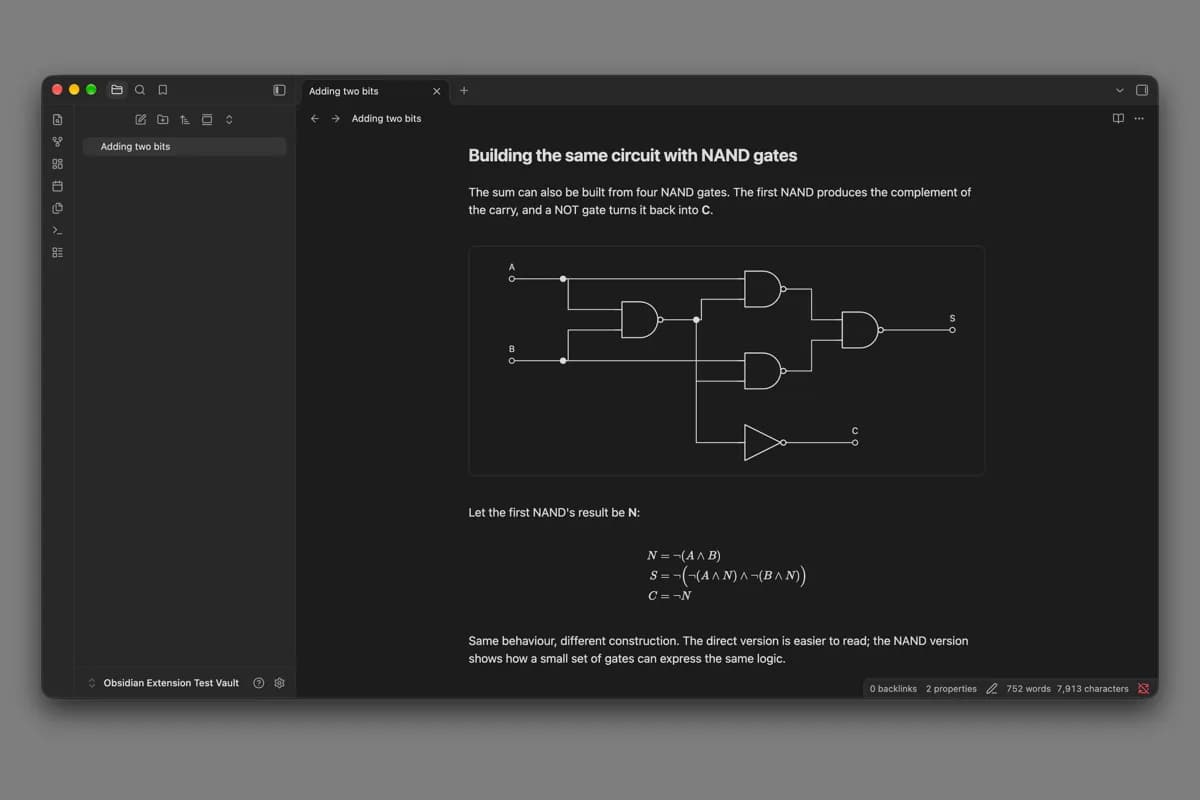

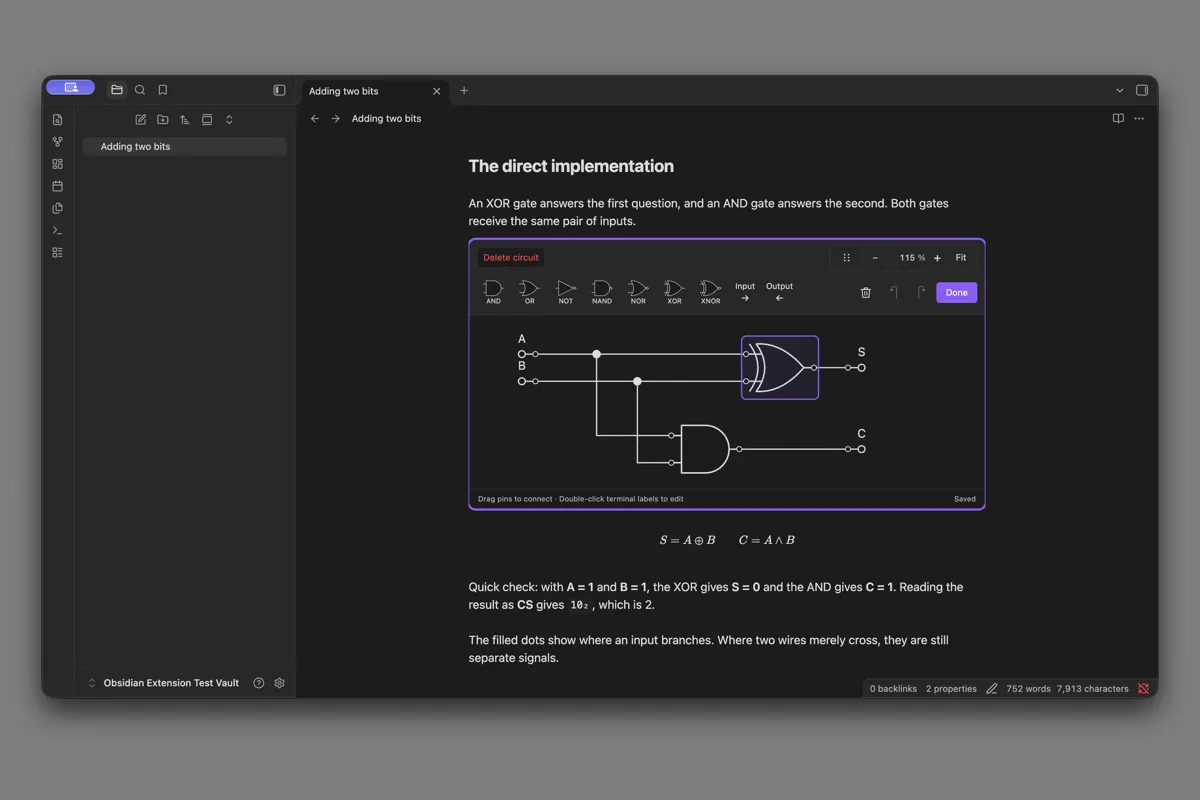

• In Live Preview, double-click a finished circuit block, or select Edit, to open its inline editor.
• Select a gate, Input, or Output in the toolbar, then click in the block. You can also drag the toolbar item into the diagram. Each action places one object.
• Drag objects to move them on the 8-pixel grid. Gate centers, pins, and terminal markers can align exactly. The lower boundary grows and shrinks during movement or placement previews; the top stays fixed during editing. Drag between pins to connect them; the gesture works in either direction. Inputs accept one connection, while outputs can feed multiple targets.
• A gate's output can connect back to its own incoming pin to draw feedback loops. The diagram still enforces one connection per incoming pin.
• Double-click an Input or Output label to edit it. Enter or leaving the field confirms; Esc cancels. Gates have no labels.
• Input and Output use a small terminal marker with their label above it.
• Create a branch by dragging an unused incoming pin onto a wire, or dragging a wire's branch handle to an unused incoming pin. Junction dots indicate connections; wire crossings do not.
• Move a junction to adjust branch layout. Its wires meet the solid dot from the appropriate sides; four connection targets are available while editing. Deleting a junction reconnects its upstream source to its downstream targets. Deleting a branch removes only that branch.
• To remove an entire circuit, select Delete circuit at the top left while editing, or select its border or drag grip and press Delete or Backspace. You can also right-click the circuit and select Delete circuit block. In an editable note, the text cursor moves to the line left behind. Selecting a node in the editor continues to delete only that node.
• Right-click the circuit and select Insert line before or Insert line after to create a blank line and move the text cursor there.
• Drag the grip in the hover controls to move a circuit up or down the note. A line marks the drop position between complete Markdown blocks. The original fence lines move into that slot without adding blank lines. Normal note Undo restores block deletions, moves, and line insertions in Live Preview. Selection clears when focus leaves the block or its widget closes; returning to a tab does not restore a cached selection.
• Select an object or wire and press Delete or Backspace to remove it. Use Undo and Redo, or their normal keyboard shortcuts while the diagram has focus.
• The rubbish bin button removes selected diagram elements and is disabled when nothing is selected.
• Select Done, or click elsewhere, to return to the uncluttered inline diagram. Completed actions save automatically, including undo and redo; finishing waits for pending saves and confirms an active label or scale field.

Each block fills the note's content width and displays its entire circuit. In Live Preview, hover over the block to reveal −, +, Fit, and Edit; keyboard focus also makes these controls available. Type a zoom percentage between − and +, then press Enter or leave the field to apply it. Esc cancels. Values from 25% to 300% are accepted, with enlargement capped to the available width. Scale changes do not rewrite object positions. Narrower panes temporarily reduce the displayed scale; each circuit keeps its saved preference.

Controls use short, delayed native tooltips. The immediate black tooltip bubbles are removed while accessible control names remain available to assistive technology.

− and + move in 10-point percentage steps (89.2% becomes 80% or 90%). + stops when the next whole step would exceed the width; Fit uses the exact scale that fits, which may include a decimal.

Set the initial scale for new blocks in Settings → Logic circuits → Default circuit scale. Existing circuits retain their own scales.

Reading view displays the saved circuit without editing controls, circuit menus, or selection effects. Switch to Live Preview to edit a diagram or move/delete its block. In Source mode, edit the fenced JSON as normal Markdown. Ordinary scrolling moves through the note, and note keyboard shortcuts remain available outside the diagram.

Saving and recovery

The plugin locates and validates the intended block again before every update. Changes to surrounding Markdown and other circuits are preserved. Copied blocks receive independent IDs when their selected occurrence can be identified safely.

If the same block changed elsewhere, or a write fails, automatic saving stops and the local draft remains available. Select Reload from note to explicitly discard the draft, or Copy draft to recover it without overwriting the note. If its original widget is gone, run Logic circuits: Recover unsaved circuit drafts.

The two entries in Settings → Hotkeys are separate commands: insertion and draft recovery. Recovery has no default shortcut.

Recovery drafts are held in memory while the plugin is loaded. Copy an unresolved draft before disabling the plugin or quitting Obsidian. Session undo history is not persisted across reopenings.

Malformed JSON and unsupported schemas produce an inline error without modifying their original content. Correct them in Source mode.

Temporary editing errors disappear after four seconds. Malformed-data errors and saving conflicts remain visible with their recovery instructions.

Development and verification

npm install
npm run dev
npm run build
npm test
npm run lint
npm run test:ui
npm run package

npm test exercises connection rules, junction edits, history, guarded Markdown updates, block operations, and save-session conflicts. Browser tests exercise the diagram and the real CodeMirror Live Preview extension; native Obsidian mode checks complement those tests. Browser tests use a locally installed Chromium (set PLAYWRIGHT_CHROMIUM_PATH if needed), and write artifacts to a temporary directory.

Sources are separated into src/model/, src/storage/, src/ui/, and src/integration/. React and React Flow are bundled into main.js; Obsidian supplies the external CodeMirror runtime. The build combines React Flow's base stylesheet and src/ui/styles.css into shipped styles.css.

The build removes React DOM's unused script loaders and script-rendering paths, rejects dynamic script tags and raw HTML, and checks the emitted bundle for script creation. scripts/no-runtime-scripts.mjs verifies the audited React DOM source before transforming it; dependency upgrades require reviewing these paths and updating the audited hashes. Development and production builds use the same restrictions, covered by npm run test:ui -- runtime-scripts.

Initial limitations

• No simulation, truth tables, analog components, chips, or nested circuits.
• Fixed gate orientation and input counts; only Input and Output have labels.
• Stepped wires have no advanced obstacle avoidance or draggable elbows. In crowded diagrams they may cross symbols.
• Large diagrams can become small in narrow panes. There is no internal scrolling or infinite canvas.
• The circuit format supports up to 1,000 nodes and 5,000 wires, with positions between −10,000 and 10,000 model units on each axis. Larger or out-of-range data displays an inline error and preserves the original block.
• Native macOS Insert → Logic circuit is not provided: the installed public Obsidian API exposes no application-menu extension hook. Use the context menu or command.
• The note context-menu action is grouped with insertion actions. The public API does not expose a way to append it inside Obsidian's existing Insert submenu.
• The block scanner supports standalone, unindented fenced blocks, including backtick/tilde fences and CRLF notes. Circuit blocks in metadata, indented code, lists, or blockquotes are not editing targets in this release.

Privacy

No network access, telemetry, or external services. The plugin reads and updates only relevant notes inside the vault and stores the default scale in its normal plugin settings.

License

MIT, copyright 2026 Yinlong Zhao. See LICENSE.

The original Obsidian sample-plugin notice is retained in licenses/obsidian-sample-plugin-0BSD.txt. Bundled dependencies retain their own licenses. Every build generates THIRD-PARTY-NOTICES.txt from the packages actually included and embeds the complete notices in main.js, so normal Obsidian installation includes them automatically. Packaged downloads also include the separate license files.
