Draftline

Draftline is an Obsidian plugin for manual Markdown version snapshots and inline comparisons between them. It's built for two things: keeping version control over your notes, and giving you (or an AI assistant) a shared, readable format for discussing what changed between drafts. Versions live inside the note itself — not in a sidecar file or plugin database — so history travels with the note (sync, git, backups), and agents or other tools can read and reason about it straight from the source file.

Installation

Draftline is not yet listed in the Obsidian Community Plugins directory. Until it is, install it with BRAT (Beta Reviewer's Auto-update Tool):

1. Install and enable the BRAT plugin from Community Plugins in a dedicated disposable vault (see Development below — do not use a primary or valuable vault).
2. Open BRAT's settings (or run the command BRAT: Add a beta plugin for testing) and add this repository.
3. Enable Draftline under Settings → Community plugins.

Once Draftline is accepted into the Community Plugins directory, it will be installable directly from Obsidian without BRAT.

Features

• Create version — on first use, archives the current note body as Version 1 and opens an editable Version 2; later uses duplicate the active version into a new latest version
• Switch versions — make any snapshot the editable note body; older versions remain editable when selected

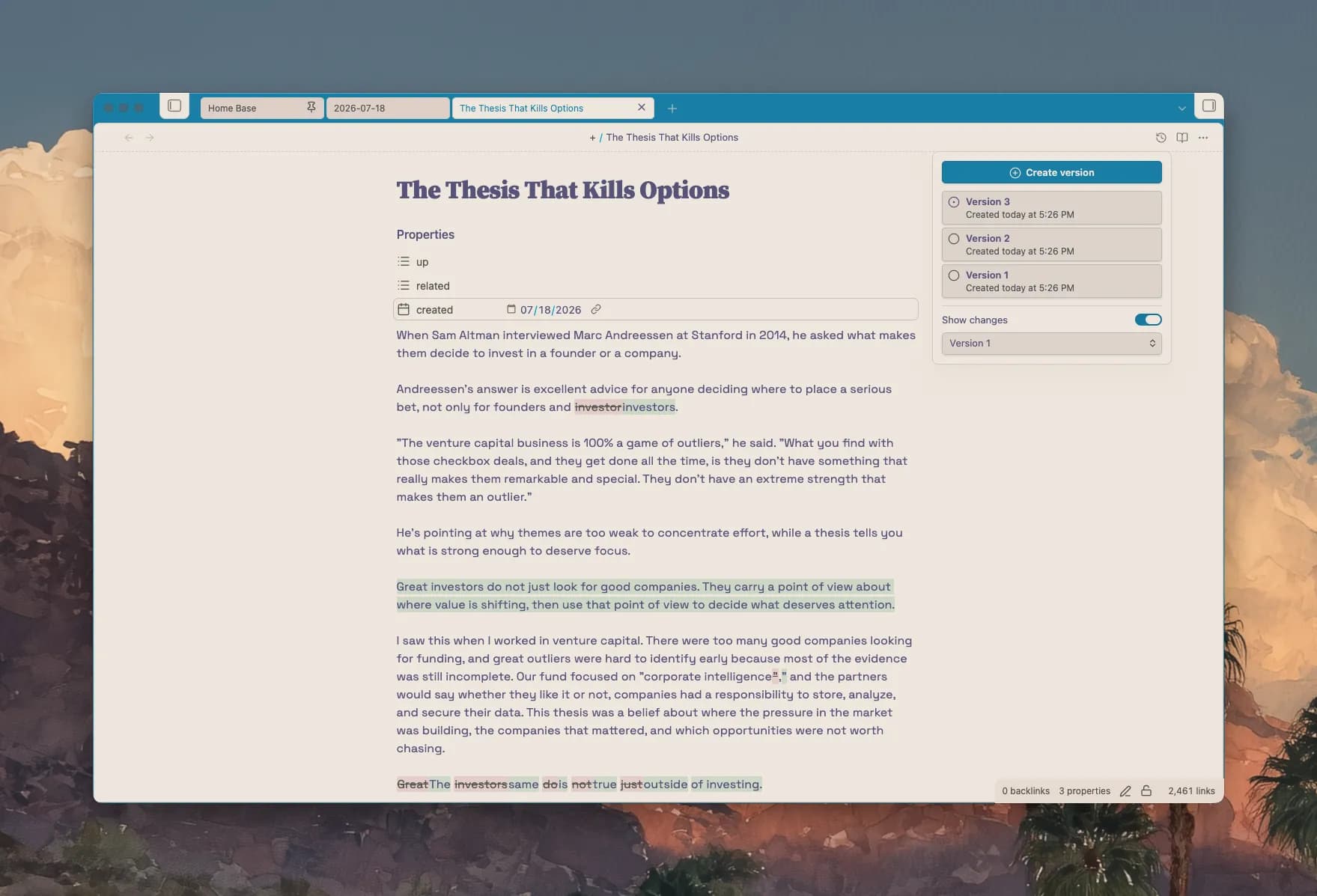

• Show changes — compare the active version against its parent (or another baseline you pick) with green additions and red strikethrough deletions, rendered inline in Live Preview
• Agent-readable format — inactive snapshots are stored as native Obsidian callouts with structured %% draftline-* %% markers, so both humans and tools can read version history without a special parser

How it works

Everything lives in one Markdown file; there is no external database, index, or network call.

1. On-disk format. The first line after frontmatter is a %% draftline-document {...} %% marker holding schema/version metadata. Every inactive snapshot is wrapped in a [!draftline-version] callout with its own %% draftline-version {...} %% marker (id, number, timestamp, parent). The active (currently editable) version is plain Markdown after its own marker, running to end of file. See File format below.
2. Parsing and mutation are pure functions. src/version-format/ parses a file's text into a VersionedDocument, validates it, and implements the operations — creating a version, switching the active version — by producing new file text. None of this touches the Obsidian API, so it's covered by unit tests in tests/version-format/.
3. The plugin wires that format into Obsidian. src/services/versioned-note-service.ts reads/writes the active file (preferring the open editor buffer so unsaved edits aren't lost) and calls into version-format to transform it. src/commands/ and src/ui/view-actions.ts expose that service as commands and a header button. src/ui/version-popover.ts is the version list / "Show changes" panel.
4. CodeMirror extensions render the result. src/editor/ adds three CodeMirror 6 extensions (src/editor/extensions.ts): a state field that holds the parsed document and diff for the current file, a decoration set that hides inactive/archived text in Live Preview and Reading View (so only the active version is shown and edited), and a decoration set that overlays word-level diff highlighting when comparison is enabled. Diffs themselves are computed on demand by src/diff/diff-model.ts (built on the diff package) and are never written to disk.
5. State refresh. src/main.ts listens for file-open, active-leaf-change, and vault modify events, re-parses the active note (debounced), and dispatches the result into the CodeMirror state field so the editor view stays in sync.

File format

YAML frontmatter is not versioned. Schema 2 stores archived snapshots as inactive callouts, then the selected version as ordinary Markdown:

---
title: Example
---
%% draftline-document {"schema":2,"latestVersionId":"v2"} %%

> [!draftline-version]
> %% draftline-version {"id":"v1","number":1,"createdAt":"2026-07-18T20:00:00.000Z","parentId":null} %%
> # Earlier draft
> Earlier body...

%% draftline-version {"id":"v2","number":2,"createdAt":"2026-07-18T21:00:00.000Z","parentId":"v1"} %%

# Current draft
Current body...

• Live Preview / Reading View: only the active plain-body version is shown and edited as normal Markdown
• Source View: the document marker, archived callouts, and active version marker remain visible
• Diffs are computed on demand; they are not stored in the file

Commands

A history icon is also added to each Markdown note header, opening the same popover.

Settings

Development

Use a dedicated disposable vault only. Never enable development builds in a primary vault.

npm ci
npm run dev

Symlink or copy this folder into .obsidian/plugins/draftline/ (folder name must match manifest.json#id).

Production gate:

npm run build
npm run lint
npm run test

Source layout, module boundaries, and the format contract are documented in docs/development.md; the release checklist is in docs/releasing.md.

Privacy

Draftline is local and offline. It does not network, self-update, or send vault content anywhere.
