CloudWeave

Cloud-storage files woven into Obsidian Canvas.

中文 · English

Browse and insert cloud storage files into Canvas — AI understands both cloud files and local notes together.

Key Features

☁️ Cloud File Integration

Browse and insert files from Aliyun, Baidu, Quark, and OneDrive directly into Canvas — without leaving Obsidian.

• Insert: Bottom toolbar button or canvas background context menu
• Track: Each node records cloud source and path, always traceable
• Read: AI can read cloud file content (PDF, text, code, etc.) on demand via read_cloud_file tool

🤖 AI-Powered Analysis

Select Canvas nodes (local notes + cloud files) and ask AI to analyze them together.

• Presets: Summarize, Explain, Find Relations
• Custom Q&A: Ask anything about selected nodes
• Context-aware: AI understands node layout, connections, and colors
• Supports: OpenAI / Gemini / Claude / Ollama

🕒 Video/Audio Timestamp

Mark timestamps in notes and jump to corresponding Canvas nodes.

• Shortcut Cmd+Shift+Space
• Click to navigate to the Canvas node at the exact second

Prerequisites

• Sync Vault plugin (cloud storage engine)
• Enable AI → MCP Server in Sync Vault settings
• Obsidian v1.5+ (Canvas feature)

LLM Configuration

The AI features support multiple providers. Configure in CloudWeave Settings → LLM Config.

OpenAI / Gemini / Claude

Local (Ollama)

Example: After starting Ollama with ollama run qwen2, set Provider to local and Model to qwen2.

Installation

1. Copy main.js, manifest.json, styles.css to .obsidian/plugins/cloudweave/
2. Enable CloudWeave in Obsidian Settings → Community Plugins

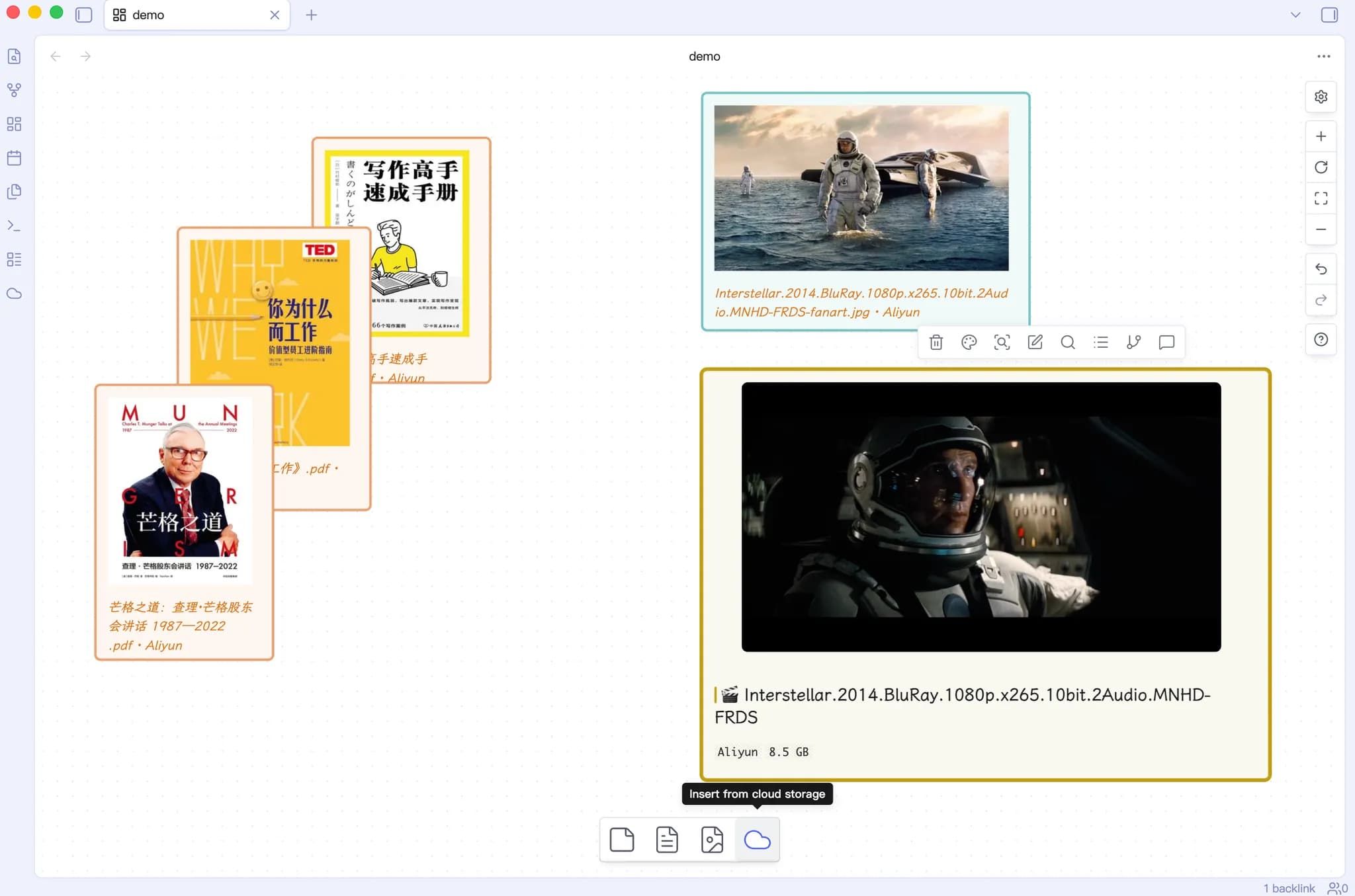

3. Open a Canvas file → Right-click → Insert from cloud storage

Development

# Install dependencies
pnpm install

# Dev build (watch)
pnpm run dev

# Production build
pnpm run build

# Deploy to vault
pnpm run deploy

Roadmap

• [P0] Cloud file insertion + AI Q&A ✅
• [P1] Audio transcription — Transcribe cloud audio/video via AI
• [P2] Web search — AI can search the web as context
• [P3] Advanced AI workflow — Custom prompts, multi-turn, tool composition

Architecture

Obsidian
├── CloudWeave Plugin
│   ├── Cloud node (cloud-link + JSON meta)
│   ├── Timestamp system
│   └── AI Q&A panel
└── Sync Vault Plugin
    └── MCP Server (Aliyun / Baidu / Quark / OneDrive)

License

GPL-3.0
