Visual Notes

A visual workspace for Obsidian — Milanote/Notion/Trello-style boards with icon tiles, a freeform canvas, kanban, tables, sticky notes, checklists, callouts, maps, colour swatches, and more. Everything is stored in a real, spec-compliant .canvas file in your vault, and boards nest inside each other and inside Obsidian's own native Canvas files too.

Features

Grid Mode

• Tiles that open folders, notes, canvases, kanban files, or nested boards
• Customise each tile's Lucide icon or emoji, background colour, label, and subtitle
• Optionally replace the icon with a cover image (Milanote-style tile thumbnail) from your vault or a URL
• Drag to reorder; right-click to edit

Templates

• 15 bundled starter templates (Brainstorm, Project Roadmap, Weekly Planner, Study Hub, Travel Planner, Fitness & Habits, and more) — pick one from New board from template to start with a populated board instead of a blank one
• Save any board as your own template via the toolbar's "···" menu or the Save current board as template command, then reuse it the same way as a bundled one
• Group templates — select any cluster of cards, right-click → Create template…, give it a name, and it becomes a reusable build you can drop onto any board from the canvas right-click menu's Templates entry. Anything can be templated: a styled header row, a meeting-notes layout, a connected diagram, a set of kanban columns
• Your own templates live in _Templates/ in the vault (group templates in _Templates/Groups/), as plain .canvas files you can inspect, rename, edit, or delete directly

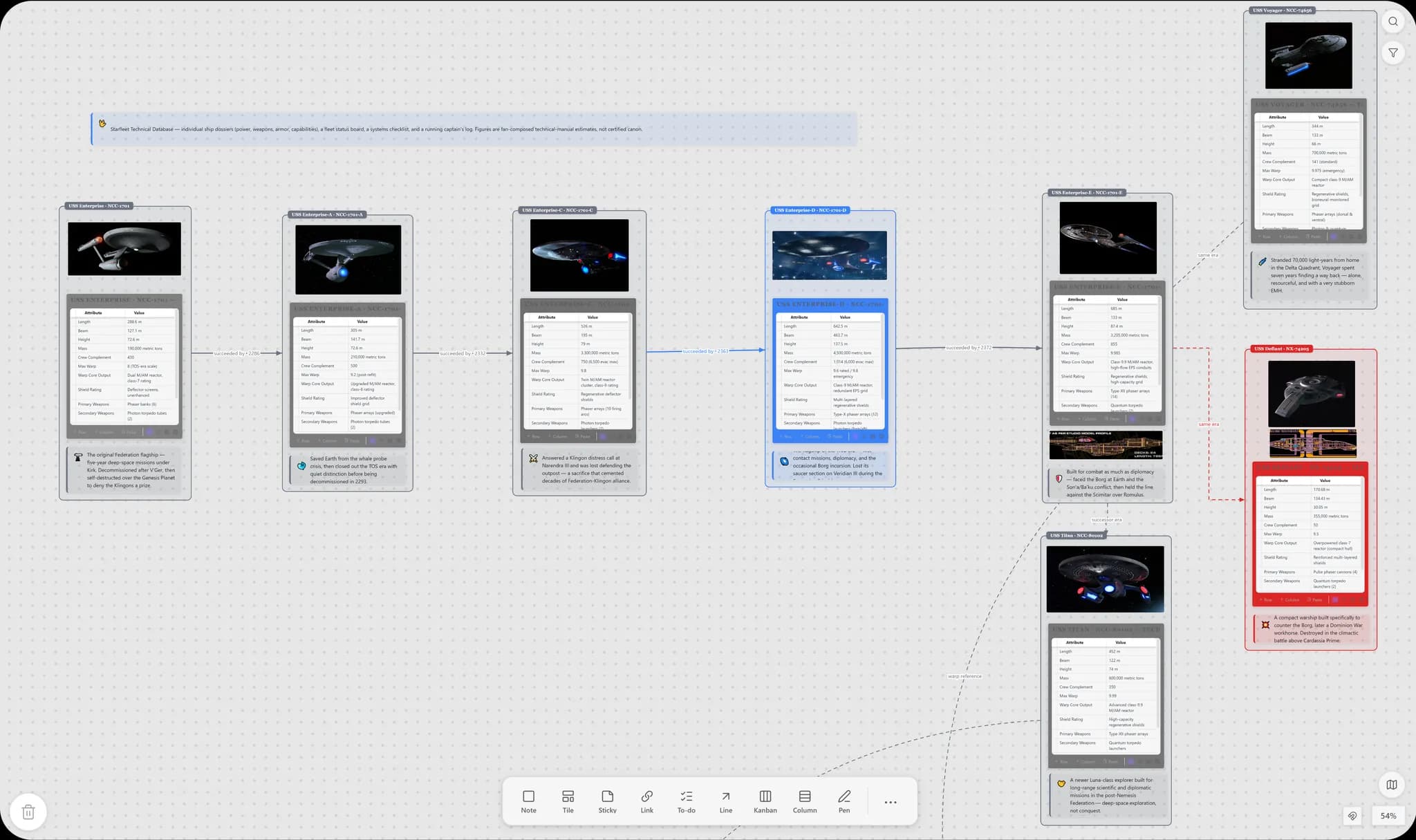

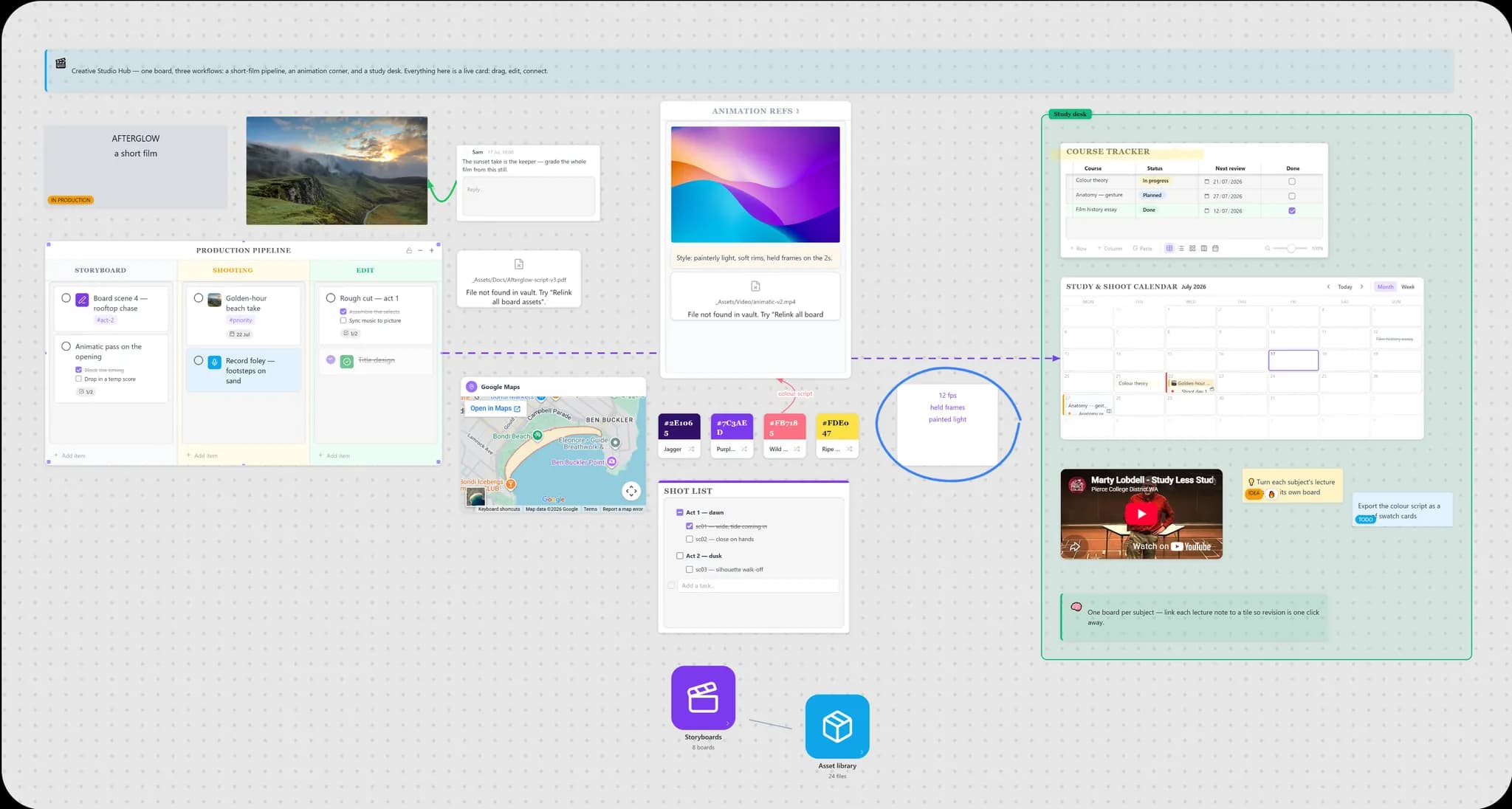

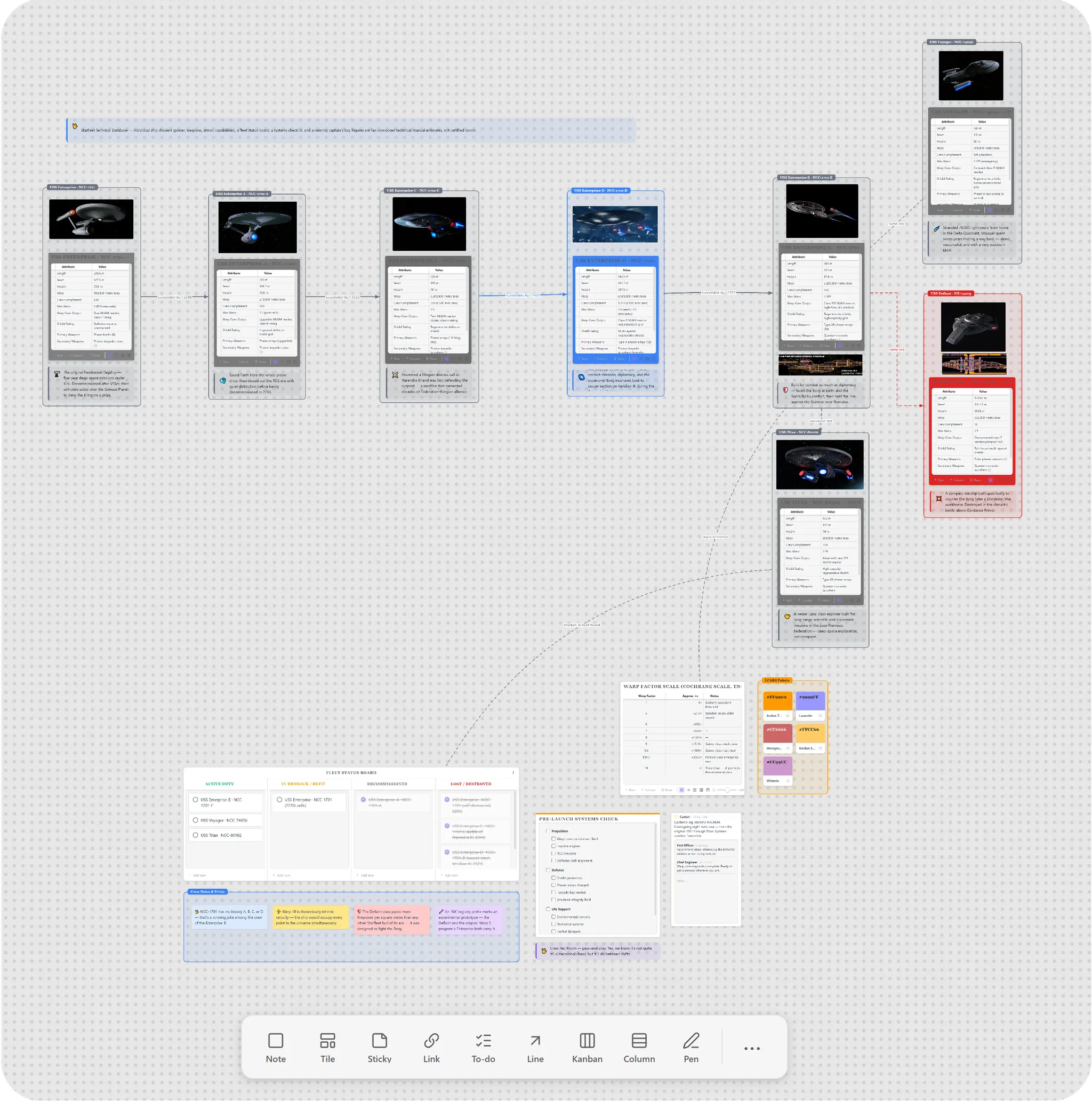

Freeform Canvas

• Edge-to-edge canvas, same as Obsidian's native Canvas — no wasted border, with the board-name/back-navigation bar floating as a small pill over the canvas instead of a full-width header
• A right-click "Add" menu and a left-hand toolbar cover every card type below, grouped into Write / Media & links / Organize
• A slash-command quick-add (/) drops a new card of any type at the cursor without leaving the keyboard
• Connections between any two cards — straight or elbow-routed, with colour, thickness, line style, arrowhead, and inline label
• Multi-select via marquee or Shift-click; group drag, alignment bar, and even distribution
• Copy/cut/paste groups with ⌘/Ctrl C, X, and V — the connections between the copied cards come with them, a selected group frame brings its contents along, and paste lands on the pointer. Works across boards, and across Obsidian windows
• Group frames — select 2+ cards and press ⌘/Ctrl G to wrap them in a native-Canvas-style labelled frame. Purely spatial (no membership list, exactly like Obsidian's own Canvas groups): drag the frame to move everything inside it, resize or delete the frame without ever touching its contents
• Resize any card by dragging any of its four corners
• Pan with middle-click (or Space + drag), zoom with the scroll wheel
• Minimap with click-to-jump and zoom-to-fit, collapsible to a floating widget
• Board-level search and a tag/type filter panel to narrow a busy board down
• Archive cards you're not using instead of deleting them, and browse/restore from the archive any time
• Drag notes, canvases, and folders straight from the file explorer onto the canvas to create tiles — dragging another Visual Notes file in creates a nested board, exactly like nesting boards in Milanote

Locking

Kanban boards, kanban columns, and generic Columns each have a padlock toggle: a locked container can't have items dragged into or out of it, but its own cards can still be freely dragged and repositioned.

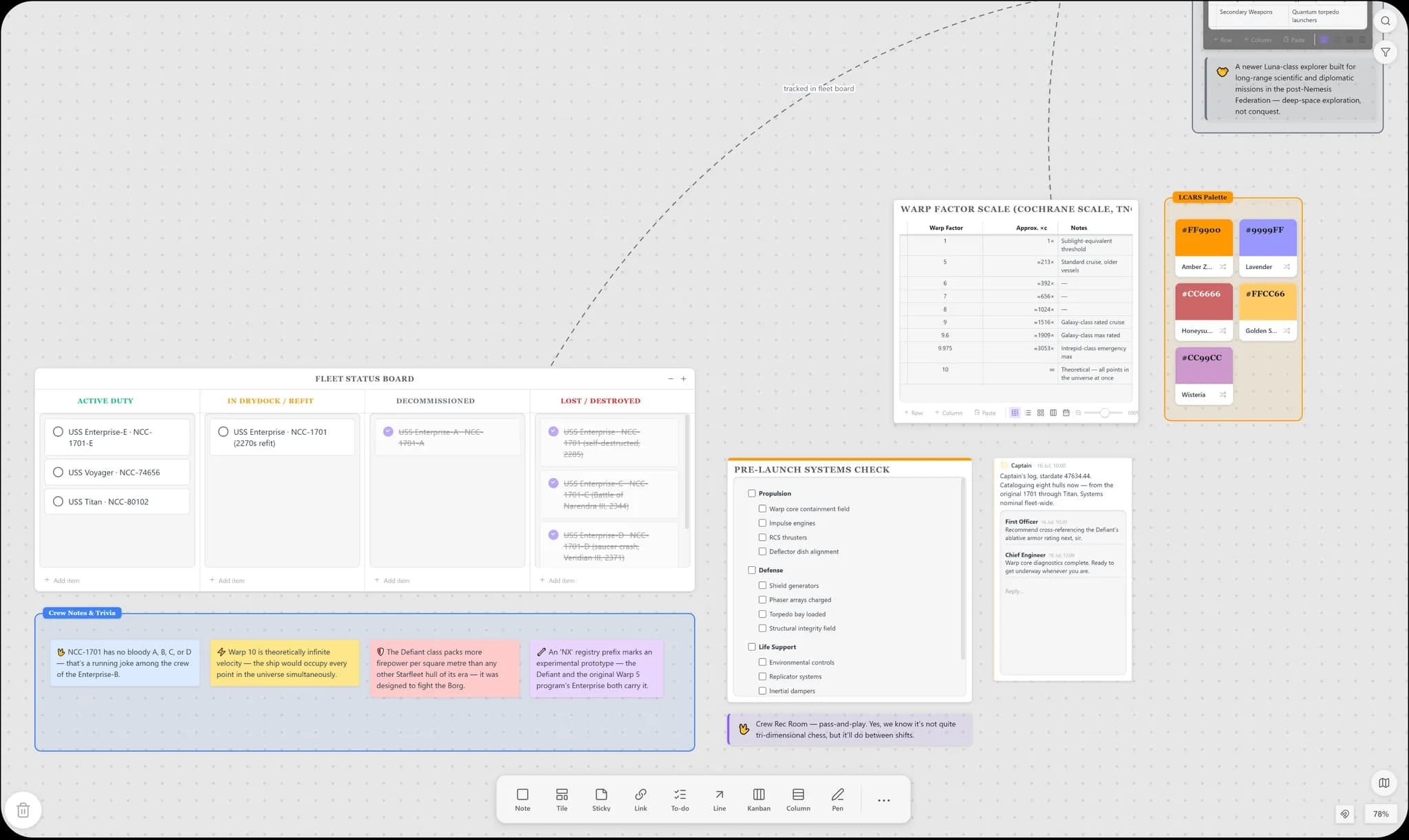

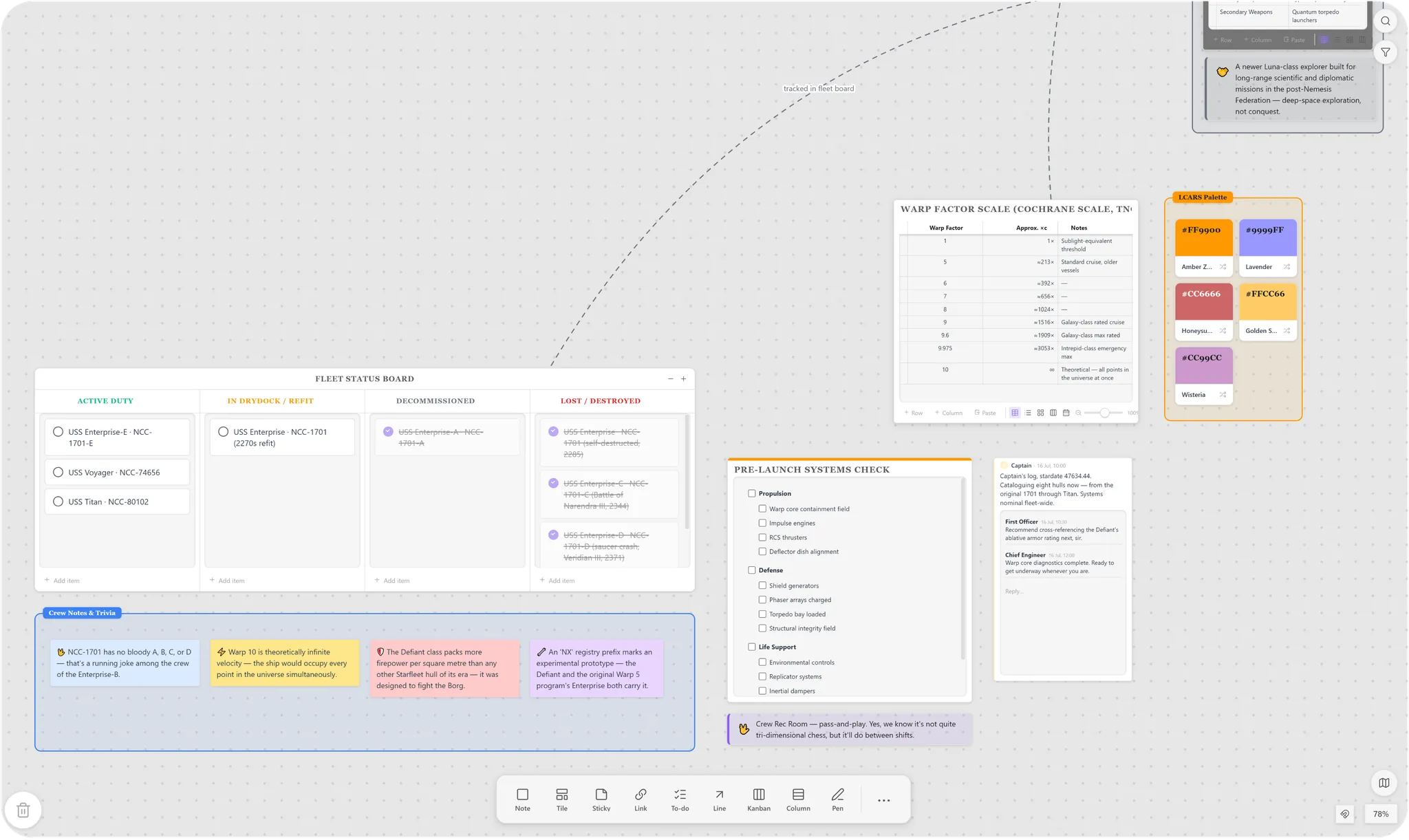

Kanban

• Multi-column boards (drag items between columns, per-column WIP limits) and legacy single-column cards
• Rich-text formatting in items (bold, italic, strikethrough, colour, highlight)
• Due dates — an amber badge when due soon, red when overdue, muted once done
• Sub-checklists inside any item
• Link items to vault notes or an external URL (a YouTube link gets an inline video-thumbnail preview); add tag pills
• Optional per-item icon/emoji badge or cover thumbnail, and a per-item background colour (Trello-label style)
• Drop images or audio files directly into a column
• Toggle the column title; set background and accent-strip colours

Tables

• Insert rows/columns anywhere; drag to reorder
• Typed columns, Notion-style: text, number, checkbox, date, or select (with coloured options)
• Column alignment and click-to-sort
• Paste from a spreadsheet — either merge into the existing grid, or use the footer's Paste button to replace the table outright (first row becomes headers, so headers never misalign)
• Google-Sheets-style cell interaction: click/drag to select a range, double-click to edit, right-click to colour a cell or range
• A zoom slider that scales cell content without resizing the card itself
• Sticky header row and virtualized rows so large pasted tables stay smooth

Sticky Notes, Checklists & Comments

• Inline rich-text editing with ⌘ B / I / U and ⌘ ⇧ S shortcuts
• Checklists support header rows to group items into sections
• Background colour and top-strip accent via the context bar colour picker

Callouts

Notion/Obsidian-style callout cards with a full emoji picker (or free-text emoji) for the icon, plus title and body text.

Columns

A generic, lockable container card for freeform grouping of tiles, sticky notes, checklists, tables, images, audio, note links, bookmarks, swatches, files, and callouts — distinct from a Group frame in that it holds an explicit list of children rather than being purely spatial.

Images, Audio & Files

• Paste images from the clipboard; drag from the file explorer or OS onto the canvas or into a kanban column
• Add from the vault or upload from disk via the toolbar
• Images display at their natural aspect ratio; toggle captions with ⌘ ⇧ C / Ctrl ⇧ C
• A generic File card for PDFs and other vault documents
• All imported files are automatically sorted into _Assets/ subfolders (see Asset Management below)

Bookmarks

Paste any URL for a link-preview card (title, description, favicon, image) fetched automatically. YouTube links get a native-style embed with a working inline play button instead of a plain preview.

Maps

Paste a Google Maps link to get a live, fully interactive embed that matches the exact view you copied — including satellite/hybrid layer and zoom level derived from the link's altitude.

Swatches

A colour swatch card showing the hex value and a nearest named-colour label. Double-click (or use the pipette button) to open the native colour picker, or right-click for a menu of approximate named palettes (Muted, Vivid, Pastel, Earth Tones, Grayscale) to generate a grid from. A reroll button in the name bar picks a new random colour.

Text

Press T (or pick Text) and click anywhere to drop bare text on the canvas — no card, border or background.

• Drag to resize the type. Text cards never wrap, so the box is exactly as wide as its longest line and dragging a corner scales the words themselves, the way resizing a drawing scales the strokes. Press Enter for a new line. There's no width limit — drag it as large as you like.
• Exact sizes on the Size button (16 / 24 / 32 / 48 / 64 / 96 / 128 px). These are the same px value a drag sets, so picking one never fights what you dragged.
• Fonts — Obsidian's Text, Interface and Monospace, so text follows whatever you've configured under Appearance → Font.
• Colour, plus the usual bold/italic/underline/highlight on any selection.

Notes are still the card for longer writing, and they gained two things of their own:

• No background — a toggle in any note's Colour panel strips its fill.
• Fonts and sizes — the same Font picker, plus eight per-card sizes (XS–4X) and per-selection sizing, so one note can carry a big heading above ordinary body text.
• Bullets — the Bullet button, or type - at the start of a line.

Text Formatting

Select any text in a sticky note, checklist, kanban item, or image caption to reveal a floating toolbar: bold, italic, underline, strikethrough, text colour (preset + colour picker), and highlight colour.

Drawing

• Freehand pen and highlighter strokes directly on the canvas, layered above cards
• Pen strokes are rendered with perfect-freehand, giving genuine pressure-sensitive tapering on a stylus/tablet (simulated from drawing speed for mouse input)
• Nearby strokes drawn in the same session are grouped into one sketch automatically; a doodle started elsewhere on the canvas gets its own group instead of merging in
• Multi-select strokes via marquee or Shift/Ctrl-click, then move, resize, recolor, or delete them as a group
• Eraser detects your swipe crossing a stroke's actual line, not just proximity to its sample points — works cleanly on straight lines, not just wobbly ones
• Full undo/redo support for every drawing action
• iPad + Apple Pencil note: if quick, small strokes (like a fast "s" or "e") intermittently fail to appear, turn off Scribble in iPad Settings → Apple Pencil. Scribble intercepts fast Pencil strokes for handwriting-to-text before they ever reach the canvas — this is a system feature web-based apps cannot override.

Asset Management

• Auto-sort: every image, audio clip, video, or document imported into a board is automatically moved to the correct subfolder in the vault root:
  • _Assets/Images/ — jpg, png, gif, webp, svg, …
  • _Assets/Audio/ — mp3, wav, ogg, flac, …
  • _Assets/Video/ — mp4, mov, mkv, …
  • _Assets/Documents/ — pdf
• Auto-relink: scan all boards and fix broken file paths when a unique filename match is found in the vault. Three ways to run it:
  • On open — toggle Auto-relink on board open in Settings to fix links silently every time a board loads
  • Settings button — Settings → Assets → Relink now
  • Command palette — Visual Notes: Relink all board assets

Keyboard Shortcuts

Installation

Community Plugin Browser

1. Open Settings → Community plugins → Browse
2. Search for Visual Notes
3. Click Install, then Enable

Manual Installation (for beta testers)

1. Download main.js, manifest.json, and styles.css from this plugin's latest release
2. In your vault, create the folder .obsidian/plugins/visual-notes/
3. Copy the three files into that folder
4. Open Obsidian, go to Settings → Community plugins, and enable Visual Notes

Usage

Opening a board

• Run Visual Notes: Open from the command palette
• Or click the layout-dashboard icon in the left ribbon

Creating your first board

1. Run Visual Notes: Create new board (or click + New board on the empty home screen)
2. A .canvas file is created in your vault root (you can move it later)
3. The board opens in grid mode — click the + button to add your first icon tile

Grid mode

• Click a tile to open its target
• Right-click a tile to edit, change icon, change colour, or delete
• Drag tiles to reorder them

Freeform canvas

• Switch to canvas mode with the toggle in the top-right corner of any board
• Right-click the canvas background to add a card, grouped into Write / Media & links / Organize
• Type / to quick-add a card at the cursor
• Pan by dragging the background, middle-clicking anywhere, or holding Space and dragging; zoom with the scroll wheel
• Right-click a card for options (edit, style, connect, lock, archive, delete)
• The toolbar on the left has one button per card type; click it or drag it onto the canvas
• Use the search and filter widgets to jump to or narrow down cards on a busy board
• Toggle the minimap to see and jump around the whole board at a glance

Connections

• Right-click a card → Connect to enter connection mode, then click a second card
• Click a connection to select it; right-click for colour, thickness, and style options

Fixing broken asset links

If you move files in the vault and board assets stop loading, run Visual Notes: Relink all board assets from the command palette. For automatic fixing every time you open a board, enable Auto-relink on board open in Settings.

Saving

Boards save automatically as you work. All data lives in the .canvas file — no external database or sync service is required.

Permissions & data access

Visual Notes only reads and writes files inside your own vault — it makes no network requests and sends no data anywhere. Two vault-wide capabilities it uses, and why:

• Vault file listing (vault.getFiles, getMarkdownFiles): needed to power the note/image/audio/file pickers (e.g. linking a note to a kanban item, choosing a cover image, auto-relinking moved assets). Nothing is read or transmitted beyond the file list itself until you pick a specific file.
• Clipboard access: used to paste images directly onto a board (Ctrl/Cmd+V) and to copy/paste cards between boards. It only reads the clipboard when you trigger a paste action inside the plugin.

Compatibility

Reporting bugs & requesting features

Found something broken, or want the plugin to do something it doesn't?

• Report a bug — the form asks for your Obsidian version, plugin version, and platform, which is usually what decides whether I can reproduce it.
• Request a feature — a good part of what's in the plugin started as somebody else's suggestion.
• Browse open issues to see what's already known or being worked on.

Two things worth checking before you file:

• Toggle the plugin off and on after an update. Obsidian doesn't always load a new version straight away, so an already-fixed bug can look like it's still there.
• On iPad, if Apple Pencil strokes vanish, check whether iPadOS Scribble is enabled (Settings → Apple Pencil → Scribble). It intercepts fast strokes before the plugin sees them.

How this is built

Visual Notes is built with heavy AI assistance. Most of the code is written by Claude; I direct it, test it, and decide what ships.

I'm saying so up front because "who actually maintains this, and will it still work in six months" is a fair question to ask of any plugin, and a fairer one when AI is involved. The honest answers:

• Every release is tested in my own vault — desktop and iPad — before it goes out.
• The test suite runs on every build: 518 tests, including regressions written for specific bugs people reported, each verified by reintroducing the bug and confirming the test catches it.
• The changelog records every release and what prompted it. Most entries started as a user report.
• Bugs get fixed. Open an issue and you'll get a reply.

And the part that matters most if you're weighing the risk: your boards are plain .canvas files in your own vault, in Obsidian's own spec-compliant format. They open in the built-in Canvas view whether this plugin is installed or not. If it were abandoned tomorrow, nothing you built with it would be locked up or lost — which is a deliberate design decision, not a happy accident.

Development

git clone https://github.com/dandersondev/visual-notes.git
cd visual-notes
npm install
npm run dev        # watch mode — rebuilds on save
npm run build      # production build

Copy or symlink the folder into <vault>/.obsidian/plugins/visual-notes/, then enable the plugin in Obsidian.

Credits

Visual Notes began as a fork of Icon Board by RK-Media, used under the MIT licence. Thanks to them — the icon-tile board it started from is still the idea at the centre of this plugin.

It has diverged substantially since. The largest change is the storage format: Icon Board keeps a board in its own .iboard file, while Visual Notes writes Obsidian's spec-compliant .canvas format, so boards open in the built-in Canvas view and nest inside each other. Most of what's listed above — tables, columns, group frames, calendars, connections, pen and highlighter drawing, templates, and export — was written for this plugin. If you want the original, simpler icon-tile board, Icon Board is still there and worth a look.

License

MIT — © 2025 RK-Media and © 2025 Daniel Anderson

Pen strokes are rendered with perfect-freehand by Steve Ruiz (MIT license).
