✨ Why Speakflow?

Most dictation tools make you wait until you stop talking, then dump a wall of text. Speakflow streams text into your note while you speak, exactly at your cursor, in the order you said it. It also knows the difference between speech and breathing, wind or a fan, so you don't get phantom "Hello" or "Thank you" sentences in your notes.

It was built with right-to-left and multilingual writers in mind. Persian, Arabic and mixed-language dictation work in their native scripts, and shortcuts use physical keys, so they keep working when you switch keyboard layouts.

🚀 Features

🎤 Live dictation at the cursor

• Text streams into your note as Gemini generates it, in strict speaking order, even though several segments are transcribed in parallel.
• Text is inserted wherever your cursor is at that moment, not where you started recording. Click elsewhere in the note while dictating and the next phrase follows you.
• After each insertion the cursor moves to the end of the new text, so the next phrase continues naturally. A selection is never overwritten.
• Smart spacing is added automatically between consecutive phrases.
• A small ⏳ hourglass at the cursor shows when audio is being transcribed.
• If no editable note is open (closed, or in Reading view), the transcription is copied to your clipboard instead of being lost.
• Works in both Live Preview and Source mode.

🌍 126 languages

• Auto-detect (recommended) or pick a spoken language.
• Quick access to: English, Persian (فارسی), Arabic (العربية), Turkish, Azerbaijani, Russian, Chinese, Japanese, Korean, Hindi, German, French and Spanish.
• A "More languages" row expands the list with ~110 more, each shown with its native name.
• Transcription is verbatim and in the original script (Persian stays in Persian script, never Latin transliteration). Nothing is translated, summarized or "improved".
• Natural punctuation is added automatically.

🧠 Ask AI: talk to Gemini about your notes

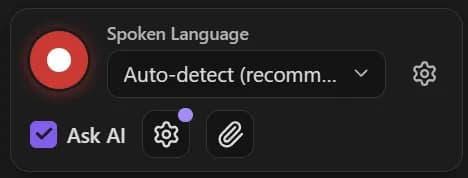

Tick Ask AI under the record button and the panel turns into a voice assistant:

1. Press the red button and speak your question.
2. Press Pause. Your question goes to Gemini as audio.
3. The question is transcribed and the answer streams into an answer box under the panel, rendered as Markdown.

Details:

• Works without an open note. Nothing is typed into your document in this mode.

• Conversation memory. Follow-up questions keep context (the last 6 turns). A new Ask AI session starts a fresh conversation.

• Answers in the language you spoke.

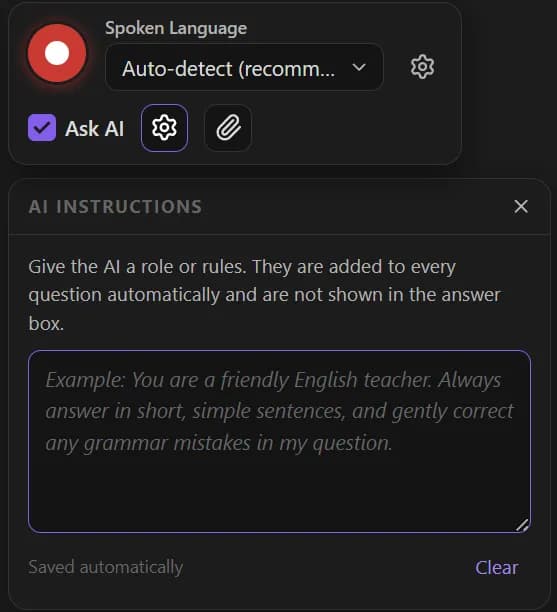

• Standing instructions (⚙️ next to Ask AI): up to 2,000 characters of role and rules applied to every question, e.g. "You are a friendly English teacher. Answer in short sentences and gently correct my grammar." Saved automatically, with a one-click Clear.

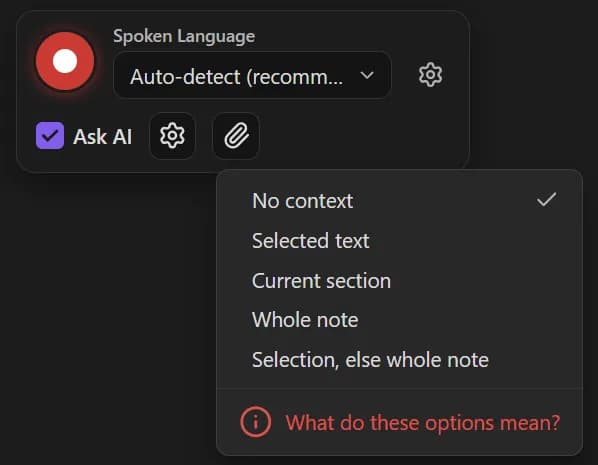

• 📎 Note context. Choose what part of your note is sent along with the question:

  Option	What is sent
  No context (default)	Nothing from your note
  Selected text	Only the text you highlighted
  Current section	The heading section under your cursor, including sub-headings
  Whole note	The entire note (cut at ~100,000 characters, and you're told when that happens)
  Selection, else whole note	Automatic: selection if there is one, otherwise the whole note

• A context chip above each question shows exactly what was sent (for example Section "Tasks" of "Meeting" · 214 words).

• Note content is explicitly treated as reference data, never as instructions.

• Copy the last answer with one click. A question is sent automatically after 5 minutes of recording.

🔇 Speech-vs-noise gate

Breathing into the mic, wind and fan noise are loud but are not speech, and models tend to invent a greeting for them. Speakflow filters them out before anything is sent:

• Adaptive noise floor: voice must be clearly louder than the estimated background level.
• Pitch detection: audio is analysed in 32 ms frames using a 150 Hz high-pass filter and normalized autocorrelation. Vowels are periodic; noise isn't. A segment needs about 130 ms of consistently pitched speech to be sent.
• Hallucination filter: when evidence of speech is weak, lone greeting-style answers ("hello", "thanks for watching", "سلام", "ممنون", …) are discarded.
• Tail keeping: the last 0.3 s of a dropped segment is kept, so the start of the next word isn't clipped.
• Whispering? Set "speechGate": false in the plugin's data.json to turn the gate off.

⚡ Live update speed

Choose how often speech is cut and sent. Faster feels more live, slower gives Gemini more context.

Free API keys have a per-minute request limit. If you see 429 errors, pick a slower mode.

⌨️ Fully customizable shortcuts

Set separate keys for Start, Pause/Resume and Stop, all captured by clicking a box and pressing the keys.

• Regular combos such as Ctrl+Alt+R.
• Modifier-only chords such as Ctrl+Alt: hold, then release.
• Standalone keys such as F9, Pause, ScrollLock or media keys.
• Uses physical key codes, so it works the same on Persian or any other layout.
• Duplicate detection, and a warning for Ctrl+Shift / Alt+Shift (Windows uses them to switch keyboard language).
• Smart context: Start also resumes when paused; Pause and Stop only act while recording, so they never steal normal keystrokes.

🎛️ Floating panel

• Draggable, always on top, position remembered, and kept inside the window.

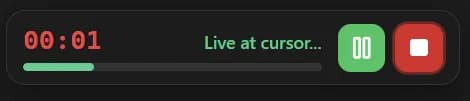

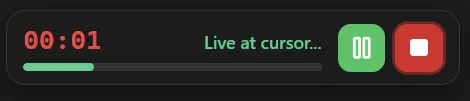

• While recording: timer, live status (Live at cursor…, Transcribing…, Paused, Nothing recognized), a microphone level meter, and Pause / Stop buttons.
• Pause instantly sends what you've said so far, then ignores audio until you resume. Stop ends the session, releases the mic, and cancels anything still in flight. Text already written stays.
• Show or hide the panel from the ribbon 🎙️ icon.

🛡️ Reliability

• Streaming over SSE with automatic fallback to a standard request if streaming isn't available.
• Auto-retry (up to 3 attempts, with backoff) on rate limits, server errors and network failures. It never retries after partial text was written, so nothing gets duplicated.
• Friendly errors for 401/403 (bad key), 404 (model not found) and 429 (rate limit).
• Microphone picker with refresh, plus automatic fallback to the system default if your chosen mic is unplugged.
• Warns you if you picked Stereo Mix / loopback (it records computer playback, not your voice).
• Warns you if no sound reaches the microphone after ~6 seconds.
• Connection warm-up: the HTTPS connection to Google is opened as recording starts, so the first phrase appears faster.

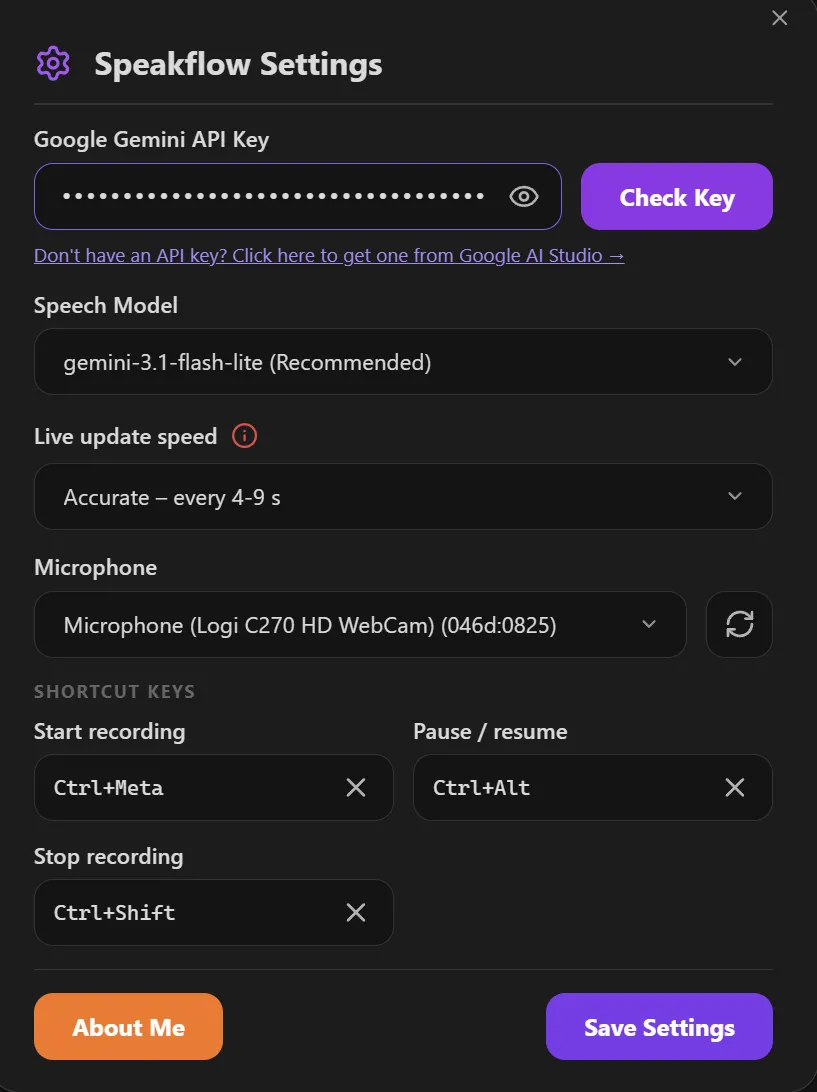

🔑 Guided setup

• First launch opens a settings window straight away, so the key comes first.
• Check Key verifies your key against Google and lists the models it can use. The remaining settings unlock only after verification.
• Changing the key locks the other settings until it's re-verified.
• After first setup, the panel appears in the middle of your screen.
• Settings are available from the ⚙️ on the panel and from Obsidian's settings tab.

📦 Installation

Manual install

1. Download or clone this repository.
2. Create the folder <your-vault>/.obsidian/plugins/speakflow/.
3. Copy main.js, manifest.json and styles.css into it.
4. In Obsidian, open Settings → Community plugins, refresh the list, and enable Speakflow.

There is no build step: the plugin is plain JavaScript.

Requirements

• Obsidian 1.5.0+ on desktop (the plugin is desktop-only).
• A Google Gemini API key. You can create one for free in Google AI Studio.
• A working microphone, with Obsidian allowed to use it in your OS privacy settings.

🏁 Quick start

1. Enable the plugin. The settings window opens automatically.
2. Paste your Gemini API key and click Check Key.
3. Choose your model, speed and microphone, then click Save Settings.
4. Click inside a note, press the red button, and start talking.
5. Press Pause to flush what you've said so far, or Stop to end the session.

⚙️ Settings

Spoken language, Ask AI, standing instructions and note context are controlled directly from the floating panel.

🧭 Commands

All commands are available from the command palette and can be bound to hotkeys in Obsidian.

🔒 Privacy & security

• Your audio goes straight from your computer to Google's Gemini API, using your own API key. There is no Speakflow server in between.
• Note content is sent only in Ask AI mode, and only if you choose a note-context option. The first time you do, you must explicitly confirm. With No context, nothing from your notes ever leaves your machine.
• Audio is captured only while recording and is released as soon as you press Stop.
• Your API key is stored locally in the plugin's data.json inside your vault, in plain text. Don't sync or share that file publicly. data.json is already in this repo's .gitignore.
• Google's own data-handling terms for the Gemini API apply to what you send.

🛠️ How it works

Microphone ─► AudioContext (16 kHz mono) ─► block analysis
                                              ├─ adaptive noise floor (RMS)
                                              └─ pitch detection (autocorrelation)
                                                      │
                          segment cut at natural pauses (per speed preset)
                                                      │
                     16-bit PCM WAV ─► Gemini streamGenerateContent (SSE)
                                                      │
        parallel jobs, written strictly in speaking order ─► editor cursor

• Audio is captured as raw PCM (not MediaRecorder/WebM). Every segment is a complete, self-contained 16-bit WAV, which Gemini can always decode.
• Transcription runs with temperature: 0 and thinking minimized on Gemini 2.5/3 Flash models, since transcription doesn't benefit from it and thinking tokens would eat the output budget.
• The prompt demands verbatim output in the original script, forbids translation, summaries and invented greetings, and tells the model to output nothing for non-speech audio.
• Outputs like [silence] or No speech are cleaned out before reaching your note.
• The pending-text indicator is a CodeMirror 6 widget decoration. If CodeMirror isn't available, the indicator is simply disabled.

🩺 Troubleshooting

Debug logs in the developer console are prefixed with [GVD] / [Speakflow].

🗂️ Project structure

speakflow/
├── main.js         # Entire plugin (plain JavaScript, no build step)
├── manifest.json   # Obsidian plugin manifest
├── styles.css      # Panel, modal and answer-box styling
└── .gitignore

🤝 Contributing & contact

Ideas, bug reports and pull requests are welcome. Please open an issue or reach out directly:

• LinkedIn: linkedin.com/in/tavakoliian
• Telegram: @tavakoliian
• GitHub: github.com/tavakoliian

Built by Amir Tavakolian.
