Radar

This plugin helps to answer the question: "What's on your radar?"

Visualize your notes and ideas on a radar. Group them by topic, prioritize by proximity to the center, and keep focus when juggling multiple areas at once. Do not lose sight of items that might be hiding good opportunities.

Example usage

• Prioritize your initiatives — quickly glance at what's important to focus on right now. Place active work near the center and keep an eye on what's on the horizon without losing track of it.
• Technology Radar — communicate to your engineering team what technologies to adopt, trial, hold, or avoid, organized by category (languages, tools, platforms, techniques).
• Personal knowledge management — track topics you're actively researching, want to explore, or are letting go. Keep your curiosity organized without forcing every idea into a rigid hierarchy.
• Project portfolio — maintain a bird's-eye view of all your projects. Spot which ones are drifting to the periphery before they stall out completely.

Still not sure? Use the skill and ask your assistant in your vault to come up with an something. Here's a sample prompt:

Create a Radar file to prioritize my projects, available in the @Projects/ folder. The categories I want are Engineering, Marketing, Backoffice and Product. For each note and based on their content, create a blip, put them on the right quadrant and suggest a priority level. Create the file as Project Focus.radar.

Features

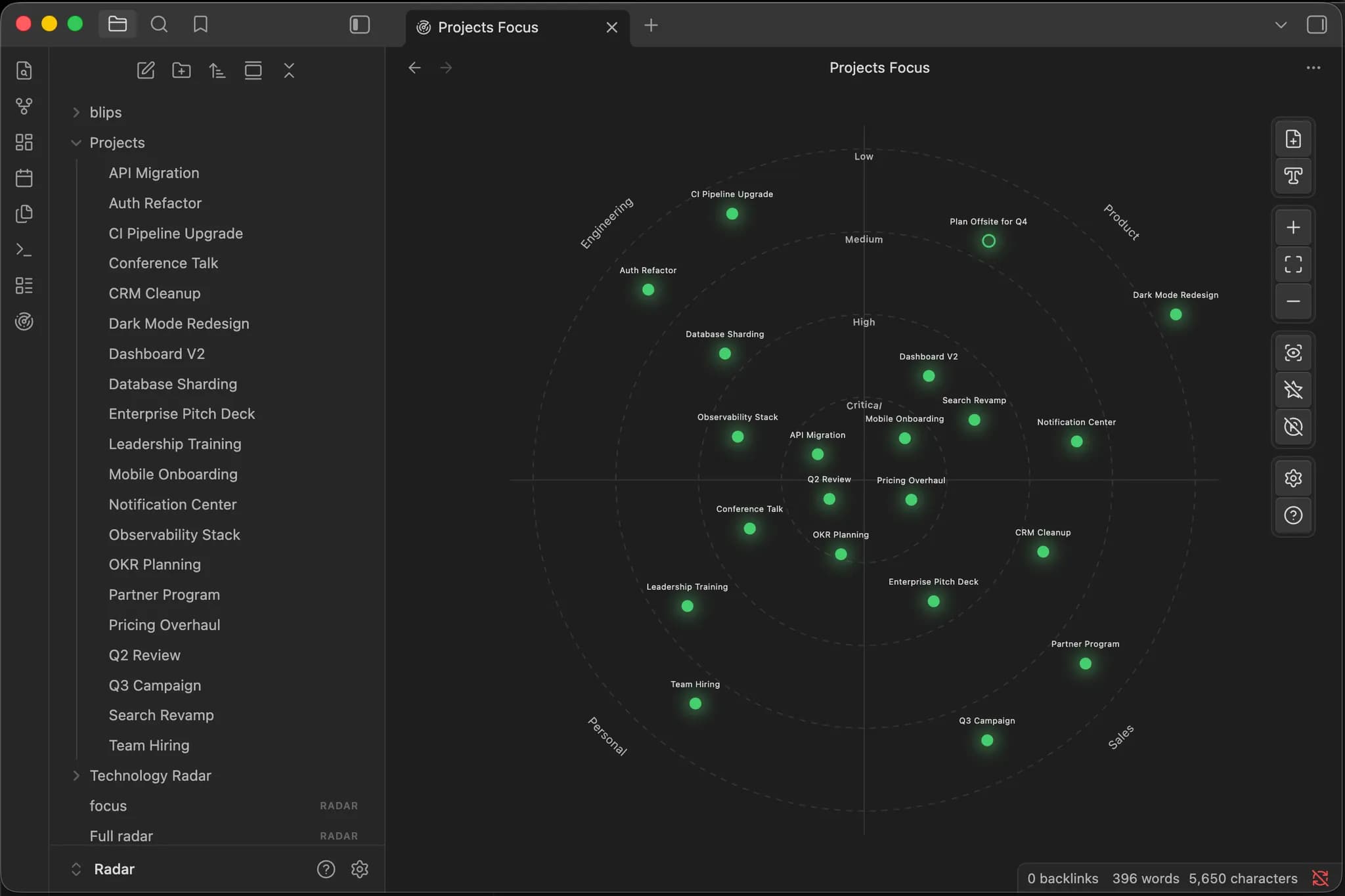

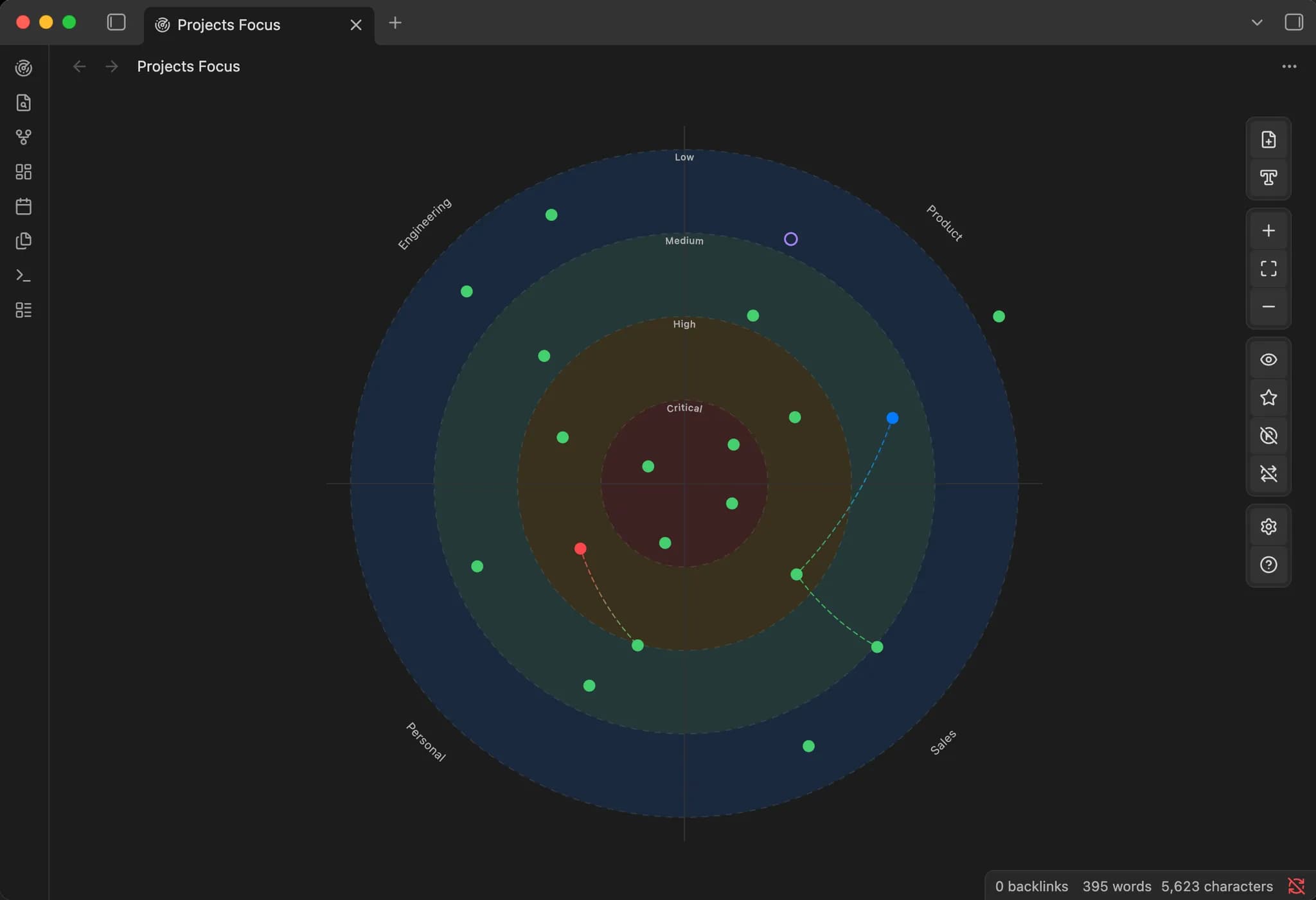

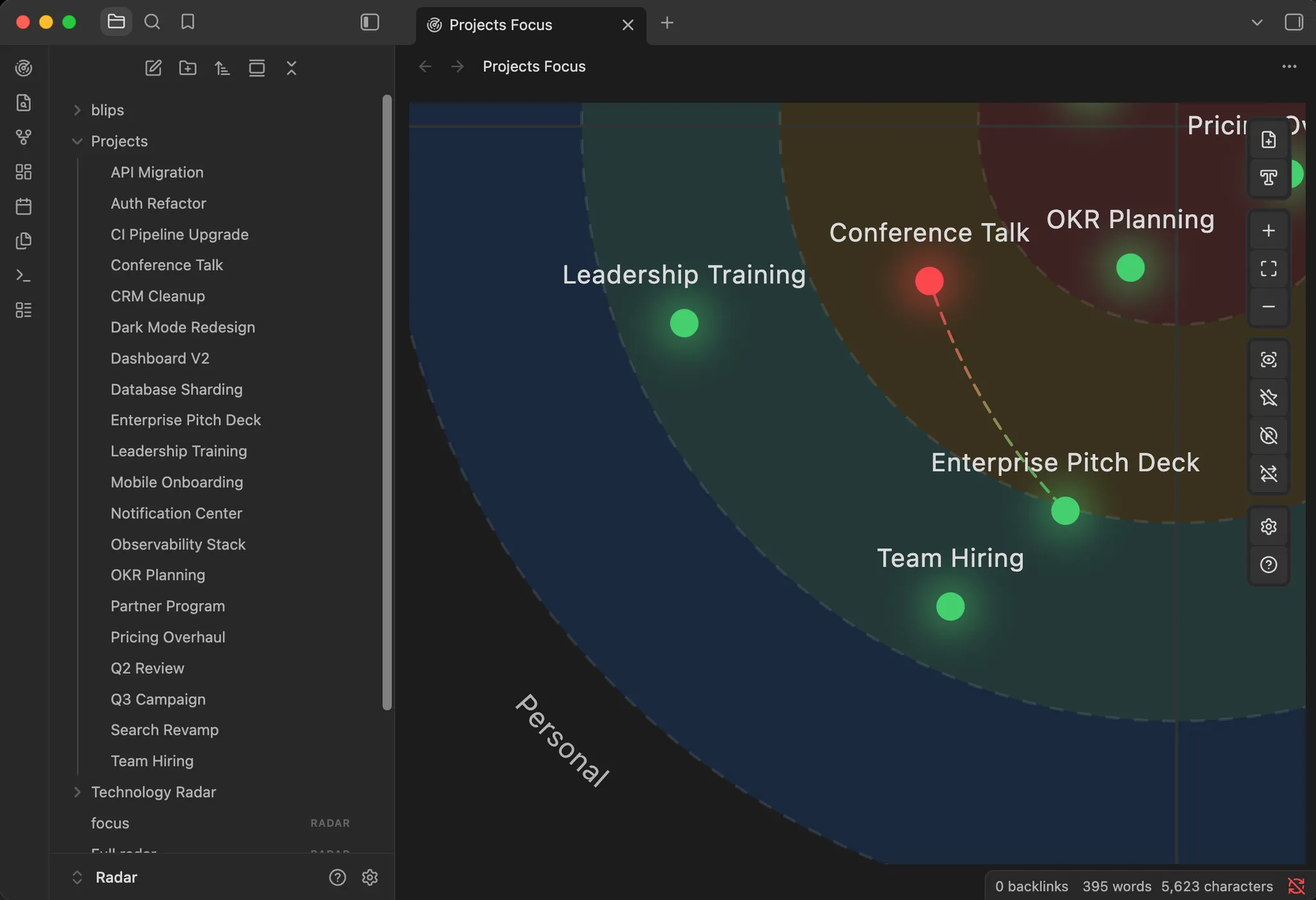

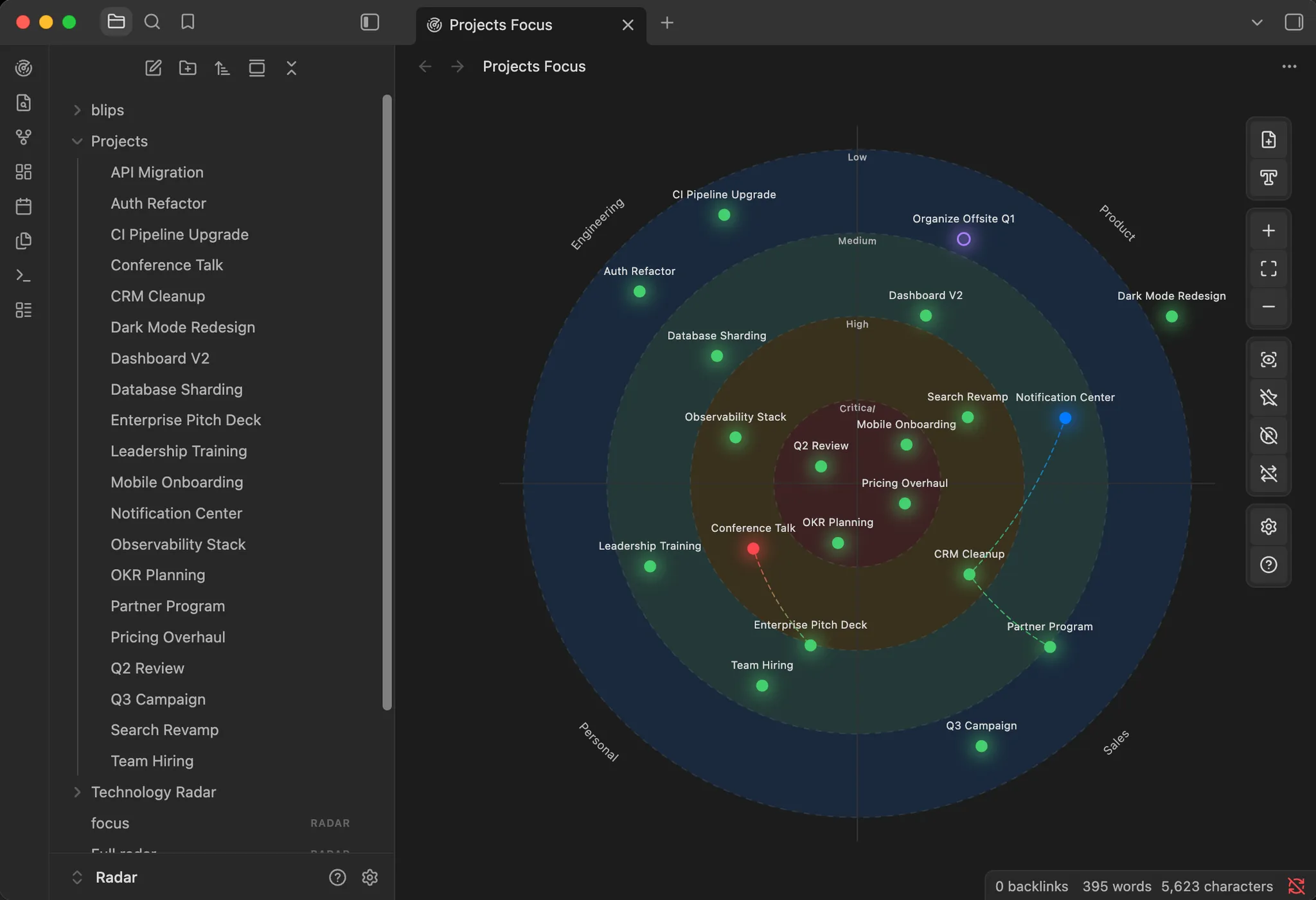

• Radar visualization — items (blips) are placed on a radar divided into concentric priority rings and category segments; drag, pan and zoom freely
• Two blip types — link a blip to a vault note, or create a standalone text blip
• Priority levels — 1–8 configurable levels; the closer to the center, the higher the priority
• Category segments — 3–8 configurable segments to group blips by topic or area
• Convert text blip to note — promote any text blip to a linked vault note in one click
• Easy to use — drag notes from the file explorer directly onto the radar, access notes easily

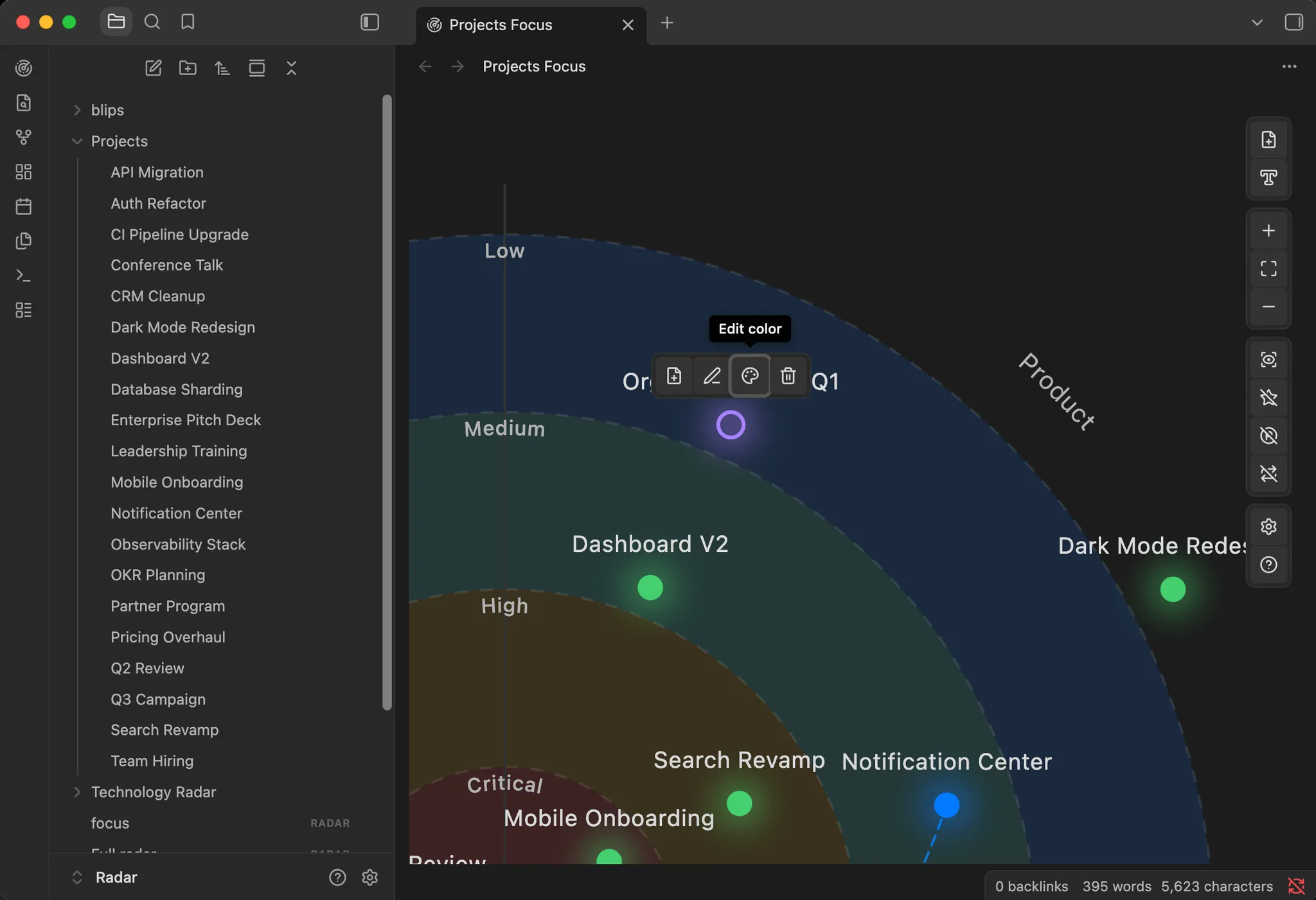

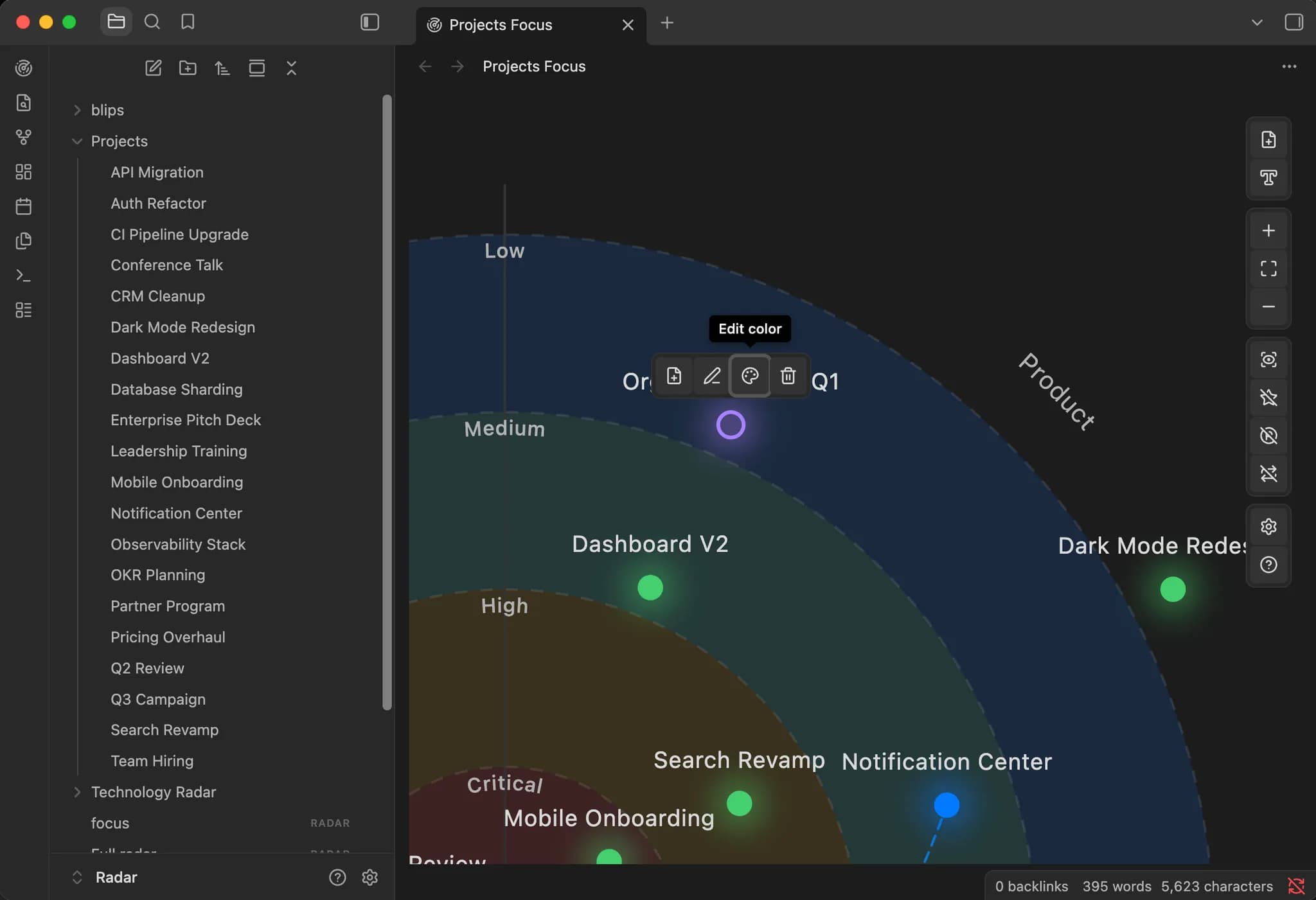

• Customizable — set colors per priority level, per category, and per blip; adjust blip size and label font size. Add new categories and priority levels without changing blip prioritization. Support multiple visualization modes.
• Command palette — all major actions are available as commands so you can setup global keyboard shortcuts
• Mobile app supported
• Support for AI Workflows: use the obsidian-radar skill to create and maintain radars from your Obsidian AI-enabled vault.

JSON Radar Spec

.radar files are stored as UTF-8 JSON in your vault. The format is self-contained — rings, segments, blips, and display settings are all in a single file. This makes radars portable, version-controllable, and easy to generate or modify programmatically (e.g. from an AI workflow or a script).

See docs/JSON-radar.md for the full spec.

Installing

Plugin: From the Obsidian community plugins browser

Unfortunately, the review process of new Obsidian plugins is taking many months and installing via Obsidian Community Plugins is not an option at the moment. See the submission PR status.

As an alternative, you can use one of the two methods below.

Plugin: Via BRAT (Beta Reviewers Auto-update Tool)

BRAT lets you install plugins that are not yet in the community plugin browser.

1. Install and enable the BRAT plugin from the Obsidian community plugins browser
2. Open Settings → BRAT and click Add Beta plugin
3. Enter lfcipriani/obsidian-radar and click Add Plugin
4. BRAT will install the latest release; enable the plugin in Settings → Community plugins

Plugin: Manual installation

1. Download main.js, manifest.json, and styles.css from the latest release
2. Create a folder at <your vault>/.obsidian/plugins/obsidian-radar/
3. Copy the three files into that folder
4. Open Settings → Community plugins, find Obsidian Radar in the list, and enable it

AI Skill: obsidian-radar

For an easy install from terminal, using skills.sh:

npx skills add lfcipriani/obsidian-radar

Alternatively, you can copy the skill content available in the skill folder and use your AI platform guide to install it.

Contributing

Contributions are welcome. Here is how to get started:

Prerequisites: Node.js 18+ and npm

# 1. Fork this repository, then clone your fork
git clone https://github.com/<your-username>/obsidian-radar.git
cd obsidian-radar

# 2. Install dependencies
npm install

# 3. Start the development build in watch mode
npm run dev

To test the plugin live, symlink (or copy) the repo folder into your test vault:

<your vault>/.obsidian/plugins/obsidian-radar -> /path/to/obsidian-radar

Then enable the plugin in Settings → Community plugins. After each change, run Reload app without saving in Obsidian (or use the Hot Reload community plugin).

Other useful commands:

npm run build   # production build
npm run lint    # run ESLint on src/

Please open an issue before starting work on a large change so we can discuss the approach first.

Thanks for using it, if you like it, you can send your support!
