Mermaid Nixie

An Obsidian plugin that sets how Mermaid diagrams are laid out across your vault: the ELK layout engine with right-angle edges, plus spacing settings.

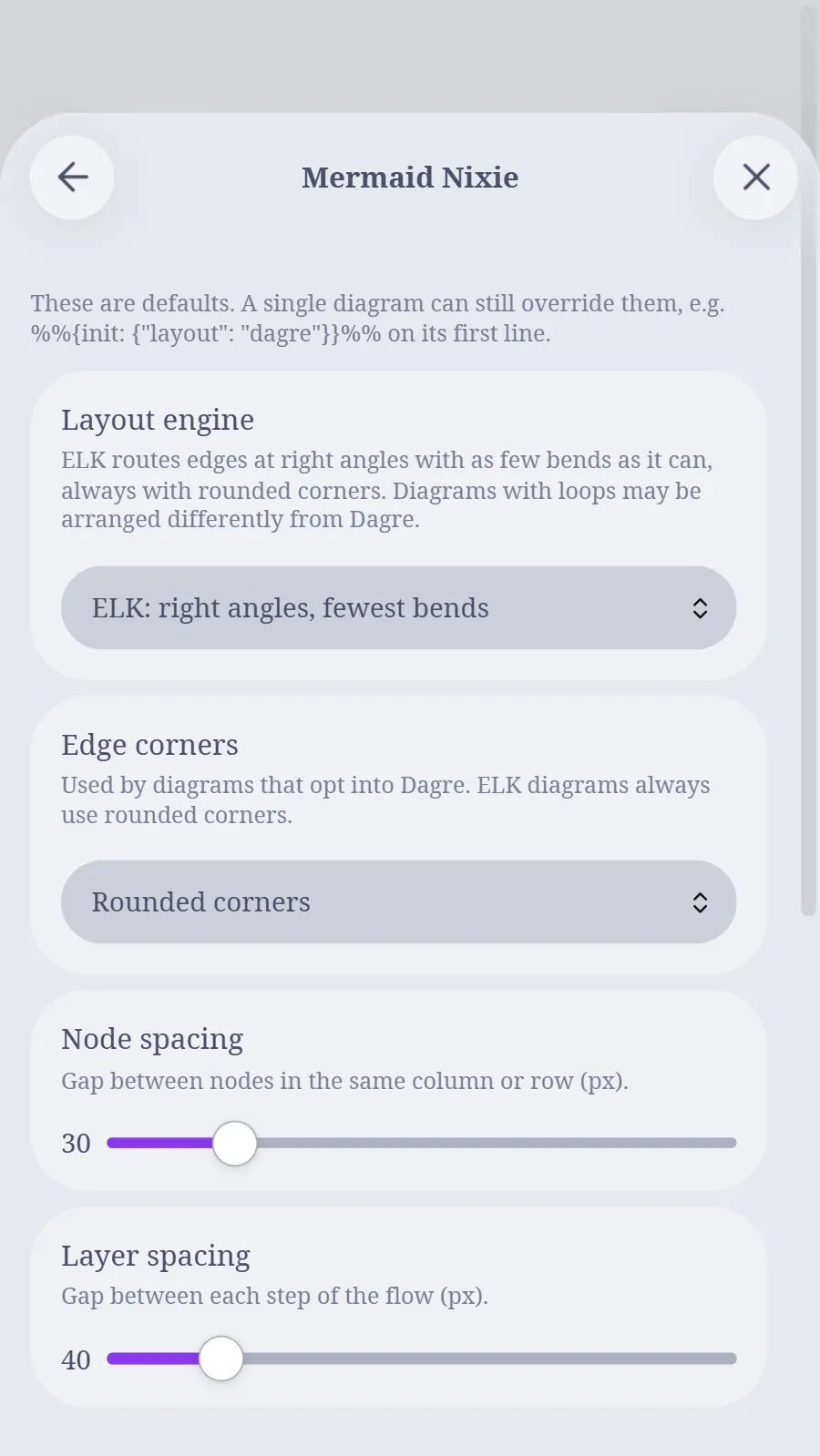

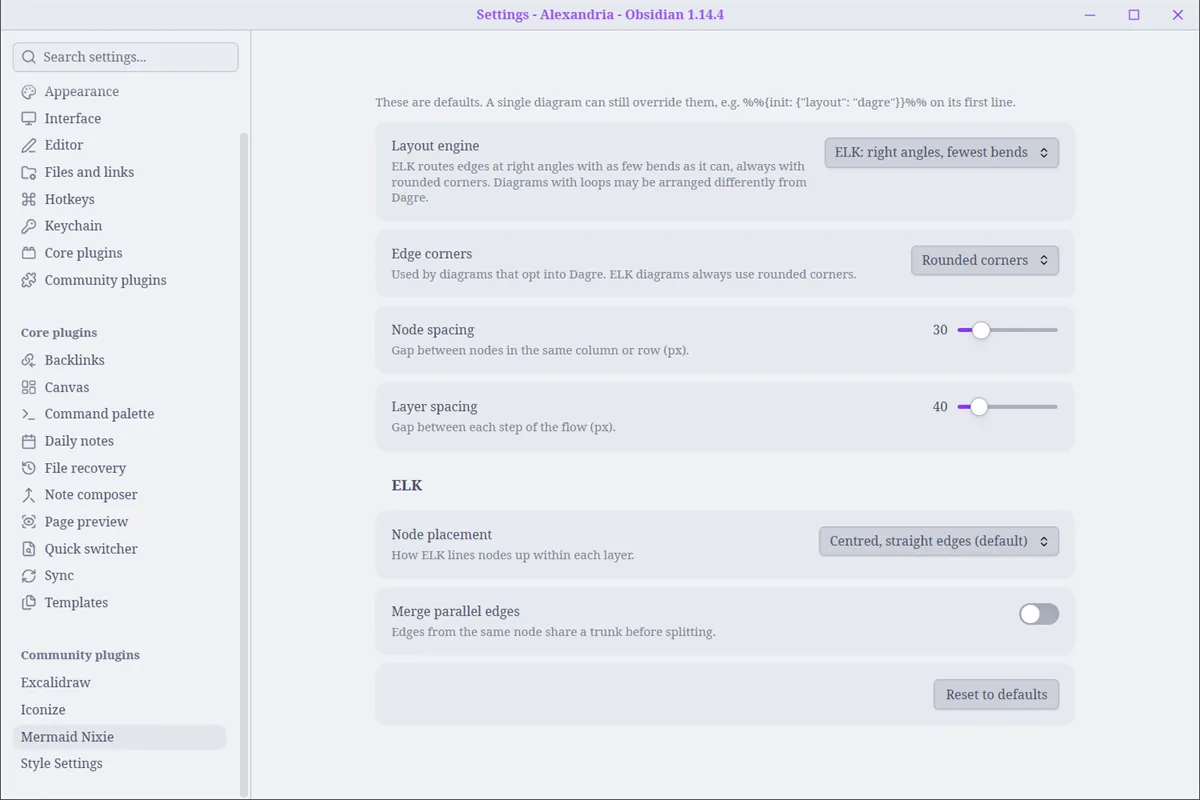

Features

• Layout engine: ELK (right angles, fewest bends) or Dagre (Mermaid's default).
• Edge corners: rounded, sharp, step, or one of the smooth curves (for diagrams that use Dagre).
• Node spacing and layer spacing sliders, which also apply to ELK (Mermaid's own ELK integration ignores them).
• ELK node placement: centred by default (NETWORK_SIMPLEX), so parents sit over their children.
• Merge parallel edges toggle.
• A command to re-render diagrams in open notes.

These settings are only defaults. A single diagram can still override them on its first line:

%%{init: {"layout": "dagre"}}%%

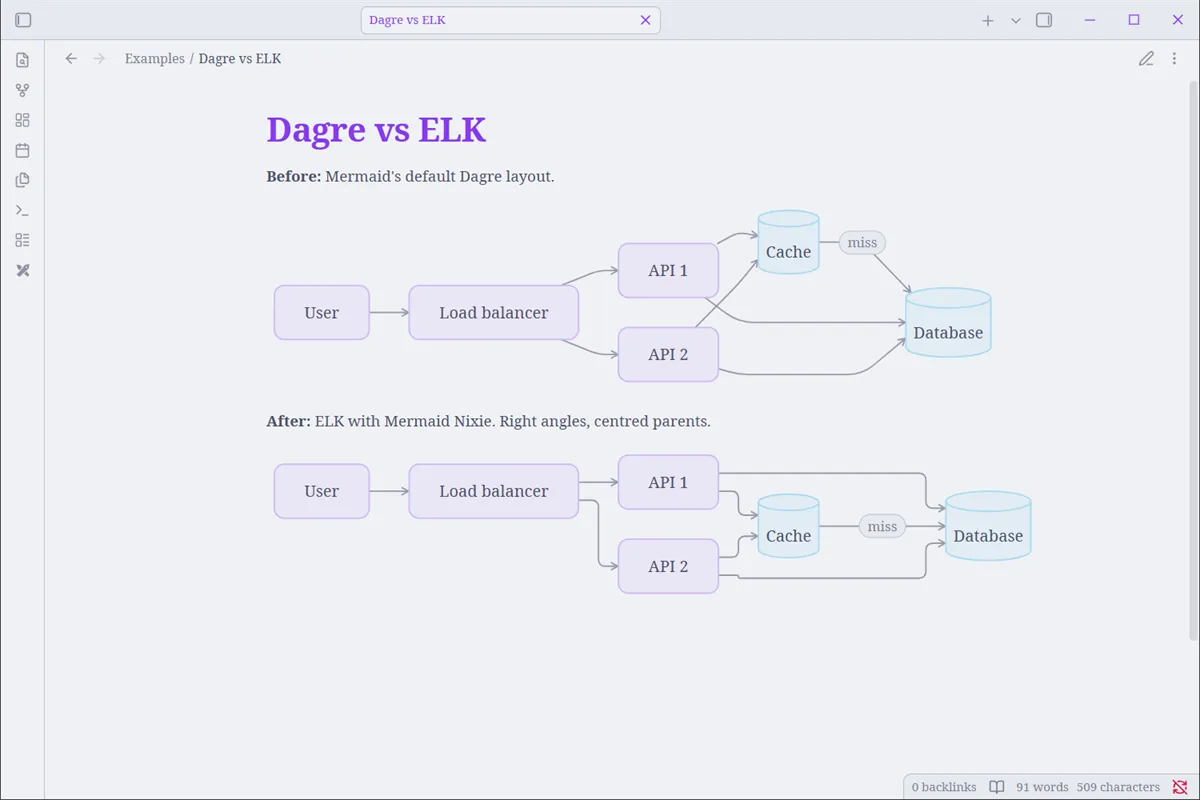

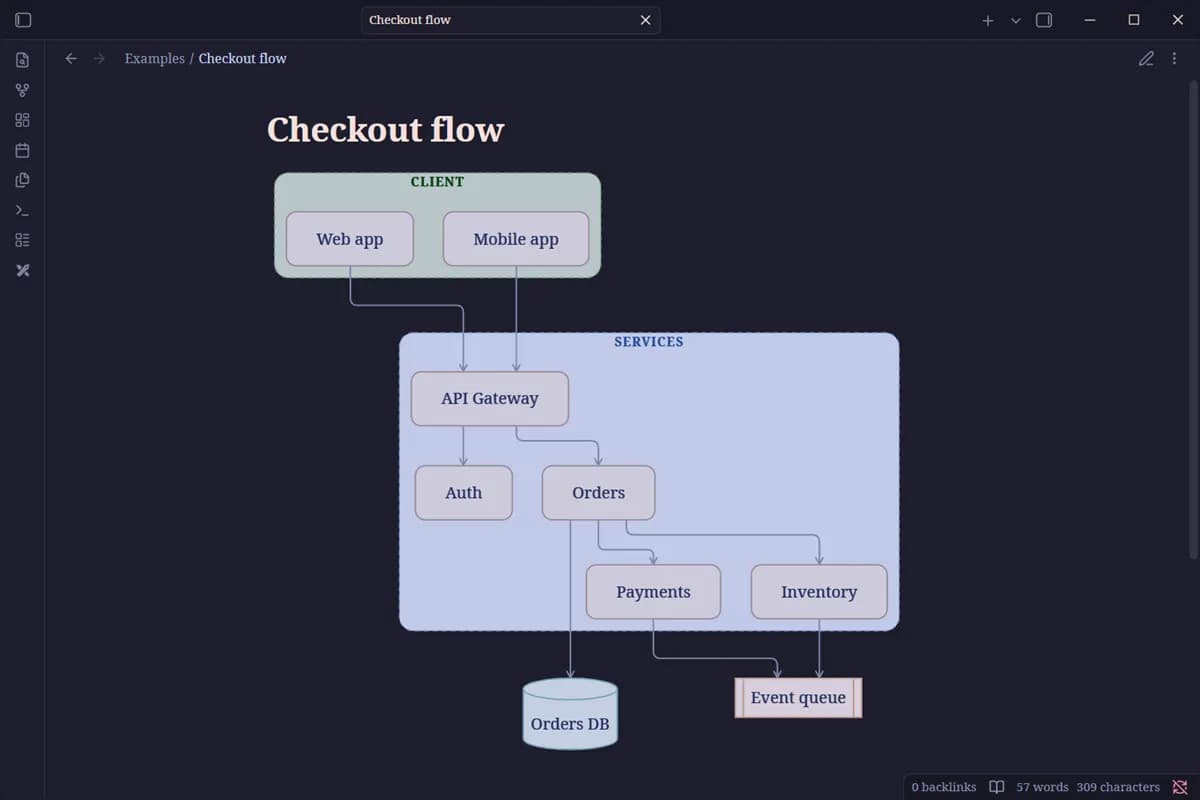

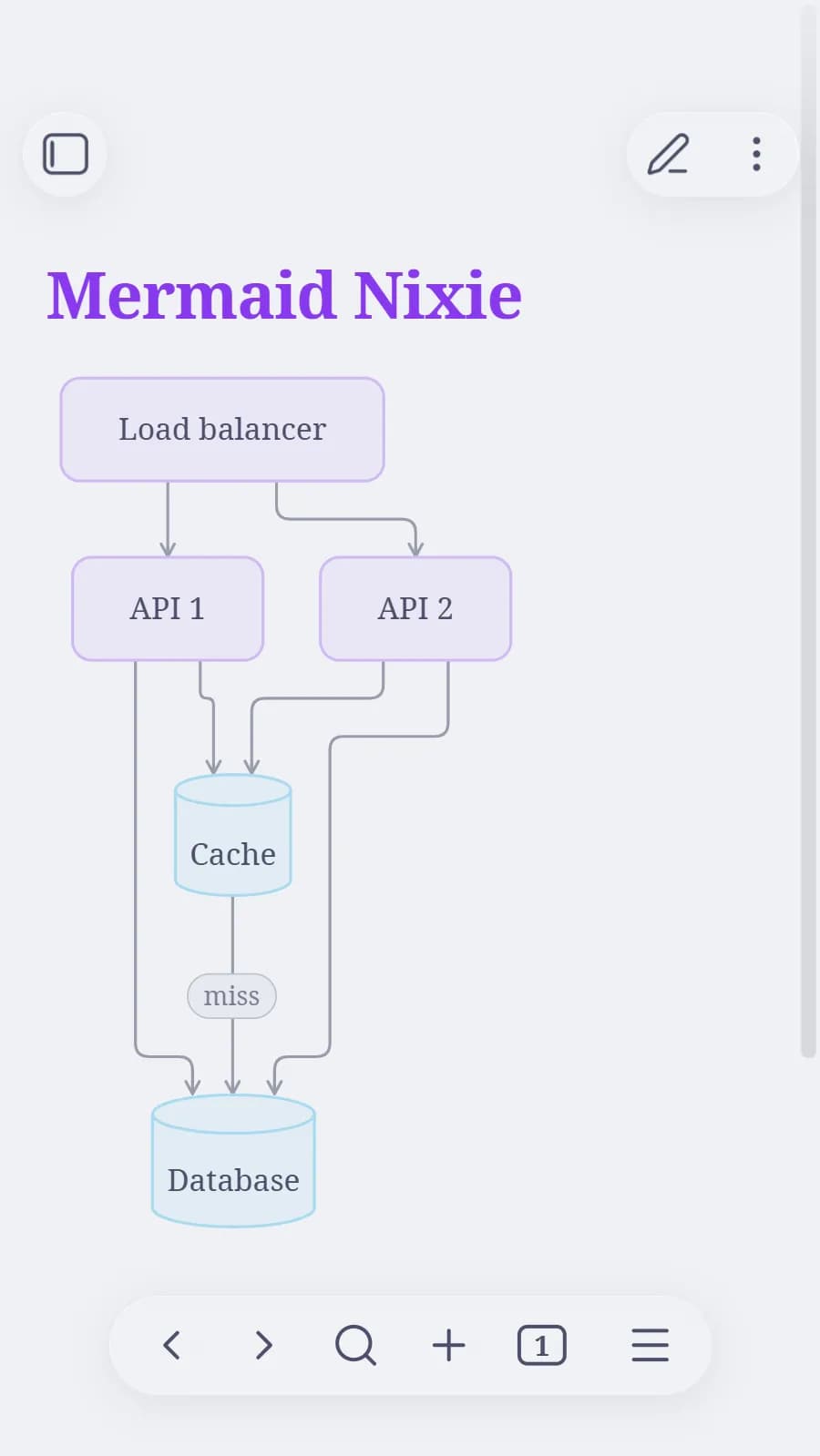

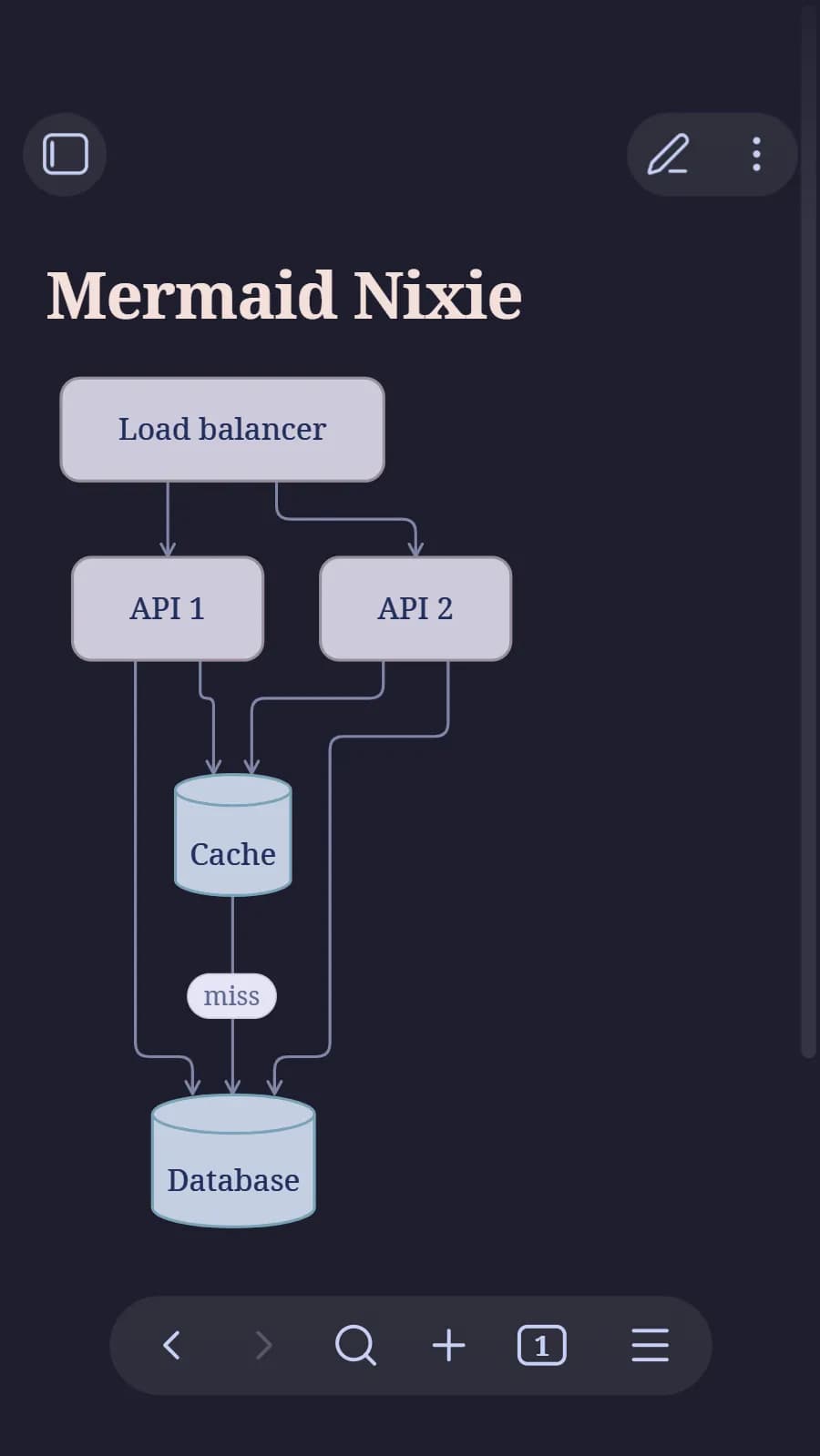

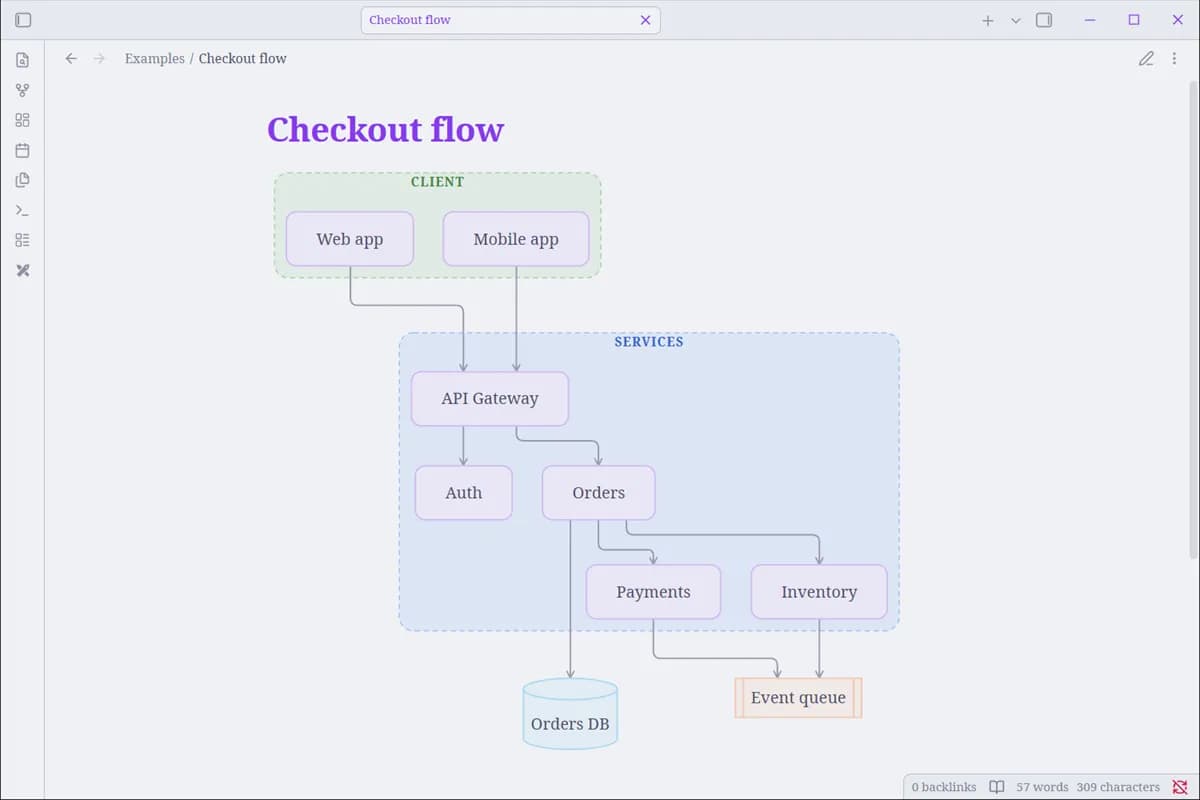

It works on mobile too. Before and after:

Install

Download main.js and manifest.json from the latest release into <vault>/.obsidian/plugins/mermaid-nixie/, then enable Mermaid Nixie under Settings → Community plugins.

ELK is bundled into main.js (~5 MB) and only runs the first time a diagram needs it.

Build

npm install
npm run build

The build writes dist/main.js. Pushing a version tag (e.g. 1.0.2) builds the plugin on GitHub Actions, attests main.js and publishes the release.

License

MIT. main.js bundles @mermaid-js/layout-elk (MIT) and elkjs (EPL-2.0).
