MDZip

MDZip plugin for Obsidian. Read and write .mdz archives — single documents and multi-document projects — in Obsidian's own editor.

Features

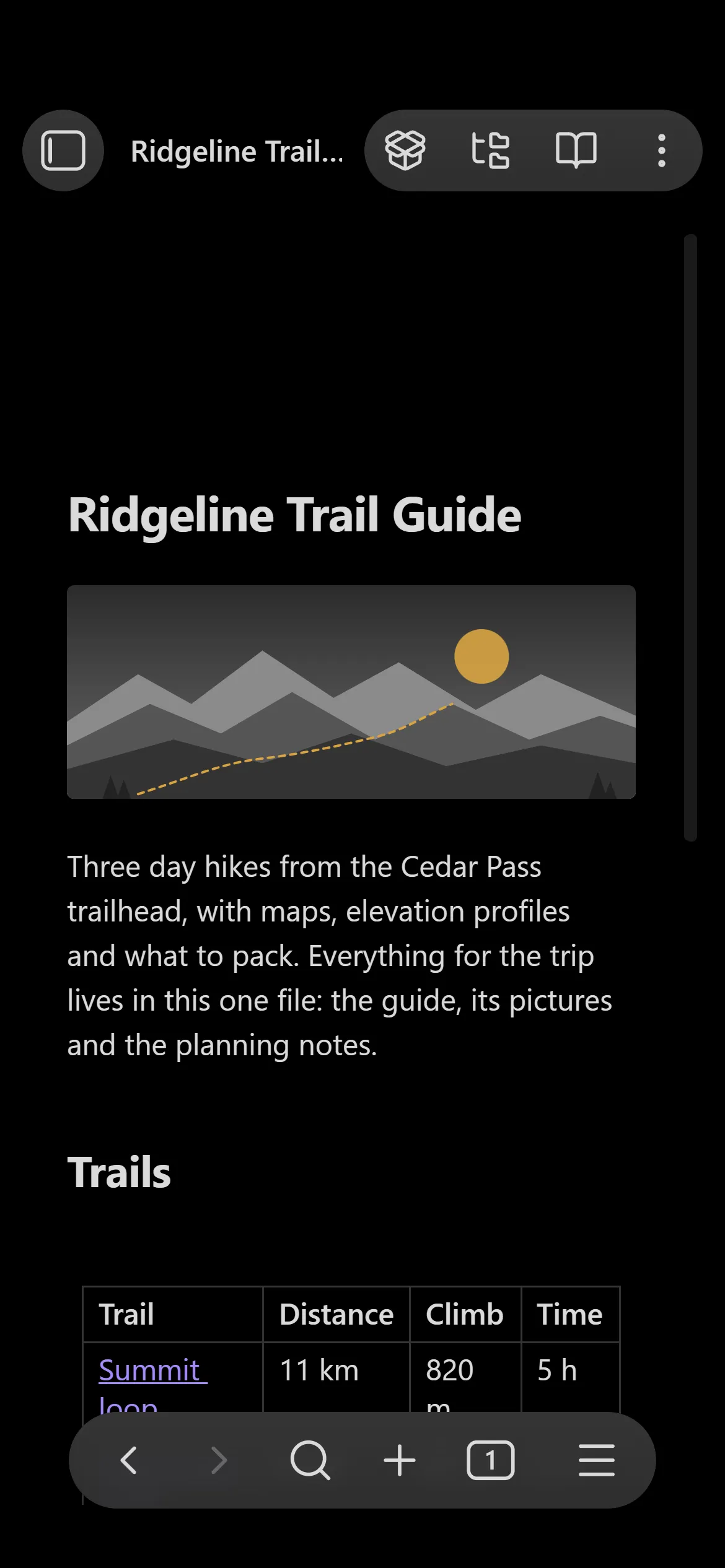

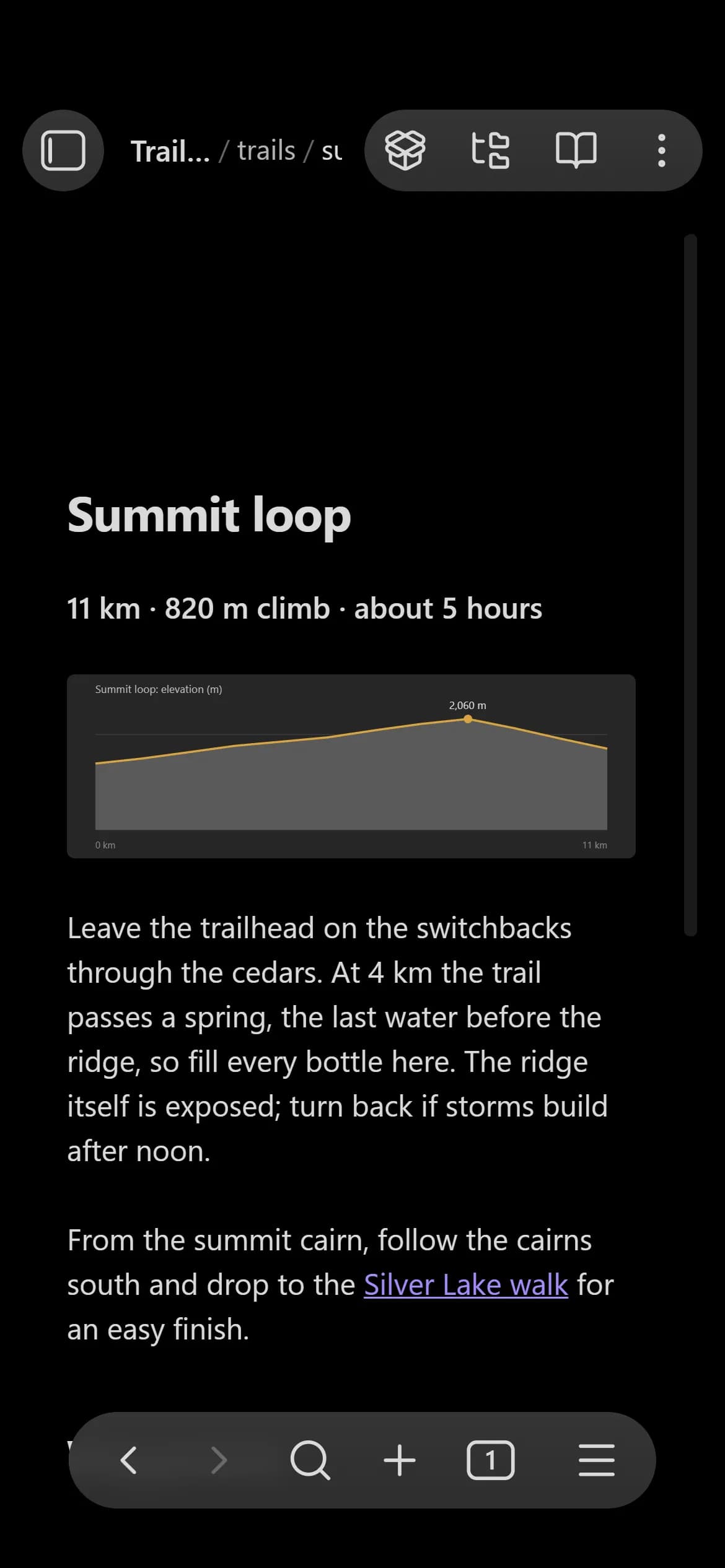

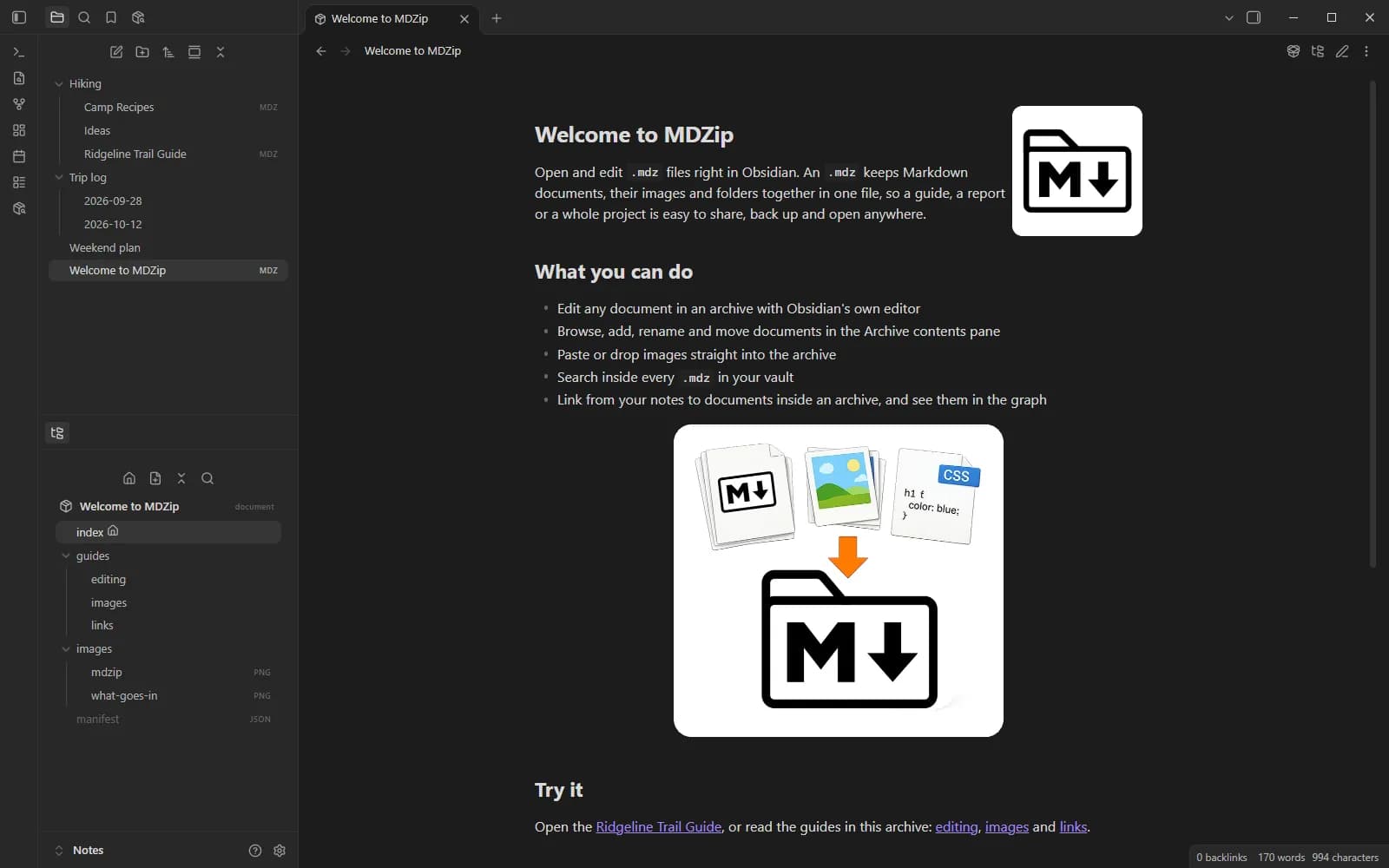

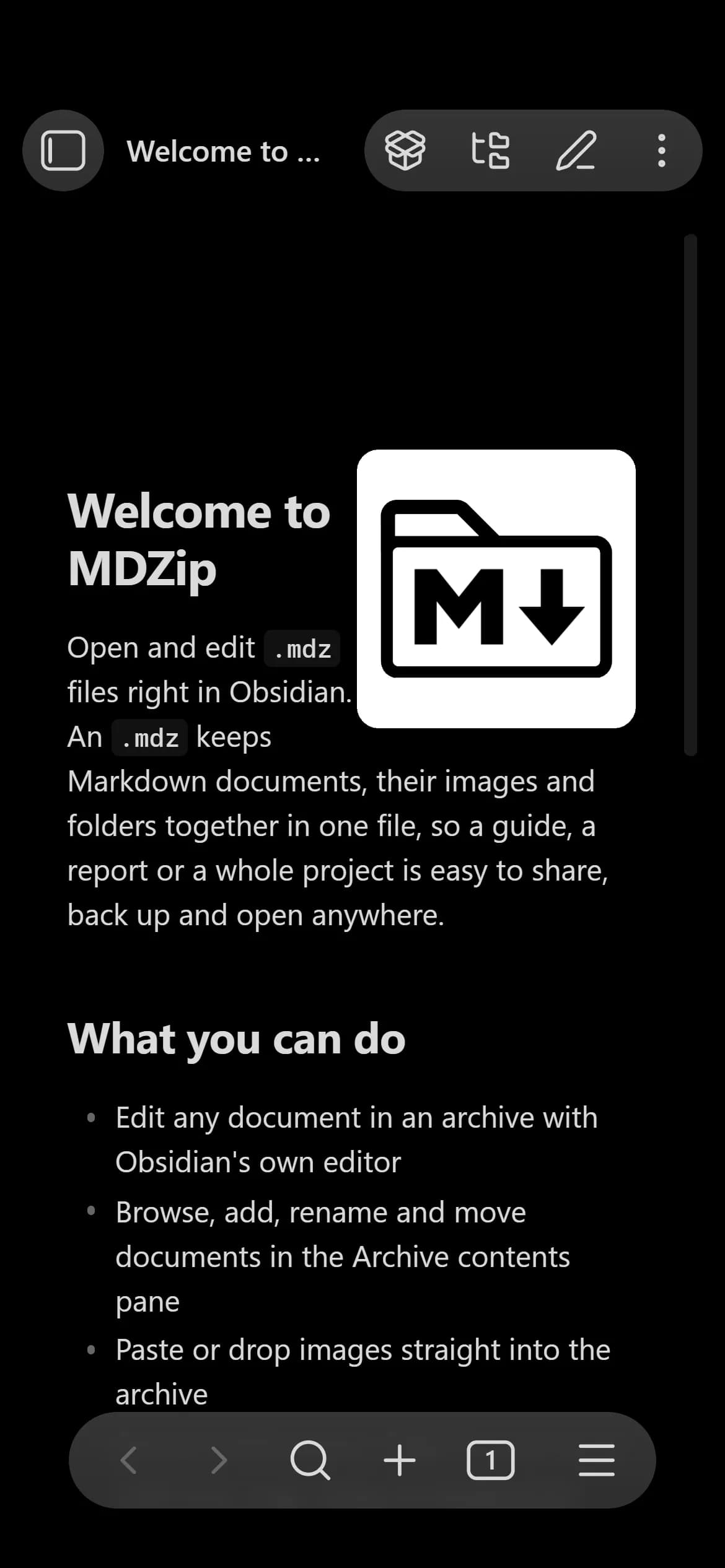

• Open and edit .mdz files in Obsidian's own editor — live preview, source mode, reading view, properties and hotkeys all work as they do for a normal note. Images stored inside the archive are displayed in every mode.
• Saves back into the archive — edits autosave (and Mod+S saves immediately) into the .mdz. Only the document being edited is rewritten; all other archive contents (other documents, assets, manifest, etc.) are preserved. Archives over 25 MB autosave after 30 seconds instead of 2, since each save rewrites the whole file.
• Paste or drop images into the archive — images pasted or dragged into a .mdz note are stored inside the archive under images/ next to the document (not in the vault). Settings → MDZip → Images pasted into archives chooses how they're written: a Markdown image (the default), an HTML <img>, or Ask each time, which opens the same Insert image dialog as MDZip Studio and the VS Code extension — Markdown or HTML, alt text, size (width, height or a percentage of the image's real size) and position (left, center, right, or wrapped by text). Alignment is written as <p align> / align attributes, which every MDZip tool renders the same way.
• Project-mode archives — a project .mdz opens on its entry point. Links to other documents in the archive (Markdown links, wikilinks, and HTML <a href>) open them in the same tab, with back/forward history; Ctrl/⌘-click opens a new tab. The view header shows which document you're in (Projects / Alpha Handbook / guide / setup); the Archive contents pane lists every document, and the Open document in archive command picks one from the keyboard. Tabs reopen on the document they were showing.
• Links across the archive boundary (MDZip spec 1.2.0-draft, Sections 9.3–9.5) — from inside an archive, a relative link that climbs above its root reaches files next to the .mdz ([Notes](../Notes.md) from index.md), including images (![logo](../logo.png)) and other archives (../Other.mdz/guide.md). From a regular note, [Design](Project.mdz/docs/design.md#overview) opens a document inside an archive, and [Project](Project.mdz) opens its entry point; vault-absolute and shortest-name forms work too. Bare names ([[Notes]]) that aren't in the archive use Obsidian's usual vault-wide lookup — and so do single-name Markdown links like [Notes](Notes.md), since Obsidian treats them the same way and doesn't tell the plugin which syntax was clicked. This is Obsidian-specific: under the MDZip spec, a Markdown link that doesn't resolve in the archive is unresolved (wikilinks are free to use name lookup, spec Section 9.7). A link that doesn't resolve shows a notice instead of creating a new note.

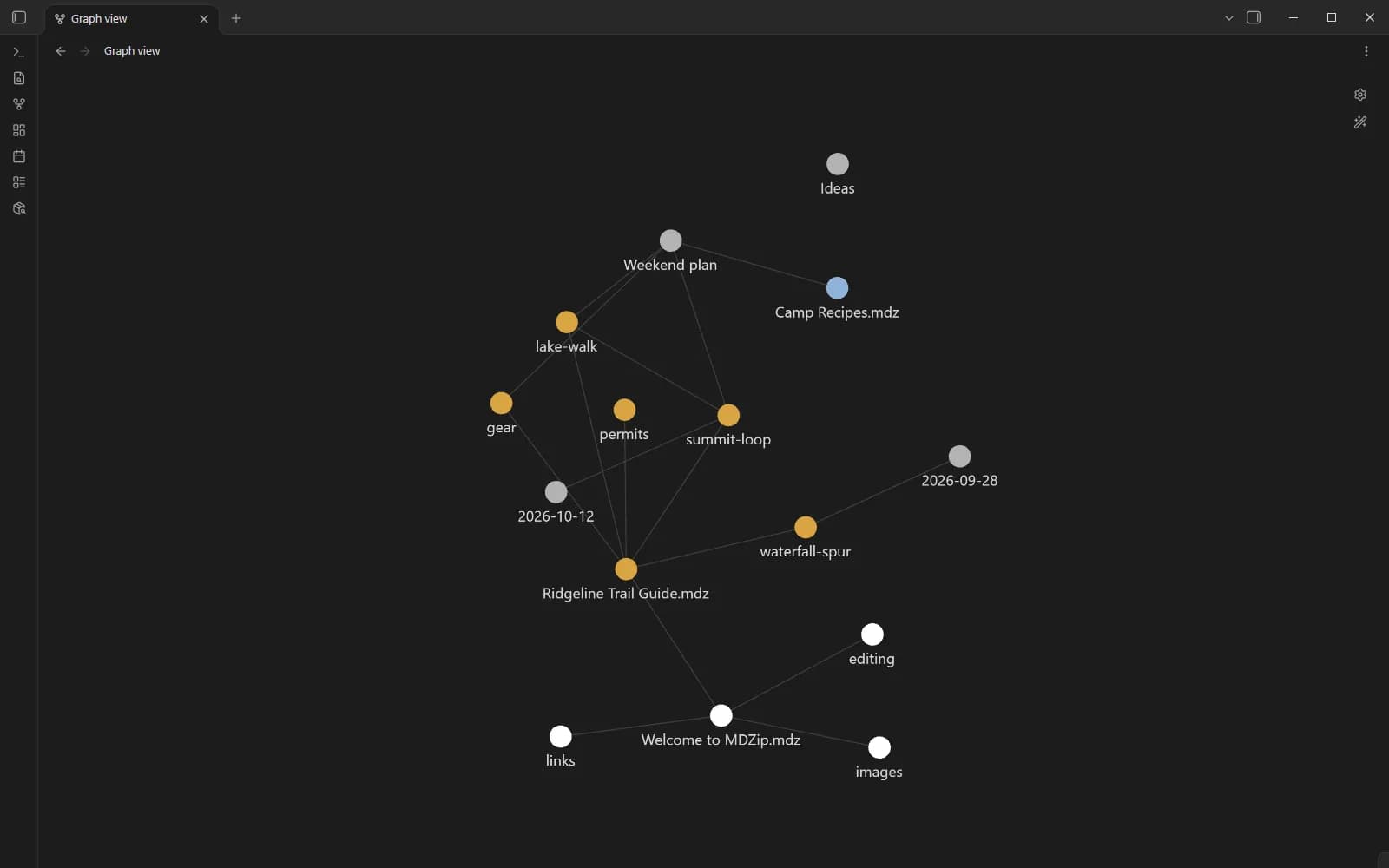

• Archive documents in the graph — Obsidian's graph and local graph show every document inside every .mdz: an archive's entry document is the archive's own node, other documents appear as Project.mdz/docs/design.md, and links between them, out of archives to notes and from notes into archives are drawn as edges. Clicking a node opens the document. A local graph follows the archive document you have open. Graph filters and color groups apply to an archive's documents through the .mdz file: a search filter shows them only if it matches the archive file (for example path:"Project.mdz"), and a color group that matches the archive colors all of its documents.

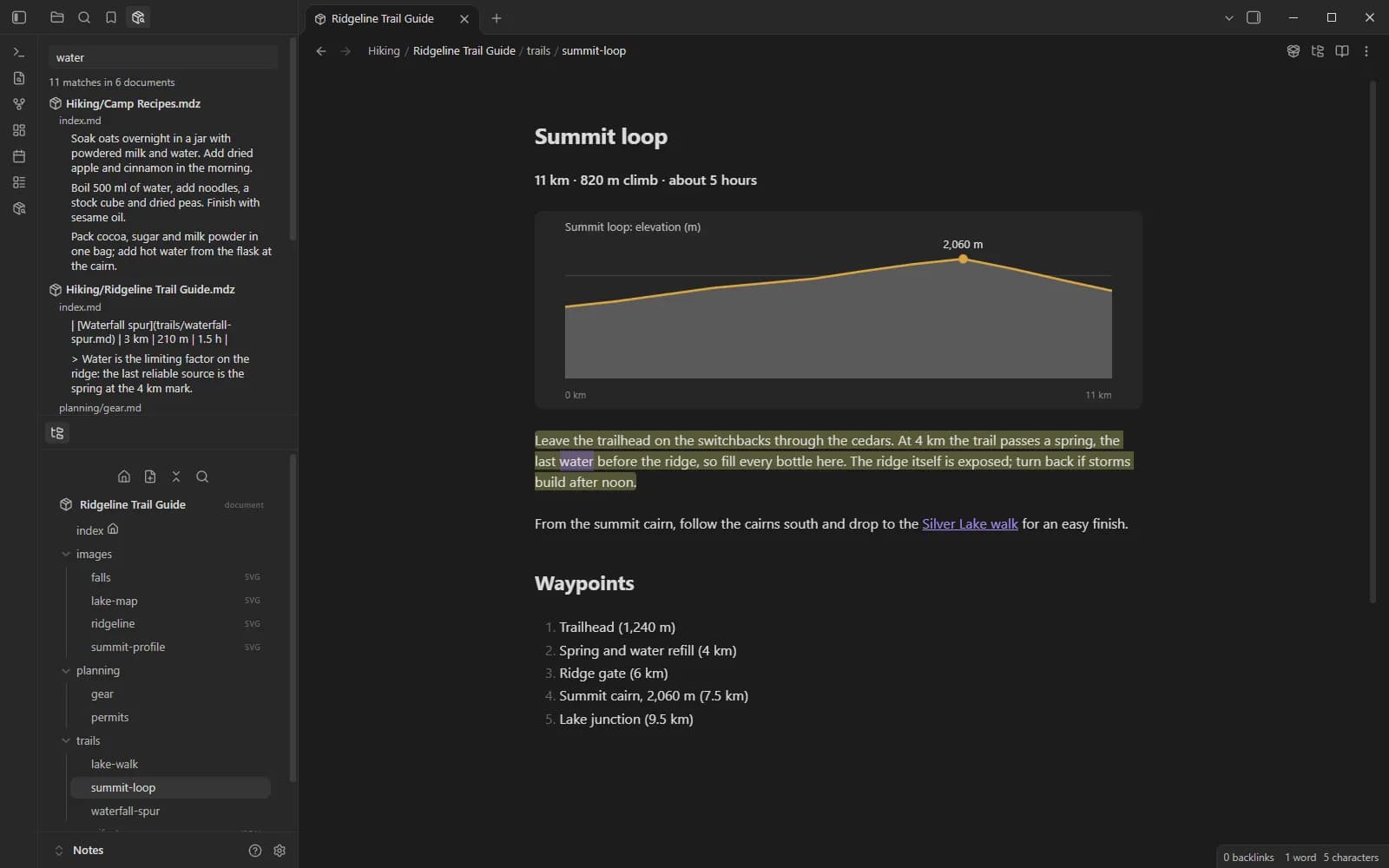

• Search inside .mdz files — the MDZip search view (ribbon icon, or Command Palette → MDZip: Search inside .mdz files) searches the text of every document in every archive as you type, smallest archives first, and opens a result at its line. Searches run on demand, with no stored index; a 150 MB archive takes a few seconds.

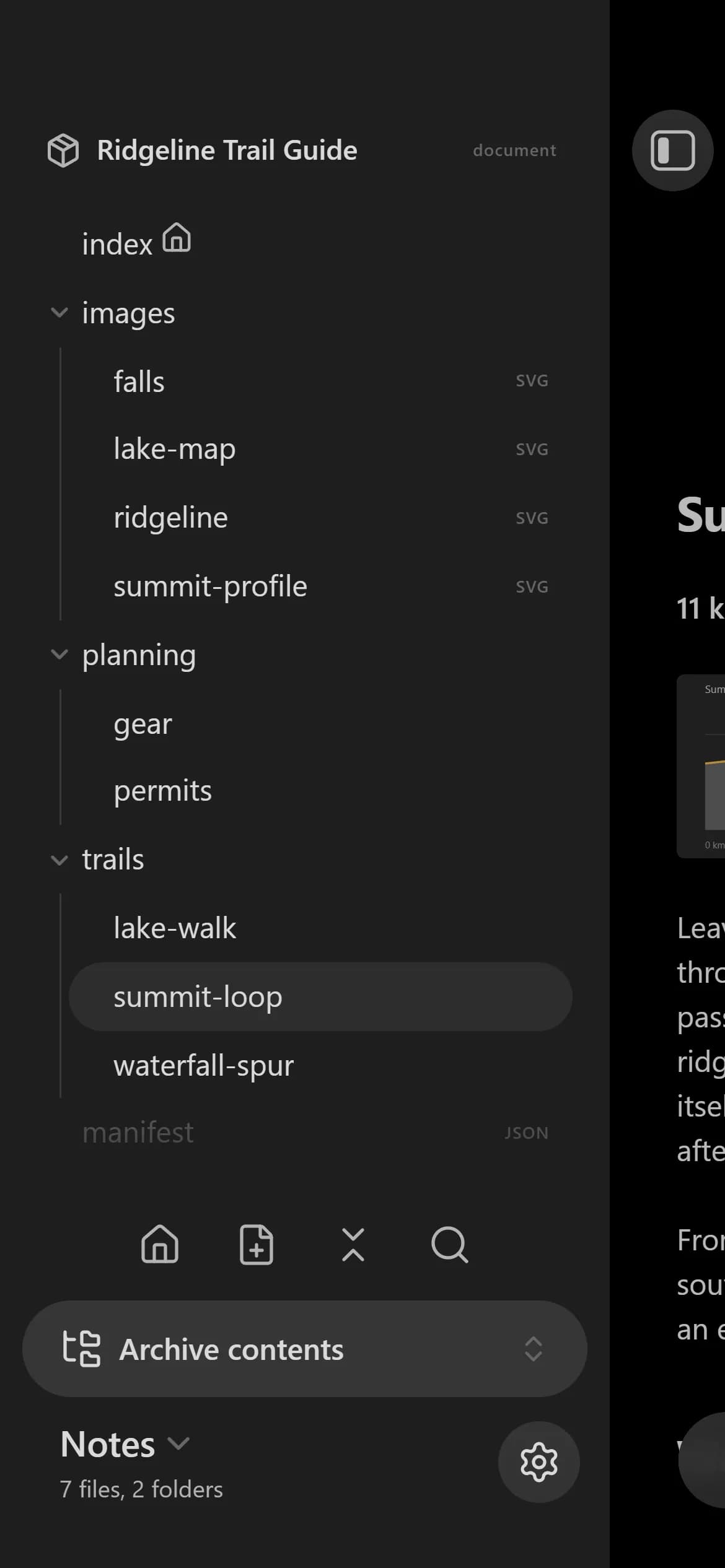

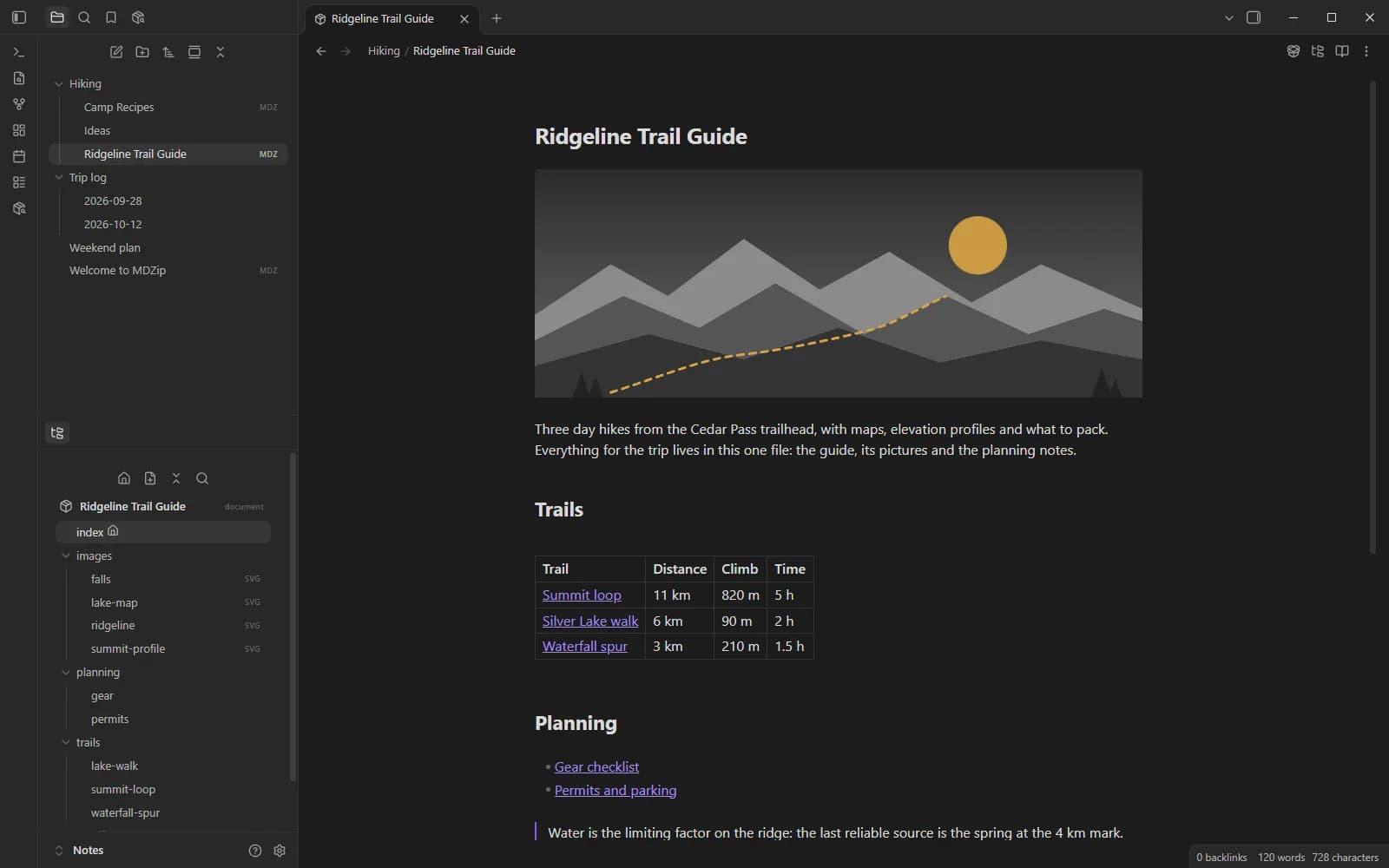

• Archive contents pane — the Archive contents pane (the folder-tree icon in a .mdz tab's header, or Command Palette → MDZip: Show archive contents) shows the open archive's files as a tree in its own section of the left sidebar, below the file explorer (drag it elsewhere, such as the right sidebar, and it stays there), styled like the file explorer. The entry point is pinned first and marked, the current document is highlighted, support files (README.md, AGENTS.md, …) and manifest.json are dimmed, and images no document uses are shown in italics. Click a document to open it (Ctrl/⌘-click for a new tab); click an image or the manifest for a preview. Right-click to copy an entry's path, or a link that a note next to the archive can use to reach it. The magnifier in the pane's header shows a search box that searches just this archive: the tree narrows to file names that match, and below it In documents lists every line containing the text, grouped by document. Click a line to jump to it (Ctrl/⌘-click for a new tab), press Enter to open the first result. Esc clears the box, and Esc again (or the magnifier) hides it.
• New documents in an archive — New document on the Archive contents pane's + button (or New document here on a folder's right-click menu), New document in archive on a .mdz file's right-click menu, or Command Palette → MDZip: New document in archive. Type a path such as docs/setup (.md is added; new folders are fine); it starts in the folder of the document you're in. Paths already in the archive (ignoring case), invalid paths and root-level support-file names are refused as you type. The document starts with a heading from its name and opens for editing; the entry point stays where it is (an archive with no manifest gets one). In a single-document archive the new file is part of that document, such as a chapter — link to it from another document so readers can find it.
• Organize an archive: folders, rename, move, delete — in the Archive contents pane, right-click a folder for New document here / New folder here, or any entry for Rename..., Move to..., Make entry point (documents) and Delete; the + button adds a document or folder at the root. Drag a file or folder onto a folder to move it there, or onto the empty space below the tree to move it to the root. For the document you're in, the Command Palette has MDZip: Rename current document in archive, Move current document to another folder in archive, Make current document the entry point and Delete current document from archive, plus New folder in archive.
  • Links follow moves. Moving or renaming a file or folder updates every link to it inside the archive — Markdown links and images, reference definitions, HTML href/src, wikilinks and embeds — and a moved document's own relative links, including ones that reach outside the archive (../Notes.md). A link is rewritten only if it would otherwise stop pointing at the same file, so bare wikilinks like [[setup]] stay bare while the name still finds it; a Markdown link that resolves by its path is kept resolvable by path, so it works in other MDZip tools too. Links that didn't resolve before are left alone. Moving the entry point or the cover image updates manifest.json. Open tabs follow a document that moves.
  • Deleting asks first, and lists the archive documents that link to what you're deleting. It can't be undone (the archive is rewritten; Obsidian's trash doesn't see it). The entry point and manifest.json can't be deleted — make another document the entry point first. Deleting the cover image clears the manifest's cover.
  • Names are checked as you type: invalid paths, and paths that differ from an existing entry only in case, are refused.
• Add README.md or AGENTS.md to an archive — from the Archive contents pane's + button, a .mdz file's right-click menu, or the Add README.md / AGENTS.md to the archive commands. They're filled in from the MDZip spec's templates with the archive's title and entry point, and open for editing. README.md tells a person how to open the package without MDZip tools; AGENTS.md tells AI agents how to handle it safely (spec Sections 5.6 and 5.8). An archive with no manifest gets one at the same time, so its entry point can't change. If the file is already there, it just opens.
• Links panel for archive documents — the Archive links panel (the icon in a .mdz tab's header, or Command Palette → MDZip: Show links for the current document) lists what links to the open archive document (other archive documents, and notes linking to it or to the .mdz itself), what it links to, and links that aren't found. On a regular note it lists only the archive documents that link to it and its links into archives — the part Obsidian's own backlinks and outgoing-links panes can't see — and says so; a note with no such links shows a single "No links to or from archives" line.
• Convert to MDZip — right-click a note in Files (or use the note's ⋮ menu) and choose Convert to MDZip; the Convert note to .mdz command does the same.
• Turn a note into a .mdz when you paste an image — pasting or dropping an image into a regular Markdown note asks whether to convert the note to .mdz so the image lives inside it. Converting renames Note.md to Note.mdz (links to it are updated) and copies the images the note already embeds into the archive; the vault copies are left in place. Choose Ask each time, Convert the note to .mdz or Save to the vault as usual under Settings → MDZip. The Convert note to .mdz command does the same without an image.
• Export note as .mdz — command to package the currently active Markdown note into a new .mdz file placed alongside it in the vault.
• Extract Markdown from .mdz — command to pull the open document's Markdown out of a .mdz file and create a .extracted.md note in the vault.

Obsidian's own index still covers only .md files. Archive documents appear in the graph and in MDZip search, but not in Obsidian's core search, quick switcher or backlinks pane (use MDZip search and the Archive links panel), and links into an archive from regular notes still look unresolved (faded) in those notes, although clicking them works. The graph integration adds archive nodes to the graph view's data only; Obsidian's metadata cache, which other plugins read, is untouched.

Links into an archive from regular notes aren't updated when you move things inside it. A note linking to Project.mdz/docs/design.md needs editing by hand if docs/design.md moves; links between documents inside the archive are updated. Renaming or moving the .mdz itself is different: links from notes into its documents follow it (using Obsidian's Automatically update internal links setting; when that's off, you're asked first).

Obsidian's link autocomplete doesn't know about archives. Inside a .mdz, Obsidian treats the archive as a single file, so with the Relative path to file link format it writes links to neighbouring vault files one ../ short. Shortest-path and wikilink formats are unaffected.

Privacy

MDZip works only on your vault, on your device. It makes no network requests and collects nothing.

• Lists the files in your vault to find .mdz archives, for MDZip search, the graph and the links panel, and to find notes that link into an archive so those links can follow it when it's renamed.
• Reads and writes vault files through Obsidian: the .mdz archives you open or change, and notes whose links it updates.
• Uses the clipboard only when you ask: Copy path and Copy link in the Archive contents pane write to it, and pasting an image reads just that paste. It never reads the clipboard on its own.

Installation

From a release

Download main.js, manifest.json and styles.css from the latest release into your vault's .obsidian/plugins/mdzip/ folder, reload Obsidian and turn on MDZip under Settings → Community plugins. The release files are built on GitHub from this repository and carry an artifact attestation; gh attestation verify main.js --repo mdzip-project/mdzip-obsidian checks one.

Manual (development)

cd path/to/your/vault/.obsidian/plugins/
git clone https://github.com/mdzip-project/mdzip-obsidian mdzip
cd mdzip
npm install
npm run build

Then enable the plugin under Settings → Community plugins.

Usage

Development

npm install        # install dependencies
npm run dev        # watch mode (rebuilds on change)
npm run build      # production build
npm test           # link resolution (the spec's link fixture), link extraction, graph and link-index tests
npm run test:app   # the plugin inside a real Obsidian, on the test vault (see scripts/app-tests/README.md)

Built on @mdzip/core-js and the MDZip spec.
