GSync

Two-way sync between an Obsidian vault and a folder in Google Drive, using the Google Drive API directly.

Works on Windows, macOS, Linux, Android, and iPad/iPhone, including mobile devices that can't run Google Drive for Desktop.

Features

• Two-way sync: changes on either side are copied to the other.
• Conflict-safe: if a note changed in both places, nothing is overwritten. Your local version keeps the name and the Drive version is saved beside it as note (conflict YYYY-MM-DD HHmm).md.
• Deletes go to the trash: deleted files go to Drive's trash (kept 30 days) or Obsidian's trash, never hard-deleted. Deletion sync can be turned off.
• Works with existing Drive folders: point it at a folder that already holds your notes (for example one kept by Google Drive for Desktop). The first sync compares contents, so nothing is duplicated.
• Leaves device settings alone: hidden folders like .obsidian, .trash, and .git are never synced, so each device keeps its own settings and plugins.
• Mobile-friendly: progress is saved every 10 files, large files can be skipped, and an interrupted sync resumes where it stopped.
• Your own Google credentials: you create your own OAuth client. No third-party server stores your data or tokens.

Requirements and disclosures

• Google account required. You also need a free Google Cloud project to create your own OAuth client (setup below).
• Network use. GSync connects to:
  • accounts.google.com and oauth2.googleapis.com: Google sign-in and refreshing access tokens.
  • www.googleapis.com: the Google Drive API, to list, download, upload, and trash files in the folder you choose.
  • dg0988.github.io (only during sign-in, and only if you keep the default redirect page): a static page in this repository (docs/callback.html) that hands Google's one-time sign-in code back to Obsidian through an obsidian:// link. It has no server-side code and stores nothing. You can host your own copy instead.
• Vault access. To compare your vault with Drive, GSync lists every file in the vault (except excluded files, hidden files, and the vault's config folder) and reads or writes only the files it syncs.
• Clipboard. GSync only writes to the clipboard, and only when you ask: the Copy refresh token button, or copying the sign-in link if your browser can't be opened. It never reads the clipboard.
• No telemetry, analytics, or ads. Nothing is sent anywhere except Google.

⚠️ Don't double-sync

If a device's vault already lives inside Google Drive for Desktop (e.g. G:\My Drive\...), Drive for Desktop is already syncing it. Don't also run GSync on that device against the same Drive folder, or two sync engines will fight over the same files.

A common setup:

Also disable any other sync plugin that points at the same folder.

1. Create a Google OAuth client (one time)

1. Go to https://console.cloud.google.com/ and create a project.
2. APIs & Services → Library: search Google Drive API and click Enable.
3. Google Auth Platform / OAuth consent screen: user type External; fill in an app name and your email; add your Google account as a test user.
4. Publish the app (Audience → Publish app → In production). If you leave it in Testing, Google expires your sign-in every 7 days. Because the app is unverified, Google shows a warning when you sign in. Click Advanced → Go to (app name). That's expected for a personal app.
5. Credentials → Create credentials → OAuth client ID:
   • Application type: Web application
   • Authorized redirect URIs: add

     https://dg0988.github.io/ObsidianGSync/callback.html


   Copy the Client ID and Client secret.

2. Install

From Community plugins

Settings → Community plugins → Browse, search GSync, install and enable.

With BRAT (beta versions)

Install BRAT from Community plugins, then Add beta plugin → dg0988/ObsidianGSync.

Manual

Download main.js and manifest.json from the latest release into:

<your vault>/.obsidian/plugins/gsync/

Then fully restart Obsidian and enable GSync under Community plugins. (On iPad/iPhone the Files app hides .obsidian; use BRAT, or an app like a-Shell to create the folder.)

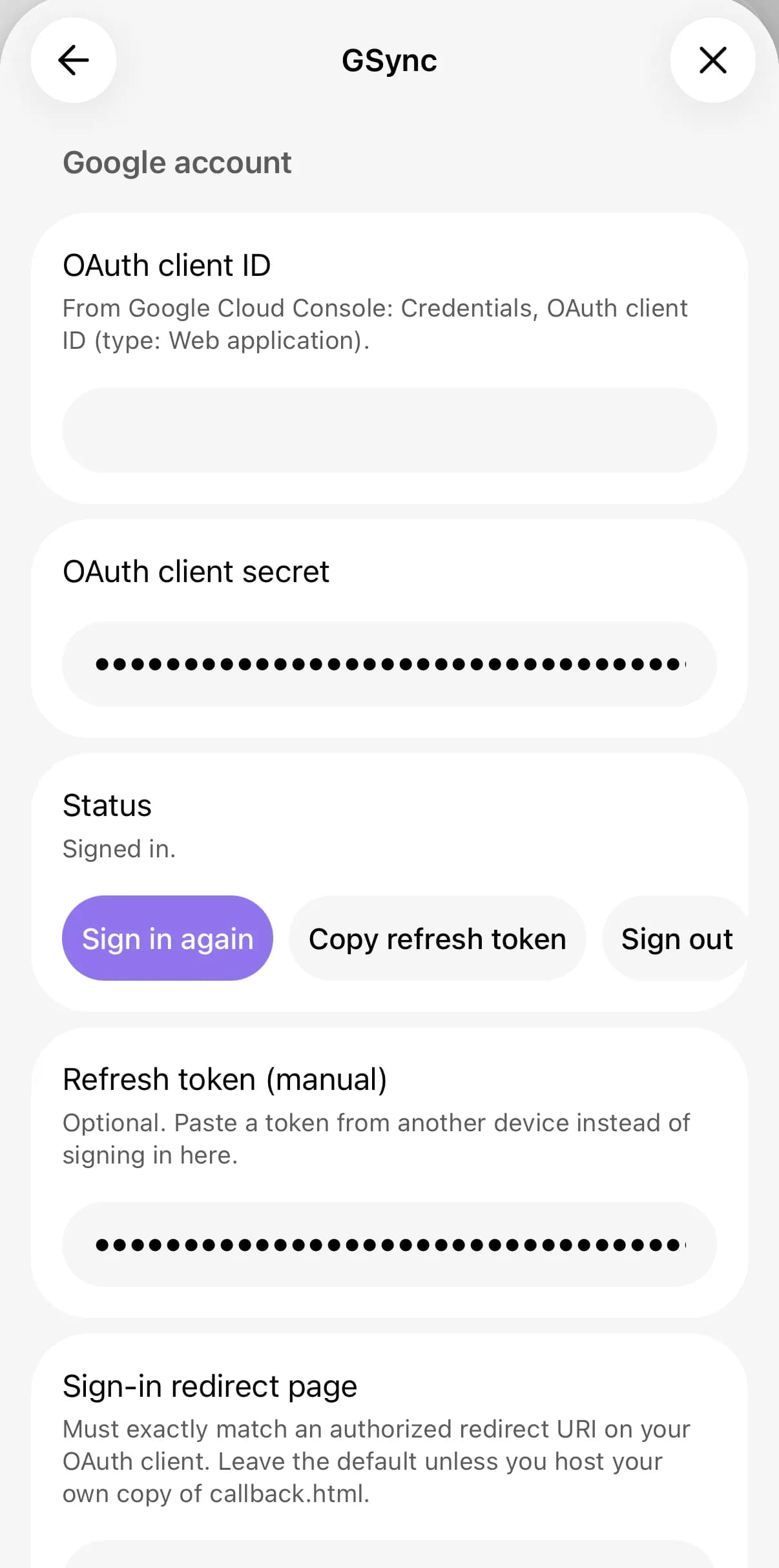

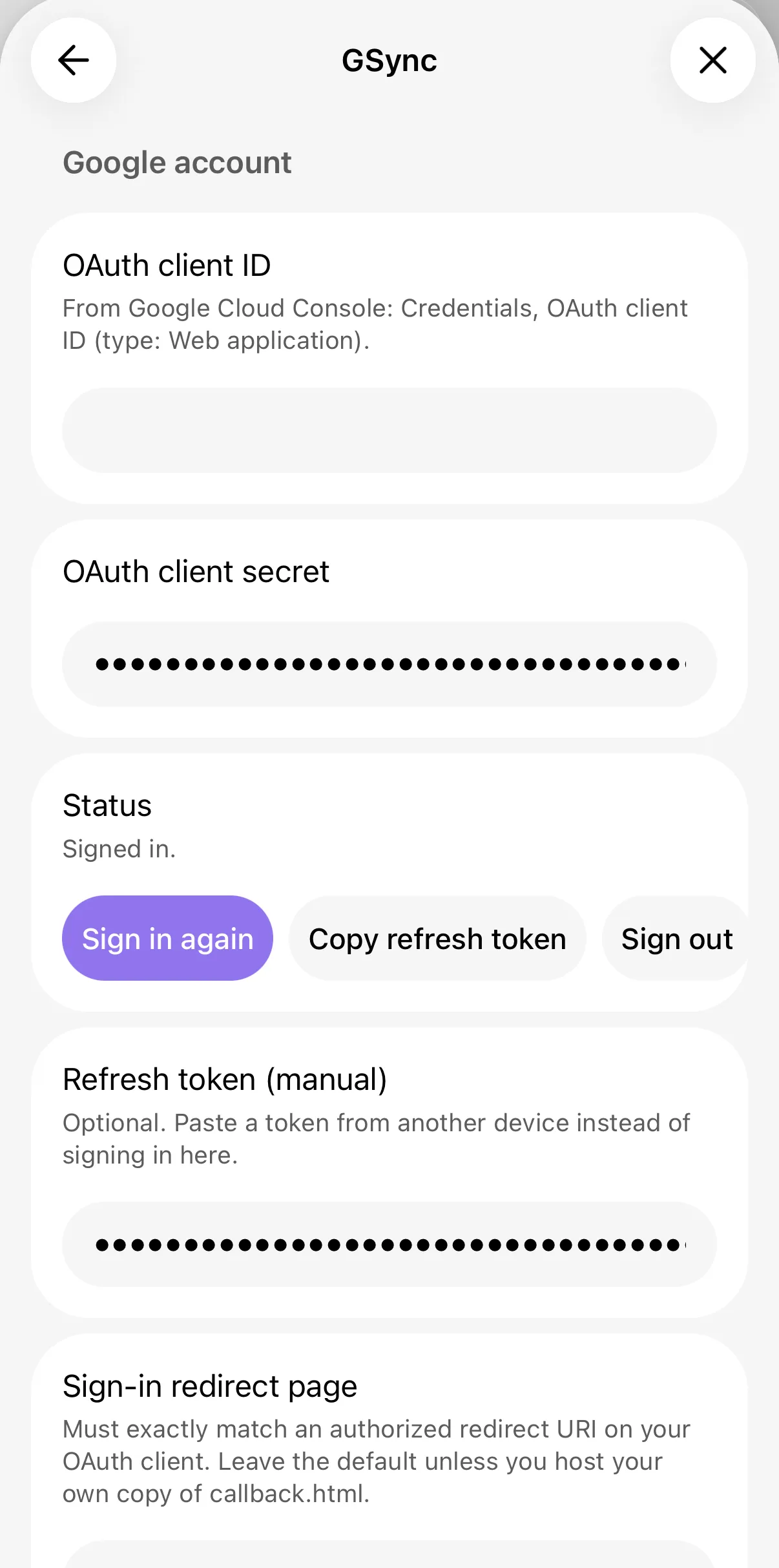

3. Sign in (on each device)

1. Settings → GSync: paste the Client ID and Client secret.
2. Tap Sign in with Google. Your browser opens.
3. Choose your account and approve access.
4. The browser shows a "Returning to Obsidian" page and Obsidian reopens. If it doesn't, tap Open Obsidian on that page.
5. GSync shows Signed in.

This works the same on desktop, Android, and iOS. As an alternative, you can copy a refresh token from a signed-in device (Copy refresh token) and paste it into Refresh token (manual) on another device.

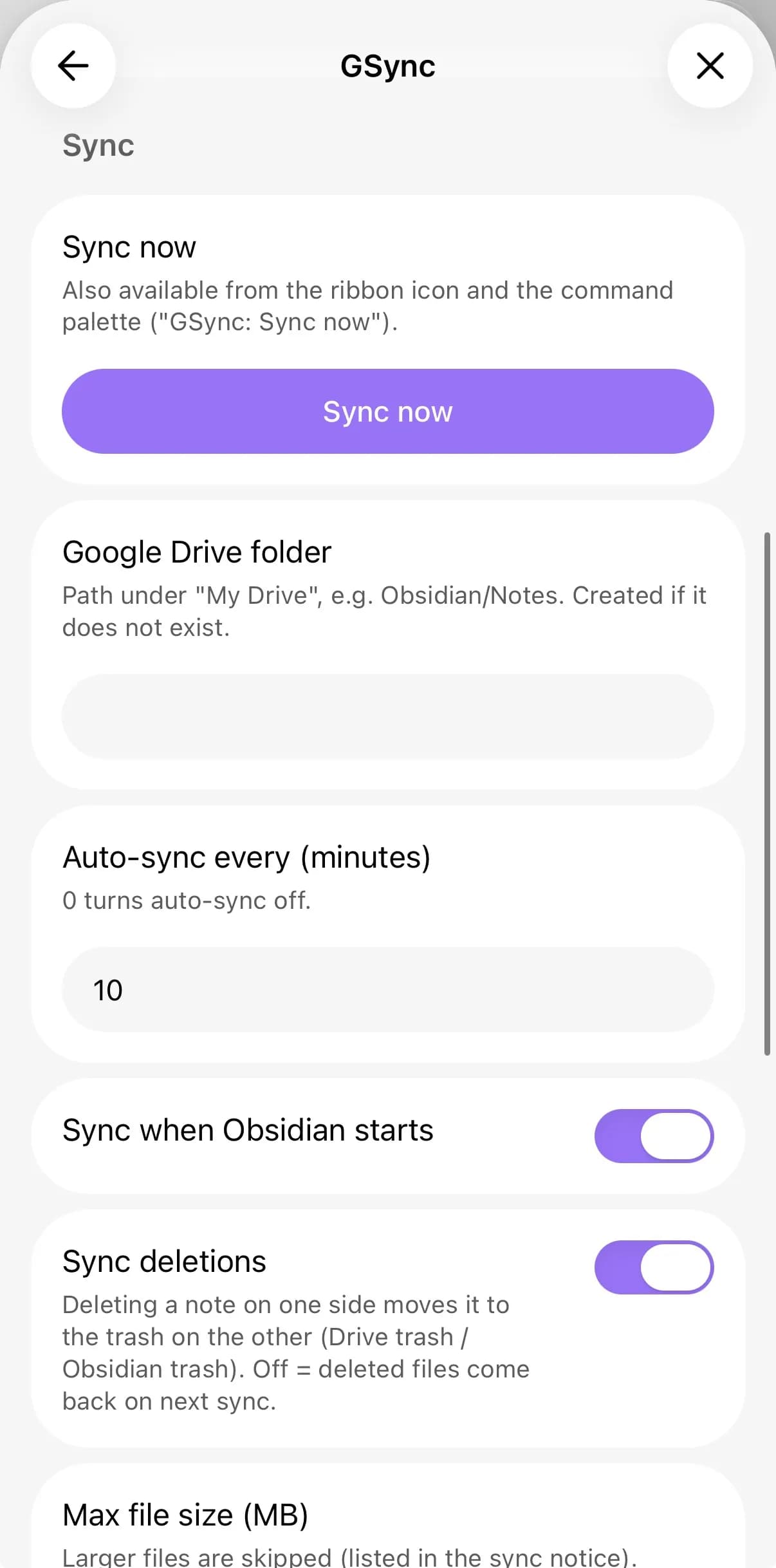

4. Configure and sync

Set Google Drive folder to the folder's path under My Drive, using / between folders:

Obsidian/Notes

The path must match the Drive folder's name exactly (same spelling and capitalization). If it doesn't exist, it is created.

Start a sync with any of:

• Settings → GSync → Sync now
• The ribbon icon (Sync with Google Drive)
• Command palette: GSync: Sync now

First sync on mobile: keep Obsidian open and the screen on until the progress notice disappears. Mobile operating systems pause apps in the background.

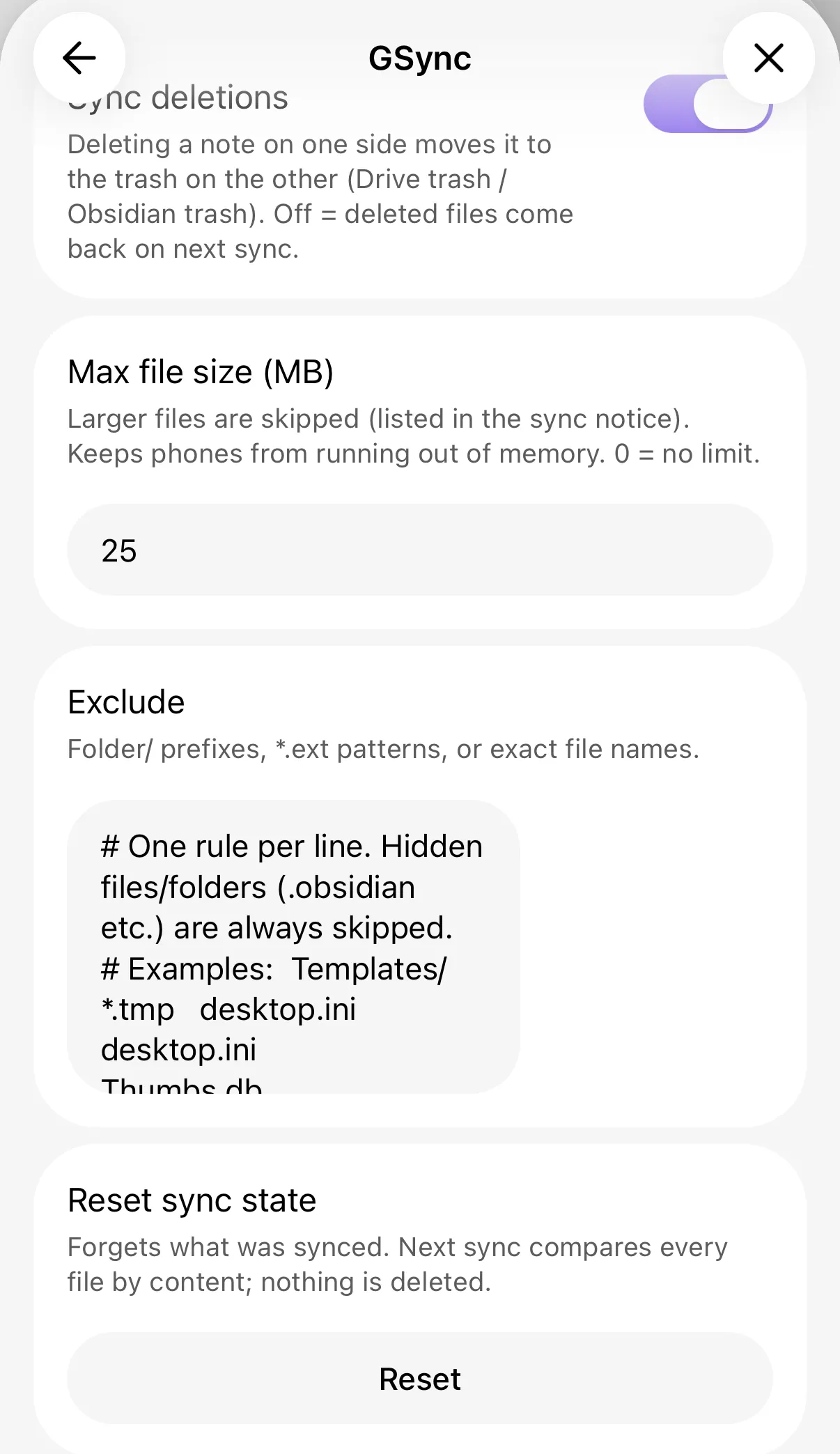

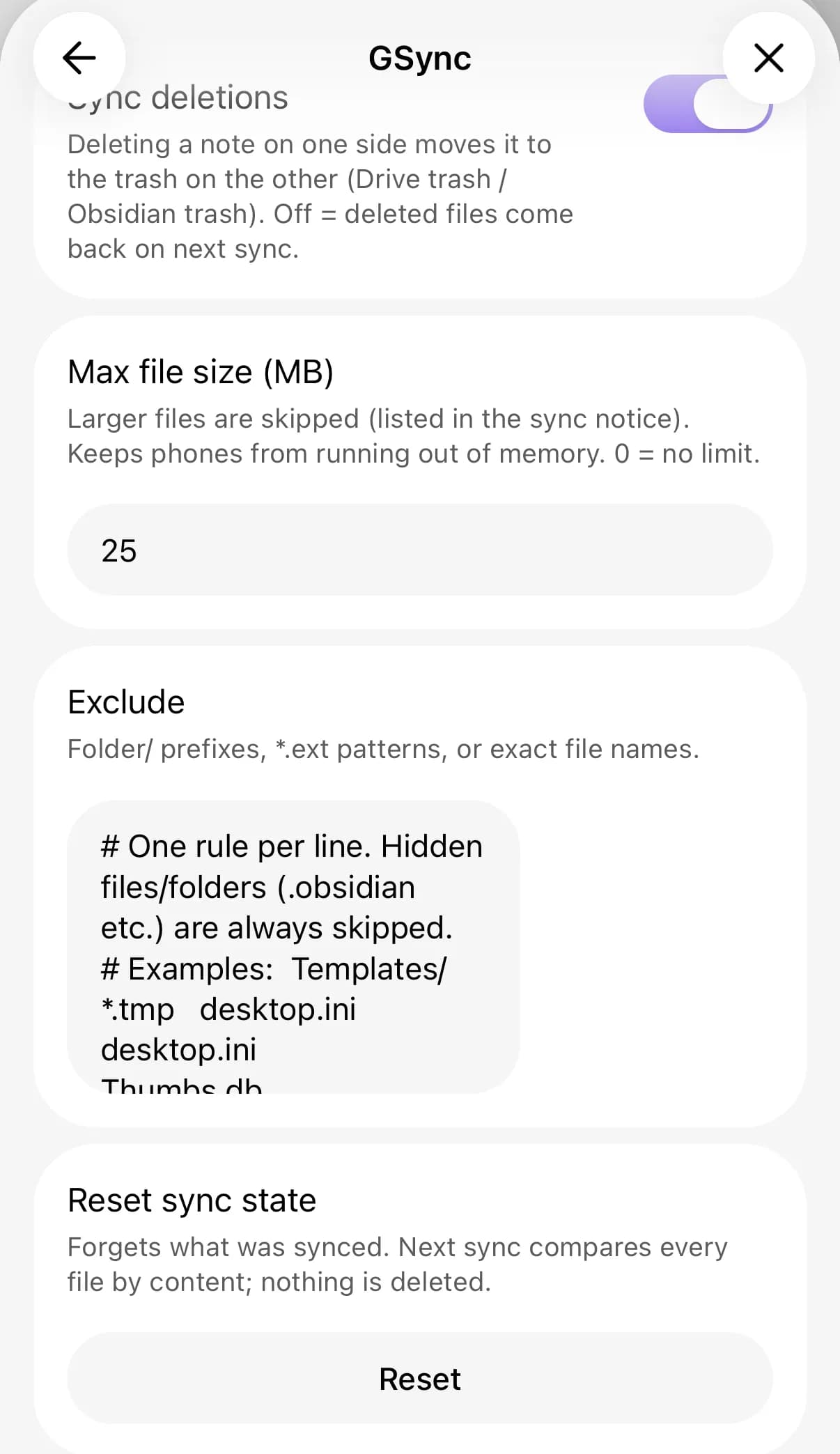

Settings

Exclude rules

# comments start with #
Templates/        # a folder (prefix) and everything in it
*.exe             # a file extension
desktop.ini       # an exact file name, anywhere
Notes/draft.md    # an exact path

Excluded files stay in Drive and on other devices; they just aren't synced to this one.

How sync works

GSync remembers what each file looked like on both sides at the last sync:

Limitations

• Renames sync as a delete plus a new file.
• Empty folders aren't synced.
• Google Docs/Sheets/Slides in the Drive folder are ignored.
• Hidden files and folders (names starting with .) are never synced.
• Sync runs only while Obsidian is open and in the foreground.

Troubleshooting

Errors are logged to the developer console (desktop: Ctrl+Shift+I) with the prefix [gsync].

Security and privacy

• Files go directly between your device and Google's API.
• Your client ID, client secret, and refresh token are stored only in each device's .obsidian/plugins/gsync/data.json. Never commit or share that file. The refresh token grants access to your Google Drive.
• Sign-in uses PKCE. The code passed through the redirect page is useless without the secret verifier that stays on your device.
• GSync requests the full Drive scope (https://www.googleapis.com/auth/drive) so it can see files already in your folder that it didn't create. It only reads and writes inside the folder you configure.
• To revoke access everywhere, remove the app at https://myaccount.google.com/permissions.

Development

npm install
npm run dev     # watch build
npm run build   # type-check + production build -> main.js

Releasing

Releases are built and signed by GitHub Actions (.github/workflows/release.yml), so the published main.js has a verifiable build provenance attestation.

1. Update version in manifest.json and package.json, and add it to versions.json.
2. Commit and push.
3. Publish a GitHub release with a new tag that exactly matches the version (e.g. 1.0.3, no v). Don't attach files: the workflow builds main.js from the tagged source, attests it, and attaches main.js and manifest.json.

To verify a downloaded main.js:

gh attestation verify main.js --repo dg0988/ObsidianGSync

License

MIT
