Base Board

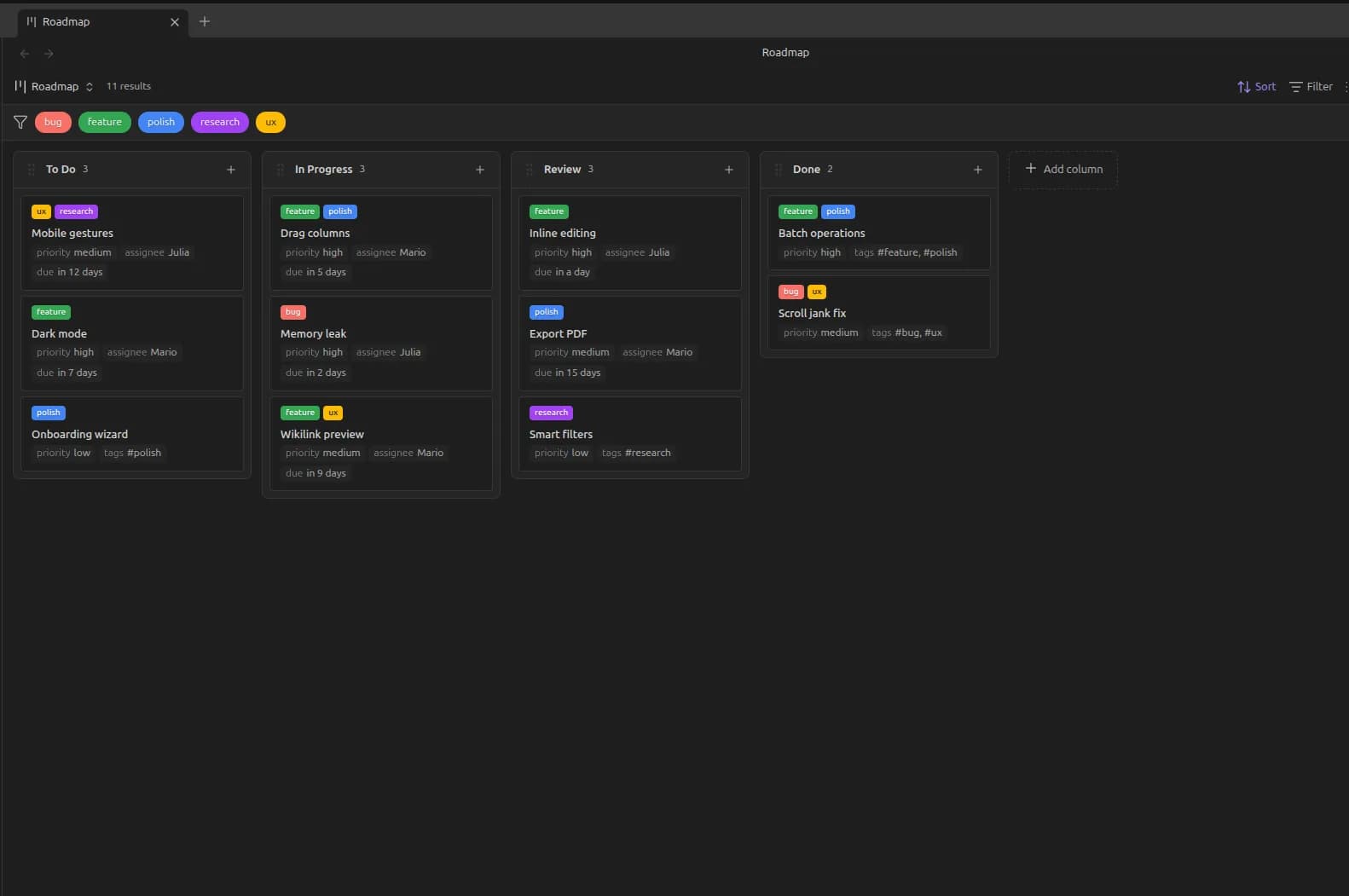

Base Board is an interactive, property-driven Kanban board view for Obsidian Bases. It allows you to organize your notes into visual columns based on any property in your frontmatter, providing a seamless drag-and-drop experience for managing tasks and structured data.

Key Features

• Property-Based Columns: Instantly generate columns from any frontmatter property.
• Intuitive Drag & Drop: Move cards between columns to update their properties automatically, and reorder cards within a column.
• Inline Power: Rename cards or column titles directly on the board.

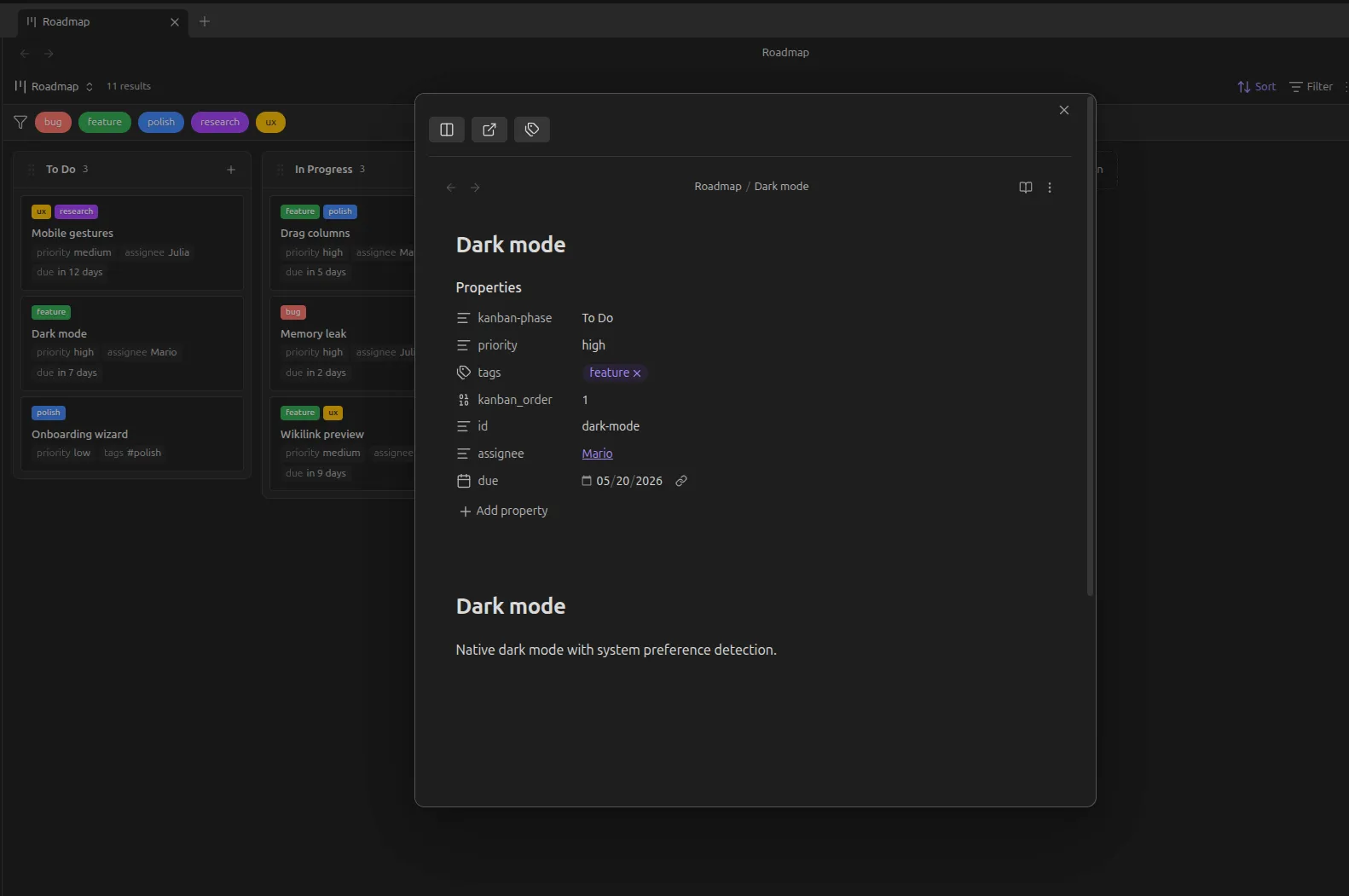

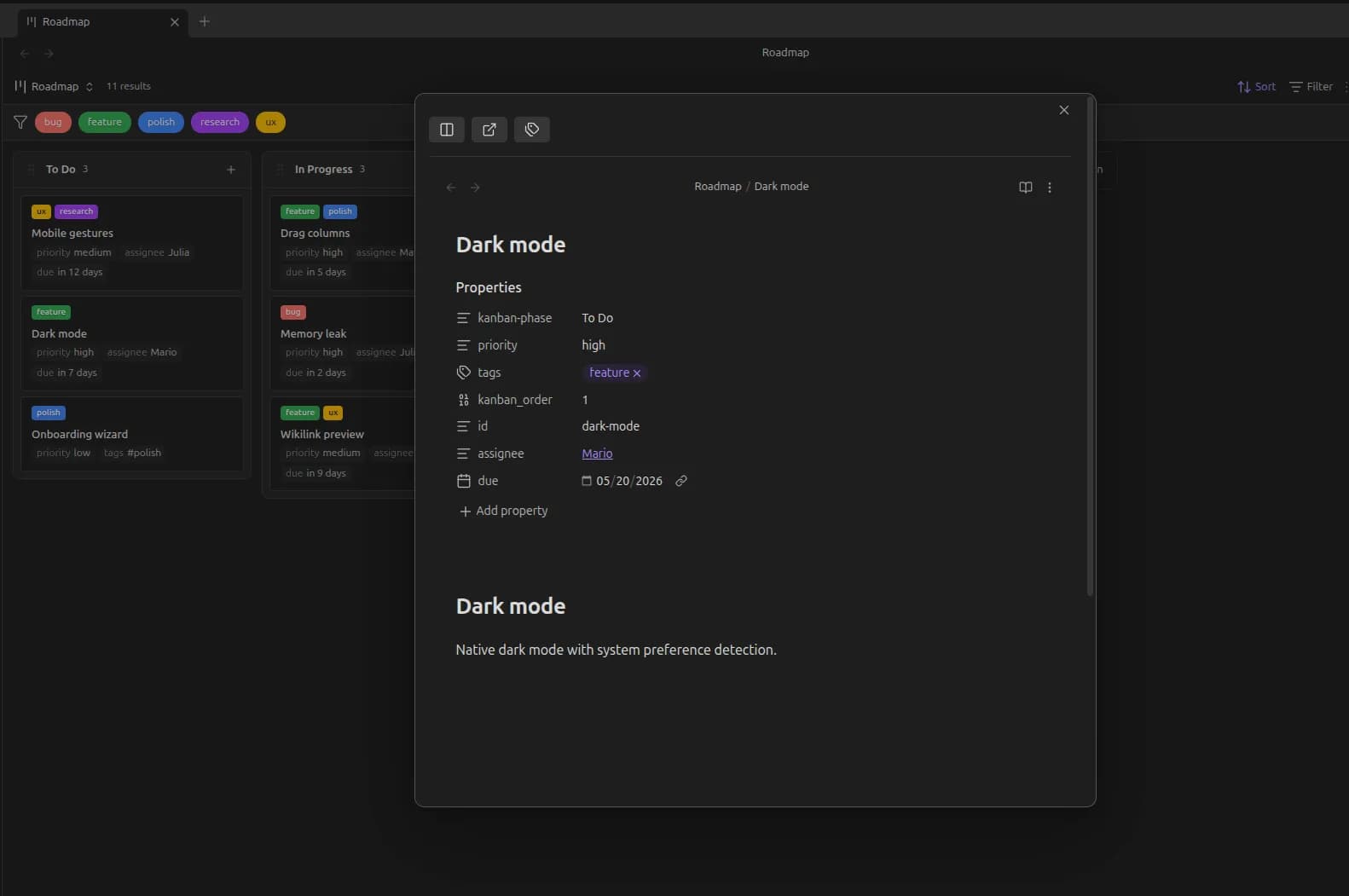

• Native Editing Modal: Open any card into a fully-functional Obsidian editor floating directly over your workspace.
• Rich Cards: View key metadata fields as chips on each card for a quick overview.
• Configurable Card Title: Set cardTitleProperty: note.title in your .base file to use a frontmatter property (e.g. title) as the card heading instead of the filename.
• Tags: Color-coded tag chips on cards with a clickable filter bar to narrow the board by tag.
• Hover Preview: Native note previews on hover (uses the Page preview core plugin).
• One-Click Creation: Add new notes directly to a specific column without leaving the board view.
• WIP Limits: Set per-column work-in-progress limits via the column header context menu. Columns that exceed their limit are highlighted in red.
• Collapsible Columns: Collapse any column to save space; the state is remembered per board.
• Card Cover Images: Display cover images at the top of cards by specifying an image frontmatter property (e.g., cover: "[[image.png]]" or a web URL). Defaults to the cover property.
• Data First: All changes are written directly to your Markdown files.

Usage

Open the Command palette (Ctrl/Cmd + P) and run "Base Board: Create new board". Enter a name, choose a folder, and the plugin will scaffold everything for you — a .base file, a tasks folder, and sample task notes. The board opens automatically.

Card Navigation & Selection

By default, card interaction respects native Obsidian conventions:

• Click: Open the card's note in the active tab / pane.
• Ctrl/Cmd + Click: Open the note in a new tab.
• Ctrl/Cmd + Alt + Click (or Cmd + Option + Click on macOS): Open the note to the side in a split pane.
• Alt / Option + Click: Toggle selection of a card (for bulk actions or dragging).
• Shift + Click: Select a range of cards.

You can customize the default click behavior (e.g. to always open in a floating modal, split pane, or new tab) via the board toolbar under the view options menu.

Card Ordering

Base Board uses manual drag order so cards remain exactly where you place them. This order is stored in each note's kanban_order property and overrides the native Bases Sort by setting.

Default Card Properties (newItemProperties)

You can set board-specific default frontmatter properties for new cards created from "+ Add card" using newItemProperties in your .base file:

views:
  - type: base-board
    name: Frontend Board
    newItemFolder: Tasks
    newItemTemplate: Templates/task.md
    newItemProperties:
      team: frontend
      category: alpha

This ensures new cards automatically receive required frontmatter fields, keeping them visible on filtered boards.

Migrating boards created before the base-board view type

Obsidian 1.14 added a native Bases Kanban layout under the kanban view type — the same id Base Board used to register under, so the two could not coexist. Base Board now registers under its own base-board view type. New boards use type: base-board automatically.

Boards created by older versions still say type: kanban in their .base file and will now open as Obsidian's native Kanban. To convert them, run the command "Base Board: Migrate legacy Base Board views" — it lists every type: kanban view, pre-selects the ones carrying Base Board settings, and rewrites the ones you confirm to type: base-board (leaving genuine native Kanban views alone). Or change the line by hand:

views:
  - type: base-board # was: kanban

Installation

From Obsidian Community Plugins

Search for Base Board in the Obsidian Community Plugins browser and click Install, or view the plugin directly on the Obsidian Community Plugins directory.

Using BRAT

1. Install the BRAT plugin.
2. Go to Settings → BRAT → Add Beta Plugin.
3. Enter mderazon/obsidian-base-board and click Add Plugin.

Development

1. Clone this repo.
2. Run npm install.
3. Run npm run dev to start the build process in watch mode.

License

This plugin is licensed under the MIT License.
