YAML Databases

An Obsidian plugin to view, create and edit YAML files as interactive databases — through a clean, native-feeling UI as a spreadsheet, a form, or raw source.

It was built for maintaining bills of materials (kusovníky) whose changes are tracked with git diff, so its output is deterministic and diff-friendly: a single edit produces a single-line change. It works just as well for any YAML — inventories, contact lists, changelogs, recipes, configuration, knowledge bases.

Why YAML inside Markdown (.yaml.md)?

Databases are stored as Markdown files with a .yaml.md suffix (e.g. bom.yaml.md). The file is plain text with two parts:

---
title: Drone BOM
owner: ondreu
status: draft
---
- part: Main assembly
  qty: 1
  components:
    - part: M3x8 bolt
      qty: 12
- part: 007 washer
  qty: 24

This gives you the best of both worlds:

• Obsidian treats it as a note. The leading --- block is indexed as frontmatter / properties, so your databases show up in Bases and metadata queries just like any other note. Tags, links, and Dataview-style filters work on database files too.
• It is a real Markdown file. It opens in the file explorer, syncs over Obsidian Sync, works on mobile, and can be linked to from other notes. The plugin replaces only the view; the file on disk stays plain text.
• Human-readable. Anyone can open it in any editor — VS Code, vim, GitHub, Notepad — and read it line by line. No binary format, no database engine.
• Line-based reading. Because every value sits on its own line in stable order, git diff shows exactly what changed: one cell → one line. Reviews and merges are trivial.
• AI-friendly. The body is clean YAML, a format every LLM reads and writes natively. Paste a database into a chat, ask for edits, and paste it back — or let an agent commit changes that diff cleanly.
• Portable. No lock-in. The file is YAML; the plugin is just a viewer and editor. Stop using it tomorrow and your data is still 100% usable.
• Classic .yaml / .yml files are also supported — owned directly via extension registration, opened the same way (without the Markdown benefits).

Features

• Open .yaml.md / .yaml / .yml files in the main area by clicking them in the file explorer. For .yaml.md the plugin intercepts the default Markdown view and swaps in its own (only the built-in Markdown view is touched, never other plugins' views). If another plugin grabbed the file, use the command Open current file in YAML Databases.
• Three switchable views (toggle in the toolbar):

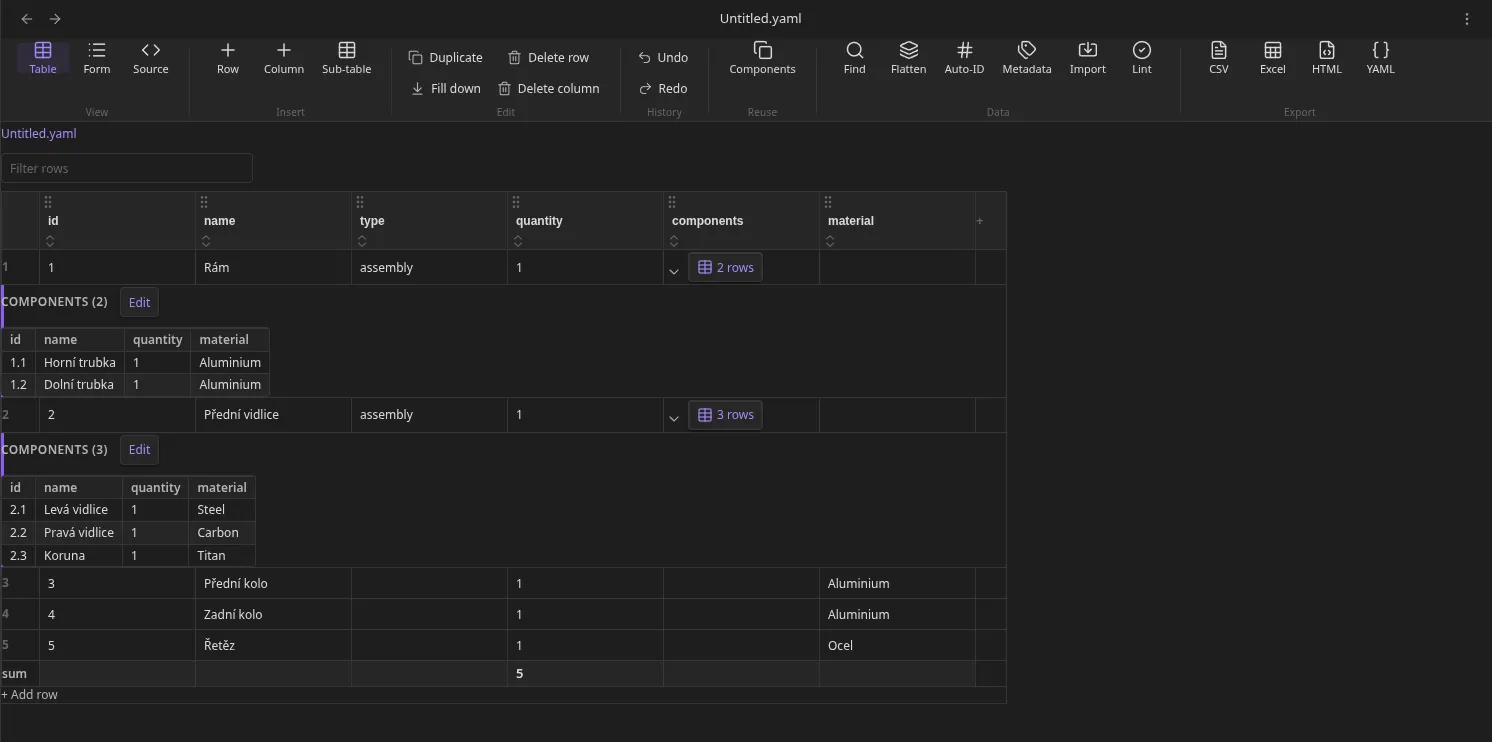

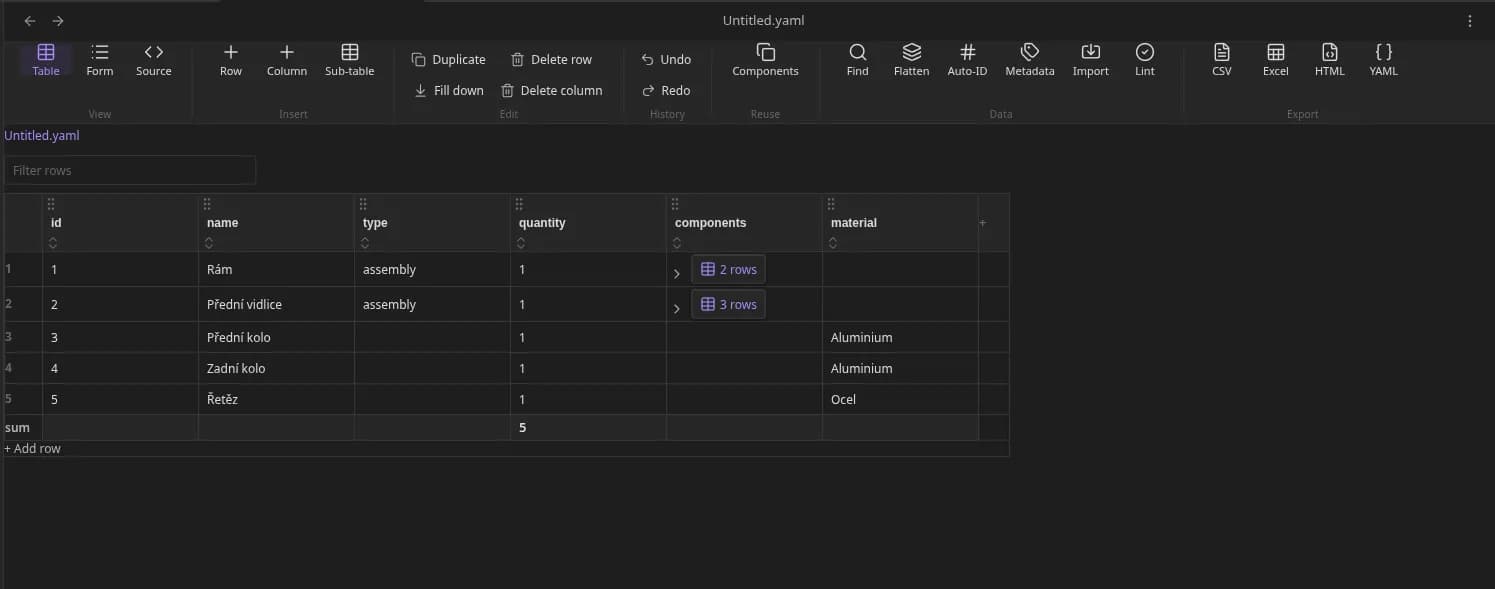

  • Table — a spreadsheet for a list of records (rows × columns). Row numbers, sticky header, inline cell and column-name editing, keyboard navigation (Tab / Enter / arrows), resizable columns, drag-to-reorder rows and columns, and Excel-style range selection with copy/paste (TSV). Right-click a row number, column header, or cell for insert / move / duplicate / delete / clear and per-cell type changes.

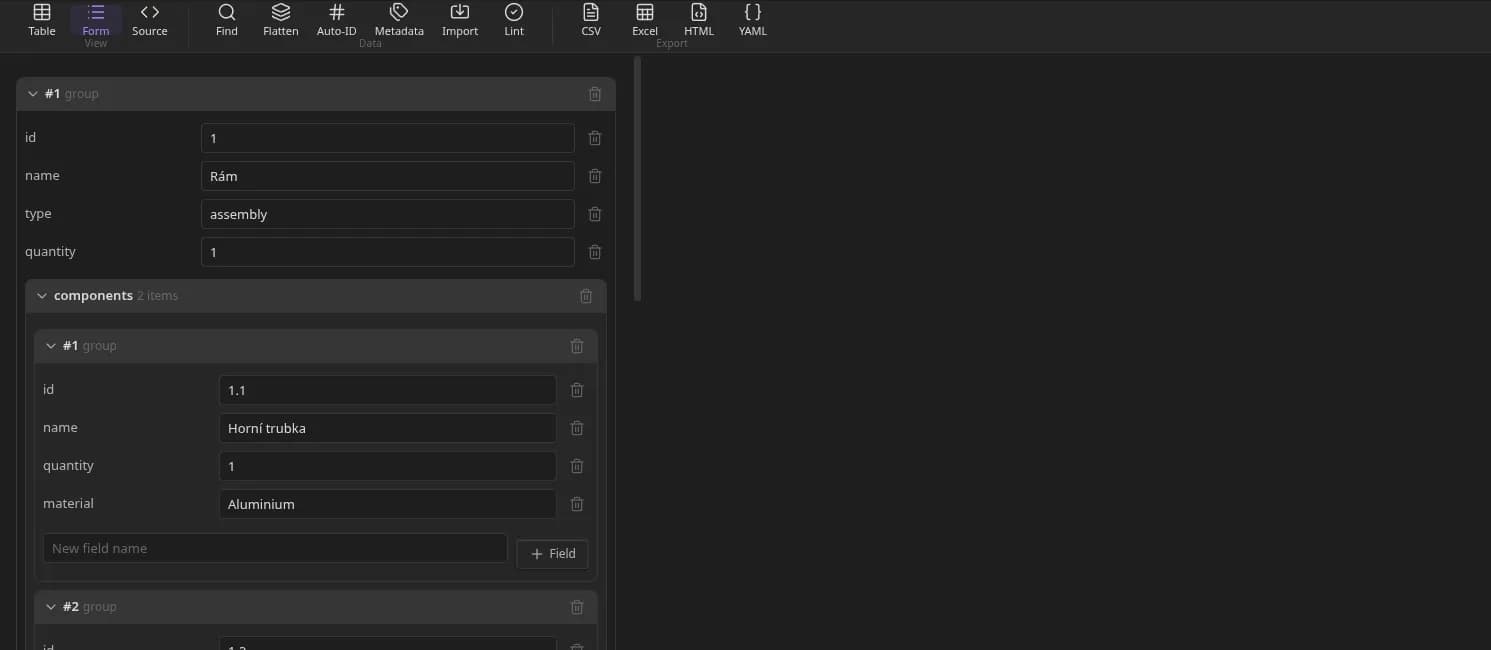

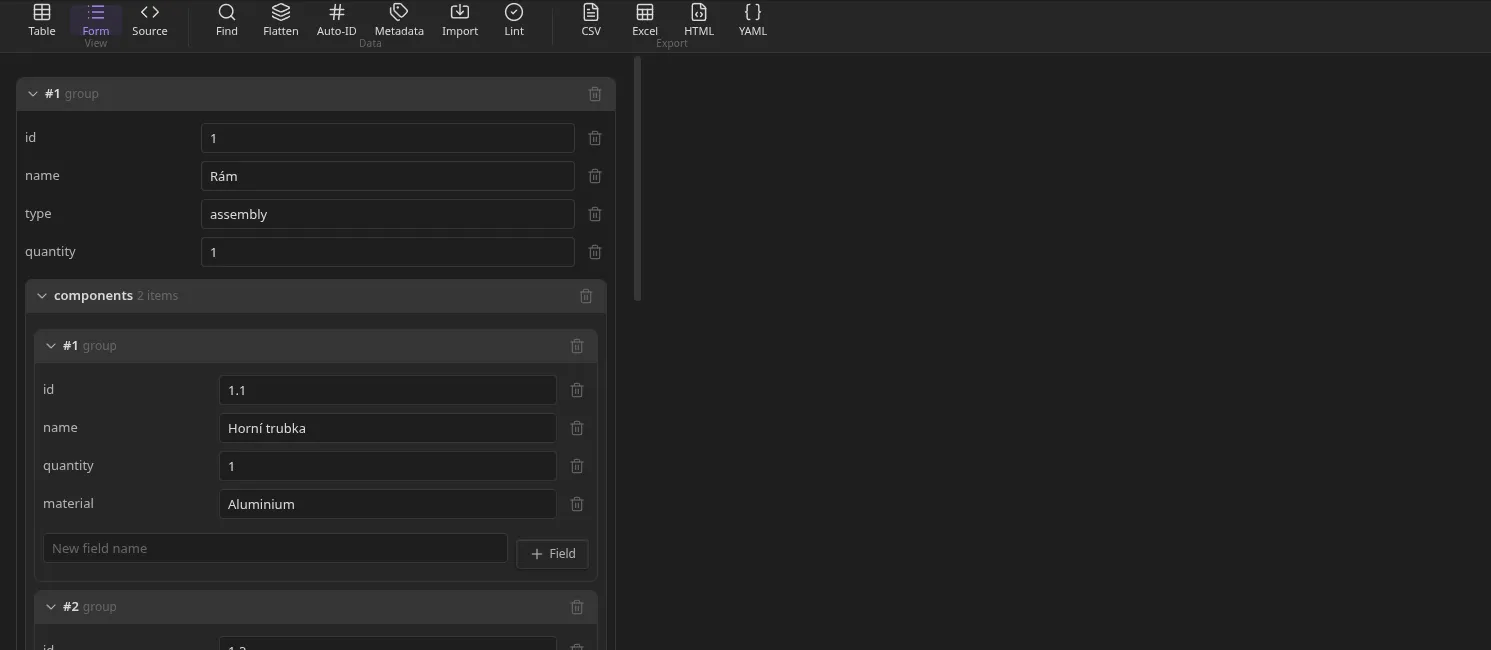

  • Form — a collapsible, labelled tree for maps and nested data, with each nested group shown as a clearly separated card.

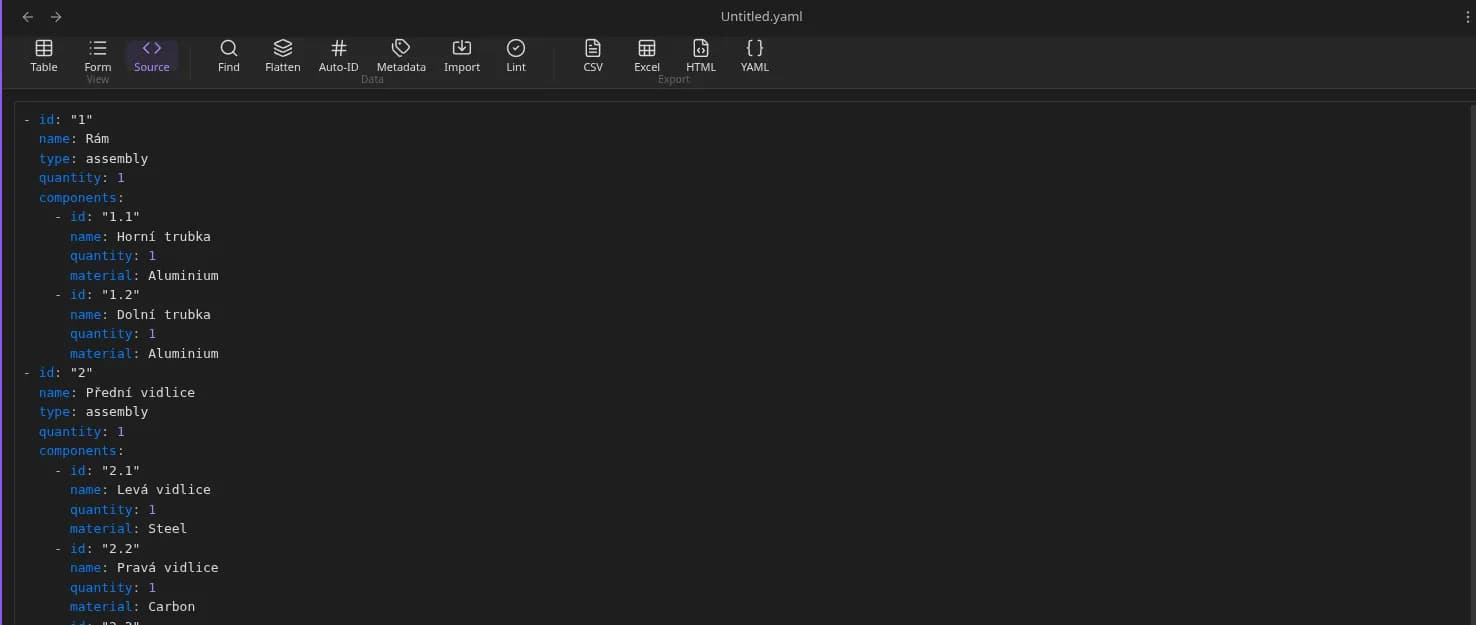

  • Source — the raw YAML with live syntax highlighting and validation as an escape hatch.
• Sub-databases (subassemblies) — a cell can hold a nested list of records; expand it inline to peek, or drill in with a breadcrumb to navigate back out. Insert one from the ribbon (Insert → Sub-table). Perfect for BOM trees where each assembly contains sub-assemblies.
• Find & replace across the whole database and its sub-tables (Data → Find), scoped to a column or all, case-sensitive and whole-cell options.
• Components (Reuse) — a de-duplicated list of every record across the file and its sub-assemblies; insert a copy to reuse a block.
• Flatten BOM (Data → Flatten) — roll quantities up through the sub-assembly tree into one flat parts list and export it as CSV/XLSX. Sub-assemblies are exploded into indented child rows (with a Level column) so a spreadsheet shows every part on its own line instead of a JSON blob in one cell.
• Auto-ID (Data → Auto-ID) — assign nested-friendly hierarchical IDs to every part and sub-assembly part (1, 1.1, 1.2.1…), the id placed first.
• Metadata (Data → Metadata) — attach Obsidian-style frontmatter to a database, stored as a leading --- YAML document ahead of the body. A plain file with no frontmatter is left untouched.
• Totals footer with column sums, a frozen first column, and touch-friendly drag of row numbers / column handles to reorder.
• Sort & filter (view-only) — click a column's chevron to sort; a filter box shows only matching rows. Neither changes the file.
• Schema from lint rules — a column with an enum rule renders as a dropdown; cells that violate a rule are outlined.
• Undo / redo (ribbon History, or Ctrl/Cmd+Z / Shift+Z) and fill-down (Ctrl/Cmd+D) over a selected range.
• Cell types — per cell choose text, number, checkbox, multiline text, list, sub-table, or object (right-click a cell).
• Per-cell comments — right-click a cell → Add comment to attach a trailing # comment that round-trips through all three views (Table, Form, and Source). Comments follow the row when reordered. Commented cells show a corner mark (Table) or a # marker (Form) and a hover tooltip; Source view shows the raw # comment inline and is editable directly.
• Linter — built-in checks plus your own declarative YAML rules (required, unique, type, min/max, enum, pattern, nonEmpty) set in settings; results show in a panel from the Lint button.
• Theme-native UI — styled entirely with Obsidian's own CSS variables, so it matches light/dark and any community theme.

Import

• CSV and XLSX files (Data → Import). Imported rows are appended to the current table, or replace an empty database.

Export

• CSV — standard comma-separated, CRLF, quoted as needed.
• XLSX — real Excel file with no runtime dependency (a tiny inline zip + worksheet writer, ~2 KB).
• YAML — a standalone .yaml dump of the database with its frontmatter, for sharing with tools that expect plain YAML.
• HTML — a self-contained .html file that browses the database offline (drill-down, search, and its own CSV/XLSX/YAML download buttons). Drop it on a USB stick, email it, host it statically — no Obsidian needed.

Usage

1. Right-click a folder → New YAML database, or create a *.yaml.md file and click it in the file explorer.
2. Edit in Table, Form, or Source mode. Changes save automatically.
3. Commit with git — diffs stay minimal and readable.

.yaml.md files are regular Markdown notes to Obsidian, so they show up in the file explorer and their frontmatter is available to Bases and metadata queries. The plugin renders the YAML body; the default Markdown view is replaced automatically when such a file is opened.

Examples

Bill of materials (BOM) with sub-assemblies

drone.yaml.md:

---
title: Drone BOM
owner: ondreu
status: draft
---
- part: Airframe
  qty: 1
  supplier: In-house
  inStock: true
  components:
    - part: M3x8 bolt
      qty: 12
    - part: M3 nut
      qty: 12
- part: 007 washer
  qty: 24
  supplier: Bolts Ltd
  inStock: false
- part: PCB v2
  qty: 1
  supplier: JLC
  inStock: true

Open it in the Table view, drill into the components sub-table of the Airframe row, run Flatten to roll up quantities across the whole tree, then export the flat parts list to XLSX for purchasing.

Inventory with lint rules

Settings → Lint rules:

rules:
  - column: sku
    required: true
    unique: true
    pattern: "^[A-Z]{3}-\\d{4}$"
  - column: quantity
    type: integer
    min: 0
  - column: status
    enum: [in-stock, ordered, discontinued]

Now the status column renders as a dropdown, out-of-stock violations are outlined in red, and the Lint panel lists every problem with row + column.

Recipe collection

---
title: Sourdough
tags: [bread, vegan]
---
- ingredient: Bread flour
  amount: 500
  unit: g
- ingredient: Water
  amount: 350
  unit: g
- ingredient: Salt
  amount: 10
  unit: g

Simple contact list

- name: Ada Lovelace
  email: [email protected]
  role: engineer
- name: Alan Turing
  email: [email protected]
  role: mathematician

Type inference

Cell/field input is coerced conservatively: true/false → boolean, empty or null → null, canonical numbers → number, everything else stays a string. Leading-zero values such as 007 are kept as strings so part numbers are not mangled.

Settings

• Default view — Table / Form / Source. Table automatically falls back to Form when a file is not a list of records.
• New file base name and New file template — used when creating a database.
• Lint rules — declarative validation in YAML (see example above).

Limitations

• Trailing cell comments are preserved through the structured views. Other comment forms (standalone comment lines, comments before a key, document-level comments) and anchors/aliases are not preserved — the plugin shows a notice when it opens such a file. Use the Source view or an external editor if you need them.
• Files that fail to parse are shown with an error and are never overwritten until the syntax is valid.

Development

npm install      # install dependencies
npm run dev      # watch-build main.js
npm run build    # type-check + production build
npm test         # run model round-trip / shape / coercion tests

To try it in a vault, copy main.js, manifest.json and styles.css into <vault>/.obsidian/plugins/yaml-databases/ and enable the plugin in Settings → Community plugins. Then create or open any *.yaml.md (or *.yaml) file.

Project layout

src/
  main.ts              plugin entry (view + extension + menu + command + ribbon)
  constants.ts         view type, extensions, icons
  settings.ts          settings + settings tab
  model/
    YamlDocument.ts    parse / deterministic serialize
    shape.ts           shape detection + column collection
    coerce.ts          scalar type inference / formatting
  view/
    YamlView.ts        TextFileView host, mode switching
    Renderer.ts        renderer contract
    TableRenderer.ts   spreadsheet editor
    FormRenderer.ts    recursive form / tree editor
    SourceRenderer.ts  raw YAML editor with validation
  export/
    csv.ts  xlsx.ts  html.ts  zip.ts
  import/
    csvRead.ts  xlsxRead.ts
  lint/
    lint.ts

License

MIT © ondreu
