Visual Line Numbers
theluckystrike3 downloadsNumbers every wrapped display line in the editor gutter, with relative, hybrid and absolute modes, so counted Vim motions land where the gutter says.
- Overview
- Scorecard
- Updates1
Visual Line Numbers puts a number on every display row of the editor gutter. A long paragraph that wraps onto five rows gets five numbers, not one. In relative and hybrid mode the numbers count rows from the cursor, so a counted Vim motion such as 5gj lands on the row that shows 5.
Core line numbers give a wrapped line one number. If you map j and k to gj and gk, the gutter count does not match the motion. This plugin counts the rows that the editor draws.
Features
A number on every wrapped row

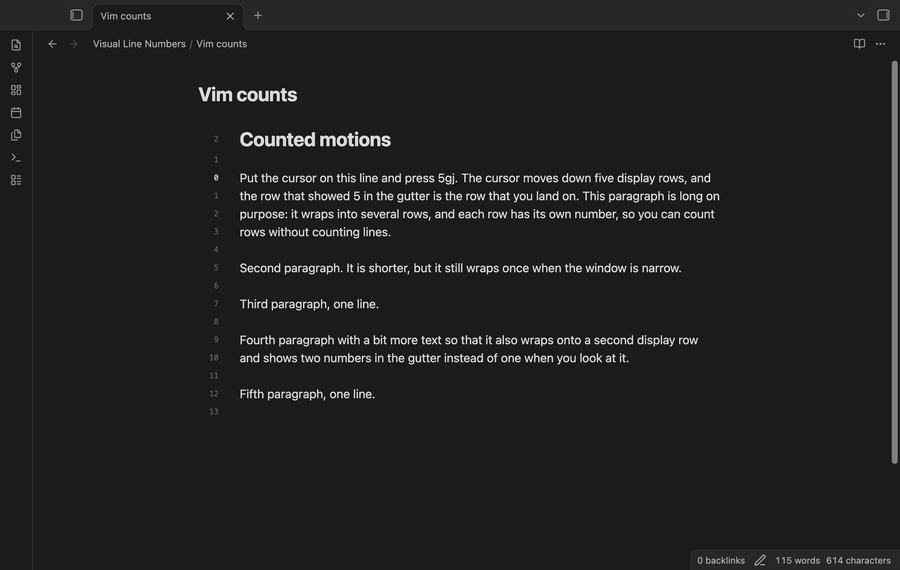

Relative mode is the default. The row with the cursor shows 0. The rows above and below show how many rows away they are. A paragraph that wraps onto four rows shows four numbers, so you can count rows without counting lines.
Hybrid mode
Hybrid mode gives the same counts. The cursor row shows the line number of the cursor line instead of 0, as Vim does with both options on. You see where you are in the note and how far each row is.
Absolute mode
Absolute mode shows the line number on the first row of each line. The rows that a long line wraps onto have no number, so the gutter matches the line numbers that other tools and error messages use.

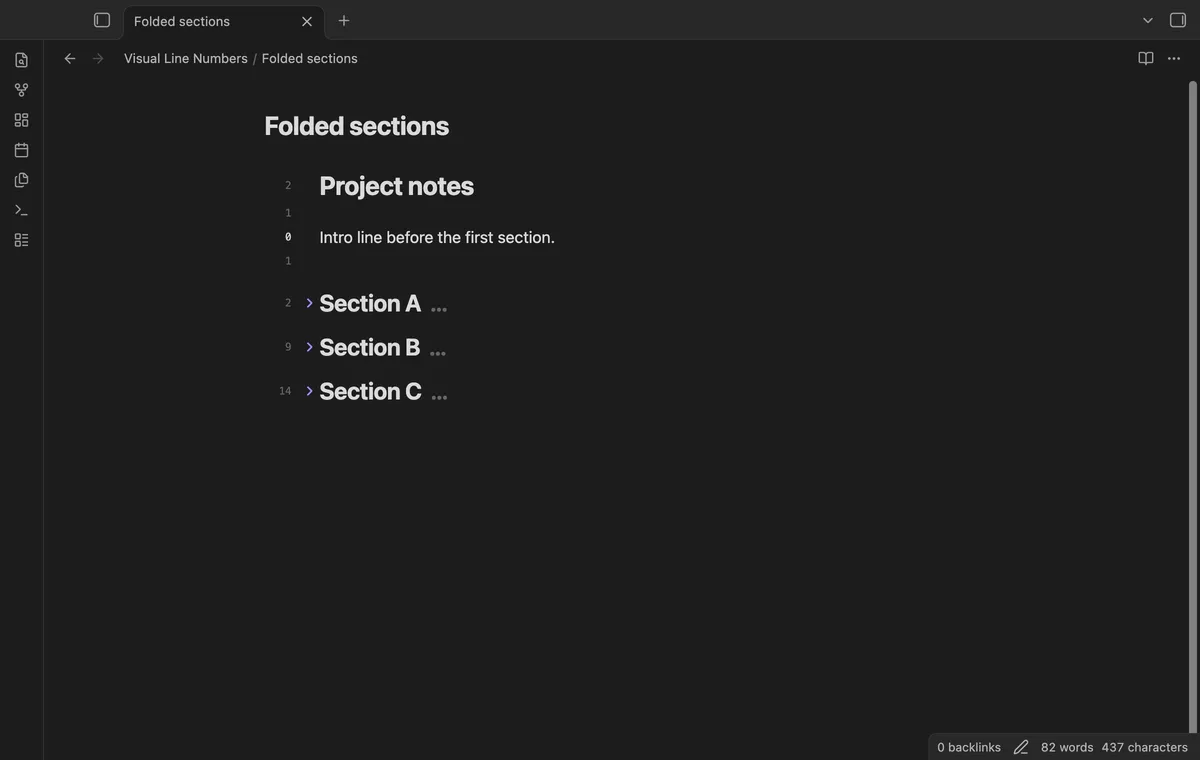

Count folded lines (Pro)
Turn on "Count folded lines" and each line that a fold hides takes one count. The number of the row below a fold then matches the document lines between it and the cursor. With the option off, a fold counts as the one row that you see.
Highlight the current row (Pro)
The number of the cursor row is shown in bold, in the accent color, with a tinted background.

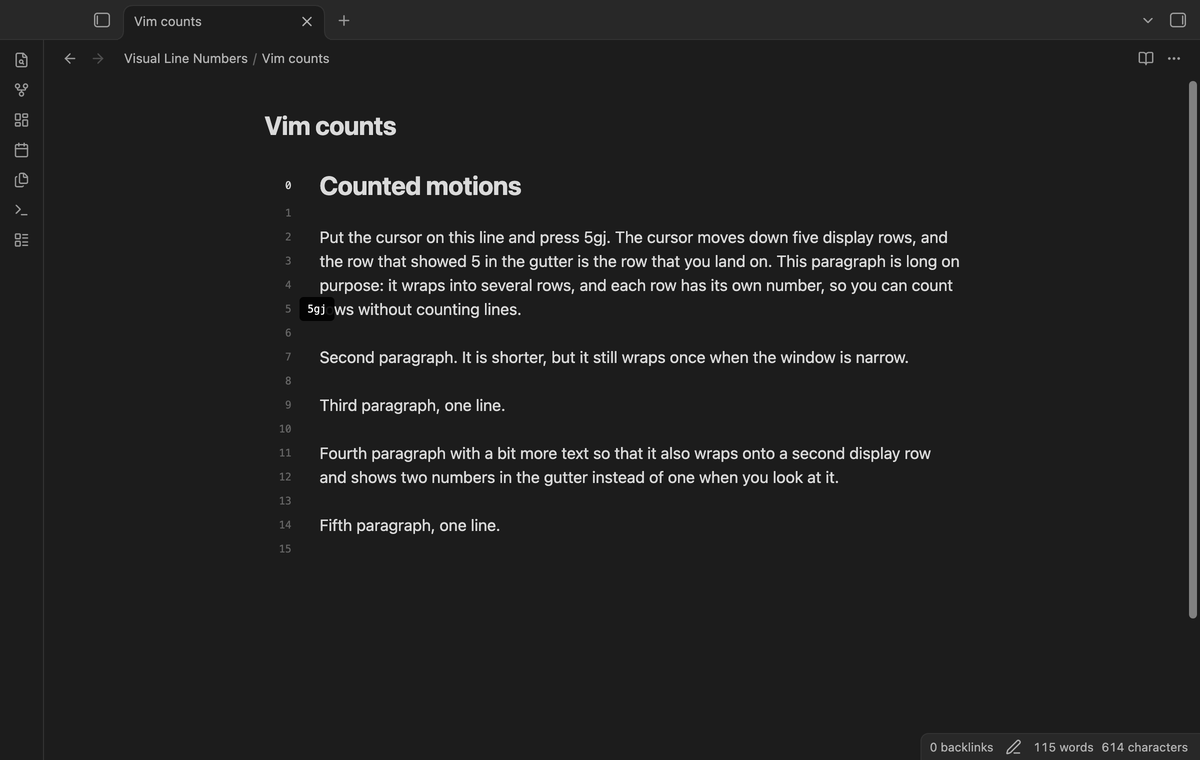

Motion hint (Pro)
Hover over a number to see the Vim motion that reaches that row, such as 5gj for a row five rows below the cursor, or 3gk for a row three rows above.

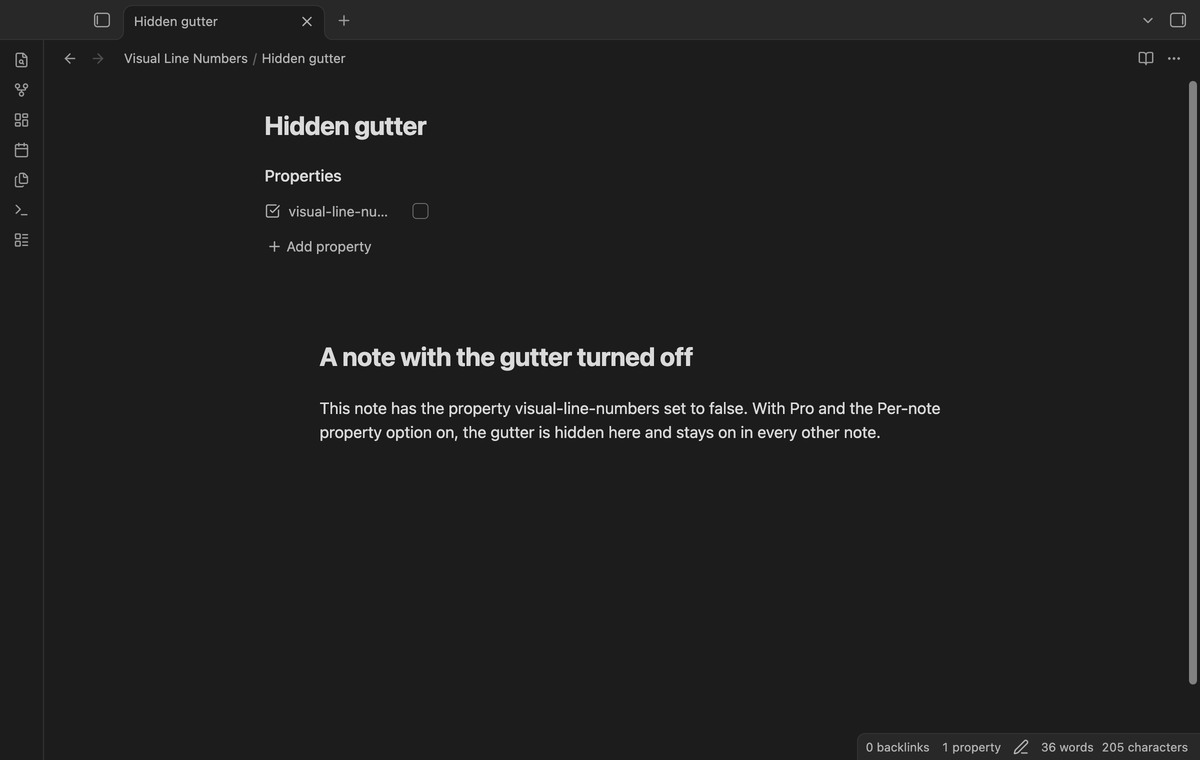

Per-note property (Pro)
Add visual-line-numbers: false to the properties of a note to hide the gutter in that note. Every other note keeps its gutter. Use it for notes with long prose, where numbers add noise.
A color for each mode (Pro)
Choose one color for absolute numbers, one for relative numbers, and one for the line number on the cursor row in hybrid mode. Without a chosen color, the numbers use the theme.
Install
- Open "Settings → Community plugins" and turn off restricted mode.
- Select "Browse", search for "Visual Line Numbers", then select "Install" and "Enable".
- Open "Settings → Editor" and turn off "Show line numbers". Two gutters of numbers would show together.
To install by hand, copy main.js, manifest.json and styles.css from the latest release into <vault>/.obsidian/plugins/visual-line-numbers/. Then enable the plugin. You need Obsidian 1.13.4 or later. The plugin works on desktop and on mobile.
Usage
The gutter is on after you enable the plugin. Open a note in Live Preview or Source mode and look at the left of the text.
The plugin adds these commands to the command palette:
- Toggle the number gutter: turns the gutter on or off.
- Cycle number mode: goes from absolute to relative to hybrid and back.
- Use absolute numbers, Use relative numbers, Use hybrid numbers: set one mode.
To make counted Vim motions follow the display rows, turn on Vim key bindings in "Settings → Editor" and map j and k to gj and gk. For example, with the community plugin Vimrc Support, add nmap j gj and nmap k gk to your vimrc file. Then 5j moves five display rows, and the row that shows 5 in the gutter is the row where the cursor lands.
Pro
The free version has the gutter, the three modes, the commands and the settings tab.
Pro adds counting of folded lines, the per-note property, the current row highlight, the motion hint and a color for each mode. To get it:
- Sponsor theluckystrike on GitHub Sponsors with $5 a month, or $15 once. When you have paid $15 in total, Pro stays on.
- In Obsidian, open the settings of Visual Line Numbers and select "Sign in with GitHub".
- The plugin copies a code and opens github.com/login/device. Paste the code there and approve.
The status line then shows your GitHub login and the tier. If you sponsor after you sign in, select Refresh. If a monthly sponsorship ends before you have paid $15 in total, Pro turns off at the next check, within 7 days. Your Pro choices stay saved and work again when Pro is on.
Settings
| Setting | What it does |
|---|---|
| Show the gutter | Turns the numbers on or off for all notes. |
| Number mode | Relative, hybrid or absolute. The default is relative. |
| Count folded lines (Pro) | Each line hidden in a fold takes one count. |
| Per-note property (Pro) | Reads visual-line-numbers: false from the properties of a note. |
| Highlight the current row (Pro) | Bold number and tinted background on the cursor row. |
| Motion hint (Pro) | Hover text with the Vim motion that reaches a row. |
| Absolute, relative and hybrid cursor colors (Pro) | A color for each mode. Reset colors goes back to the theme. |
Turn off a Pro setting and the plugin goes back to the free behavior at once. The settings tab also has the Pro section with sign in, status and Refresh.
FAQ
How does it count the rows?
When the editor draws a line, the plugin asks the editor where each display row of the line ends, with the public CodeMirror function EditorView.moveToLineBoundary. It does this for the lines on screen and nothing else. The plugin changes no Obsidian code and no internal object.
Are the numbers exact?
On screen, yes: the counts come from the rows that the editor draws. The cursor can be off screen. The editor then has only estimated heights for lines that it has not drawn, so the relative numbers on screen are close but not exact until the cursor line is on screen again. Absolute mode and the cursor line number in hybrid mode are exact, because they come from the document.
Does a fold count as one row?
Yes, by default. A folded section is drawn as one row, so it counts as one. With Pro, "Count folded lines" counts every hidden line as well.
Does it slow down long notes?
The plugin measures only the lines on screen. It measures again when the note, the scroll position or the window width changes.
Does it change my notes or sync data?
No. The settings are in data.json in the plugin folder. The GitHub token for Pro, if you sign in, is in the secret storage of Obsidian on that device.
Payment, account and network
The core features are free and stay free. Pro features need a GitHub Sponsors sponsorship of theluckystrike: $5 a month or more, or $15 once. When you have paid $15 in total, Pro stays on. Your notes stay readable and editable with or without Pro.
GitHub handles the payment. Sponsor at https://github.com/sponsors/theluckystrike. You need no account for the free features. Pro needs the GitHub account that sponsors.
Until you select "Sign in with GitHub" in the settings, Visual Line Numbers makes no network requests. Sign in uses the GitHub device flow. Visual Line Numbers sends its public client ID and the scope read:user to https://github.com/login/device/code and shows you a code. While you enter the code at https://github.com/login/device, it asks https://github.com/login/oauth/access_token every few seconds whether sign in is done. The scope read:user is read-only access to your profile, which GitHub needs to show the sponsorship tier. It gives no access to repositories and no write access.
After sign in, Visual Line Numbers sends one query to https://api.github.com/graphql: does the signed-in account sponsor theluckystrike, at which tier, and how much it has paid theluckystrike in total. It asks again at most once every 7 days, or when you select Refresh. It sends no note content, file names or other vault data, and it has no telemetry.
Pro keeps working for 14 days without a successful check. The GitHub token stays in the secret storage of Obsidian on this device. It is not written to data.json or other vault files, so it does not sync or reach a git repository. The local storage of this device keeps your GitHub login, the tier and the time of the last check. Sign out deletes the token. You can also revoke the access in your GitHub settings, under Applications.
Support
Report bugs and ask for features in the GitHub issues of this repository. Add your Obsidian version, your number mode and a small sample note.
npm ci
npm run build
npm test
License
MIT
