Trello Vault Sync

Two-way Trello sync, link auditing and card matching for Obsidian — built for a worldbuilding vault where every note mirrors a card on a single board.

It replaces a set of Templater user scripts driven by ribbon buttons: one plugin, one credential pair, native commands, and a test suite.

This plugin was built for one specific vault, but the entire plugin — code, comments, and everything you see inside Obsidian (commands, settings, the progress panel, Notices, and the Markdown audit reports it writes into your notes) — is in English. There is no language setting.

Acknowledgements — nathonius's Trello plugin is what first got my notes and Trello cards talking to each other, and using it is part of what pushed me to build this one. Thanks for the inspiration.

Features

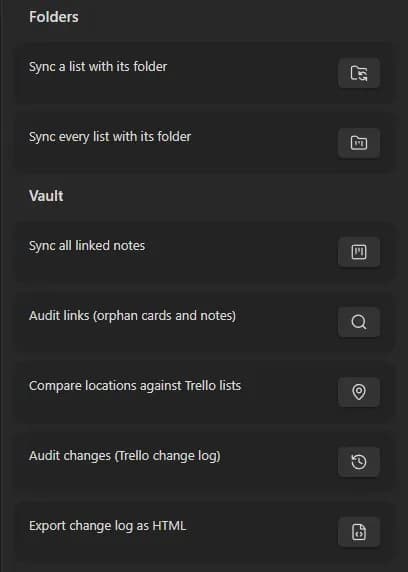

Every command below is available both from the right sidebar panel and the command palette.

Active note

Folders

Vault

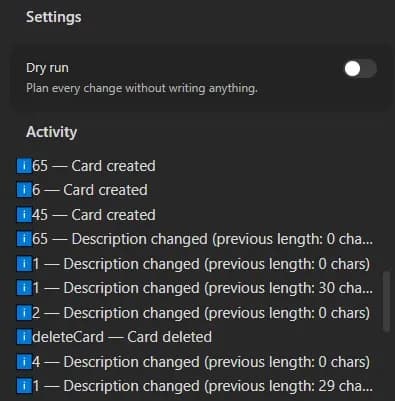

Plus "Toggle dry-run mode", which flips the Dry run setting — a command in the palette, and a switch at the top of the sidebar panel.

A note points at its card through a single frontmatter key:

trello_board_card_id: "<boardId>;<cardId>"

A bare card id is accepted too. Unfilled {{CARD_ID}} template placeholders are ignored rather than sent to the API.

You never need to type that value by hand: run "Link active note to a card (pick manually)" and search the board's cards by name, or "Link active note to a card" for automatic title-matching.

To find which note is linked to which Trello card, the plugin lists the vault's markdown notes and checks each one's card-link frontmatter key across every folder — used for vault sync, the link/location audits and moved-note detection; it reads nothing outside the vault and sends only card-related data to Trello.

Undo and cancellation

Every sync run is recorded (when Sync history is on), so it can be undone: the last run, the last run for the active note, or any recorded run with individual writes picked one by one. Undo reverts vault writes and, if enabled, the matching Trello writes — it never overwrites something that changed on either side since the run. The Cancel button on the progress panel stops a sync between requests, but a request already sent to Trello can't be recalled mid-flight; undo can put it back afterwards.

Install

Install from Obsidian's Settings → Community plugins → Browse, then search for "Trello Vault Sync".

You can also install manually: download main.js, manifest.json and styles.css from a GitHub release, and copy them into <vault>/.obsidian/plugins/trello-vault-sync/, then enable the plugin in Obsidian's Community Plugins settings.

To build from source instead:

npm install
npm run check

For live development, npm run dev rebuilds main.js on save.

Quickstart

1. Get a Trello key and token — open https://trello.com/app-key, copy the Key, then use the token-generation link on that same page to create a Token (Trello walks you through granting read/write access).
2. Install the plugin — see Install above, then enable it in Obsidian's Community Plugins settings.
3. Open the plugin settings, paste the key and token into the Trello connection section, then fill Board id — start typing to search your boards by name instead of hunting for the id.
4. Click "Test connection" to confirm the key, the token and board access all work before syncing anything.
5. Add one list ↔ folder mapping, or link a single existing note first with "Link active note to a card (pick manually)".
6. Turn on Dry run, then run "Sync a list with its folder" once — nothing is written, but the log shows exactly what would happen.
7. Happy with the plan? Turn Dry run off and run the same command for real.

Configuration

Everything lives in the plugin settings — never in a vault note. Section names below match the settings tab exactly.

• Trello connection — API key and token (a single pair, stored in the plugin's own data.json), board id with a name-search picker, and "Test connection".
• Scope — synced folder for the vault-wide commands (empty = whole vault), and folders excluded regardless of link state.
• Audit output — the report note the audits write into, and the path of the standalone HTML change log page.
• Arbitration & safety — who wins on conflict (newer side, Obsidian always, or Trello always), the clock margin before a divergence counts as a real conflict, Sync titles, Dry run, Create missing notes / Delete phantom notes (each overridable per mapping), Protect cards moved or archived elsewhere, and Confirm before a forced sync.
• Labels — merge vs. overwrite when the note's and the card's labels diverge.
• Attachments — Sync attachments (pull-only, into frontmatter), Download attachments (writes files into the vault, off by default), and where a download lands (same folder as the note, or one shared folder).
• Checklists — Sync checklists, mirroring the card's checklists as Markdown tasks under a configurable section heading.
• Cover image — Sync card cover into a frontmatter key (compatible with Pixelbanner), and which key it uses.
• Members — Sync a card's assigned members into frontmatter as readable names, and which key holds them.
• Custom fields — Sync a card's custom fields into one frontmatter object, keyed by each field's label.
• Sync history — the master toggle for recording runs, whether undo also reverts Trello writes, whether undoing asks for confirmation first, and how many runs are kept before the oldest is dropped.
• Create note from a card — fallback folder used by "Create note from a Trello card" when the card's list isn't mapped to one (empty = ask each time).
• Auto-sync — the master toggle, its triggers (on a timer, on focus, at startup), its scope (every mapped folder and/or the whole vault), the timer interval, and the minimum gap enforced between runs however they were triggered.
• Trello list ↔ folder — one row per list/folder pair, its note template, and per-mapping overrides for Create missing notes / Delete phantom notes.
• Ribbon icons — a toggle per command, choosing which ones get a button in Obsidian's left ribbon; every command stays available from the sidebar panel and the command palette regardless of this setting.
• Advanced — similarity threshold for automatic title-matching, retry tuning (retries, initial delay, request timeout, max retry wait), whether attachments and checklists are fetched together with the cards, the progress panel and its auto-close delay, and the frontmatter key used for each synced value (including the card-link key itself).

Templates

A mapping's template may use {{TITLE}}, {{DESCRIPTION}}, {{URL}}, {{CARD_ID}} and {{BOARD_ID}}. Unknown placeholders are left untouched. With no template, a new note gets a minimal frontmatter and the card description.

{{TITLE}} and {{DESCRIPTION}} carry arbitrary Trello card text, so when either one lands inside the frontmatter fence it is rendered as an auto-quoted, YAML-escaped string — write title: {{TITLE}}, not title: "{{TITLE}}", or the value ends up double-quoted. {{CARD_ID}}/{{BOARD_ID}}/{{URL}} are Trello's own fixed-format ids and are never escaped, so the default "{{BOARD_ID}};{{CARD_ID}}" pattern still works as written.

Architecture

src/
  core/       pure logic, no Obsidian and no network — where the tests live
  trello/     REST client with an injected transport, retry/backoff, secret redaction
  obsidian/   VaultGateway interface + the real Obsidian implementation
  features/   sync, audit and rollback engines, written against the interfaces
  ui/         sidebar view, progress panel, pickers and confirmation modals
  settings/   settings shape and settings tab

core/ never imports Obsidian, so the sync decisions, the folder planner and the report builders run in plain Node under Vitest. features/ depends on the VaultGateway and TrelloClient interfaces, so the engines are exercised end to end against an in-memory vault and a stubbed transport.

Scripts

npm run check         # typecheck + hardcode check + tests + production build
npm test               # tests only
npm run build          # typecheck + production build
npm run dev            # watch build
npm run check:hardcode # scans for hardcoded values that belong in settings

Notable differences from the scripts it replaces

• One credential pair instead of one per script, held in settings, never in a note.
• The card list is fetched in one request per batch run instead of one per note, attachments and checklists included (unless "Fetch attachments and checklists with the cards" is turned off in Advanced).
• Retry with exponential backoff on 429 and 5xx, instead of aborting the whole run.
• Frontmatter handled as YAML (or line-wise), never with indexOf("---", 3) — a --- inside a YAML value no longer corrupts the note, and BOM/CRLF files are safe.
• Simultaneous divergence surfaces as a conflict instead of being silently skipped.
• Note deletion is opt-in (globally or per mapping), can spare cards moved or archived elsewhere on the board, and always goes through Obsidian's own "Deleted files" setting — never a permanent delete.
• Rename collisions get a (2) suffix instead of failing.
• Every sync run can be undone afterward, instead of being a one-way write.

License

MIT
