Pi Harness

English | 简体中文

Chat with your local pi agent from inside Obsidian — phone included. The agent runs in Termux (where it can spawn processes, use skills, MCP servers and your vault index); this plugin is the panel that talks to it, and the part that knows which note you are looking at.

Obsidian (this plugin)                     Termux
  panel + context   ── ws ──►  pi-relay.mjs ── spawn ──►  pi --mode rpc
        ▲                                                        │
        └────────────── JSONL records over WebSocket ◄────────────┘

Requires pi-relay running on the same device — sources in relay/; start it with sh ~/pi-relay/start.sh (see relay/README.md (Chinese) or relay/README.en.md for a first-time setup, including the token file).

Install

# 1. relay, in Termux
cp -r relay ~/pi-relay && cd ~/pi-relay && npm install && sh start.sh

# 2. plugin
npm install && npm run build
OBSIDIAN_VAULT="/storage/emulated/0/Obsidian Vault" npm run build   # builds and copies into the vault

Then enable Pi Harness in Obsidian → Settings → Community plugins (restart the plugin after a rebuild), open the panel from the ribbon, and make sure the relay URL and token in the plugin settings match ~/pi-relay/token.

Why a plugin of its own

A mobile Obsidian plugin cannot spawn a process, so the agent has to live outside. Two things then decide whether the setup is usable:

1. Context. pi runs with a working directory, not a cursor. Asked "总结一下这篇笔记" it has no idea what "这篇" means. RPC mode rejects @file arguments (pi docs/rpc.md), so the active note travels inside the message as an explicit preamble (src/core/context.ts).
2. Weight. pi already persists the conversation, so the plugin does not keep a transcript — it replays pi's own (get_messages) and renders events as they stream.

What it does

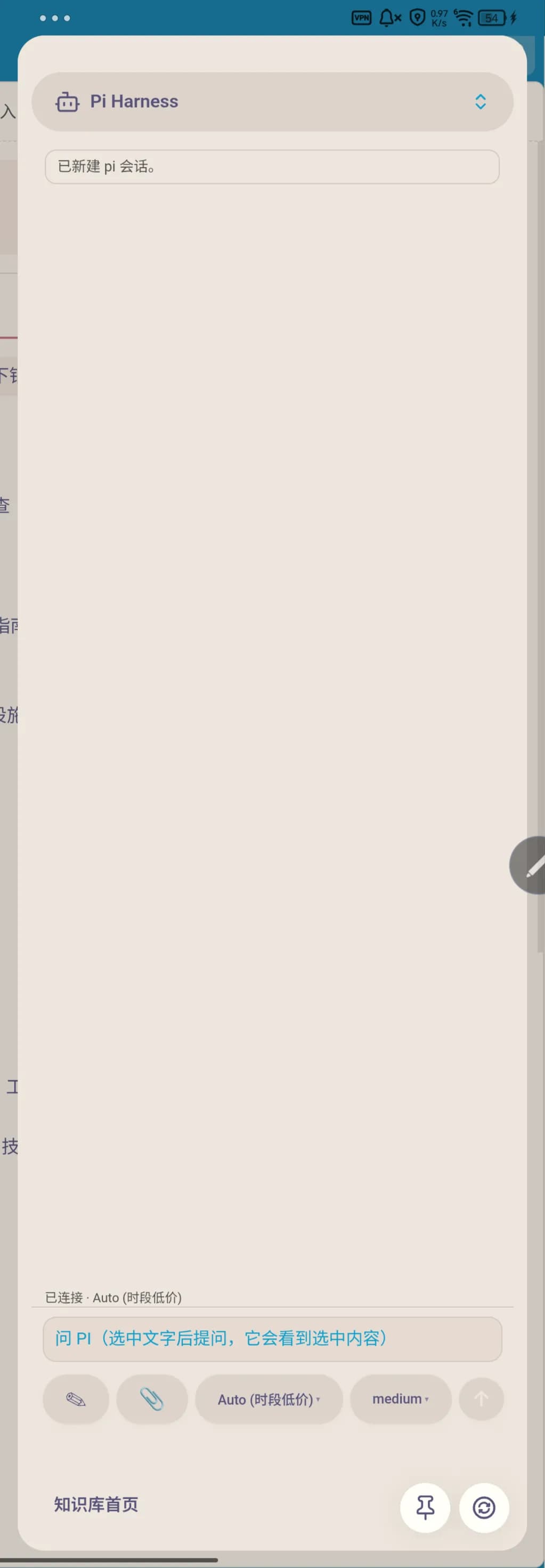

• Streaming chat panel in the right sidebar (ribbon icon / command palette), markdown rendered with Obsidian's own renderer.
• Attachments — the 📎 button attaches images (sent to pi as native image content, base64) and files. Vault files are referenced by path; files picked from the phone are copied into the vault first, so the agent reads them with its own tools. Staged as removable chips above the composer.
• Active-note awareness — the note the user came from (and their selection) is attached to every message; what gets attached is configured in settings (note path / selection / full body). The user's own bubble records what was attached.
• Write back into the note — 「写入当前笔记」 replaces the selection if there is one, otherwise inserts at the cursor.
• Tool cards — collapsed by default, expandable, with the arguments, the output, error styling, and an 打开 button when the call names a vault path.
• Model / thinking chips drive pi live (set_model, set_thinking_level); new conversation rotates the pi session id.
• Reconnects on the next message after the socket dies (phone sleeping, relay restart) — the same session id resumes the same conversation.

Settings

Development

npm install
npm run build          # writes main.js + styles.css
OBSIDIAN_VAULT="/storage/emulated/0/Obsidian Vault" npm run build   # and copies into the vault
npm run typecheck
npx jest               # unit tests (context + event mapping)
PI_RELAY_E2E=1 npx jest tests/e2e.test.ts   # live relay + a real pi turn

The e2e suite's second case is the load-bearing one: it feeds a buildPrompt preamble and asserts pi answers with the note path it was told, which is exactly the behaviour this plugin exists to provide.

Repo layout

The relay that actually runs lives in ~/pi-relay; relay/ is a mirror, so after touching the relay run sh scripts/sync-relay.sh, review the diff, and commit it. The script also names any file it does not know about rather than dropping it silently.

Neither half is useful alone: the plugin cannot spawn a process on mobile, and the relay has no UI. Install the relay in Termux, then load the built plugin into the vault.

Requirements

• Termux with pi installed (pi on PATH) — the agent runs there, where it can spawn processes and use skills, MCP servers and your vault index.
• The relay running: ~/pi-relay from this repo, started with sh ~/pi-relay/start.sh.
• Obsidian 1.13.0 or later (1.7.2–1.12 get plugin 1.0.2 automatically via versions.json). Mobile is supported; see relay/README.en.md for the Termux side.

Disclosures

Required by the Obsidian community directory, and worth knowing before you install:

• Network use. The plugin opens a WebSocket to the relay address in its settings — ws://127.0.0.1:8346 by default, i.e. your own device. It contacts no external service, and sends nothing anywhere else.
• Access outside the vault. Files you pick from the phone with 📎 are copied into the vault (50-附件/pi-harness上传/ by default) so the agent can read them; the plugin itself touches no path outside the vault. The relay and the agent, however, run outside Obsidian with the working directory you configure, and the agent may read and write files there when you ask it to.
• Clipboard. The copy button on an answer writes that answer to the system clipboard, and nothing else. The plugin never reads the clipboard.
• No telemetry, no self-update, no ads. The plugin contains no analytics and never updates itself or its dependencies. data.json holds your settings, including the relay token in plain text.
• The agent is not sandboxed by the plugin. Anything you ask pi to do, it does with the privileges of your Termux user.

License

MIT — see LICENSE.
