NosyGraph

Build and explore structured, expandable graphs from your Obsidian notes.

NosyGraph is an Obsidian plugin for building interactive, property-driven graph views from Markdown notes. It reads relationships from note frontmatter, LinkType notes, group notes, graph notes, graph-capable notes, and Obsidian Bases views, then renders them as an explorable canvas graph with expandable links, embedded graph lenses, typed edges, grouping, and persistent graph-note state.

Beta warning: This plugin is currently beta software. Use it first in a copied vault or with reliable backups enabled. Earlier development builds had a critical bug where an open graph note could sometimes be emptied when Obsidian reloaded while the graph view was active. This has not been seen recently, and safeguards have been added to block unsafe empty graph-state writes, but graph notes should still be treated as important data and backed up.

Screenshots

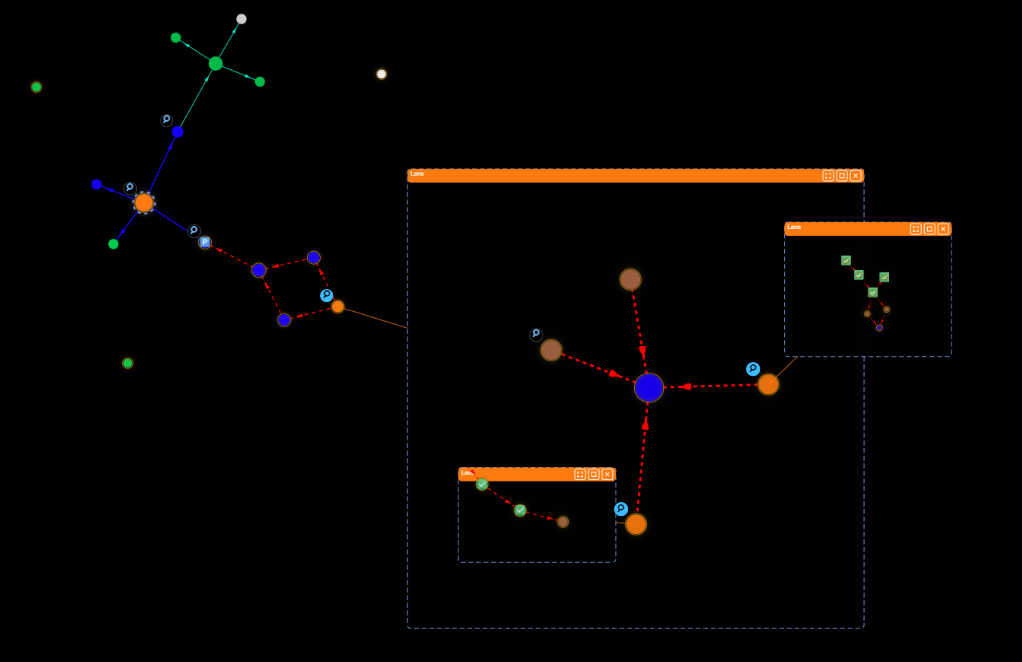

Expandable Graph Lenses

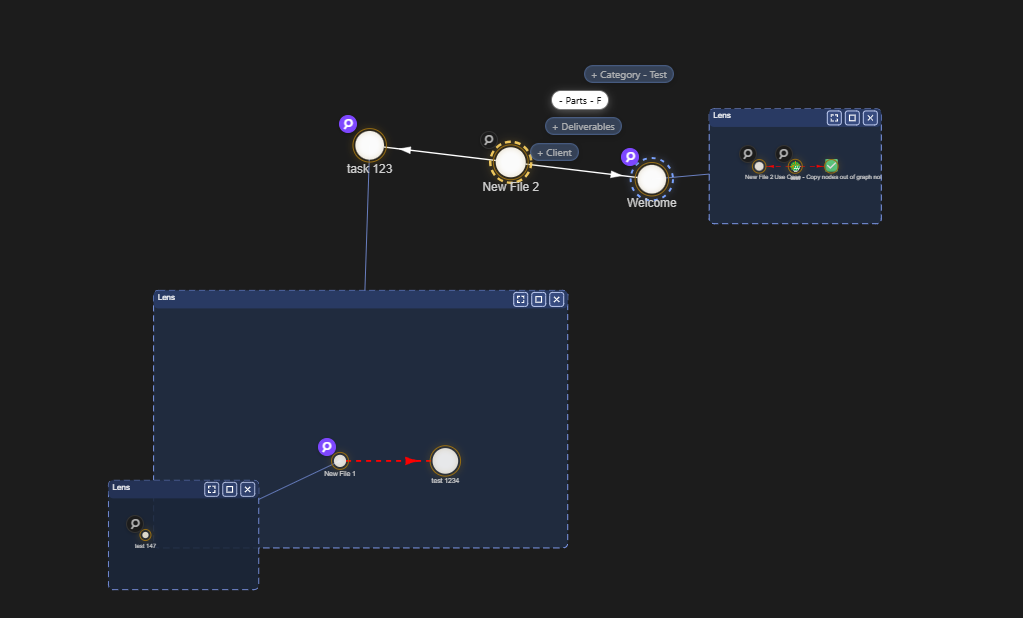

Nested Lenses And Graph Navigation

Features

Graph Notes

• Create persistent graph notes that store runtime graph state in an o3graph code block.
• Add root nodes through graph-note frontmatter.
• Persist visible node instances, node positions, pinned state, viewport, badge expansion state, embedded graph lenses, and UI state.
• Migrate older graph-note JSON layouts to the current state layout.
• Clear graph runtime data and rebuild it from graph-note frontmatter.
• Configure graph-note property keys in plugin settings to fit existing vault conventions.

Graph-Capable Notes

• Open regular notes as graph views when they contain configured root-node properties.
• Use plugin-level default rootNodeProperties, activeGroups, and visibleLinkTypes for graph-capable notes without writing defaults into note frontmatter.
• Override defaults per note through frontmatter.
• Explicitly render graph transclusions only when using a graph-view subpath such as ![[Some Note#graphview]].

LinkTypes

• Define LinkType notes that describe how relationship properties should be read and rendered.
• Expand LinkType badges to add linked notes to the graph.
• Support LinkTypes with one property or multiple equivalent properties.
• Support outgoing, incoming, and bidirectional link discovery.
• Support LinkTypes that create duplicate nodes where duplicate visual contexts are required.
• Configure LinkType colors, badge colors, line colors, line thickness, arrow direction, link force, link distance, recursion, and duplicate behavior.
• Use visibleLinkTypes to show typed edges only between nodes already visible in the graph.
• Configure visible and discovered link styles as normal or dashed.

Relationship Editing

• Add relationships by dragging a node onto another node's LinkType badge.
• Add relationships through an input modal with fuzzy file selection and new-file support.
• Mutate source note YAML as the source of truth, then refresh graph state from the changed note.
• Respect Obsidian link format settings where possible.
• Configure whether dropped LinkTypes auto-expand after the relationship is added.
• Render unresolved or missing-file links as translucent graph nodes until the target file exists.

Lenses And Embedded Graphs

• Expand graph-note nodes and graph-capable notes into graph lenses.
• Open nested lenses from nodes inside lenses.
• Move, resize, maximize, restore, close, and fit lens content.
• Pan and zoom inside a lens independently from the parent graph.
• Persist lens position, size, maximize state, and viewport state in graph notes.
• Keep lens interactions layer-aware so background lenses do not receive foreground cursor or resize behavior.
• Clip lens indicators and lens contents to the visible lens viewport.
• Preserve embedded graph state independently from the parent graph.

Containers

• Use parent-type LinkTypes to render semantic parent containers instead of ordinary link lines.
• Keep child nodes inside parent containers.
• Support nested and overlapping containers.
• Repel containers and nodes on the same hierarchy where appropriate.
• Render container colors from LinkType or group configuration.

Groups And Styling

• Define group notes that style matching nodes by frontmatter conditions.
• Apply group colors and icons to nodes.
• Allow overlapping groups, with group priority based on activeGroups order.
• Apply parent-graph groups to nodes inside embedded graphs and lenses.
• Live-refresh group styling when relevant note frontmatter changes.
• Configure active node indicator color, root node ring color, nearest visible linked node indicator, subnode opacity, icon opacity, and graph background color.

Node Rendering

• Render default circular nodes.
• Render text or emoji node icons from a configured note property.
• Render image-based node icons, including PNG-style image files.
• Render group icons from group notes.
• Set node size globally, by number of connections, or per individual node.
• Keep selected node labels visible even above the normal text fade threshold.

Interaction

• Click and shift-click to select nodes.
• Alt-drag to select multiple nodes.
• Drag selected nodes to reposition them.
• Drag pinned nodes to reposition them.
• Right-click nodes, containers, and graph objects for context actions.
• Open nodes with double click.
• Open nodes in a new tab from the context menu.
• Copy selected graph node links with Ctrl+C when a graph view is focused.
• Select all graph nodes with Ctrl+A when a graph view is focused.
• Configure separate hotkeys for showing all LinkType badges and freezing the graph.
• Lock graph containers/lenses so dragging inside them pans the viewport instead of moving the object.

Obsidian Bases Integration

• Connect a graph note to an Obsidian Bases view through connected_base_filter.
• Add notes returned by the linked Base view as filter/core graph nodes.
• Refresh graph nodes when supported Base filter results or relevant note properties change.

Export

• Export the current graph view as a PNG image from Obsidian's command palette.
• Export the current viewport or fit exported bounds to graph content.
• Export with graph-note background, transparent background, or custom background.
• Save exports to a vault-relative path.
• Export canvas-rendered graph objects only. DOM overlays such as badges, pin buttons, lens buttons, hover UI, and context menus are intentionally excluded.

Performance And Safety

• Reduce unnecessary graph recalculation by slowing frame cadence near rest and at rest.
• Configure near-rest and rest velocity thresholds per graph.
• Watch relevant files and properties instead of refreshing the whole vault whenever possible.
• Suppress watcher reloads during graph-document writes.
• Block unsafe graph-state writes that would overwrite populated graph data with empty snapshots.

Basic Setup

Install the plugin into the .obsidian/plugins/nosygraph/ folder inside an Obsidian vault.

The folder should contain:

main.js
manifest.json
styles.css

For local development from source:

npm install
npm run build

Privacy And Permissions

NosyGraph works locally inside Obsidian and does not make network requests.

The plugin may enumerate Markdown files in the vault to resolve graph roots, graph capable notes, incoming links, discovered link types, connected Base view results, and missing-file relationships. This is needed because graph membership can depend on links and frontmatter relationships across multiple notes.

Clipboard access is used for explicit copy actions in the graph view, such as copying selected graph node links. NosyGraph does not read clipboard content for background processing.

Note Types

NosyGraph is built around Markdown notes with configurable frontmatter conventions. The property names below are the current defaults; many identifying and graph-note property keys can be changed in the plugin settings so the plugin can fit an existing vault.

Graph Note

A graph note is a persistent graph view. It defines the graph's roots and active behavior in frontmatter, and stores runtime view state in an o3graph code block.

Graph-Capable Note

A graph-capable note is a regular note that can be opened as a temporary graph view or expanded as a lens because it has linked notes under configured root-node properties. Plugin-level defaults can provide rootNodeProperties, activeGroups, and visibleLinkTypes without writing them into the note.

LinkType Note / Link Note

A LinkType note defines a reusable relationship type. It tells NosyGraph which YAML property or properties to read, how relationships are discovered, and how the resulting edge or parent container is rendered.

Group Note

A group note defines a frontmatter condition and optional styling for matching nodes. Multiple active groups can overlap; the first matching group in activeGroups wins for conflicting styling such as color or icon.

Regular Node Note

Regular notes are the source of truth for graph relationships. Graph interactions should mutate these notes first; graph notes then reconcile their runtime state from Obsidian metadata and note frontmatter.

Base View

Obsidian Bases files are not NosyGraph note types, but graph notes can reference them through connected_base_filter.

Embedded Graph Note

An embedded graph note is a normal graph note used as a node inside another graph. Expanding its lens renders the embedded graph's current visible state while keeping the embedded graph's state owned by the embedded graph note.

Graph Note Example

---
o3Graph: true
rootNodes:
  - "[[Project A]]"
activeLinkTypes:
  - "[[System/LinkTypes/LinkType - Parts]]"
visibleLinkTypes:
  - "[[System/LinkTypes/LinkType - Blocked By]]"
activeGroups:
  - "[[System/Groups/Group - Tasks]]"
graph_background_color: "#101820"
graphForce_Gravity: 0.02
graphForce_Repellent: 500
graphNode_Size: 20
graphVelocity_NearRestThreshold: 0.08
graphVelocity_RestThreshold: 0.015
---

Graph notes store their runtime data in an o3graph code block. Regular relationship data should remain in the linked notes themselves; graph-note JSON is for view state and references.

Graph-Capable Note Example

---
rootNodeProperties:
  - parts
  - deliverables
parts:
  - "[[Part A]]"
  - "[[Part B]]"
visibleLinkTypes:
  - "[[LinkType - blocked_by]]"
---

A note with configured root-node properties can be opened directly in graph view even if it is not a persistent graph note.

LinkType Example

---
o3LinkType: true
key: Parts
property: parts
direction: outgoing
LinkDiscoveryDirection: outgoing
linkDuplicateNodes: false
linkForce: 0.5
linkDistance: 120
PointerDirection: outgoing
linkLineColor: "#00aaff"
linkLineThickness: 2
type:
  - "[[Graph Link]]"
---

LinkTypes can also list multiple properties:

property:
  - parts
  - blocked_and

All listed properties are treated as equivalent read properties for that LinkType.

Group Example

---
o3Group: true
property: status
operator: contains
value: "[[ToDo]]"
color: "#F7AA34"
groupIcon: "tool"
---

Groups can overlap. If multiple active groups match a node, the first matching group in activeGroups wins for properties that conflict, such as color or icon.

Known Risks

• This plugin writes to graph notes and relationship notes. Keep backups.
• The earlier graph-note-emptying bug has not appeared recently, but the risk is important enough to keep documented until the plugin has more broad testing.
• Embedded graphs and lenses are powerful but still newer functionality. Test complex nested lens workflows on copied vaults before relying on them.
• Very large graphs can still become visually dense or computationally heavy. Use filters, LinkTypes, groups, and lenses to keep graph views focused.

Authorship And Development

NosyGraph was created by Jan Bergholz with the help of AI-assisted software development tools. Jan Bergholz managed and directed the development, defined the desired behavior, tested the plugin in real vault workflows, and made the product and design decisions. The implementation was developed iteratively with AI assistance.

The plugin manifest uses the id nosygraph, the name NosyGraph, and Jan Bergholz as author.

Release Status

Current status: beta. Current release: 0.2.9 (release commit 46ebb0e; GitHub release publication and checker scan are pending). See the handover document for the current release state.

Release history is recorded in CHANGELOG.md.

Before publishing to the official Obsidian Community Plugins directory, test at least:

• opening graph notes while Obsidian starts,
• reloading Obsidian with graph notes open,
• moving and renaming linked files,
• graph note migration,
• relationship edits through badges and input fields,
• embedded and nested lenses,
• connected Bases filters,
• large graph export,
• fresh-vault installation.

License

NosyGraph is released under the MIT License. See LICENSE for the full license text.
