InkedMark

Handwriting that lives inside your notes — pressure-aware ink, fused with markdown, searchable and graphable like everything else in your vault.

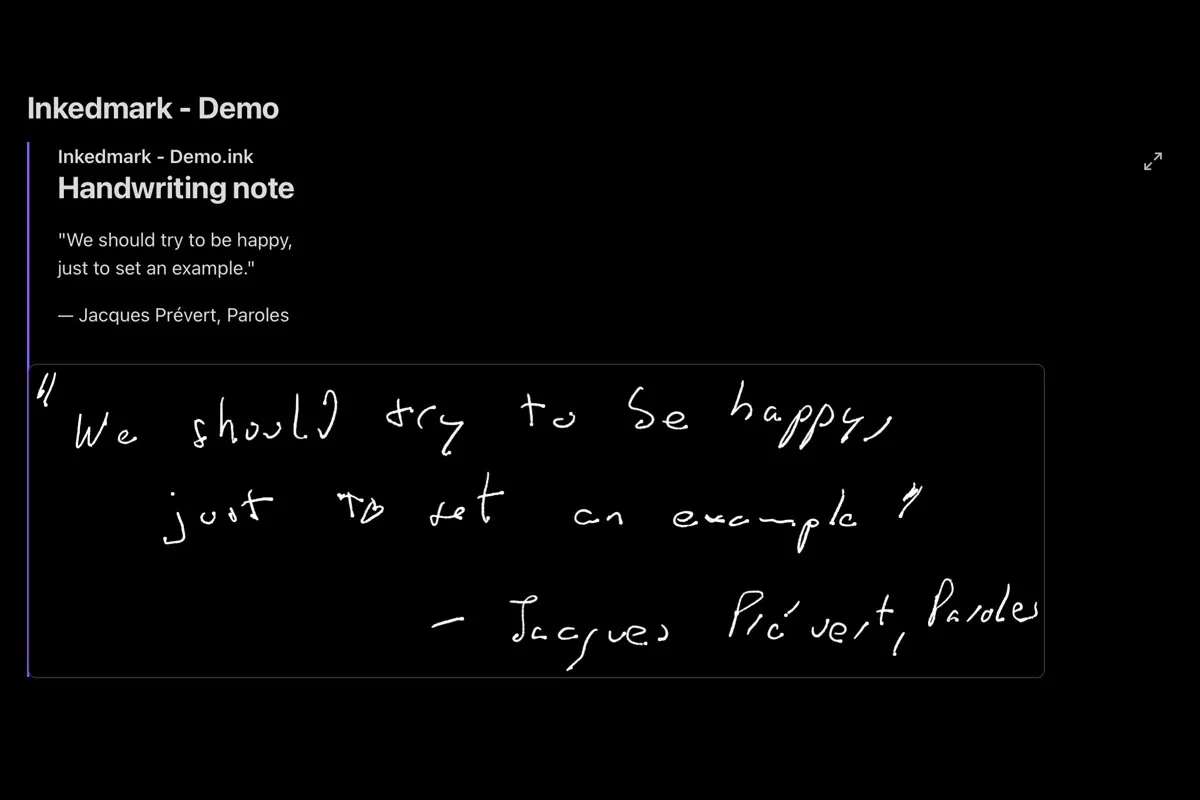

Write by hand, hit recognize, and the transcription lands in the note's searchable text layer — full demo on inkedmark.com.

InkedMark makes handwriting a first-class block inside ordinary markdown notes. You write by hand where handwriting is better (diagrams, math, marginalia, fast capture) and type where typing is better — in the same note — and Obsidian's search and graph see all of it through a first-class text layer.

• Handwriting notes — *.ink.md files open in a pen-first canvas view, yet stay plain markdown files that sync, diff, and link like any other note.
• Searchable ink — every handwriting note carries a typed text layer (transcription, key points, [[links]], #tags) that Obsidian's core search, graph, backlinks, and Quick Switcher index with no extra work.
• Inline sketches — embed a handwriting note with ![[Sketch.ink.md]], or drop a small ```inkedmark block right inside any note.
• Built for Apple Pencil — pressure-variable ink (perfect-freehand), full-rate capture via coalesced events, palm rejection, and a low-latency wet/dry canvas split. Works on desktop, iPad, and mobile.

Getting started

1. Install and enable InkedMark (see Install).
2. Click the pen ribbon icon or run “Create handwriting note” — a new *.ink.md note opens in the canvas view.
3. Write with your pen (or mouse). One finger scrolls; two fingers pinch-zoom.

Toolbar & tools

Plus: color swatches (add your own in settings), stroke sizes, a pressure toggle, undo/redo (Cmd/Ctrl+Z, Cmd/Ctrl+Shift+Z), clear, and zoom out / fit / in. The right side of the toolbar shows version, build, stroke count, and zoom.

Commands

• Create handwriting note — new *.ink.md in the current folder.
• Insert inline handwriting — inserts a starter ```inkedmark block.
• Toggle canvas / markdown view — see the raw markdown of an ink note.
• Toggle text layer panel — open the transcription panel.
• Recognize handwriting in this note — runs the selected recognition provider (see below).
• Zoom in / Zoom out / Fit / reset view, Toggle input debug overlay.
• View changelog — what changed in each release. After an update, the news is shown once automatically.

Handwriting recognition

Three providers (Settings → Handwriting recognition):

• Manual (default) — you type the transcription in the text-layer panel. Never uses the network.

• Cloud AI (bring your own key) — renders the note's ink to an image and asks a vision model for a markdown transcription, which lands in a clearly marked section of the text layer for you to review and edit. Supports Anthropic (Claude), OpenAI (GPT), and Google (Gemini); you pick the vendor and model and paste your own API key. Typical cost is a fraction of a cent per page. The OpenRouter vendor lets you try any vision model on the market (e.g. google/gemini-3.5-flash, anthropic/claude-haiku-4.5) with a single key — and its Connect OpenRouter button sets the key up for you in one click (you approve it in your browser; no copy/paste). The Custom endpoint vendor points recognition at any self-hosted OpenAI-compatible server (Ollama, LM Studio, llama.cpp, vLLM, LocalAI) so your ink never leaves your own network — see SELF_HOSTING.md for setup guides and honest quality expectations.

• On-device (experimental, desktop only) — an offline TrOCR model transcribes the ink line-by-line, entirely on your machine. Enable it under On-device recognition (experimental) in settings. First run downloads the model from Hugging Face (~250 MB Fast / ~1.3 GB Accurate; cached afterwards). English handwriting only, and noticeably less accurate than Cloud AI — treat it as the privacy/offline fallback, not the quality path. Mobile webviews can't run the models, so it is desktop only.

Run it from the toolbar's scan button, the command palette, or turn on Recognize automatically in settings to have it run in the background ~30 seconds after you stop writing. Recognition is skipped when the ink hasn't changed since the last run, and clearing the page clears the transcription section too (your own prose in the text layer is never touched).

Network use disclosure

InkedMark makes network requests only for recognition, and only in three cases: (1) Cloud AI sends a rendered PNG of the current note's ink to your chosen vendor (Anthropic, OpenAI, Google, or OpenRouter) — or to the custom endpoint URL you configured — using your API key, after a one-time confirmation; (2) clicking Connect OpenRouter opens openrouter.ai in your browser and exchanges a one-time code with openrouter.ai/api/v1/auth/keys — nothing is sent until you approve in the browser; (3) the experimental on-device provider downloads its model from the Hugging Face CDN (and the ONNX runtime from jsDelivr) on first use — your ink never leaves the device with that provider. Nothing else is ever transmitted — no telemetry, no analytics, and the manual provider works fully offline. Your API key is stored locally in the vault's plugin data (data.json).

The text layer (search & graph)

Open the text-layer panel (toolbar 📄 button or command) and type a transcription, key points, [[links]], and #tags. That text is stored as the note's markdown body, so handwritten notes show up in search, the graph, backlinks, and the Quick Switcher — find a sketch by its transcription, and its links become real graph edges.

Inline handwriting in regular notes

• ![[Sketch.ink.md]] renders the sketch inside any note (reading mode and live preview).
• ```inkedmark blocks hold a small drawing in place, with an optional caption: line that doubles as its searchable text. Editing ink inline happens in the dedicated note; inline blocks render read-only.

File format

An ink note is a single markdown file: frontmatter (inkedmark: true), your text layer as the body, and the stroke data in a trailing %%inkedmark … %% comment (quantized, compressed, invisible in reading view). No sidecar files; atomic sync and version control.

Install

• Community plugins: search for “InkedMark” (once accepted).
• BRAT (beta): add pcrausaz/obsidian-inkedmark.
• Manual: copy main.js, manifest.json, and styles.css from a release into <vault>/.obsidian/plugins/inkedmark/, then enable it.

What changed between versions is documented in the changelog; each GitHub release carries the matching section as its release notes.

iPad / Apple Pencil setup — important

Turn off iPadOS Scribble: Settings → Apple Pencil → Scribble (off).

iPadOS “Scribble” (the system handwriting-to-text feature) intercepts fast Apple Pencil strokes at the OS level, before they reach Obsidian's web view — so with it on, quick handwriting drops strokes. This is an iPadOS/WebKit behavior no plugin can disable or detect. With Scribble off, capture is smooth (verified on an iPad Pro 12.9″ 4th-gen, Apple Pencil 2). InkedMark shows a one-time reminder and a settings note on iPad.

Troubleshooting

• Strokes go missing on iPad → turn off Scribble (above).
• Diagnosing input problems → enable Input debug overlay (settings → Support and diagnostics, or the command). It shows the raw event stream, timing gaps, and stroke counts — include a screenshot of it when reporting input bugs.
• Ink looks corrupted → try turning off Desynchronized canvas in settings (some WebKit versions are flaky with it).
• Not sure which build you're running → the toolbar's right side shows the exact version and build stamp.

Support

• Email: [email protected]
• Bugs & feature requests: GitHub issues
• Website: inkedmark.com
• If InkedMark is useful to you: buy me a coffee ☕

Development

npm install
npm run dev          # esbuild watch (inline sourcemap)
npm run test         # vitest (pure modules)
npm run lint         # eslint, zero-warning gate
npm run typecheck    # tsc --noEmit
npm run build        # typecheck + production bundle

The build emits main.js; together with manifest.json and styles.css it forms the Obsidian plugin. See SPECIFICATION.md for the technical brief, QA.md for the on-device test pass, GitHub issues for tracked bugs, and RELEASE.md for the release flow.

Deploying to a test vault (incl. iPad via iCloud)

Point the build at a vault's plugin folder by creating a gitignored .deploy-target file at the repo root containing that path, e.g.

/Users/you/Library/Mobile Documents/iCloud~md~obsidian/Documents/MyVault/.obsidian/plugins/inkedmark

(or set OBSIDIAN_PLUGIN_DIR in the environment). Then:

• npm run dev — watch build; auto-copies the three artifacts into the target on every rebuild.
• npm run deploy — copy the current artifacts without rebuilding.

A .hotreload marker is written alongside so the desktop Hot-Reload plugin reloads on change.

iPad note: point .deploy-target at an iCloud-stored vault — iCloud syncs the copied files to the iPad (symlinks do not sync, which is why the build copies real files). After a deploy, wait for iCloud to sync, then reload the plugin on the iPad.

License

MIT © 2026 liqpil.com
