Canvas Kit

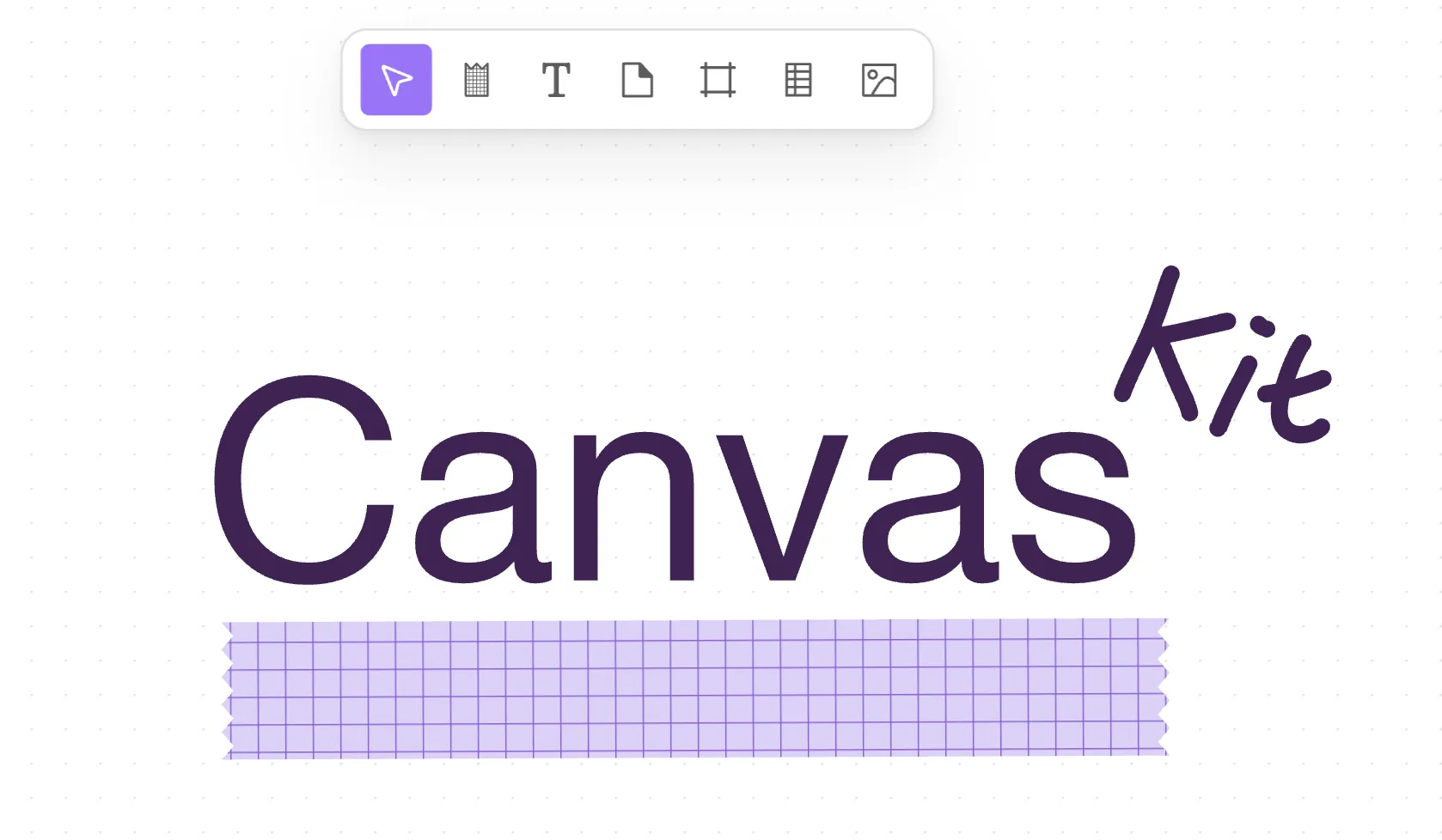

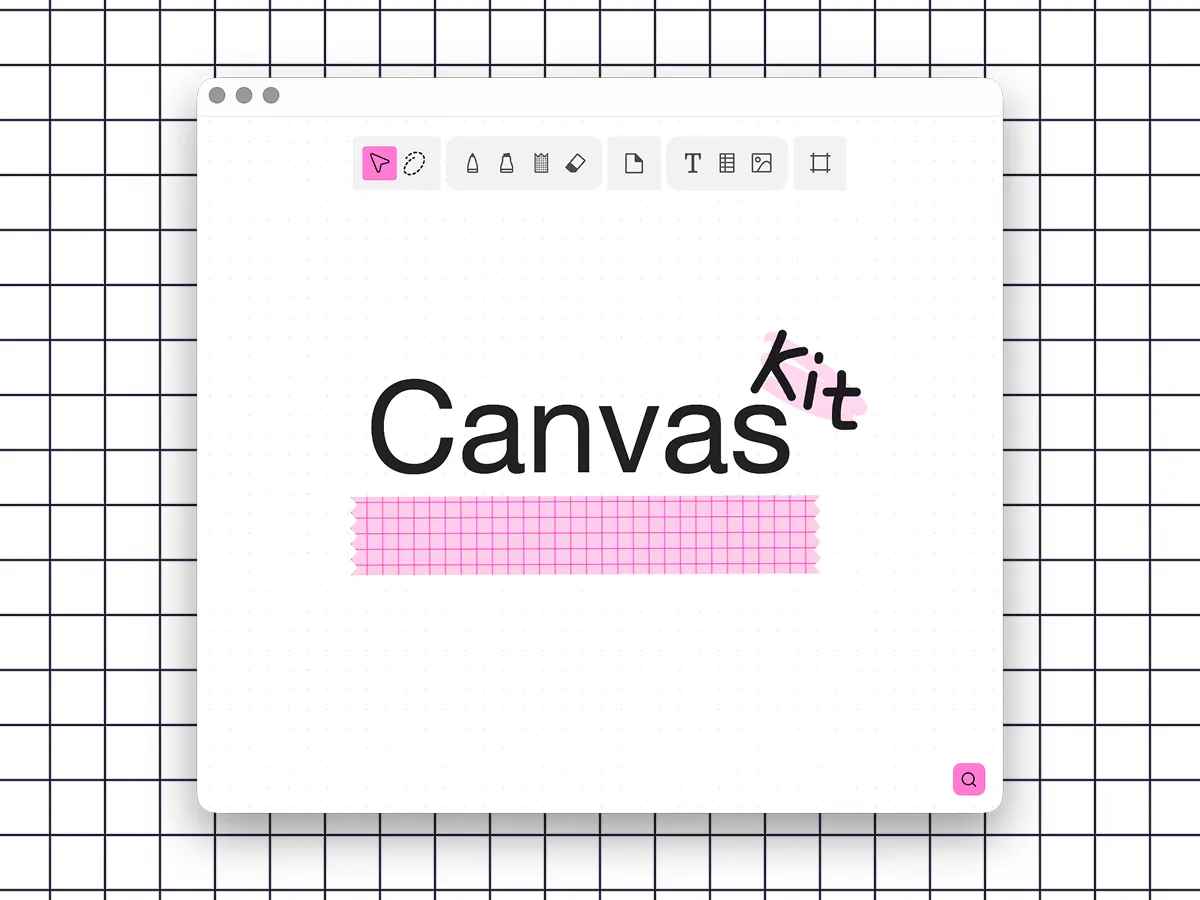

A FigJam-style annotation toolbar for Obsidian Canvas. A persistent toolbar at the top of every canvas gives you drawing tools, borderless text, cards (blank or note-backed), sections, tables, and images — without leaving the canvas.

Ink is stored as inline SVG inside ordinary canvas text nodes — no separate files, no drawings folder. Everything lives in the .canvas file itself.

Tools

• Select (V / Esc) — normal canvas interaction; the default.
• Draw (M) — freehand drawing, smoothed with perfect-freehand. The toolbar button shows your last-used draw tool. Sub-toolbar:
  • Marker / Highlighter — highlighter is fatter, flat-tipped, and translucent.
  • Tape — drag a strip of washi-style grid tape across the canvas.
  • Eraser — click or drag over ink to remove a whole stroke.
  • Size — one button, click for a thickness slider (disabled for tape/eraser).
  • Colors — FigJam-style presets plus a color wheel for custom colors.
  • Ink auto-commits a few seconds after you stop drawing and renders frameless, like ink sitting on the canvas. Committed ink is a normal node: select, move, delete.
• Text (T) — click anywhere and start typing, Photoshop-style: no box, no card, no background, just text that grows as you type. Supports markdown, including per-line headings and lists. Resize a text node to scale it uniformly, recolor it with the node's color button, and re-open it for editing via the Edit button, a double-click, or the Text tool.
• Card (C) — drag to size a card. A sub-toolbar picks what the card is:
  • Empty — a blank card.
  • New note — creates a note in your vault and embeds it in one gesture.
  • Existing note — pick a note from an inline search and drop it in.
  • A blank card also shows + / embed buttons on its edge while selected, so you can turn it into a new or existing note in place.
• Section (G) — drag a marquee to create a native canvas group; the label drops straight into rename mode.
• Table (B) — drag to set rows × columns; a borderless, interactive table you can edit in place. Drag the row/column handles to reorder, click a handle to select a row/column (then delete it with the trash button or Delete), and drag the dividers to resize.
• Image (I) — a previewable image picker: search your vault's images as thumbnails, or upload one from your computer, then drag to place it.

Tips

• Right-click exits the current tool (back to Select). Right-clicking while editing text finishes the edit.
• The draw button remembers the last sub-tool you used and reopens it.

Settings

• Toolbar size — scale the toolbar to taste.
• Hide Obsidian's bottom bar — hide the built-in add-to-canvas bar (Canvas Kit replaces it).
• Default marker color / size, default text size, and a slot to remove a custom tape image.

Install

From Community Plugins

Settings → Community plugins → Browse, search for Canvas Kit, install, and enable. (Pending review.)

Manual

1. Download main.js, manifest.json, and styles.css from the latest release.
2. Copy them into <vault>/.obsidian/plugins/canvas-kit/.
3. Reload Obsidian and enable Canvas Kit in Settings → Community plugins.

Caveats

• Canvas has no official plugin API; this relies on undocumented internals (e.g. posFromEvt, createTextNode, createFileNode, createGroupNode, removeNode) and may need a patch after an Obsidian update.
• On devices without the plugin, ink nodes render as the raw SVG markup (or whatever Obsidian's markdown HTML rendering makes of it) and borderless nodes get their frame back — content is never lost, only styling.

Development

npm install
npm run dev    # watch build
npm run build  # type-check + production build

License

MIT © yaye.work
