Export Img — export Markdown notes as images that approximate Obsidian Reading view.
Themes · Callouts · Code · Math · Mermaid · Embeds · Frontmatter · Author · Watermark
What it does

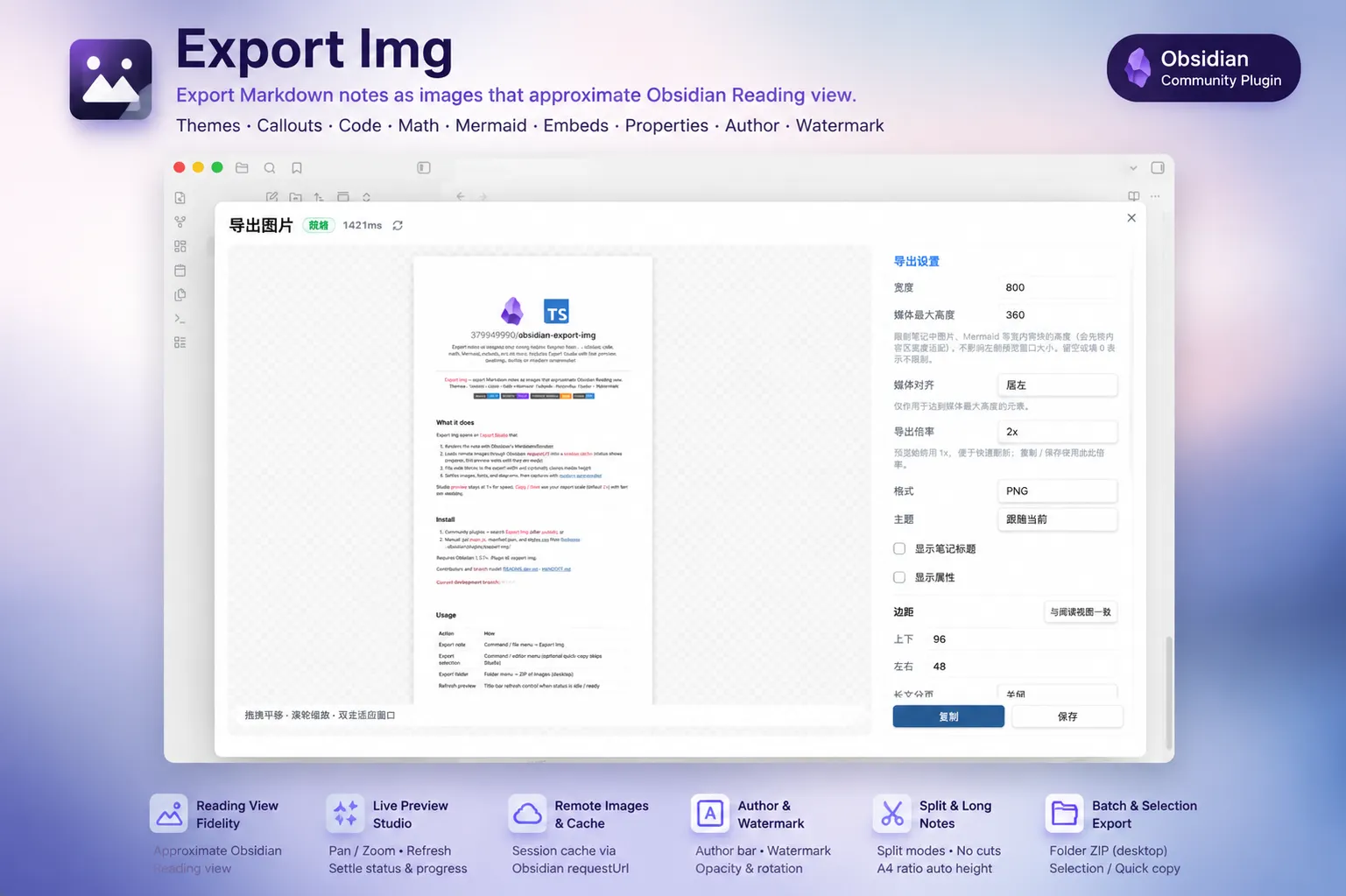

Export Img opens an Export Studio that:
- Renders the note with Obsidian’s
MarkdownRenderer - Loads remote images through Obsidian
requestUrlinto a session cache (status shows progress; first preview waits until they are ready) - Fits wide blocks to the export width and optionally clamps media height
- Settles images, fonts, and diagrams, then captures with modern-screenshot
Studio preview stays at 1× for speed. Copy / Save use your export scale (default 2×) with font embedding.
Install
- Community plugins → search Export Img (after publish), or
- Manual: put
main.js,manifest.json, andstyles.cssfrom Releases into.obsidian/plugins/export-img/
Requires Obsidian 1.5.7+. Plugin id: export-img.
Contributors and branch model: README.dev.md · HANDOFF.md.
Current development branch: v1.0.6
Usage
| Action | How |
|---|---|
| Export note | Command / file menu → Export Img |
| Export selection | Command / editor menu (optional quick-copy skips Studio) |
| Export folder | Folder menu → ZIP of images (desktop) |
| Refresh preview | Title-bar refresh control when status is idle / ready |
Settings open from Settings → Export Img. Author/watermark fields there are prefill only — enable them with the toggles inside Export Studio. Save writes the studio draft back to plugin settings (Copy does not).
Features
Export Studio
- Live bitmap preview with pan / zoom
- Shared controls for width, theme, padding, split, media limits, decorations
- Settle status (idle / rendering / ready / timed out) plus remote-image loading progress
- On timeout, Copy/Save stay disabled until you confirm Export anyway
- Manual refresh rebuilds the capture host and resets preview pan/zoom
Media layout
| Setting | Behavior |
|---|---|
| Max media height | Caps embeds, Mermaid, and other wide blocks after width fit. 0 / empty = no limit |
| Media alignment | Left or Center, applied only to media that reaches that height cap. Shorter media keeps the note’s own layout |
HTML badge rows (several inline <img>s in one paragraph) stay horizontal — only Obsidian embed images use block layout.
Remote images
- Network
http(s)images are fetched once per plugin session and reused from an in-memory blob cache - Rejects non-image MIME types and payloads over ~12 MB; failures show a notice
- Title bar shows loading progress until hydrate finishes, then the first preview is captured
- Cache is cleared when the plugin unloads
Decorations
- Author bar — toggle (Studio only), name, bio, alignment, avatar (upload / vault file as data URL / remote URL)
- Watermark — toggle (Studio only), text or image, opacity and rotation
Long notes
- Split: off · fixed height · horizontal rules
- Default fixed page height ≈
width × 1.414(A4). Blocks are never cut mid-element.
Batch & selection
- Folder export → ZIP on desktop; vault attachments per image on mobile
- Selection export; optional quick copy without opening Studio
Desktop & mobile
Desktop is the primary target (Studio, clipboard, ZIP).
On mobile:
- Save writes images into the vault as attachments (Notice shows the path). Prefer this over Copy.
- Copy may be unavailable
- Multi-page / folder exports save one vault file per page (no ZIP on mobile)
- Studio: compact inputs, normal label sizes; pinch-zoom / double-tap fit; preview fits ~94% width with 3% gutters
- Modal keeps side margins from the screen edge (~92vw)
- Changing settings does not auto-refresh the preview — tap the title-bar refresh button (Copy / Save wait for a fresh render)
- Full capability: 3× scale and user-controlled Split (no forced auto-pagination). Heavy exports show an advisory notice; enable Split or lower scale if the device struggles
- Render wait timeout capped at 5s
Resolution
| Path | Scale | Fonts | Intent |
|---|---|---|---|
| Studio preview | 1× | No | Fast feedback |
| Copy / Save | 1× / 2× / 3× | Yes | Shareable sharpness |
Limits vs Reading view
Exports approximate Reading view; they are not a screenshot of the open pane:
- Offscreen render host, not the live Reading DOM
- Wide blocks are fitted to the chosen width
- “Frontmatter” is a simplified property table, not the Obsidian Properties UI
- Forced light/dark copies app theme CSS variables onto the export host; community themes that style via
body.theme-*descendant selectors (not variables) may still partially follow the shell - Math settles when MathJax containers are present; complex equations may still soft-timeout
- Community themes and plugin widgets may differ
- Code blocks and tables keep Reading column width (not shrink-to-fit); very long lines may extend the bitmap
- Preview is 1× without fonts; export uses your scale with fonts
- Slow assets may soft-timeout (status: Timed out — export blocked until confirmed)
Credits
Inspired by the community Export Image plugin — this project is a full rewrite and enhancement, focused on Reading-view fidelity.
Capture: modern-screenshot.
License
MIT · Egoism (@379949990)
