Desktop Pet

Project: https://github.com/xiaosong8584/obsidian-desktoppet

A cute 3D cartoon robot desktop pet floating inside your Obsidian window. Built with parametric geometry (Sphere / Cylinder / Capsule / Torus), zero external assets, install and play.

✨ Features

• 🎨 3D Cartoon Robot — Rounded head + dot eyes (with highlights) + antenna + chest core + blush, all parametric, no external assets
• 🖱️ Drag & Click — Drag with mouse, touch or stylus to reposition; click triggers scale pulse + happy eyes + speech bubble
• 💤 Idle Animations — Breathing float, gentle sway, random blinks (2.5–6s), arm swing, antenna wiggle
• 🎭 5 Color Schemes — Soft Blue, Mint, Coral Pink, Lavender, Warm Orange
• 📏 Size Slider — 0.5x to 2.0x
• 🌗 Theme Aware — Bubble & shadow use Obsidian CSS variables (--background-secondary, --background-modifier-box-shadow), auto-follow theme
• 🎚️ Status Bar Toggle — One-click show/hide, also via Ctrl+P command palette (status bar is desktop-only)
• 🔌 Fully Transparent — Doesn't block Obsidian content (outer pointer-events: none, only pet is interactive)
• ♻️ Full Lifecycle — onunload releases renderer / geometry / material / rAF / listeners

📸 Screenshots

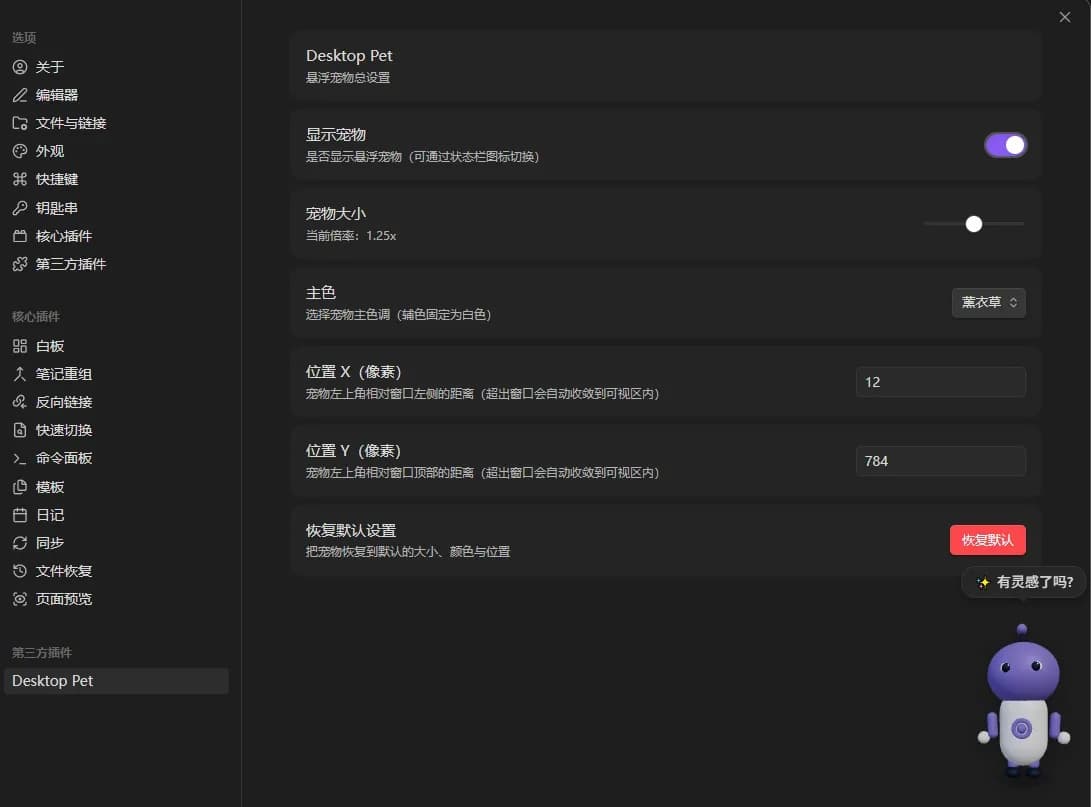

Settings panel — visibility toggle, size slider (1.25x), primary color, position X/Y and reset. The pet itself is visible in the bottom-right corner, showing a speech bubble.

⚙️ Development Setup

1. Install Node.js 18+ (20 LTS recommended)
2. Clone or open the project:

   cd obsidian-desktoppet
   npm install


3. Build commands:

   npm run dev          # watch mode: rebuild on save (non-minified, inline sourcemap)
   npm run build        # production build: tsc type-check + minified main.js
   npm run build:dev    # one-off development build (non-minified, inline sourcemap; exits when done)


📦 Install to Obsidian

1. Run npm run build to generate main.js
2. Open Obsidian → Settings → Third-party plugins → Disable Restricted Mode
3. Copy the build artifacts only into .obsidian/plugins/desktoppet/:

   <your-vault>/.obsidian/plugins/desktoppet/
     ├── main.js          # required (build artifact)
     ├── manifest.json    # required
     └── styles.css       # required


   Source .ts files are not needed in the plugin directory.
4. Restart Obsidian (or refresh the plugin list)
5. Search "Desktop Pet" in the plugin list and enable

Note: Works on both desktop and mobile (isDesktopOnly: false). Interaction is built on Pointer Events, so mouse, touch and stylus all drive the same drag / click logic.

🎮 Usage

• Command palette — Ctrl+P → search "Show/Hide Pet"
• Status bar — Robot icon in the bottom-right corner, click to toggle (desktop only)
• Drag — Press and drag the pet (mouse, touch or stylus) to any position
• Click — Click the pet body → scale pulse + happy eyes + speech bubble
• Settings — Settings → Community plugins → Desktop Pet
  • Visibility toggle
  • Pet size (0.5x – 2.0x)
  • Primary color (5 soft schemes)
  • Position X / Y (pixels)
  • Reset to default

📚 Documentation

• User Guide (English)
• 用户使用指南（中文）
• Changelog · Contributing · Security Policy

🗂️ Project Structure

desktoppet/
├── main.ts              # Plugin entry (Plugin class + lifecycle + commands + status bar)
├── pet/
│   ├── PetScene.ts      # Three.js scene (renderer / scene / camera / lights / rAF loop)
│   ├── PetModel.ts      # Parametric 3D robot model (geometry composition)
│   ├── PetAnimator.ts   # Animation controller (idle / blink / click / drag tilt)
│   └── PetInteraction.ts # Interaction layer (Pointer Events drag + click)
├── settings/
│   └── SettingsTab.ts   # Settings panel + DEFAULT_SETTINGS
├── styles.css           # Floating container / bubble / status bar styles (theme aware)
├── manifest.json        # Obsidian plugin manifest
├── package.json         # npm dependencies
├── tsconfig.json        # TypeScript config
├── esbuild.config.mjs   # Build script
├── images/              # README screenshots
└── README.md            # This file

🛠️ Tech Stack

• Language — TypeScript (strict mode, no any)
• 3D Rendering — Three.js 0.160.x
• Build — esbuild + Obsidian standard plugin template
• Dependencies — Only three at runtime; everything else is dev-only

🔍 Key Implementation Details

Primary Color Replacement

PetModel tags the material it builds for the body/antenna/limbs with material.userData.isPrimary = true. PetScene.applyColor() walks the model and swaps exactly those materials to the target color — nothing else is touched.

No color-value heuristics ("white/dark/blush are not primary"): a heuristic both under-matches (the primary color could never be changed back if it happened to equal the detail color) and over-matches (any new auxiliary material of an unexpected shade would be repainted as primary).

Click Pulse

Click feedback (scale pulse + happy eyes + antenna bounce) is driven entirely by the animation loop's elapsed clock:

scalePulse = 1 + Math.sin(t * Math.PI) * 0.3;
group.scale.setScalar(scalePulse);

PetAnimator.triggerClickFeedback() reads the cached lastElapsed written by update(). It must not query performance.now() — that clock counts from page load while the loop's elapsed counts from scene creation, so mixing the two made elapsed - clickStartAt permanently negative and the feedback never converged.

The pet's visual size is controlled solely by the container / canvas size; the model itself always stays at 1:1 inside it.

Speed-Aware Drag Tilt

During drag, compute a tilt target from the X velocity (-0.3 ~ +0.3 rad), then smooth it with a first-order low-pass filter:

tiltCurrent += (tiltTarget - tiltCurrent) * Math.min(1, delta * 8);

The filter runs every frame (not only while dragging), so releasing the pointer lets the tilt decay back to zero instead of staying frozen at its last angle.

Transparent Background

• WebGLRenderer({ alpha: true }) + setClearColor(0x000000, 0)
• CSS container pointer-events: none, only inner canvas pointer-events: auto
• Outer layer doesn't block Obsidian content interaction
• While hidden, the canvas gets an explicit pointer-events: none — opacity: 0 alone still receives hits

⚠️ Known Limitations

• On touch devices the pet area captures the pointer (touch-action: none), so scrolling / zooming gestures that start on the pet itself are suppressed by design — drag it from elsewhere if you need to scroll
• Position is clamped to the viewport, so the pet can never be dragged (or configured) off-screen; on a very small window a large pet will sit pinned to the top-left corner
• Speech bubble appears at the top of the container; may be clipped if the pet is near the window top edge
• No hover effect yet (could add slight scale + highlight boost)

🚀 Future Directions

• Hover effects
• Multiple robot shapes (sphere / block / humanoid)
• Emotion system (fall asleep after idle)
• Custom keyboard shortcuts
• Multi-touch gestures (e.g. pinch to resize)
• More phrases, multi-language
• Obsidian note integration (e.g. open new note on click, show last-modified time)

📄 License

MIT © xiaosong8584
