Claude Code IDE Pro

Work with Claude Code in Obsidian as smoothly as you work in your IDE

What this is

An Obsidian plugin that hosts the Claude Code IDE integration protocol — the same WebSocket + MCP contract professional IDEs like VS Code or JetBrains use, implemented in full for Obsidian.

Unlike a minimal context bridge, every standard IDE tool is wired up: Claude can edit your vault through Obsidian's side-by-side diff approval UI (one-click Accept, no terminal double-prompt), navigate you to specific files and lines, and reason about your vault's backlink graph, wikilinks, frontmatter, and search via eight Obsidian-native MCP tools.

When you launch claude from inside your vault and type /ide, Claude connects to Obsidian and gets eyes on everything you're working on. No more copy-pasting paragraphs into the terminal.

Made by Transept — a workshop building AI tools for translators, writers, and localization teams. This plugin started as internal tooling for a fiction-universe lore wiki and WritingTool RAG experiments. Inspired by Karpathy's llm-wiki.

Looking for a minimal read-only context bridge instead? See petersolopov/obsidian-claude-ide — same protocol, deliberately smaller scope.

What it does for you

• Claude follows you between notes. Switch tabs and Claude's context updates automatically. Highlight a paragraph and ask "rewrite this" — Claude already has the text. No copy-paste.
• Claude navigates Obsidian for you. Ask "show me Anna's article" — Claude opens the note at the right line.
• Edits land as one-click diffs in Obsidian. Every change Claude proposes opens as a CodeMirror merge view. Accept applies it, Reject discards it. No terminal Y/n prompt — behaves exactly like VS Code or JetBrains.
• Claude speaks Obsidian, not just files. Eight built-in MCP tools expose your vault graph — backlinks, wikilink resolution, frontmatter, search, daily notes, and more. Ask "what links to [[Anna]]?" and Claude gets an answer that respects how Obsidian models links.
• Same protocol as VS Code and JetBrains. Not a wrapper. The actual Claude Code IDE integration contract, implemented for Obsidian.

See it in action

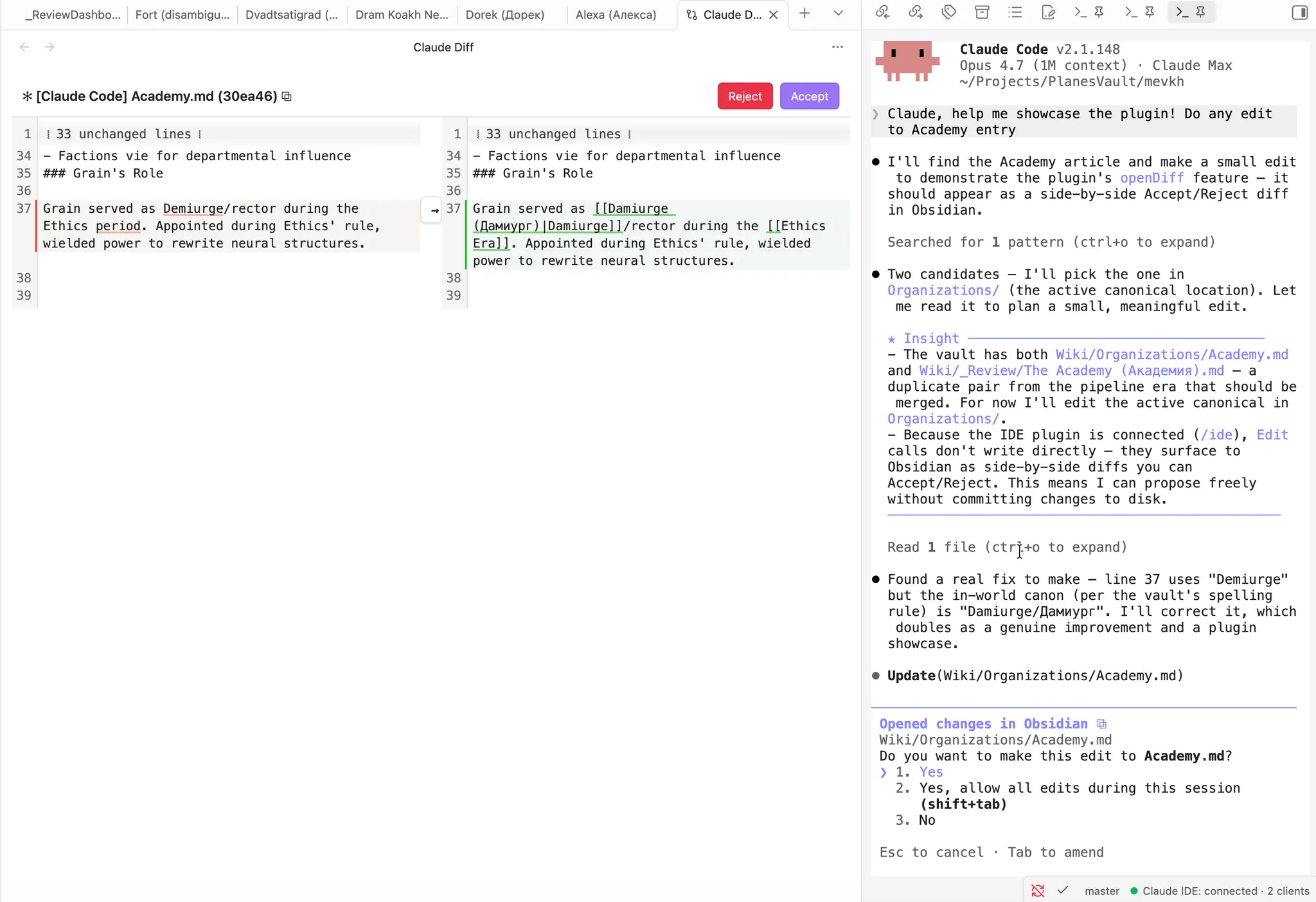

A Claude pane runs in the right sidebar (any terminal plugin works as the host). When Claude proposes an edit, it appears as a side-by-side diff in the main pane with Accept / Reject buttons. No terminal y/n prompt, no copy-paste — review, click, done. The status bar at the bottom-right shows ● Claude IDE: connected · N clients so you know the bridge is live.

Installation

From the Community Plugins directory

(Pending submission — once accepted you'll find it under Settings → Community Plugins → Browse.)

Manually (current)

1. Download manifest.json, main.js, and styles.css from the latest GitHub release.
2. Place them under <your-vault>/.obsidian/plugins/claude-code-ide-pro/.
3. In Obsidian → Settings → Community Plugins → enable Claude Code IDE Pro.

Via BRAT

Add Transept-AI/obsidian-claude-code-ide-pro as a beta plugin in BRAT, then enable it.

Usage

1. Open a terminal pane inside Obsidian (any terminal plugin works — see recommendation below).
2. Run claude from the vault root.
3. Inside Claude, type /ide. The plugin's lockfile is the only one matching your vault path, so Claude auto-connects to Obsidian without prompting.
4. Status bar shows ● Claude IDE: connected · 1 client.

Now Claude can see your active note, your tabs, and your selection; can open files for you; and proposes edits via a side-by-side diff view with Accept / Reject buttons inside Obsidian.

🤝 Recommended companion

polyipseity/obsidian-terminal — the terminal plugin this one is developed against. It hosts the claude CLI inside an Obsidian pane so you stay in a single window. Any terminal plugin works, but this is the smoothest tested setup. Configure its default profile to run claude and you're one click from a connected session.

🗺️ Roadmap

Ultimate goal – make working with Claude in Obsidian as smooth and natural as collaborating with a friend sitting next to you.

• Surface Obsidian-native MCP tools to the LLM — they're registered but Claude Code's CLI currently filters them out. Add a parallel stdio MCP server so Claude can call getBacklinks / resolveWikilink / searchVault mid-conversation.
• Custom terminal wrapper with clickable links — embed our own terminal pane (xterm.js + node-pty) so we can intercept Claude's output and render file paths as clickable Obsidian-internal links inline. Pairs with obsidian-terminal for now; this would be a more integrated alternative.
• Re-enable selection_changed push with smarter dedup timing — was disabled in v0.1.0 because it surfaced selections at unwanted moments.
• More vault-aware tools — tag graph, embeds resolver, wikilink integrity checker (would expose validator-style data to Claude).
• Autonomous invocation – so that Claude can decide to message you himself and tell you that you are absolutely right.

How it works (architecture sketch)

~/.claude/ide/<port>.lock  ◀── written on enable, removed on disable
         │
         ▼
Claude Code ──ws (auth header)──▶ Obsidian plugin
                                      │
                                      ▼
                                Obsidian APIs
                          (workspace · vault · metadataCache)

Claude Code's CLI scans ~/.claude/ide/*.lock to discover IDEs. The plugin writes a lockfile pointing to the local WebSocket port it listens on, plus a fresh auth token. When you type /ide, the CLI matches the lockfile whose workspace folder is your vault root and connects.

Reference: tools and protocol

The plugin exposes the full Claude Code IDE protocol — the same 12 tools VS Code's extension implements — plus 8 Obsidian-native MCP tools that expose the vault graph to any MCP client. The first set is what powers "Claude knows what you opened"; the second is what makes Claude Obsidian-shaped rather than just file-aware.

Obsidian-native MCP tools (8)

These are advertised via tools/list. Claude Code's CLI currently filters which MCP tools reach the model — they aren't surfaced to the LLM today, but any MCP client that connects to the WebSocket can call them. Re-enabling them for the LLM is on the roadmap (likely via a parallel stdio MCP server users add to their Claude Code config).

Standard IDE tools (12) — consumed by Claude Code's CLI internally

Settings

Settings → Claude Code IDE Pro:

• Active-note content cap — characters returned by getActiveNoteContent before truncation (default 50,000).
• searchVault max results — hits per search (default 50).
• searchVault excerpt length — surrounding context per content match (default 200 chars).
• Include hidden folders — whether searchVault / listFilesInFolder traverse .-prefixed folders (default off).

Network use

The plugin runs a WebSocket server bound to 127.0.0.1 (loopback only) on an OS-picked ephemeral port in the 10000–65535 range. This server is used solely by the Claude Code CLI running on the same machine to query Obsidian's state. No outbound network calls are ever made.

The server:

• Accepts connections only over the loopback interface — never the LAN or internet.
• Requires a per-session UUID auth token (see Security model below) on every WebSocket upgrade request. Connections without the matching x-claude-code-ide-authorization header are rejected.
• Is started in onload() and torn down in onunload() — disabling the plugin closes the port and removes the lockfile.

The plugin is also **isDesktopOnly: true** — it does not load on Obsidian mobile.

External file access

For protocol compliance with Claude Code's IDE discovery mechanism, the plugin reads and writes files under your home directory outside the vault:

The lockfile contains: process PID, vault root, ideName ("Obsidian"), transport ("ws"), runningInWindows boolean, and the auth token. No vault content leaves the vault folder via these paths.

Security model

• Auth token: a fresh UUID generated by Node's crypto.randomUUID() each time the plugin loads. It exists only in renderer-process memory and in the lockfile (which is 0600-owned and stored under a 0700 directory). The token is never sent over the network — it's read locally by the Claude Code CLI for handshake authentication.
• Loopback binding: the WebSocket server binds only to 127.0.0.1, never to 0.0.0.0 or any external interface. The OS-picked ephemeral port further reduces predictability.
• Per-session rotation: every disable→enable cycle picks a new port and generates a new auth token. Restarting Obsidian invalidates any previous session's credentials.
• Origin check via header: WebSocket upgrades without the matching x-claude-code-ide-authorization header are rejected with HTTP 401 and the socket destroyed.

No telemetry

This plugin sends no telemetry, analytics, crash reports, or any other data to any remote service. It does not phone home, check for updates, or contact any author-controlled endpoint. The only network traffic it ever generates is the local-loopback WebSocket connection from the Claude Code CLI on your own machine.

Third-party code

• [ws](https://github.com/websockets/ws) — MIT — Node.js WebSocket library, bundled into main.js.
• [@codemirror/merge](https://github.com/codemirror/merge) — MIT — CodeMirror 6 merge view, bundled into main.js (other @codemirror/* packages are provided by Obsidian's runtime and remain external).

Protocol reverse-engineering credit:

• [coder/claudecode.nvim](https://github.com/coder/claudecode.nvim) — Apache 2.0 — PROTOCOL.md is the authoritative spec this implementation follows.
• [manzaltu/claude-code-ide.el](https://github.com/manzaltu/claude-code-ide.el) — GPLv3 — reference for adding custom MCP tools beyond the standard IDE 12.

Building from source

git clone https://github.com/Transept-AI/obsidian-claude-code-ide-pro.git
cd obsidian-claude-code-ide-pro
npm install
npm run build       # one-shot production build → main.js
npm run dev         # esbuild watch mode
npm run typecheck

Output main.js is gitignored — it lives only in releases.

Verification

Read-only smoke scripts that exercise the live plugin against your running Obsidian. They never modify vault content.

# Wire layer: handshake, auth, tools/list
node scripts/smoke-handshake.mjs

# Standard IDE tools — every tool with shape assertions
node scripts/smoke-tools.mjs

# openDiff lifecycle (opens a diff, programmatically dismisses it,
# verifies DIFF_REJECTED and that the vault file is unchanged)
node scripts/smoke-diff.mjs

# Obsidian-native tools — backlinks, wikilinks, search, frontmatter, ...
node scripts/smoke-obsidian-tools.mjs

(scripts/listen-notifications.mjs exists for the deferred selection_changed notification — currently a no-op since the push isn't wired in v0.1.0.)

Architecture

src/
├── main.ts                # Plugin lifecycle, composition
├── rpc-router.ts          # JSON-RPC 2.0 framing & dispatch
├── ws-server.ts           # WebSocket transport + auth header validation
├── lockfile.ts            # ~/.claude/ide/<port>.lock lifecycle
├── status-bar.ts          # Status bar indicator
├── tools-registry.ts      # name → {description, schema, handler}
├── mcp-handshake.ts       # initialize / tools/list / tools/call / notifications
├── obsidian-context.ts    # App + cached selection + path resolution
├── notifier.ts            # selection_changed pusher (present but not wired in v0.1.0)
├── settings.ts            # PluginSettingTab + persisted config
├── handlers/
│   ├── editors.ts         # getOpenEditors, getCurrentSelection, ...
│   ├── files.ts           # openFile
│   ├── diff.ts            # openDiff, closeAllDiffTabs
│   ├── stubs.ts           # getDiagnostics→[], executeCode→error
│   └── obsidian-tools.ts  # getBacklinks, resolveWikilink, searchVault, ...
└── views/
    └── diff-view.ts       # ItemView wrapping CodeMirror 6 MergeView

License

MIT — see LICENSE. Copyright © 2026 Vitaly Vlasyuk (mevkh).
