Better Mermaid

joven1k downloads

Enhance Mermaid diagrams with click-to-zoom and custom CSS injection

Overview
Scorecard
Updates7

An Obsidian plugin that enhances Mermaid diagram viewing experience with click-to-zoom, pan & zoom controls, and PNG export.

Features

Click to Zoom — Click any Mermaid diagram in reading mode to open it in a full-size modal
Pan & Zoom — Scroll to pan, Ctrl + scroll to zoom, drag to move around
Zoom Presets — Quick zoom levels: 20%, 50%, 75%, 100%
Export PNG — Download any diagram as a high-resolution PNG image (2x)
Custom CSS — Inject your own CSS to customize Mermaid diagram appearance
i18n — English and Chinese language support

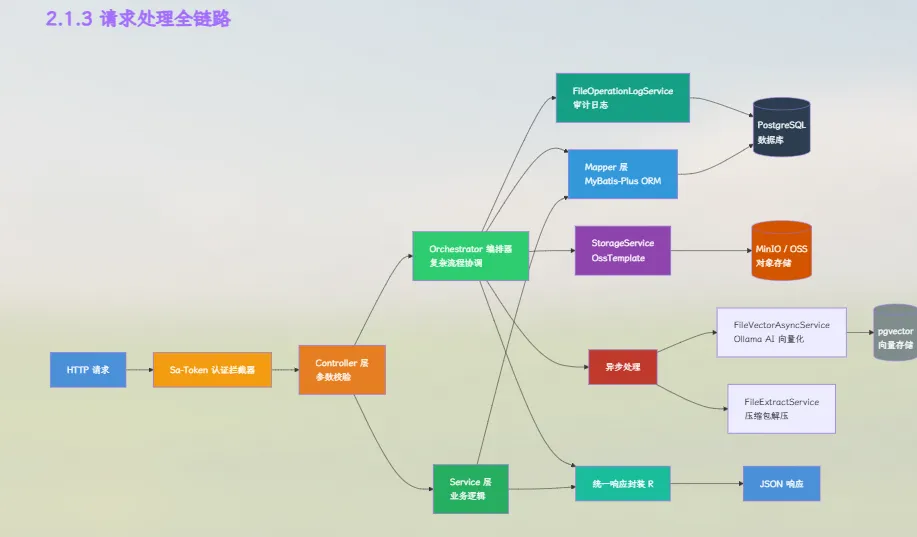

Preview

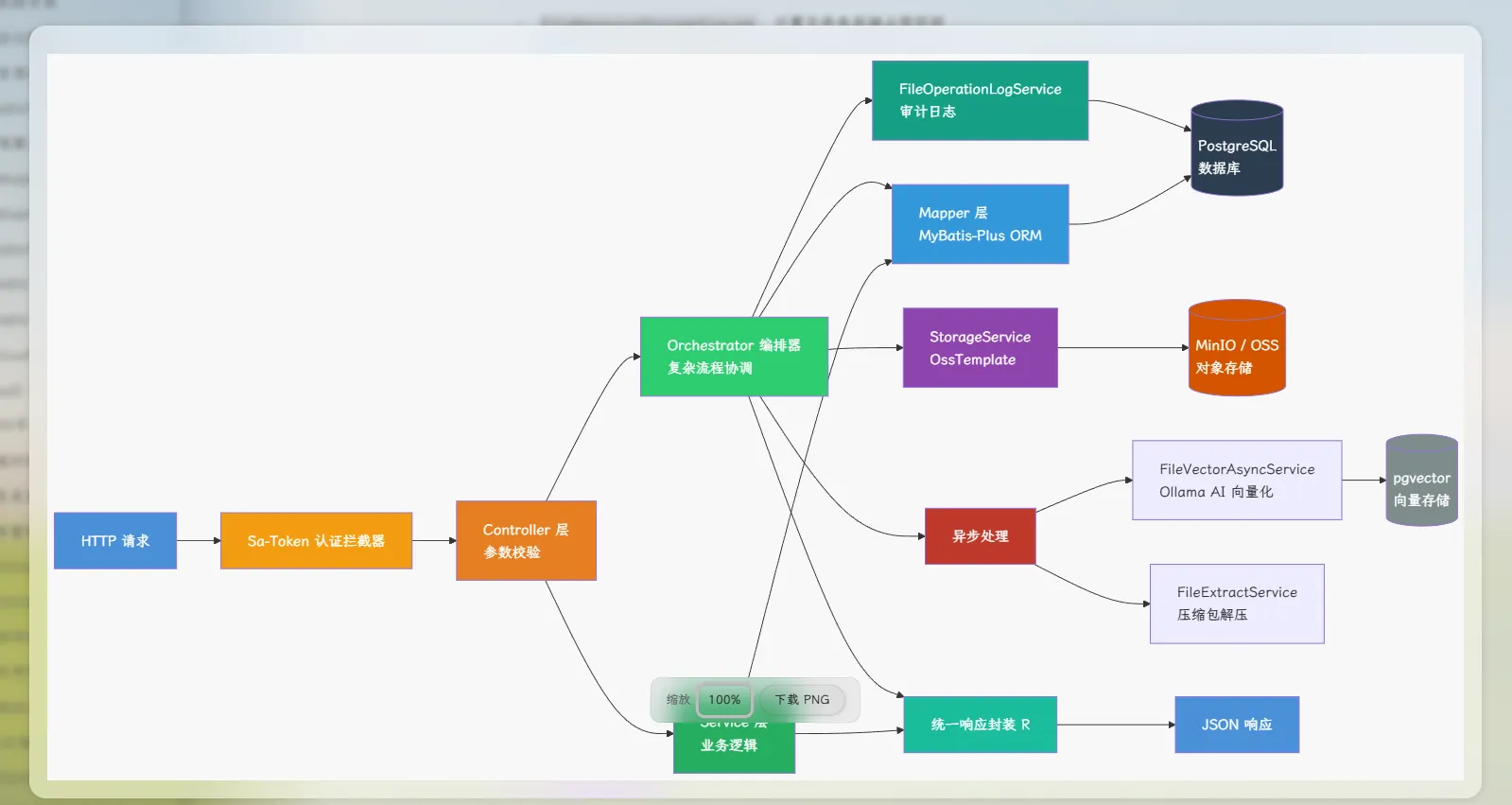

Click a Mermaid diagram → opens a floating modal with frosted glass controls:

Installation

Download main.js, manifest.json, and styles.css from the latest release
Copy them to your vault's .obsidian/plugins/obsidian-better-mermaid/ folder
Enable the plugin in Obsidian Settings → Community Plugins

Manual Build

npm install
npm run build

Then copy main.js, manifest.json, and styles.css to the plugin folder.

Usage

Action	Control
Open modal	Click a Mermaid diagram in reading mode
Pan vertically	Scroll wheel
Pan horizontally	Shift + scroll wheel
Zoom	Ctrl + scroll wheel
Pan freely	Click and drag
Preset zoom	Select from dropdown (20% / 50% / 75% / 100%)
Download PNG	Click Download PNG button

Settings

Setting	Description	Default
Language	UI language (English / 中文)	English
Enable click to zoom	Toggle the click-to-zoom feature on/off	On
Enhance readability	Thicken lines; dark mode: brighten lines & darken subgraphs (off = match reading view)	On
Modal width	Width of the modal (% of viewport)	80%
Modal height	Height of the modal (% of viewport)	80%
Default zoom level	Initial zoom when opening a diagram	100%
Custom CSS	CSS rules injected into Obsidian	(empty)

Each slider has a reset button to restore default values.

Custom CSS Example

.markdown-preview-view .mermaid svg,
.markdown-source-view .mermaid svg {
  max-width: 100% !important;
  height: auto !important;
}

/* 限制最大高度，避免纵向过长 */
.markdown-preview-view .mermaid,
.markdown-source-view .mermaid {
  max-height: 80vh; /* 可根据需要调整，如 70vh、90vh */
  overflow: auto;    /* 超出时显示滚动条 */
}

Troubleshooting

Cannot open the plugin's settings tab (the page is blank/unresponsive, console shows TypeError: e.display is not a function)

Cause: since v1.0.6 the settings tab uses the declarative settings API (getSettingDefinitions()), which requires Obsidian 1.13.0 or later. On older versions Obsidian still tries to render the tab through the legacy display() method, which is no longer implemented.
Fix: update Obsidian to 1.13.0 or newer — Settings → About → Check for updates. You can see your current version in Settings → About.
Note: manifest.json declares minAppVersion: 1.13.0, so installs from the community directory automatically block older Obsidian versions; only manually copied (sideloaded) plugins can end up running on an outdated Obsidian.

Compatibility

Minimum Obsidian version: 1.13.0 (required by the declarative settings API used for the settings tab)
Works on both desktop and mobile
Mobile: pinch to zoom, single-finger pan, double-tap to zoom, share-sheet / vault save for PNG export

License

MIT
