Vault Graph

Your whole vault as one disc. Every note is a dot; every top-level folder owns a wedge of the circle whose angle is its share of the vault. Notes fill concentric rings from the middle outwards, best-connected first, so the best-connected notes sit near the centre and leaves land on the rim.

The layout is deterministic, not force-directed. There is no simulation to settle and no seed to get lucky with: the same vault always draws the same picture, so the shape becomes something you can learn and recognise rather than a fresh tangle each time.

Ships as an Obsidian plugin and as a standalone HTML exporter — one page, two mounts, from the same source. The exporter writes a single self-contained offline file with no server and no network, which is how the graph reaches a phone.

What it does

One wedge per top-level folder, sized by how much of the vault it holds, filled with notes ringed by how well-connected they are. Click a folder to hide it and the rest re-pack; hover a note to see its links; search narrows to matching notes; scrub a date ribbon to watch the vault grow. Follows Obsidian's theme, including a live switch.

The full feature list, one short clip per feature, lives in docs/features.md — the disc itself, filtering, the heatmap and timeline, reading a note, the camera, and folder colours, each with what it does and how its clip gets regenerated.

Install the plugin

From Obsidian — Settings → Community plugins → Browse → "Vault Graph" → Install, then Enable. Open it from the ribbon icon or the command palette (Vault graph: Open the graph).

Manually — download main.js, manifest.json and styles.css from the latest release into <vault>/.obsidian/plugins/vault-graph/, then reload plugins and enable it.

From source — npm install && npm run build, then ./scripts/install-plugin.ps1.

_{Check what you downloaded, if you like. main.js is a ~390 KB bundle — the page, the plugin host and the engine, a Sigma.js port — and nothing about downloading a file tells you where it came from. Every release asset now carries a GitHub build provenance attestation, signed by the workflow that built it — so you can verify it came from this repository at the tagged commit rather than being assembled by hand: gh attestation verify main.js --repo luke321/vault-graph. Releases published before this landed (1.9.0 and earlier) have none, because an attestation can only be produced by a workflow and those were published from a laptop.}

It reads your vault through Obsidian's own metadata cache, so it sees the same links Obsidian does, aliases and frontmatter links included. It builds in about a tenth of a second on a 450-note vault. Nothing leaves your machine — it makes no network requests, collects nothing, and needs no account.

What it touches, plainly. A graph of a whole vault has to know what is in the whole vault, so the plugin enumerates every markdown file (vault.getMarkdownFiles) and reads their frontmatter and link data from Obsidian’s own metadata cache. It reads note bodies only to count words (vault.cachedRead), and it writes nothing in your vault — the one file it writes is its own data.json in its plugin folder, holding the settings below. Obsidian’s own automated review flags the enumeration, correctly — it is what the plugin is for, and worth stating rather than leaving to be discovered.

Settings

Settings → Community plugins → Vault Graph.

The graph view has a gear in its top-left corner that opens this tab directly, so the colours are reachable from the thing they colour. | Include notes that do not exist yet | Wikilinks pointing at a note nobody has written. | | Include templates | Notes under your template folders. | | Flatten month folders | Treat 2026-08 and its siblings as one folder rather than a subfolder each. | | Count words | Sizes each note by its length. The one setting that costs real I/O. |

Colours and visibility repaint the open graph immediately. The other four rebuild it, because they change what is in it.

Folders are coloured from twelve slots — ten hues and two greys — handed out in folder order and round again, so a thirteenth folder comes back to the first slot rather than falling into a grey pile. A saved choice is a slot, not a colour value, so it follows your Obsidian theme between light and dark.

Folders whose name starts with _ are treated as archives — _ Archives, _old, scratch. They stay in the graph, but they take no slot in the colour rotation, wear the palette's darker grey, and start hidden. All three are defaults: pick a colour or click the eye and your choice wins. It is a rule about folders, not files — _scratch.md is a note like any other.

_{Zero network calls, and greppable. Nothing shipped makes a request. The graph store and the WebGL renderer are the plugin's own code (src/engine/, TypeScript), so there is no third-party bundle to explain away — though not no third-party code: the renderer is a port of Sigma.js 3.0.2 under MIT, whose notice ships in every build and is recorded in src/engine/NOTICE.md — and node scripts/check-network.mjs is the gate that keeps main.js and the exporter at zero. See 0008-zero-network-calls and 0012-own-graph-store-and-renderer.}

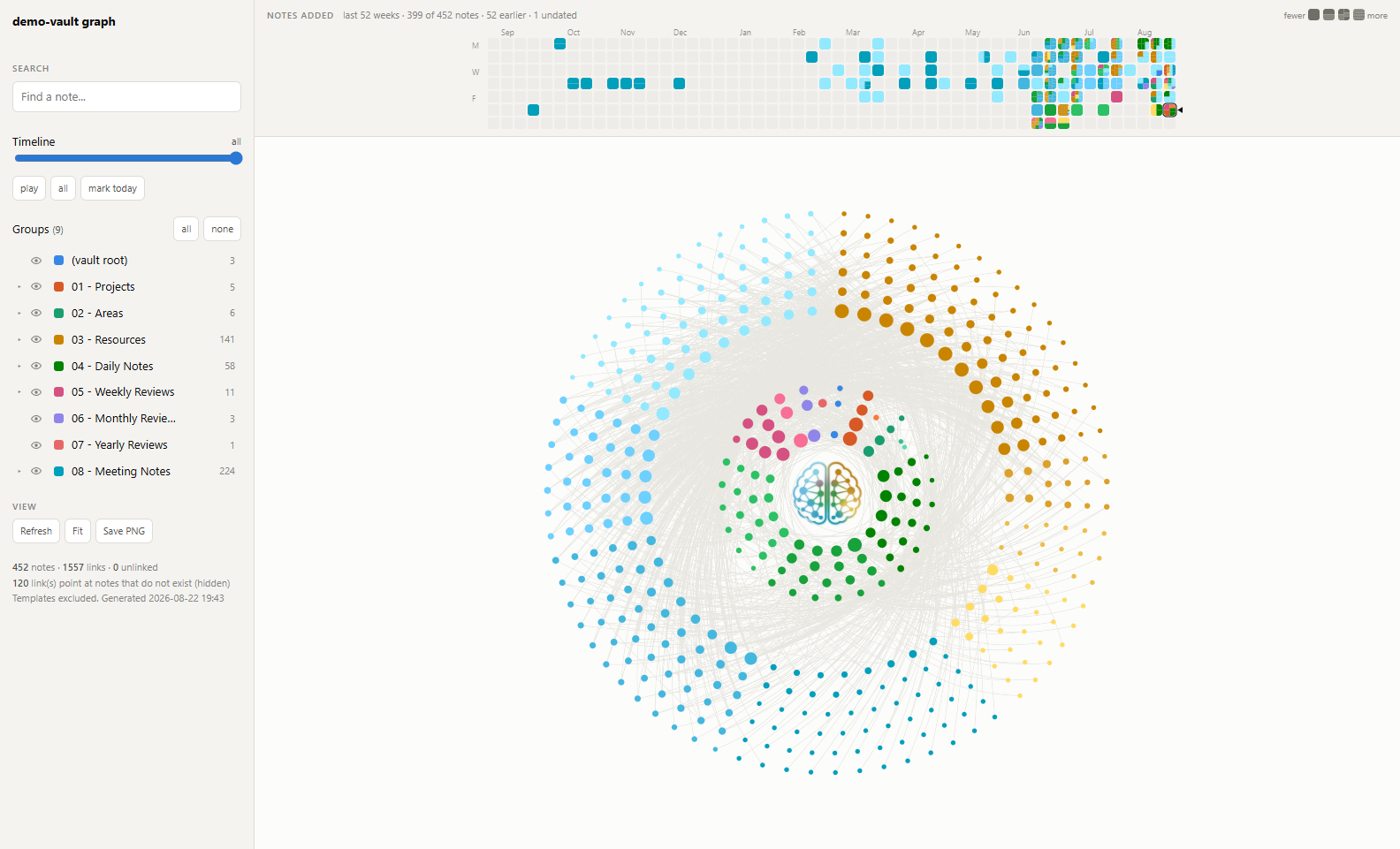

Or export a standalone page

The other half of the same source: one HTML file, openable offline on anything with a browser.

Getting the exporter

Requirements: Node 18 or newer, and one npm ci --omit=dev after cloning. That installs a single package, esbuild, which bundles the graph engine into the page; nothing else is downloaded, and the generator itself never touches the network. (Until the engine replaced the vendored libraries there was no install step at all; the trade is recorded in 0012.)

This is not an app you run — it is a generator. The script reads your vault once and writes one HTML file. Nothing is listening afterwards; you open that file yourself, in any browser, like any other file on your disk. Two steps, and the second one is yours.

1. Get it

Clone the repo. (Releases carry only the Obsidian plugin's three files; the exporter is not packaged separately.)

git clone https://github.com/luke321/vault-graph.git
cd vault-graph

Either way, once:

npm ci --omit=dev        # esbuild only; the dev tooling is not needed to generate

2. Generate the file

node src/build-graph.mjs --vault "/path/to/your/vault"

It reads the vault, writes the HTML, prints where it went, and exits:

vault-graph: 449 notes, 1489 links, 0 orphans, 120 unresolved link(s)
wrote /path/to/your/vault/vault-graph.html (732 KB)

3. Open that file

That path in the last line is the graph. Open it however you open any local file — double-click it, or:

start "path/to/vault-graph.html"      # Windows (cmd)
open "path/to/vault-graph.html"       # macOS
xdg-open "path/to/vault-graph.html"   # Linux

No server, no localhost, no watch mode, and nothing left running when the script exits. The page is a snapshot of the vault as it was when you generated it: to see notes you have added since, run step 2 again and reload the tab. (The Refresh button inside the page returns to your default view and replays the intro — it cannot re-read your vault, because a file:// page is not allowed to.)

The gear

Top right of the sidebar. It opens the same folder-colour picker the plugin has: one row per top-level folder, twelve slots each — ten hues and two greys — handed out in folder order and round again, so a thirteenth folder comes back to the first slot. The slot each folder is currently using is ringed — brightly if you chose it, dimly if it is just the one its position gives it, which is also what the Auto button beside it is reporting. Auto hands a folder back to that positional slot. Setting one folder never changes another, and two folders may share a colour — useful for saying they belong together.

Hovering a folder in the legend haloes its notes on the disc, so you can find one without clicking anything. Clicking still pins the highlight and pushes the wedge out.

Each row also starts with an eye that sets whether that folder is shown by default — the same mark the legend uses, because it is the same question about a different moment. The legend's eye is the live filter for this session; this one is what the graph comes back to. Folders whose name starts with _ are archives — no slot in the colour rotation, the palette's darker grey, and hidden until you say otherwise.

Your choices are remembered in the browser's localStorage, under a key scoped to the vault name, so regenerating the file keeps them and a graph of a different vault gets its own. Colours and default visibility are what is kept: highlights and the timeline still start fresh. Refresh returns to those defaults rather than to "everything visible". If the browser has site data blocked the picker still works — the choices just do not outlive the tab.

Read this before sharing the output

The generated HTML contains the structure of your vault in plain text: every note's title, its path, its folder, its tags, its created/date frontmatter, its word count, and the link graph between notes.

It does not contain note bodies. Nothing you wrote inside a note is in the file.

That distinction matters the moment you think about sharing. A screenshot is usually fine. Handing someone the HTML hands them a complete listing of your note titles, which for most vaults is more revealing than it sounds. The file is designed to live inside your own vault and sync to your own devices; treat it as private by default.

If you want to show the graph rather than your vault, there are two vaults that are not yours to show it with.

node scripts/make-demo-vault.mjs --out ./demo-vault        # invented, fixed, two dense years
node scripts/make-mirror-vault.mjs --vault "/path/to/your/vault" --out ./mirror-vault

The demo vault is invented from end to end: eighteen top-level folders, nesting five deep, and two years of dates dense in every month. It is the same on every machine, which is what makes a screenshot comparable and a recording reproducible. Every screenshot and the demo clip in this README were made from it.

The mirror is for bug reports. It reproduces one real vault's shape and none of its content — same folder tree, same note count per folder, same created dates, same word counts, and the whole link graph rewritten between renamed notes, so it builds to the same numbers yours does. If the layout misbehaves on your vault, the shape is the report, and a generic fixture cannot reproduce a shape it does not have.

Which vault

You can skip --vault entirely. Resolution order, first match wins:

With one registered vault, node src/build-graph.mjs on its own works. With several and none unambiguously open, it lists them and stops rather than guessing. Errors name which source supplied a bad path.

Registry: %APPDATA%\obsidian\obsidian.json (Windows), ~/Library/Application Support/obsidian/obsidian.json (macOS), ~/.config/obsidian/obsidian.json (Linux).

Where the output goes

<this repo>/                              source: the page, the exporter, the engine (src/engine)
  └─ .ai-context/                         architecture + decision records
<vault>/vault-graph.html                  build output, opened directly in a browser
                                          ...or anywhere: --out FILE

The default is the vault's root, because that is the one folder every vault has — nothing about your folder names or numbering is assumed. --out puts the file wherever you like:

node src/build-graph.mjs --out ~/Desktop/my-vault.html

Writing it into the vault is the default for one reason: the vault already syncs to your phone and your other machines, and one self-contained file rides along for free.

Flags

Platform notes

The builder is cross-platform — plain Node, no shell-outs. The scripts/*.ps1 helpers are Windows-only conveniences, not requirements:

scripts/smoke.mjs, scripts/demo.mjs and scripts/make-test-vault.mjs are Node and should work anywhere Chrome does, though only Windows has been exercised.

How your vault is interpreted

Nothing about a particular vault is hardcoded, but a few conventions are detected — and knowing them explains the output:

• Top-level folders become wedges, angle proportional to share. Any folder scheme works; PARA is just what it was built against.
• One level of subfolders is drawn, as tints of the parent's colour. The three largest get their own tint; the rest share a pooled one.
• Date-named folders (2026, 2026-06, 2026-Q3, 2026-W34) say when a note was filed rather than what it is — kept at the first level, ignored deeper down.
• Templates and daily notes come from your .obsidian config (templates.json, daily-notes.json, Templater's settings), not from folder names. Rename them freely.
• Links resolve the way Obsidian resolves them — basename, then alias, then full path — read from both body and frontmatter, so person: "[[Ada Lovelace]]" counts. Fenced code blocks are skipped so Dataview queries don't invent edges.
• created frontmatter drives the timeline and the heatmap, falling back to date. A note with neither is always present rather than stranded at one end of the timeline.
• The daily-note [[prev]] | [[next]] nav line does count as links; --no-nav strips it.

A vault with no subfolders, no dates and no aliases still renders — you just get a simpler disc.

The page is a snapshot

It cannot regenerate itself. The vault is baked in at build time; there is no server, no network, and fetch() is blocked on file://, so nothing in the browser can walk your vault. Re-run the build to make it current.

The in-page Refresh button is not that. It returns to your defaults — clearing highlights and the timeline, and putting each folder back to the visibility set in the gear — and replays the intro. If you have just rebuilt, reload the browser tab.

Optional: the scripted demo

?demo on the URL arms a walkthrough that drives the real controls over Chrome's DevTools protocol. The storyboard is demoMode() in src/page.js — append beats to it and nothing else needs changing.

.\scripts\record-demo.ps1        # needs ffmpeg: winget install Gyan.FFmpeg

The visible cursor in a recording (--cursor, which the recorder passes) is drawn inside the page and moved by eval, in step with the same input dispatched over CDP — not the real OS pointer. It does not touch your mouse; see .ai-context/decisions/0007 for why an earlier version did and had to be replaced.

Optional: the invariant suite

node scripts/smoke.mjs

Builds to a temp file, drives a real Chrome, and checks 17 measured properties of the layout — plan parity, the resting lattice, the heatmap's tiling, the hover and highlight ramps — printing the number it measured for each.

With no arguments it checks two vault shapes, one after the other: a ~450-note mirror of a real vault and a 10,000-note synthetic, generating either on demand. That is not belt-and-braces — a small vault and a large one take different branches through the ring balancer and the gap scaling, and a change that passes at 450 notes can still break the band split at 10,000. The mirror is skipped with a notice when there is no real vault to mirror, never silently.

--vault PATH is repeatable and overrides that pair; --url FILE checks an already-built page.

node scripts/smoke.mjs --vault ./test-vault --vault ./demo-vault

Exits non-zero, so it can gate a push:

git config core.hooksPath .githooks

SKIP_SMOKE=1 git push skips it.

Optional: a test vault

Your vault is one shape. To develop against others:

node scripts/make-test-vault.mjs --notes 5000
node src/build-graph.mjs --vault ./test-vault --out ./test-vault/graph.html

Generates a deterministic synthetic vault — more top-level folders than there are colour slots, sliver folders beside a dominant one, five levels of nesting, date-named folders, notes with no frontmatter and no links. test-vault/ is gitignored.

Troubleshooting

"several vaults registered" — pass --vault or --vault-name.

Blank page, or stuck on "Laying out graph…" — open the browser console; the whole app is one inlined script, so a thrown error there is the cause. Serving over http rather than file:// makes some browser tooling behave: python -m http.server 8765.

The graph looks nothing like my folder structure — that is the point rather than a bug. On the vault this was built for, only ~9% of links stay inside a single top-level folder. The wedges are the filing system; the edges are the actual structure.

"N links point at notes that do not exist" — wikilinks whose target is missing. --ghosts renders them, so you can see what your vault reaches for.

Files

The page, in four parts. One source, two mounts: the exporter wraps them in a document, the plugin puts them in an Obsidian view.

The two things built from it.

Tooling.

Licence

MIT — see LICENSE. The renderer's camera math and shaders under src/engine/ are ported from Sigma.js 3.0.2 (MIT); the attribution is in src/engine/NOTICE.md.

Design notes

Rationale lives in .ai-context/ — architecture, the measured invariants with the command that checks each one, and one record per decision that cost something to learn. Read the relevant one before changing that part of the disc: several constants look arbitrary and are not.

The recurring failure mode here is reasoning about the code instead of measuring it. Serve the built page and use __vg.checkPlanParity(), __vg.probe() — or just run scripts/smoke.mjs.
