ReadOut

Read the SQLite databases in your Obsidian vault: browse and query on the desktop, build and view dashboards on your desktop and phone.

• Browse tables and rows, with sorting and filtering.
• Run your own read-only SQL queries and save results as CSV.

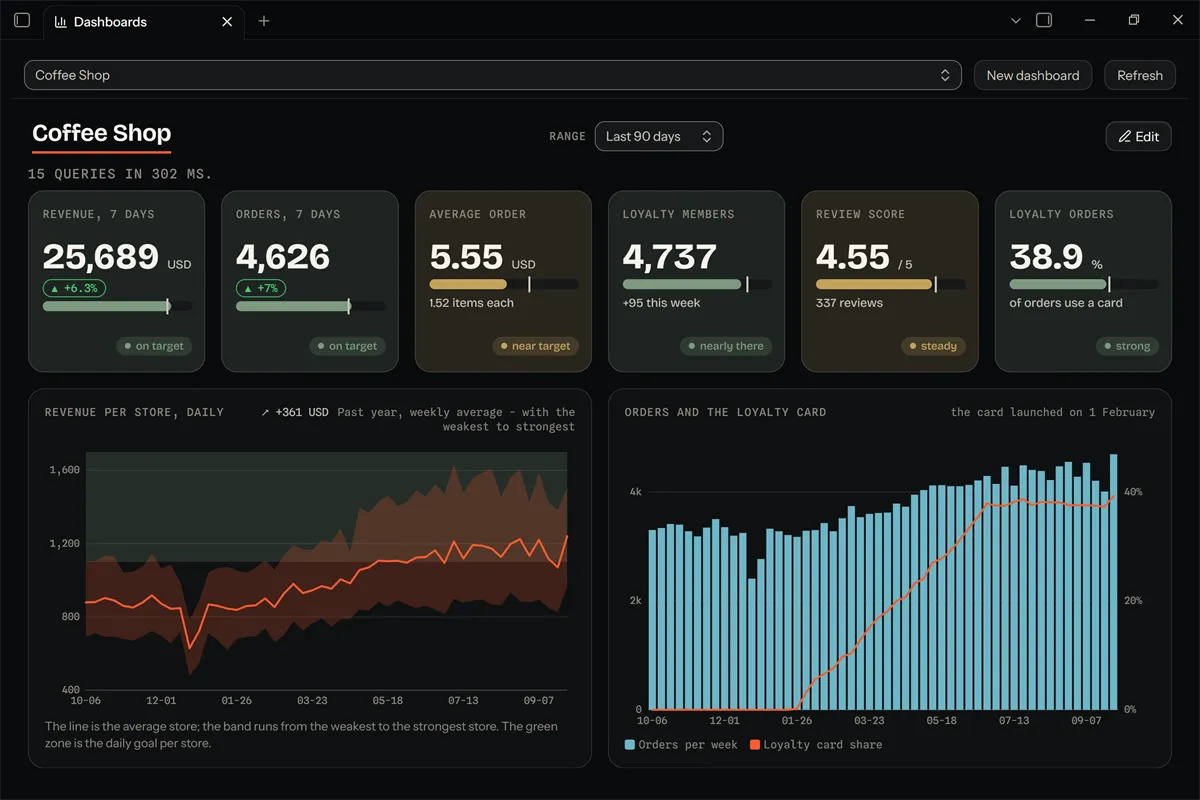

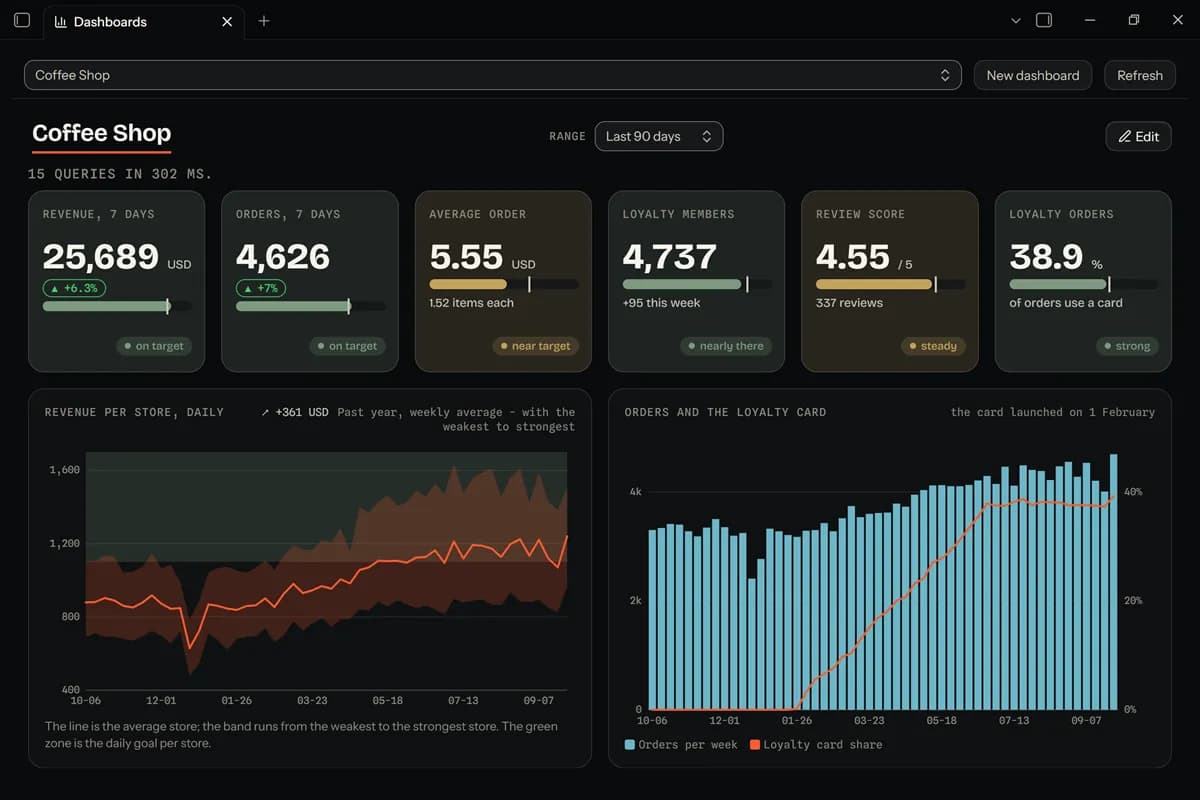

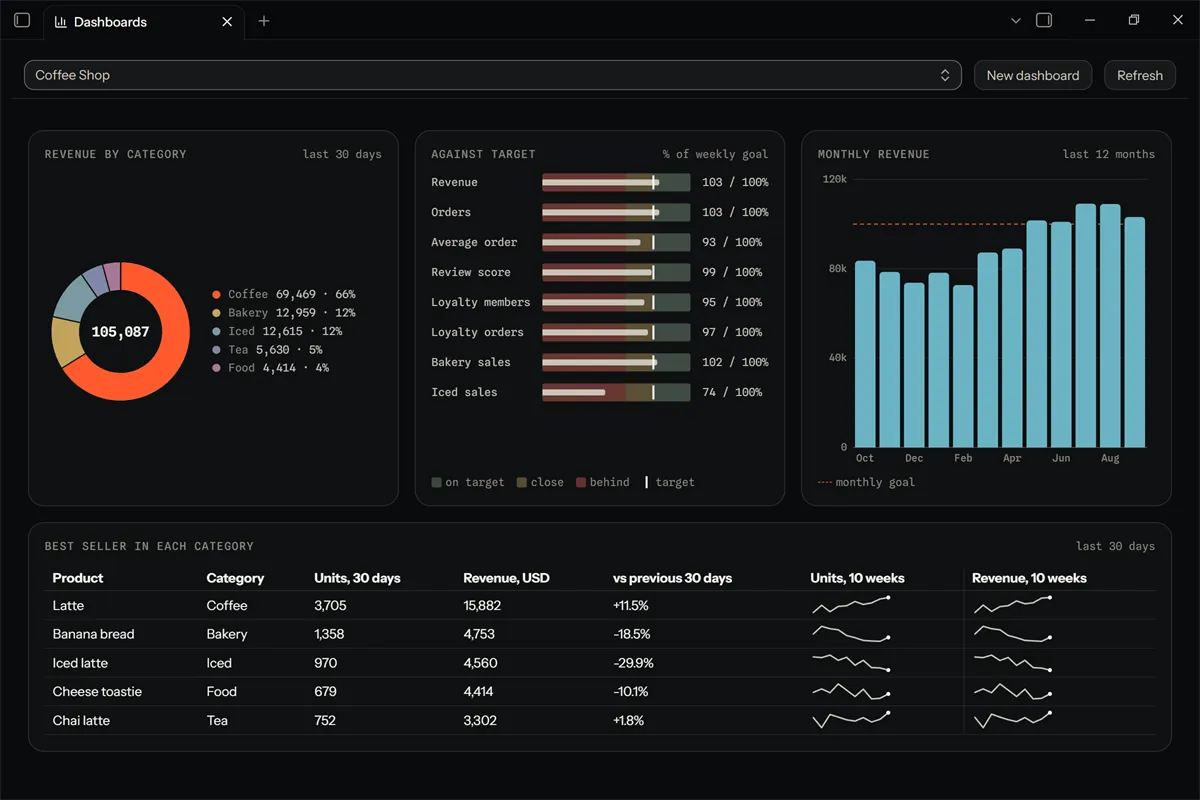

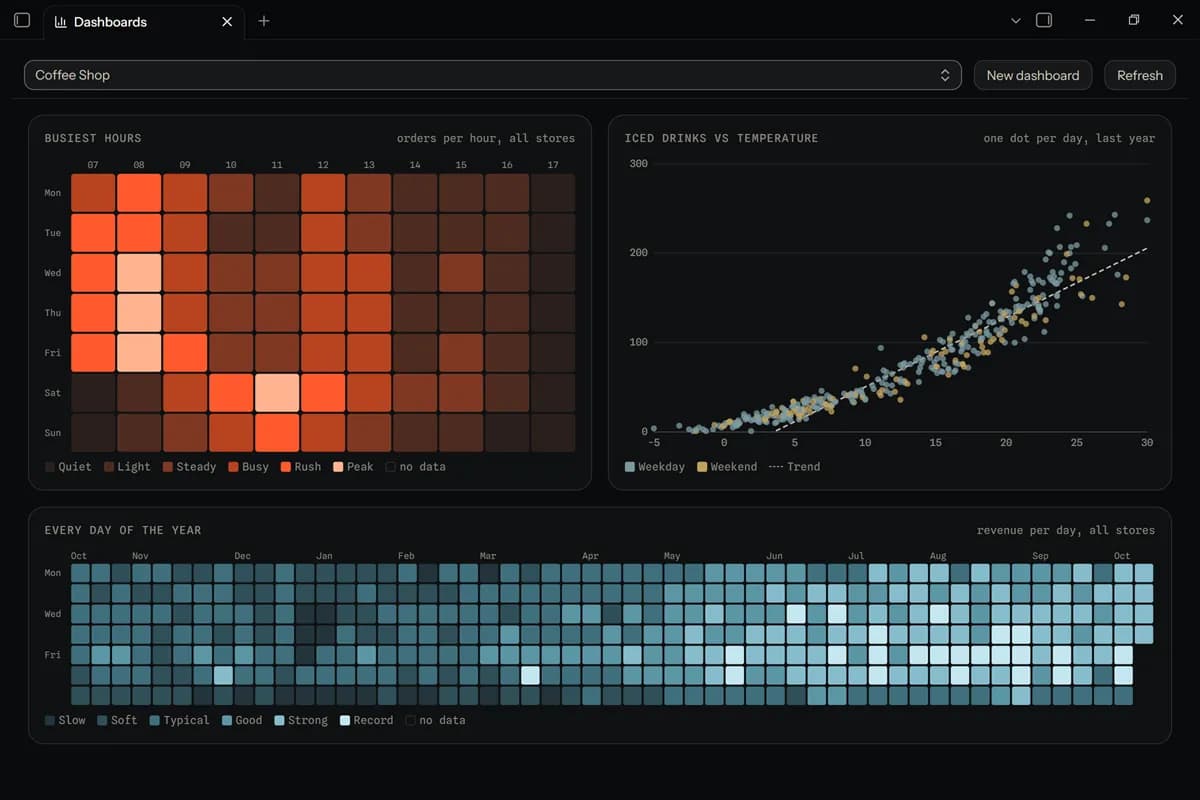

• Build dashboards of charts, tables and big numbers, viewable on desktop or phone.

ReadOut is a fork of the ICOR for Life SQLite Viewer by myICOR, used under its MIT licence. It is an independent project, not made, supported or endorsed by myICOR or Paperless Movement.

Install

From Obsidian:

1. Open Settings → Community plugins. If Restricted mode is on, turn on community plugins.
2. Choose Browse and search for "ReadOut".
3. Select Install, then Enable.

By hand:

1. Download main.js, manifest.json and styles.css from the latest release.
2. Put the three files in .obsidian/plugins/readout in your vault.
3. Enable ReadOut in Settings → Community plugins.

Quick start

1. Put your .db, .sqlite or .sqlite3 files in the databases folder: Databases, or 07 Databases in an ICOR for Life vault. Create the folder yourself, or ReadOut creates it the first time it saves something there.
2. Click a database file to open it in the database browser. It has three tabs: "Data", "Schema" and "SQL console".
3. To build a dashboard, run the command "Open dashboards" or select the bar-chart icon in the left ribbon, then select "Create your first dashboard". To see how a finished one is put together first, run the command "Add example dashboard".

ReadOut also finds database files anywhere else in the vault. When you open one that is outside the databases folder, it offers to move it there (see Moving a database).

Other commands:

Dashboards

Each dashboard is one Markdown note in the dashboards folder. Opening the note shows the dashboard. The note holds the dashboard as JSON in a code block; the AI widget guide documents the format.

Editing. Select "Edit" to move, resize, add or change widgets, or "Open as text" to edit the note directly. "Done" leaves edit mode.

The widget form. Build a widget from a table by picking a value, a date and filters, or select "Write SQL instead" to write the query yourself. A built widget can be turned into SQL later with "Edit as SQL" under "Advanced". This cannot be undone for that widget.

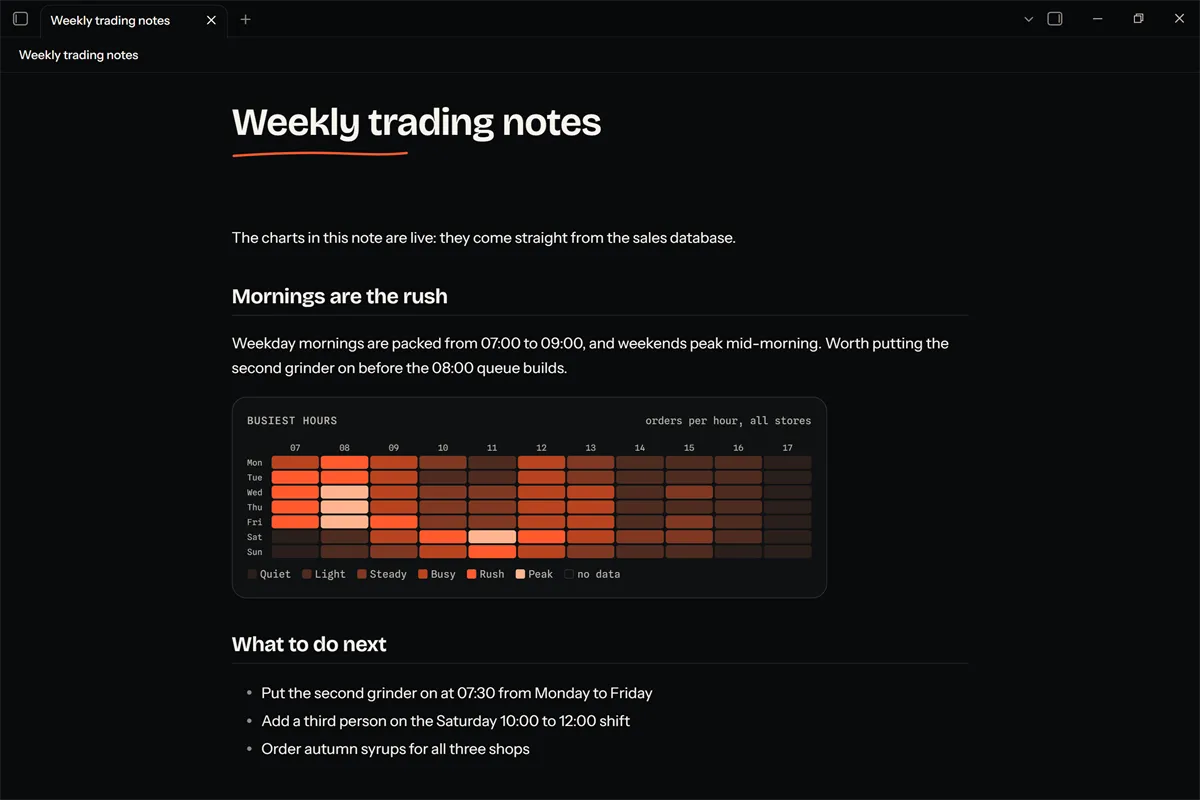

A widget in a note. A readout code block in any note draws one widget. Name the dashboard (its note's file name without .md) and the widget (its title, or its number counting from 1, dividers included):

```readout
dashboard: health-overview
widget: Heart rate
```

Or write one widget out as JSON, with the database path:

```readout
{ "database": "Databases/shop.db", "viz": "bar", "x": "day", "y": "orders", "sql": "SELECT day, SUM(orders) AS orders FROM sales GROUP BY day ORDER BY day" }
```

Related settings and menus:

• "Open dashboard notes as dashboards": turn it off to open dashboard notes as plain notes. With it on, use "Open as note" in the file menu to see the note.
• "Draw widgets written in notes": turn it off to show readout blocks as plain code.
• Right-click a folder and choose "New dashboard" to create one from the file explorer.

A broken dashboard note shows its error at the top of the dashboards view. Restore the last good copy with Obsidian's Version history or File recovery.

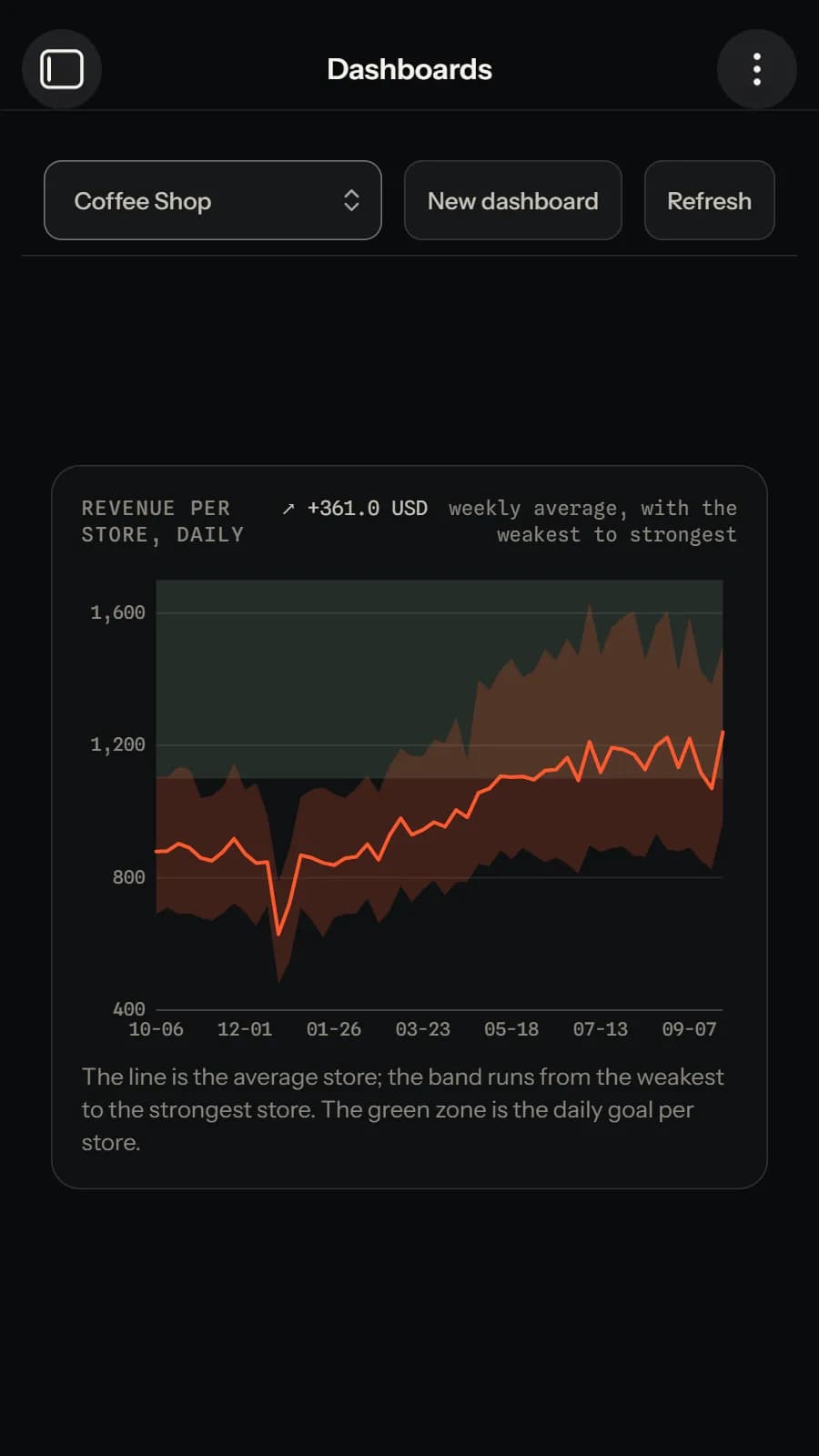

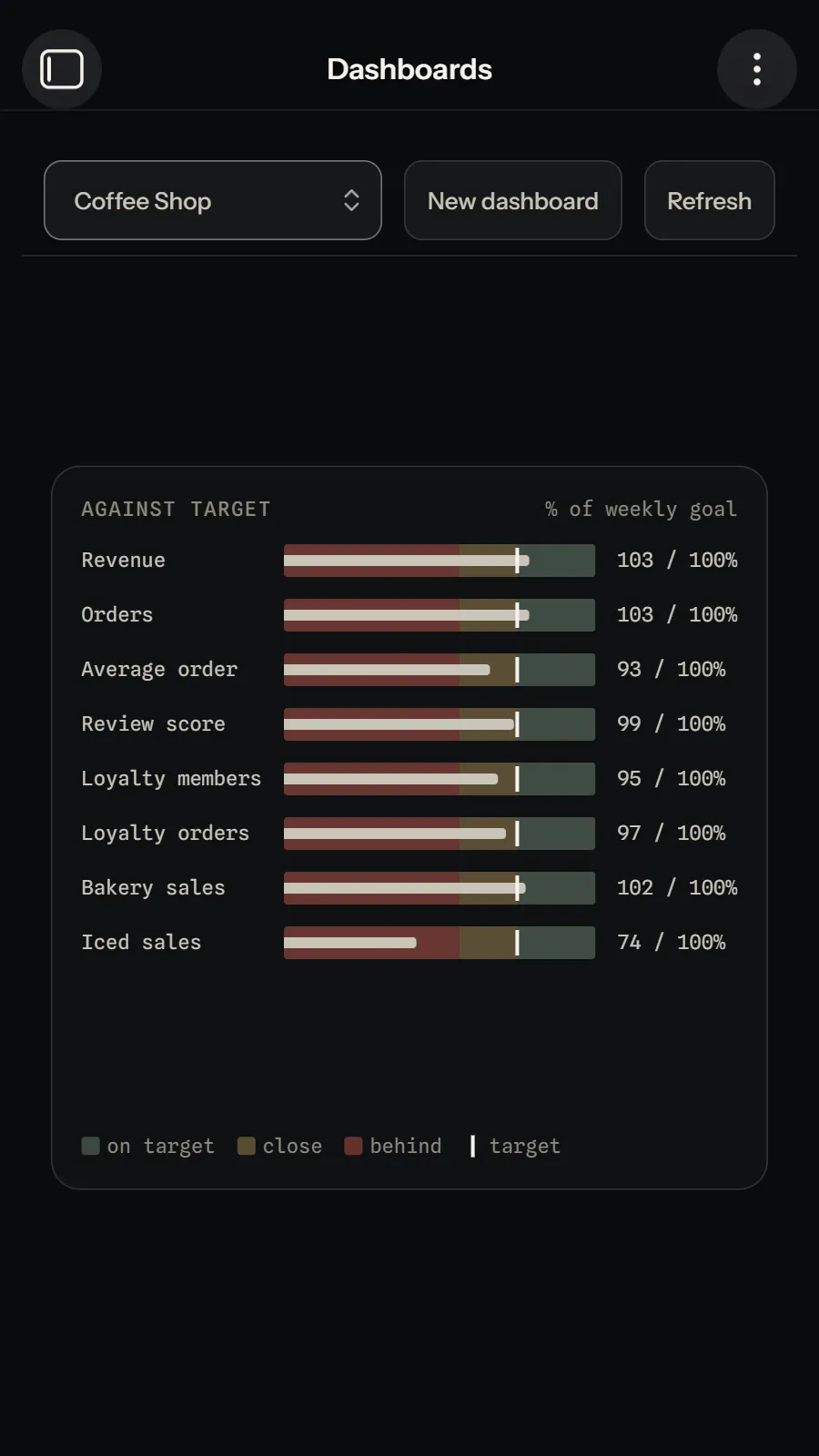

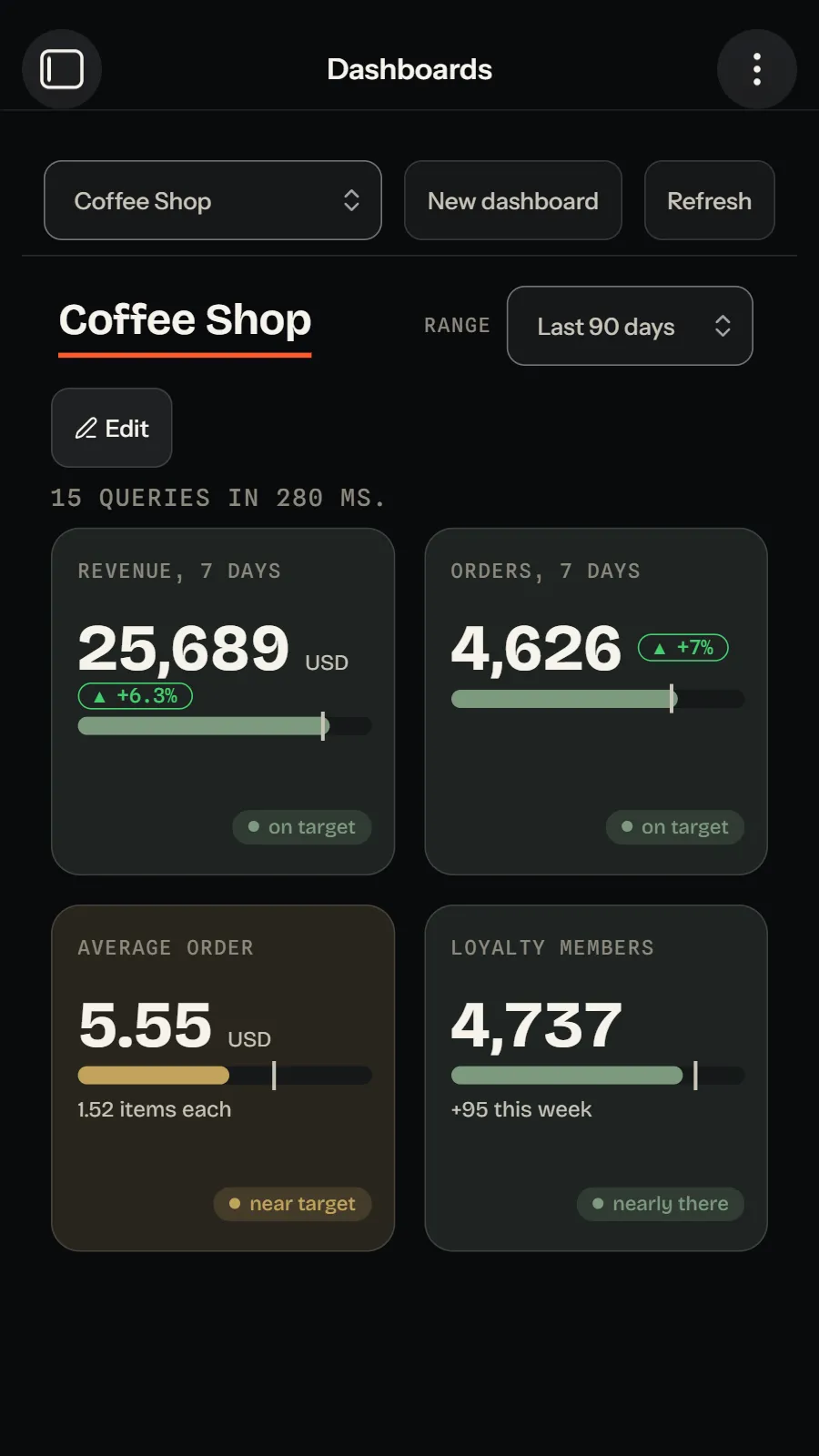

On a phone

ReadOut works on phones and tablets, but it usually has no database to read there. Obsidian Sync does not carry .db or .sqlite files with its default settings, and it has a size limit per file. Dashboards reach the phone this way:

1. Each time the desktop draws a dashboard live with no failed widget, it saves the answers as a cache note.
2. Obsidian Sync carries the dashboard notes and the cache notes to the phone with its default settings.
3. The phone draws each dashboard from those saved answers and shows "Computed on desktop" with how long ago that was.

What this means in practice:

• To refresh a dashboard on the phone, open it on the desktop and let Sync finish.
• A dashboard never opened on the desktop shows "No cached result yet. Open this dashboard once on the desktop and sync."
• Large caches may not sync. Obsidian Sync Standard carries files up to 5 MB. When a cache note passes 4 MB, the desktop warns you. Return fewer rows in large tables to shrink it.
• Browsing tables and running queries need the database file on the device. If you sync it some other way and it is under the phone's size cap (200 MB by default), the phone reads it live.
• You can edit dashboards on the phone. The widget form lists tables and columns from a catalog note the desktop writes. To pick from a column's values on the phone, turn on "Include category values in the mobile catalog" on the desktop. The catalog note is described below.
• Folder choice on a fresh phone install. If the vault has a 07 Databases folder and no Databases folder, ReadOut uses the ICOR for Life folders.

What ReadOut writes in your vault

Each folder below is created the first time ReadOut saves something into it.

The default folders:

ReadOut sets these once, on a fresh install. After that, your settings win.

The catalog note lists each database's tables, columns and types. With "Include category values in the mobile catalog" on, it also lists the values of small text columns (200 values or fewer), and that note is searchable like any other. Leave the setting off for a database that holds values you would not put in a note, such as health or contact details.

Search and graph. Dashboard and cache notes are ordinary notes, so they appear in search, the graph and unlinked mentions. To hide them, add the cache folder and the dashboards folder under Settings → Files and links → Excluded files. Excluded notes still show in the file explorer and still sync.

Guide files. An edited copy is never overwritten. To get the newest text, delete your copy and run "Write the guide files" again.

Moving a database

When you open a database that is outside the databases folder, ReadOut shows a notice once for that file, with a "Move to <folder>" button. Moving takes the database and its -wal and -shm files. Moving may break an app that writes to the database in its current location. Turn the notice off with "Note when a database is outside the databases folder".

Limits and settings worth knowing

Size. ReadOut loads the whole database into memory with its built-in SQLite engine, on every device.

• Change it with "Size cap for the built-in engine (MB)".
• Loading needs roughly three times the file size in free memory.
• Files over 2000 MB do not open.
• A dashboard for a database over the cap draws from the desktop cache instead.

Queries. ReadOut opens databases read-only.

• One statement per query, starting with SELECT, WITH, PRAGMA or EXPLAIN. Only read-only PRAGMAs run.
• A SELECT with no LIMIT gets one: 500 rows in the SQL console, 5,000 rows in a dashboard widget.

Where it looks. "Search for databases in" is "Whole vault" by default. Set it to "Only the databases folder" to list only those. Clicking a database anywhere, or naming one in a dashboard, works either way.

Where a database can be. It must be a file inside the vault, not inside a hidden folder or Obsidian's configuration folder.

Not a database. A file with a database extension that is not SQLite, such as a Windows Thumbs.db, shows "This file isn't a SQLite database".

Reference

• DASHBOARD-HELP.md: what each widget type shows and what each setting in the widget form does. "Write the guide files" also writes it into your dashboards folder as README.md.
• AI-WIDGET-GUIDE.md: every field of a dashboard file, for editing dashboards by hand or with an AI assistant. Also written into your dashboards folder.

You can write both guides into your vault with the command "Write the guide files", the "Write now" button in the settings, or "Create Guide Files for Your AI Team" on the empty dashboards screen.

Support

ReadOut has one maintainer and is supported on a best-effort basis.

• Report bugs and ideas in the issues. Please reproduce a problem on a clean install of the current release first.
• Report security issues through the process in SECURITY.md, not in a public issue.

Licence

MIT. See LICENSE.

• Origin. The code started as the ICOR for Life SQLite Viewer by myICOR and Paperless Movement, S.L., released under the MIT licence from version 0.6.0. Releases of that project before 0.6.0 used another licence and are not part of ReadOut.
• Trademarks. The licence covers the code only. "ICOR", "ICOR for Life", "myICOR" and "Paperless Movement" are trademarks of Paperless Movement, S.L. ReadOut claims no connection to them beyond being forked from their SQLite Viewer. See TRADEMARK.md.
• Contributions. Pull requests are welcome under the same MIT terms, with a DCO sign-off on every commit. See CONTRIBUTING.md.
• Third-party components keep their own licences. See THIRD-PARTY-NOTICES.md.
