LJ OS

LJ OS Git Wall is a standalone Obsidian desktop plugin for people who work across local Git repositories and want a quick daily picture of what changed. It discovers local repos from folders or drives you choose, quietly scans the repos you track, writes a small JSON snapshot inside your vault, and renders a Git Wall in your Daily Note from that cached data.

No login. No API keys. No cloud service. No companion repo. No companion app. No required CLI. No analytics. LJ OS reads local Git metadata and stores generated activity data locally. Optional weather context can call Open-Meteo only when you enable it and enter coordinates.

Scan roots -> Discover repositories -> Tracked repos -> Cached JSON -> Git Wall

What It Does

• helps you find local Git repos from user-configured scan roots
• tracks one or more validated Git repositories
• scans tracked repos on startup and on an interval while Obsidian is open
• can refresh stale LJ OS views in the background without blocking rendering
• writes daily JSON snapshots to LJ OS/stats/YYYY-MM-DD.json by default
• inserts or replaces a Daily Note Git Wall from cached JSON only
• shows an optional Daily Activity Bar with cached 3-day or 7-day activity tables
• lets you reorder the main generated sections in Dashboard Layout
• keeps manual scanning available as an explicit fallback

What It Does Not Do

• does not require a second repository, external app, server, login, or API key
• does not call GitHub or remote Git hosting APIs
• does not send analytics, telemetry, repo names, commits, or paths anywhere
• does not auto-crawl every drive
• does not rediscover repos during startup, interval, or view-open scans
• does not run Git commands while inserting the Git Wall into a note
• does not support mobile, because local filesystem and Git access are desktop Obsidian capabilities

If Obsidian Sync, Git sync, iCloud, Dropbox, OneDrive, or another tool syncs your vault, that is outside LJ OS. LJ OS itself does not send data anywhere.

Install From A Release

Download the individual release assets from this repository:

main.js
manifest.json

If a release includes styles.css, download that file too. This repository does not currently require a stylesheet.

Copy the files into your vault:

<vault>/.obsidian/plugins/lj-os/

Then reload Obsidian plugins and enable LJ OS in Community plugins. Normal users do not need to run a build step, npm install, or any companion CLI. Install the release assets only. Developers building from source should use the TypeScript build workflow documented below. Optional weather context only needs manual latitude/longitude coordinates.

Build From Source

LJ OS follows the standard Obsidian sample-plugin TypeScript/esbuild workflow.

npm install
npm run dev
npm run build

src/main.ts is the plugin source of truth. Root-level main.js is generated by the build step and is packaged as the Obsidian release asset.

Use npm run dev while developing locally. Use npm run build before release packaging or smoke testing release assets.

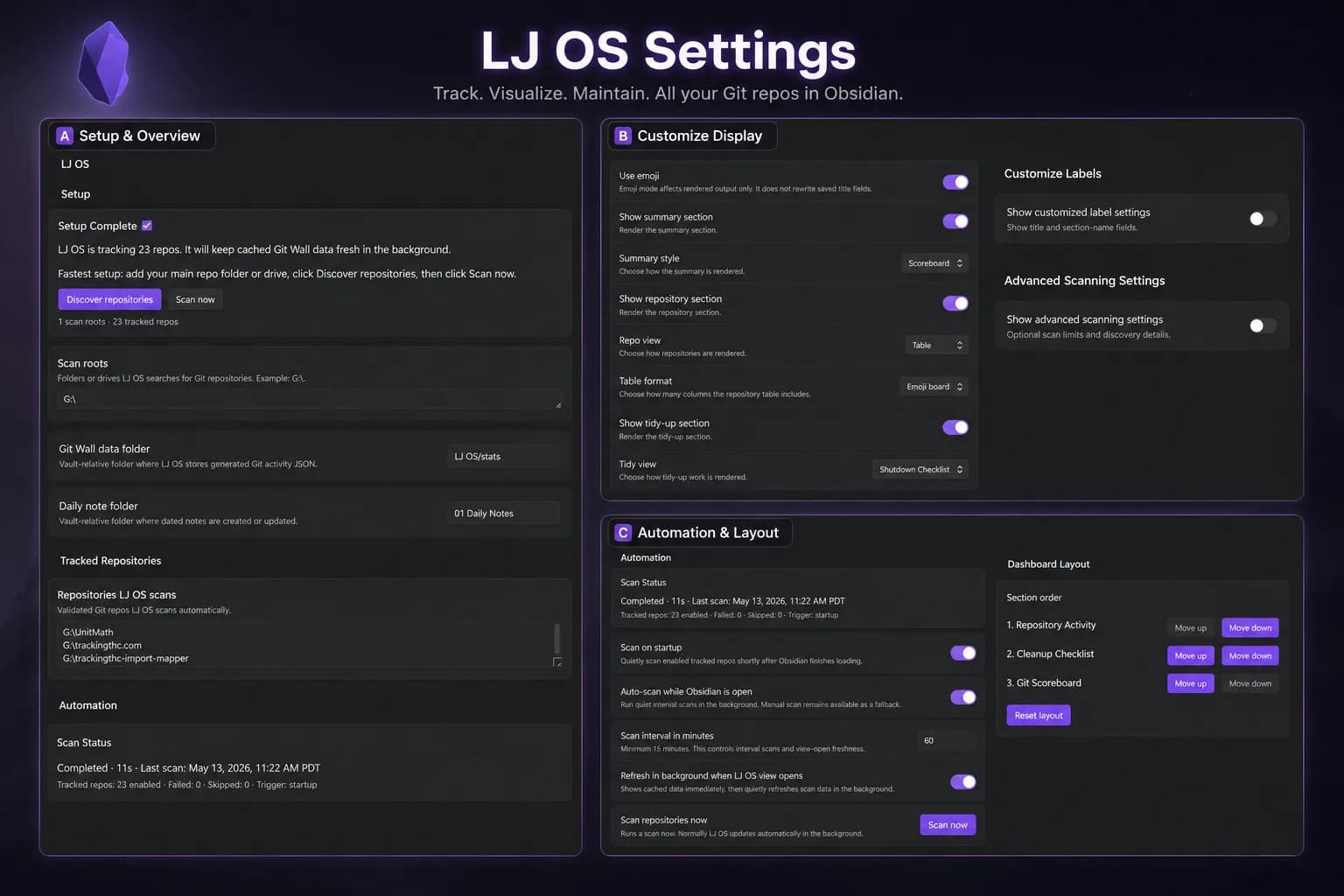

First-Time Setup

1. Install and enable the plugin.
2. Open Settings -> Community plugins -> LJ OS.
3. Use the Git Started setup card.
4. Add one or more Scan roots or exact repo paths.
5. Click Discover repositories.
6. Review Tracked repositories.
7. Click Scan now once to create today's cached JSON.
8. Confirm startup and interval automation are enabled.
9. Run LJ OS: Insert Today's Git Wall to add the section to today's note.

Fastest setup: add your main repo folder or drive, click Discover repositories, then click Scan now.

After repos exist, the setup card changes to Setup Complete ☑️. Normal use is automatic: LJ OS scans quietly in the background and Daily Note insertion renders cached data immediately.

Scan Roots vs Tracked Repositories

This distinction matters.

Scan roots are folders or drives LJ OS searches when you click Discover repositories.

G:\
C:\Repos
D:\Client Work

Tracked repositories are validated Git repos LJ OS actually scans.

G:\obsidian-lj-os-plugin
G:\CannabisMath
G:\moby-core

Use drive roots like G:\ under Scan roots, not Tracked repositories. G:\ is not scanned as a repo unless G:\.git exists. Broad drive roots can take longer to discover; a specific repo parent folder such as G:\Code is usually faster.

Discovery is manual. Startup, interval, view-open, and manual scans use tracked repositories only. They do not crawl scan roots, walk every drive, or rediscover repositories.

Scanning And Caching

Auto-scan is enabled by default:

• Scan on startup runs quietly after Obsidian finishes loading.
• Auto-scan while Obsidian is open runs quiet interval scans every 60 minutes by default.
• Refresh in background when LJ OS view opens shows cached data first, then refreshes stale scan data quietly for the future.

Manual scans can take several seconds depending on repo count, repo size, disk speed, and Git availability. The manual command is explicit:

LJ OS: Scan Configured Git Repositories

The Git Wall / Daily Note insert command does not scan. It reads today's cached JSON if present and renders immediately. If today's JSON is missing, it inserts a short fallback message telling you to run a scan or enable automation.

LJ OS has a scan duration budget, defaulting to 30 seconds. Slow or bad repos are skipped or recorded as warnings where possible so one repo does not poison future scans.

Local Storage

Default generated data folder:

LJ OS/stats

Default daily JSON path:

LJ OS/stats/YYYY-MM-DD.json

Default Daily Note folder:

Daily Notes

The JSON stays in your vault. Plugin settings are stored through Obsidian's normal plugin data storage.

Daily Activity Bar

LJ OS can show a compact daily activity timeline inside the Git Wall:

Today  ☀️ 🟩⬛🟩🟩🟩🟩🟩 🌘

The center bar shows when Git activity happened during the day. Optional weather and moon icons provide lightweight ambient context. The Activity Bar is local-first and still works without weather, location, API access, internet, or logins.

Weather is optional. If enabled, LJ OS uses manual latitude/longitude settings to fetch a current Open-Meteo weather icon with no API key. Missing coordinates, offline use, or a failed weather request simply omits the weather icon.

The optional 3-day and 7-day Activity views render compact cached tables using the same ⬛ inactive and 🟩 active activity segments. These range views read daily JSON files from LJ OS/stats/YYYY-MM-DD.json; they do not scan repos, fetch historical weather, or backfill old weather data. The 3-day and 7-day views are mutually exclusive in settings.

Commands

Settings

Changing the Daily section heading changes the replacement marker. If you change it after inserting a Git Wall, delete or rename the old heading once.

Dashboard Layout

Dashboard Layout controls the order of the main generated sections:

1. Activity Bar
2. Git Scoreboard
3. Repository Activity
4. Cleanup Checklist

Use Move up and Move down to change the output order. Use Reset layout to restore the default order. This affects generated Git Wall / Daily Note output only; it does not affect discovery, scanning, cached JSON storage, or section content.

Example Output

## 🧱 Git Wall

Generated: May 13, 2026, 9:00 PM PDT
Last scan: May 13, 2026, 9:00 PM PDT
Scan details: duration 2.5s · trigger interval

### Activity

Today  ☀️ 🟩⬛🟩🟩🟩🟩🟩 🌘

3-Day

| Day | Weather | Activity | Moon |
| :---: | :---: | :---: | :---: |
| Tue |  | ⬛⬛⬛⬛⬛⬛⬛ | 🌖 |
| Wed |  | ⬛⬛⬛⬛⬛⬛⬛ | 🌗 |
| Today | ☀️ | 🟩⬛🟩🟩🟩🟩🟩 | 🌘 |

> [!summary] 🏁 Git Wall
> 🧭 Scanned: **3** repos
> 🛠️ Touched: **2** repos
> 🏁 Commits: **5**
> 🧼 Tidy up: **1** repos
> 🚀 Unpushed: **2**
> 📥 Behind remote: **0**

### 🧰 Repo Garage

| Repo | 🌿 Branch | 🏁 Commits | 🧼 Status | 🚀 Unpushed | 📥 Behind | Latest |
| --- | --- | ---: | :---: | ---: | ---: | --- |
| obsidian-lj-os-plugin | main | 2 | ✅ Clean | 0 | 0 | a1b2c3d - Standalone scanner |
| cannabis-coa-parser | main | 3 | 🧹 Tidy | 2 | 0 | d4e5f6a - Parse notes |

### 🧹 Tidy-Up Queue

- 🧹 cannabis-coa-parser `main`

Generated JSON

LJ OS writes a compact local JSON snapshot each day. It is plain JSON so you can inspect it or back it up with your vault.

{
  "schemaVersion": "0.3.0",
  "date": "2026-05-13",
  "generatedAt": "2026-05-13T21:00:00.000Z",
  "source": "obsidian-lj-os-plugin",
  "machine": "local-workstation",
  "summary": {
    "reposScanned": 3,
    "reposIncluded": 3,
    "reposTouchedToday": 2,
    "commitsToday": 5,
    "dirtyRepos": 1,
    "unpushedCommits": 2,
    "behindCommits": 0
  },
  "scanStartedAt": "2026-05-13T21:00:00.000Z",
  "scanCompletedAt": "2026-05-13T21:00:02.500Z",
  "durationMs": 2500,
  "repoCount": 3,
  "scannedRepoCount": 3,
  "skippedRepoCount": 0,
  "failedRepoCount": 0,
  "timedOut": false,
  "scanTrigger": "interval",
  "activityWeather": {
    "emoji": "☀️",
    "label": "Clear",
    "source": "open-meteo",
    "fetchedAt": "2026-05-13T21:00:03.000Z"
  },
  "warnings": [],
  "repos": [
    {
      "name": "obsidian-lj-os-plugin",
      "path": "G:/obsidian-lj-os-plugin",
      "branch": "main",
      "hasCommits": true,
      "touchedToday": true,
      "commitsToday": 2,
      "dirty": false,
      "unpushedCommits": 0,
      "behindUpstream": 0,
      "latestCommit": {
        "hash": "a1b2c3d4e5f6",
        "shortHash": "a1b2c3d",
        "message": "Standalone scanner"
      },
      "notes": []
    }
  ],
  "notes": []
}

Render Views

Summary styles:

• Callout: Obsidian summary callout.
• Scoreboard: stat table with one metric per row.
• Pit Wall: interpreted status table for activity, cleanup, push, and sync.

Repository views:

• Table: uses the selected table format.
• Status Cards: one Obsidian callout per repo, using success/warning state.

Table formats:

• Compact: repo, branch, status, commits.
• Standard: repo, branch, commits, status, unpushed, behind, latest.
• Detailed: standard plus repo path.
• Emoji Board: compact visual board for activity, tidy, push, and pull.

Tidy views:

• Queue: simple list of repos needing tidy-up.
• Shutdown Checklist: checkbox list for tidy-up, push review, and sync review.

All views render from the same vault-local JSON generated by this plugin.

Privacy And Local-First Behavior

LJ OS itself:

• requires no login
• requires no API keys
• uses no required APIs or remote services
• uses no cloud service
• sends no analytics or telemetry
• is not spyware
• has no companion repo
• has no companion app
• has no required CLI for normal plugin use
• performs no remote syncing
• reads local Git metadata from repositories you configure
• writes generated JSON inside your vault, defaulting to LJ OS/stats

Git may contact remotes only when you use Git outside LJ OS. LJ OS scans local metadata and local command output; it does not call remote Git hosting APIs. If you enable the optional weather icon and enter coordinates, LJ OS can call Open-Meteo for weather context. That weather call requires no API key and is not needed for the Activity Bar to work.

Desktop-Only

LJ OS is marked desktop-only in manifest.json. Local filesystem and Git access are not mobile-friendly Obsidian plugin capabilities, so mobile support is not applicable unless the architecture changes in the future.

Troubleshooting

See Troubleshooting for common fixes, including:

• drive roots such as G:\ being added to the wrong setting
• no repos discovered
• Git not available in PATH
• no Git Wall data yet
• stale Daily Note output
• auto-scan not updating
• release asset mismatch

More Docs

• FAQ
• Troubleshooting
• Views
