isokit

A guarded generator for Azure-marketing-style isometric architecture diagrams, rendered as self-contained SVG (embedded fonts, no runtime dependencies).

Designed to be driven by an AI agent in conversation: you describe the architecture and critique the renders; the agent authors the layout script against the in-repo grammar (STYLE.md). Published specs — a stable-URL document any agent can be pointed at — are coming (ROADMAP.md, Phase 4) so agents can cleanly and sensibly generate diagrams from the user's instructions without cloning this repo.

Diagrams are plain-TypeScript layout scripts against a declarative registry: place named units on a snapped grid, connect them by name, annotate them once — the library derives plate edges, flow routes, arrowheads, numbered pointer chips, and the legend rail. Invariants that make diagrams look right are enforced, not documented: violating one fails generation instead of shipping a subtly broken render.

Why an agent, not another auto-layout DSL?

Auto-layout tools solve topology legibility — don't overlap nodes, route edges sanely — which is why their output all looks the same. isokit targets a presentation-grade visual style where quality lives in placement judgment: which side an annotation should approach from, where a label reads clearly, how a flow should enter a face. No layout algorithm optimizes for that, but an agent reading a style guide can, and a human can direct it by critique ("this arrow points along the shape, not at it") instead of by learning a DSL. The renderer's job is everything checkable: hard errors on grid violations, collisions, and overflow give the agent a floor it cannot fall through, and error messages are written as turns in a conversation so it can self-correct without eyes. Auto-placement (ROADMAP.md, Phase 2) keeps raising that floor; the judgment loop stays.

Usage

Requires Node ≥ 23.6 (runs TypeScript directly via native type stripping — no build step).

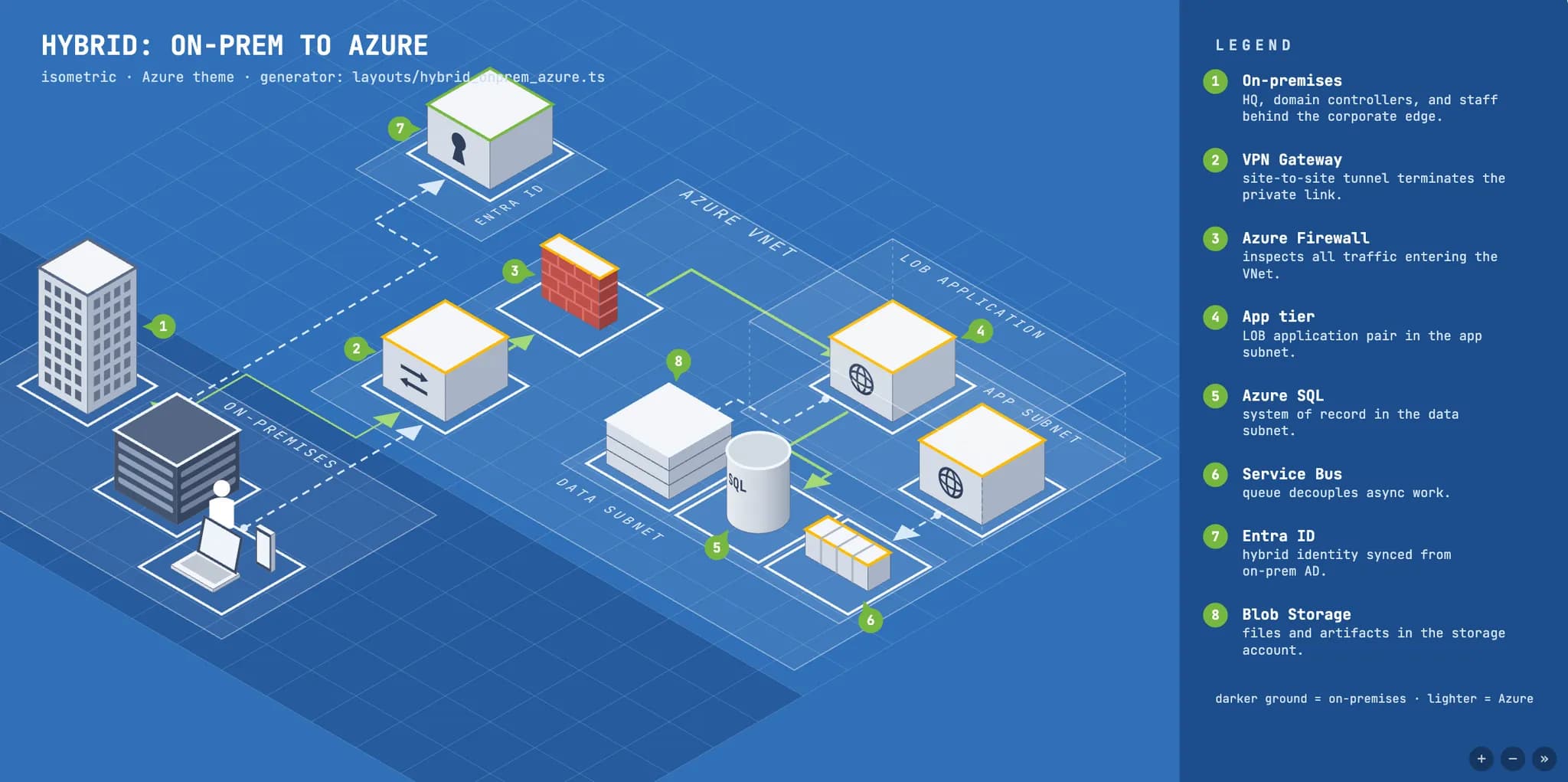

node layouts/hybrid_onprem_azure.ts

Each layout script writes one SVG. Output directory resolution: $ISOKIT_OUT if set, else the first isokit.local file found walking up from the working directory (first line = output dir), else ./out/.

A minimal layout:

import { setTheme, configure, out, grid, svgOpen, write, box, cyl, GLYPHS,
         unit, connect, annotate, annotations, renderUnits, A2, A3 } from "../src/isokit.ts";
setTheme("azure");   // theme tokens are live bindings — order vs. imports doesn't matter

configure(46, 440, 48);
const S = svgOpen(1400, 700);
S.push(grid());

unit("app", box, 5, 2, { rim: A2, glyph: GLYPHS["app"] });  // integer cell coords; 2x2 cells
unit("db",  cyl, 5, 6, { rim: A3 });
S.push(connect("app", "db"));                               // auto edge points + L-route
S.push(renderUnits());

annotate("app", "App Service", "serves the workload.", [3.5, 1.5]);
annotate("db",  "Azure SQL",   "system of record.",    [3.5, 7.5]);
S.push(annotations());

write(out("Minimal.svg"), S);

YAML

Diagrams can also be authored as semantic YAML instead of a TypeScript layout script — no coordinates in the common case, meant to be authored by an AI agent from a topology description (or by hand):

isokit: 1
title: "MINIMAL"

units:
  web: { shape: box, glyph: app, accent: 1 }
  db:  { shape: cyl, accent: 3 }

groups:
  app-tier: { label: APP TIER, units: [web, db] }

flows:
  - { from: web, to: db }

Render it:

node src/cli.ts render examples/minimal.yaml

(isokit render examples/minimal.yaml once the package is linked.) The full format contract — every key, enum, the layout-derivation order, and the complete error table — is SPEC.md.

Authoring with AI

The YAML's primary author is meant to be an AI agent. Hand any model this one URL (or paste the file into its context) along with your topology description, and it has everything it needs — task rules, the full format contract, and worked examples:

https://raw.githubusercontent.com/zeiosmb/isokit/main/llms.txt

Paste the returned YAML into an ```isokit code block in Obsidian (or a .yaml file for the CLI). If the render fails, paste the error block back to the agent — errors are written as instructions it can act on directly. llms.txt is generated from SPEC.md and the examples by npm run build:llms; tests/llms.ts fails the suite if it drifts.

Obsidian plugin

obsidian/ packages the pure render core as an Obsidian plugin: a ```isokit code block containing a YAML document renders in-note as the finished SVG. Errors render in-note too, as the same structured block the CLI prints — the line N it cites is the line within the code block, so fixes happen without leaving the note.

Build and install:

npm run build:obsidian
mkdir -p "<vault>/.obsidian/plugins/isokit"
cp obsidian/main.js manifest.json obsidian/styles.css "<vault>/.obsidian/plugins/isokit/"

Then enable isokit under Settings → Community plugins. The bundle is self-contained (fonts embedded, no network, no filesystem access) and works on mobile. Every rendered block gets small overlay controls in its bottom-right corner: +/− to zoom (also ctrl/cmd+scroll, or pinch on trackpad/mobile), drag to pan once zoomed, double-click to reset. Diagrams with annotations also get a »/« legend toggle: collapsing hides the legend rail and narrows the viewBox so the diagram reflows to full width (the SVG itself is untouched — the rail is addressable via its isokit-legend class). tests/obsidian.ts builds the real bundle and drives the code-block processor — rendering, errors, escaping, and the pan/zoom/legend math — on every npm test.

examples/interactive/ holds the same set of renders with equivalent controls baked directly into the SVG itself via an inline <script> (npm run build:interactive-examples regenerates it from src/interactive.ts) — open examples/interactive/index.html for a gallery, or any of the .svg files directly, for pan/zoom/legend-collapse with no plugin at all. Scripted SVGs don't execute inside <img>/![[...]] embeds (browsers block that in image context), so this is for direct-open viewing; the Obsidian plugin above is what powers the in-note version. tests/interactive.ts verifies the transform is purely additive — stripping the appended controls reproduces the plain render byte-for-byte.

What's enforced

• Unit positions snap to integer grid cells; every unit owns a whole-cell footprint (default 2×2, cells: [w, d] to override); overlapping footprints are an error.
• Flow routes are axis-locked — any diagonal segment (including hand-authored via waypoints) is an error, because it renders at a non-isometric angle.
• Estate boundaries (the two-tone ground edge) must land exactly on a grid line.
• Chips and legend come from one annotate() declaration per unit — they cannot desync.
• Legend content is measured against the canvas and errors instead of clipping.
• Plane labels are collision-checked: a label whose text intersects a unit's screen silhouette or a flow route fails generation instead of shipping overlapping ink.

Layout vocabulary

Shapes: box (service cube with face glyph), cyl (database drum with curved label), rack, building, wall (brick firewall), queue, store (layered blob storage), slab, panel, padlock, users, plus device billboards (laptop, monitor, phone, browser, person). Grouping: translucent plane() sheets (optionally raised on posts with a z argument), two-tone ground estates (grid({seam})), plane-projected labels. Themes: blueprint (dark navy) and azure (marketing blues); setTheme() swaps every token.

The full grammar — projection math, face shears, shape anatomy, and every hard-won rule — lives in STYLE.md. Read it before writing or modifying a layout; corrections get ratcheted into it (and into enforcement code where possible), never applied as one-offs.

Project goals, the candidate end state (mermaid.live-style static web app with URL-encoded diagrams and a published agent spec), and the phased path there are in ROADMAP.md.

Tests

npm test

Runs the full chain: engine suites (tests/pyfmt.ts — float formatting vs. a CPython oracle, tests/errors.ts — every enforced guard, tests/collisions.ts — label collisions and chip-snap geometry, plus the autolabel/autochip/group/autoroute regression suites), the YAML pipeline suites (tests/yaml.ts parser, tests/validate.ts validator + SPEC.md error-table cross-check, tests/jsonschema.ts schema drift-guard, tests/semantic.ts layout derivation + render-core purity walk, tests/cli.ts), and tests/check-golden.sh (byte-compares every render — TS layouts and YAML examples — against tests/golden/).

Golden policy: the goldens' job is to make every rendering change deliberate, not to freeze output. Unintended byte drift (a refactor that changes formatting, a theme-token accident) fails loudly; when output changes on purpose (new enforcement, renderer fixes, layout edits), the affected goldens are regenerated after visual verification and the diff is the review artifact. They began as Python-prototype output (commit 2f46dd2) that verified the TypeScript port byte-identical.

Layouts in this repo

History

isokit was prototyped in Python (~680 lines, pure stdlib) and ported 1:1 to TypeScript on 2026-08-28 — the port was verified byte-identical via the golden masters before the Python was removed. The prototype lives at commit 2f46dd2 (src/isokit/__init__.py).
