Image Annotation
suffername196 downloadsMark image regions, add captions, and attach them to notes.
- Overview
- Scorecard
- Updates6

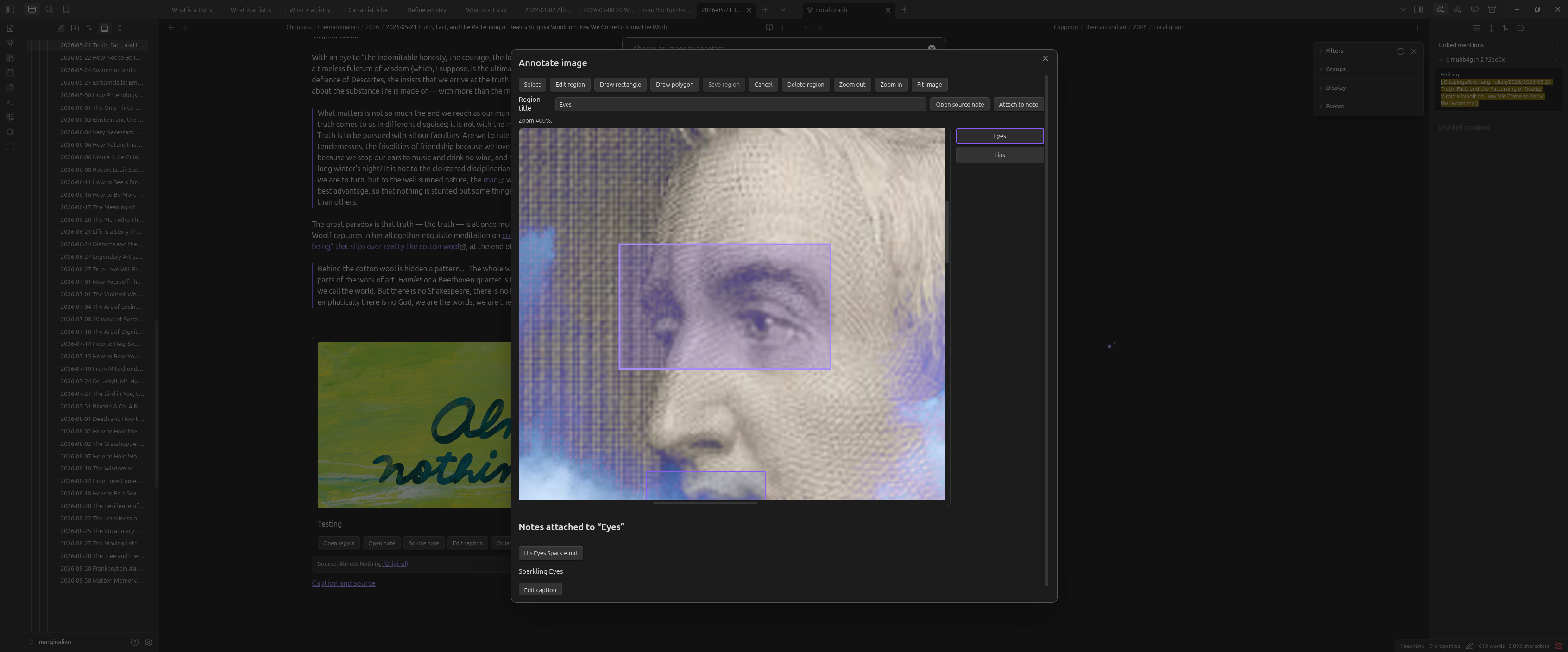

Mark part of an image. The part becomes a note you can write in and embed anywhere.
What you can do
- Mark a rectangle, or draw an outline around an irregular shape.
- Write about each region in its own note, named with the region's title.
- Embed a region in any note with
![[Eyes]]. The embed shows the crop and your text. - See where a region is used, through Obsidian's backlinks.
- Duplicate a region to say something different about the same part of an image.
- Rename, reshape, or delete a region. Links to it follow, as they do for any note.
Images can come from your vault, or from web images in a note. The original image stays unchanged.
Annotate your first image
- Right-click an image in a note and select Annotate image. The image opens in an editor tab.
- Drag over the detail you want.
- Type a name for the region and press Enter.
- In the region list, select Open note. The region note opens beside the image.
- Write about the region.
To use the region in your writing, select Insert in in the region list.
The embed goes into the note you last wrote in. To choose another note, select Insert in…;
the embed goes at its end. You can also drag the region into a note, or type ![[ and the region's name.
For an irregular outline, press P or select the polygon tool. Click points around the detail. To finish, click the first point, double-click, or press Enter.
Change a region
Run Image Annotation: Browse image regions to find a region, or select the button on its crop.
- To change the shape, drag the region or its handles. The change saves when you release the pointer.
- To rename, double-click the name in the list or press F2.
- For more, right-click the region: Duplicate, Redraw shape, Open source note, or Delete region.
Renaming the region note in the file explorer renames the region too. Deleting a region moves its note to the trash. Links to it stay, and show as unresolved.
The region note
| Property | What it holds |
|---|---|
image |
The image the region is part of |
source |
The note the image came from |
shape |
The outline, in fractions of the image |
region_id |
A fixed name for the region, for other plugins |
The note starts with an image-region block that draws the crop. Write below it.
If the plugin does not know the source note, source stays empty for you to fill in.
Settings
Region folder sets where new region notes go. The default is Regions.
Your annotations stay in your vault
Regions are ordinary notes. Without the plugin, a region note still shows its properties and your text.
When you annotate a web image, the plugin saves a local copy from its source website. It does not upload your notes. There are no accounts, analytics, or paid services.
See the guide for keys, storage, and sync. See development instructions to build and check a release.
License
MIT. Created by Micah.
