Hexcrawl

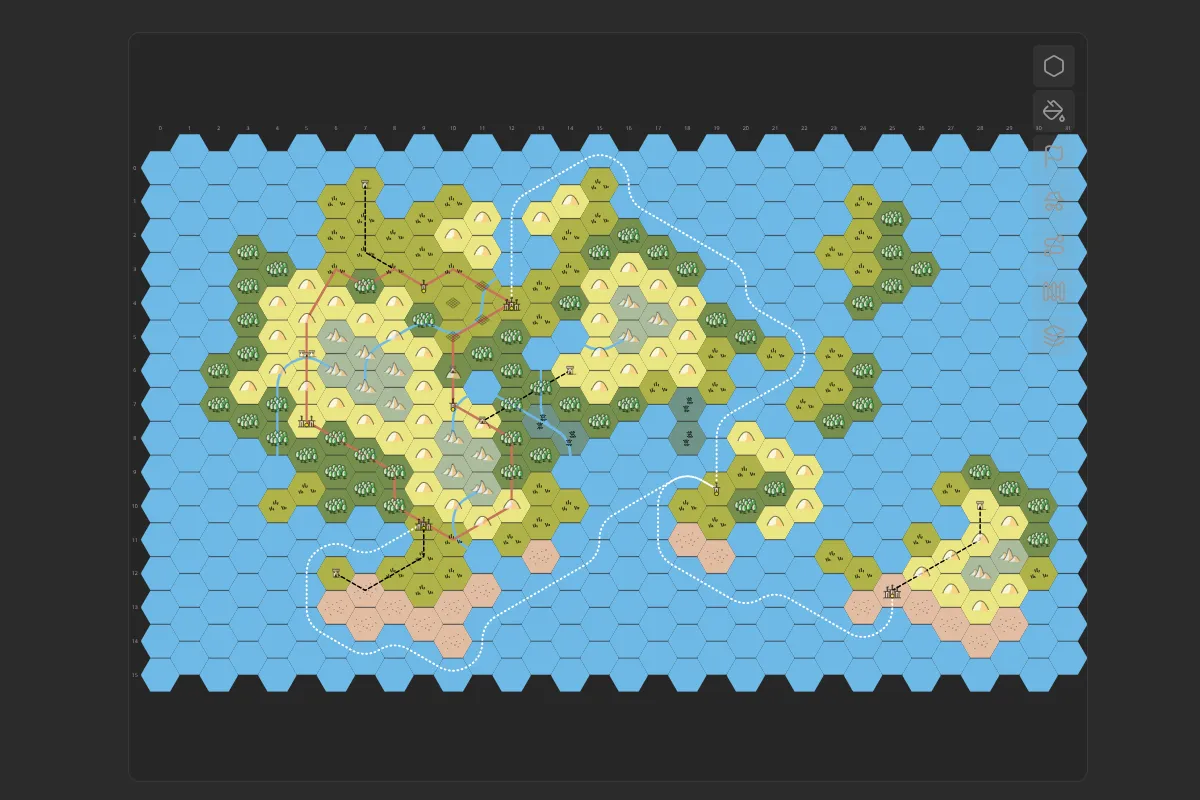

Turn a folder of notes into a fully interactive, easily editable hex map. Drop a hexcrawl code block into any note, point it at a folder, and every note with hex-q/hex-r frontmatter becomes a hex on the map. The map itself isn't a static picture: paint terrain, drop icons, and draw paths straight onto it with the built-in toolbar.

Features

• Notes as hexes — coordinates live in frontmatter; click a hex to open its note.

• No fixed schema — add whatever properties your campaign needs instead of being boxed into a predefined set of fields.

• No bespoke views — browse, filter, or query hexes with the tools you already use (Bases, Dataview, search).

• Pan & zoom — scroll to zoom on the cursor, drag to pan, auto-fit on load.

• Editing toolbar — fill terrain, place icons, draw paths directly on the map, and more.

• Customizable visuals — load third-party icon packs of your choice, define various terrain palettes, configure as many path types as you need.

  A couple of great similar plugins exist for Obsidian too: Hexmap World Creator, Hex Cartographer, Text Mapper. They're more mature, and may fit your use case better. However, Hexcrawl aims to stand out by focusing on flexibility of use and visuals, keeping things simple and staying close to Obsidian's own primitives.

Quick start

```hexcrawl
folder: Hexes
orientation: pointy
cols: 10
rows: 8
```

And a hex note anywhere in that folder:

---
hex-q: 3 # column (0-based)
hex-r: 2 # row (0-based)
hex-terrain: forest
---

Reference

Editing on the map

A toolbar pinned to the top-right corner of every rendered map lets you edit it directly, with no frontmatter to hand-write:

Every change is written straight to the affected note's frontmatter (or creates a new path note), so the map and the notes never drift apart.

Code block options

Palettes

Manage named palettes vault-wide from Settings → Hexcrawl. Add, duplicate, delete, mark a default, and edit each one's terrain/path/border entries and icons folder (with a picker and live preview). Leave a palette's icons folder empty to use the plugin's bundled icon pack; set one to use only icons from that vault folder instead — the two are never combined.

A hexcrawl block picks one with palette: <name>, or omits it to use the default.

The same shape also works inline, scoped to a single block:

palette:
  icons: TTRPG/Icons
  terrain:
    forest:
      color: "#3F7A52"
      icon: forest
    hills:
      color: "#D68F4E"
  paths:
    road:
      color: "#A9895F"
      dash: dashed
    river:
      color: "#4A90C2"
      width: 4
      spline: true
  borders:
    barrier:
      color: "#f50000"
      width: 4
      dash: solid

hex-icon on a note always wins over the palette's icon. A hex-terrain, path-type, or border-type with no palette match falls back to being used directly as a CSS color.

Hex note frontmatter

A note missing or non-integer hex-q/hex-r is ignored.

Paths (roads, rivers, etc)

Each path is its own note in the block's paths folder. The note's title doubles as its name unless path-name is set:

---
path-type: road
path-hexes:
  - [2, 3]
  - [3, 3]
  - [3, 4]
path-spline: true
---

Borders (barriers, walls, etc)

Unlike a path, a border isn't drawn through hex centers — it runs along the shared edges between neighboring hexes, which is why border-hexes is a list of hex pairs rather than a flat list: each pair names the two hexes on either side of one edge. Consecutive pairs must share exactly one hex, head-to-tail, with the previous pair — this is also what lets a border turn a corner around a single hex, pivoting on it for two edges in a row. Each note is its own border, in the block's borders folder, with its title doubling as its name:

---
border-type: barrier
border-hexes:
  - [[0, 0], [1, 1]]
  - [[1, 1], [0, 1]]
---

A pair may name a hex just outside the grid — that's how a border caps the map's outer boundary, rather than a sign the border is invalid. A border with any pair failing validation (not neighbors, not head-to-tail, or entirely off-grid) is skipped on load, with an error logged and shown as a Notice.

Only the first or last edge of a border can be removed (via right-click, in the Border tool); removing the only remaining edge deletes the whole note.

Contributing

Contributions via bug reports, bug fixes, documentation, and general improvements are always welcome. For more major feature work, make an issue about the feature idea / reach out to me so we can judge feasibility and how best to implement it.

Local development

npm install
npm run dev            # watch build

Preparing for creating pull requests

If you plan on doing pull request, we would also recommend to do the following in advance of creating the pull request:

npm run build          # production build (type-checks first)
npm test               # run unit tests
npm run lint           # eslint
npm run format:check   # prettier --check

Install the pre-commit hook once per clone so typecheck/lint/format issues are caught before you push (same checks CI runs):

pre-commit install

Inspiration & Credits

• Alex Schroeder's Text Mapper and its port for Obsidian.
• The Great Antarctic Hexcrawl pt. 9.
• Hexagonal Grids by Amit Patel.
• This plugin uses the Gnomeyland icons pack by Gregory B. MacKenzie for the default terrain palette (see Palettes). The Gnomeyland icons are licensed under the Creative Commons Attribution-ShareAlike 4.0 International License.
