Heatmap Calendar

Visualize your data in a heatmap calendar similar to the github activity calendar using this Obsidian plugin.

Useful for tracking progress for exercise, finances, social time, project progression, passions, vices etc.

To be used with Obsidian Dataview, but could be used standalone or with other plugins aswell (if you know some javascript).

Howto

1. Annotate the data you want to track in your daily notes (see Dataview annotation documentation)

2. Create a DataviewJS block where you want the Heatmap Calendar to display.

3. Collect the data you want to display using DataviewJS

4. Pass the data into Heatmap Calendar using renderHeatmapCalendar()

Video Tutorial

Someone on the internet made a video tutorial:)
https://www.youtube.com/watch?v=2U4kizMyEEc

Visualized Concept:

Full Example Code:

\```dataviewjs // PS. remove backslash \ at the very beginning!

dv.span("** 😊 Title  😥**") /* optional ⏹️💤⚡⚠🧩↑↓⏳📔💾📁📝🔄📝🔀⌨️🕸️📅🔍✨ */
const calendarData = {
    year: 2022,  // (optional) defaults to current year
    colors: {    // (optional) defaults to green
        blue:        ["#8cb9ff", "#69a3ff", "#428bff", "#1872ff", "#0058e2"], // first entry is considered default if supplied
        green:       ["#c6e48b", "#7bc96f", "#49af5d", "#2e8840", "#196127"],
        red:         ["#ff9e82", "#ff7b55", "#ff4d1a", "#e73400", "#bd2a00"],
        orange:      ["#ffa244", "#fd7f00", "#dd6f00", "#bf6000", "#9b4e00"],
        pink:        ["#ff96cb", "#ff70b8", "#ff3a9d", "#ee0077", "#c30062"],
        orangeToRed: ["#ffdf04", "#ffbe04", "#ff9a03", "#ff6d02", "#ff2c01"]
    },
    showCurrentDayBorder: true, // (optional) defaults to true
    defaultEntryIntensity: 4,   // (optional) defaults to 4
    intensityScaleStart: 10,    // (optional) defaults to lowest value passed to entries.intensity
    intensityScaleEnd: 100,     // (optional) defaults to highest value passed to entries.intensity
    entries: [],                // (required) populated in the DataviewJS loop below
}

//DataviewJS loop
for (let page of dv.pages('"daily notes"').where(p => p.exercise)) {
    //dv.span("<br>" + page.file.name) // uncomment for troubleshooting
    calendarData.entries.push({
        date: page.file.name,     // (required) Format YYYY-MM-DD
        intensity: page.exercise, // (required) the data you want to track, will map color intensities automatically
        content: "🏋️",           // (optional) Add text to the date cell
        color: "orange",          // (optional) Reference from *calendarData.colors*. If no color is supplied; colors[0] is used
    })
}

renderHeatmapCalendar(this.container, calendarData)

```

Colors:

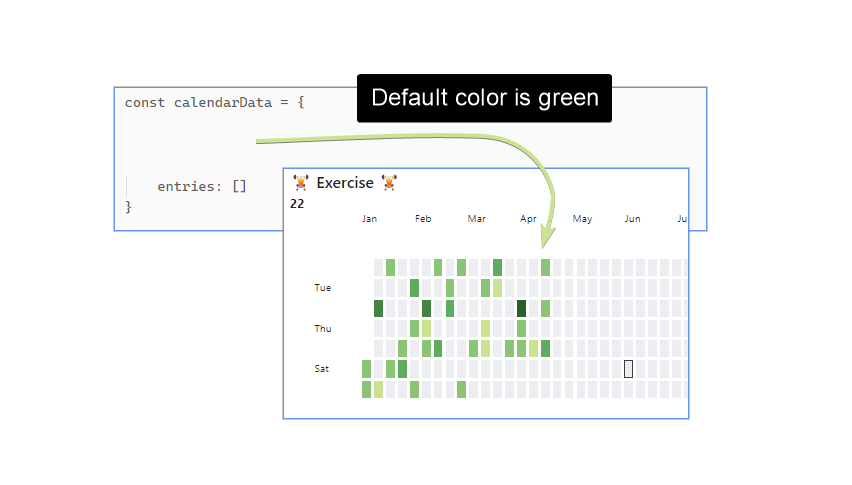

The heatmap uses a green color scheme by default, just like Github.

Default Color: green (no color specified)

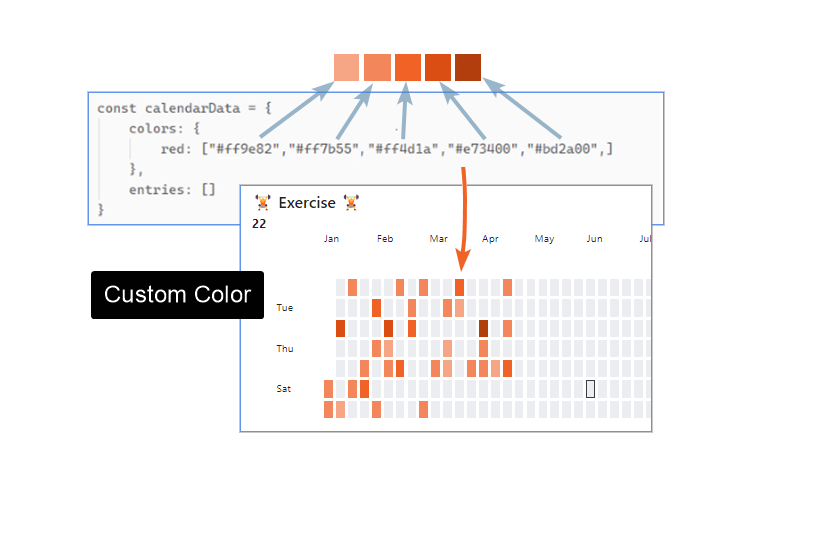

Custom Color

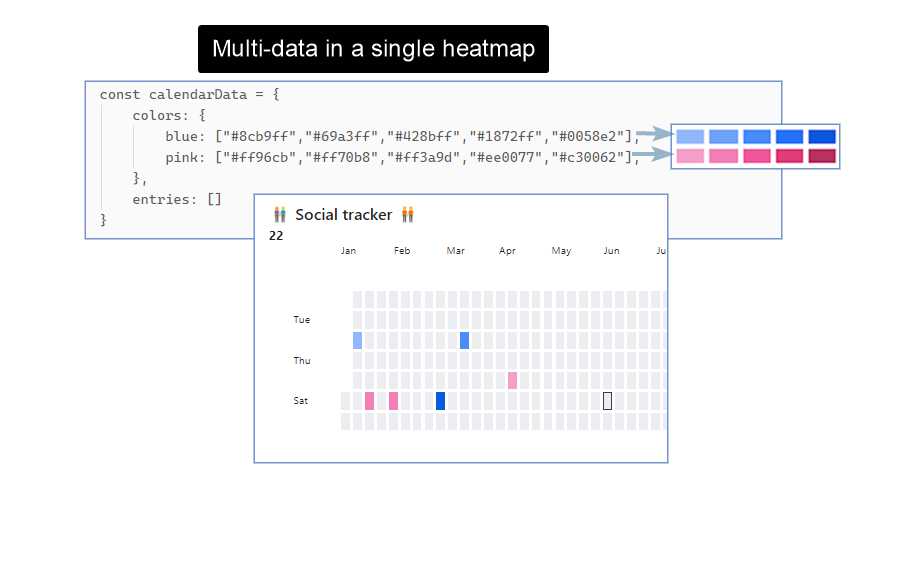

You can customize the colors of the heatmap by supplying a color array to calendarData.colors:

```dataviewjs
const calendarData = {
    colors: "githubGreen",
    entries: [],
}

renderHeatmapCalendar(this.container, calendarData)
```

Data Intensity:

Set which intensity of color to use (eg. from light-green to dark-green etc).

Other Notes:

• See the EXAMPLE VAULT if you want to test out the examples.

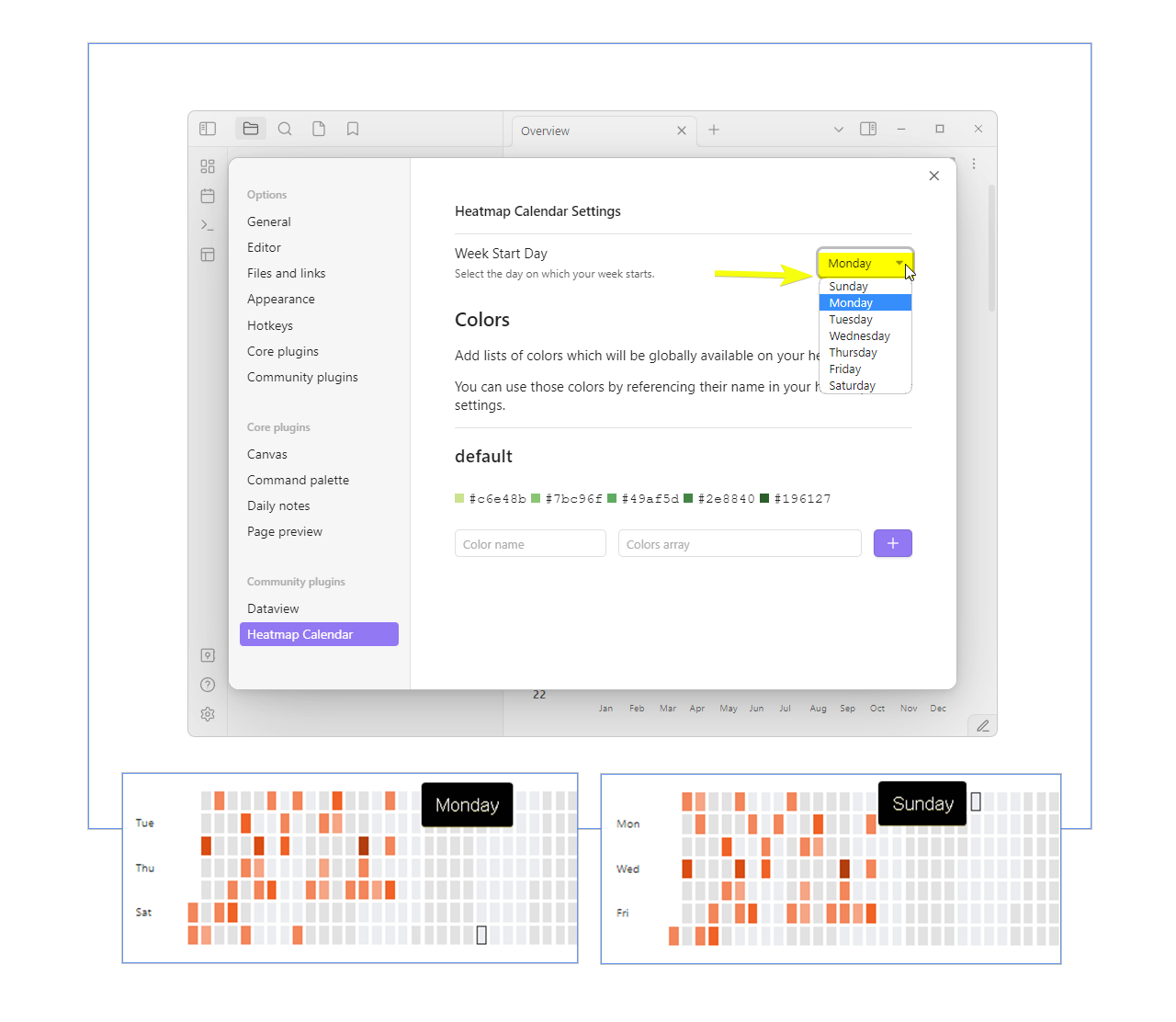

• Week start day is configurable
• Date format is YYYY-MM-DD, if your daily note filename is something else, you can use JS to change it in the loop

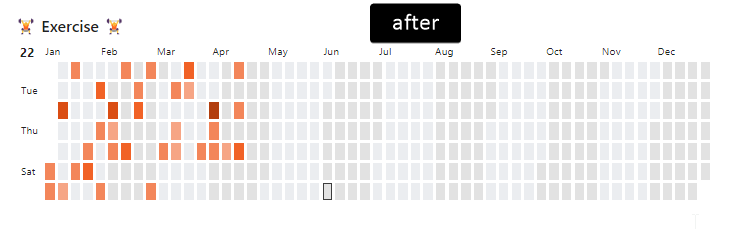

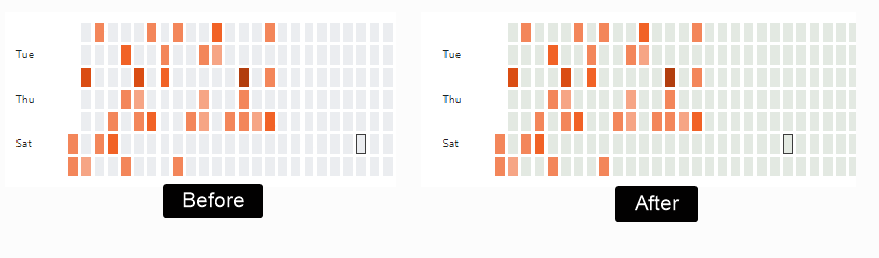

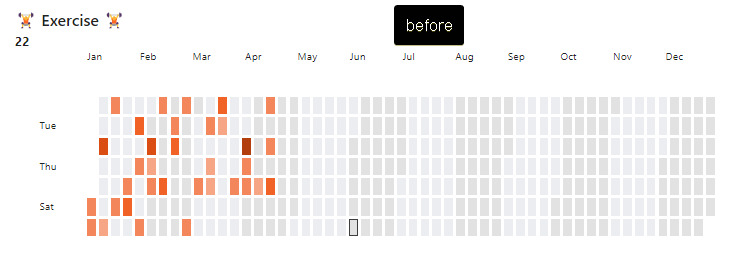

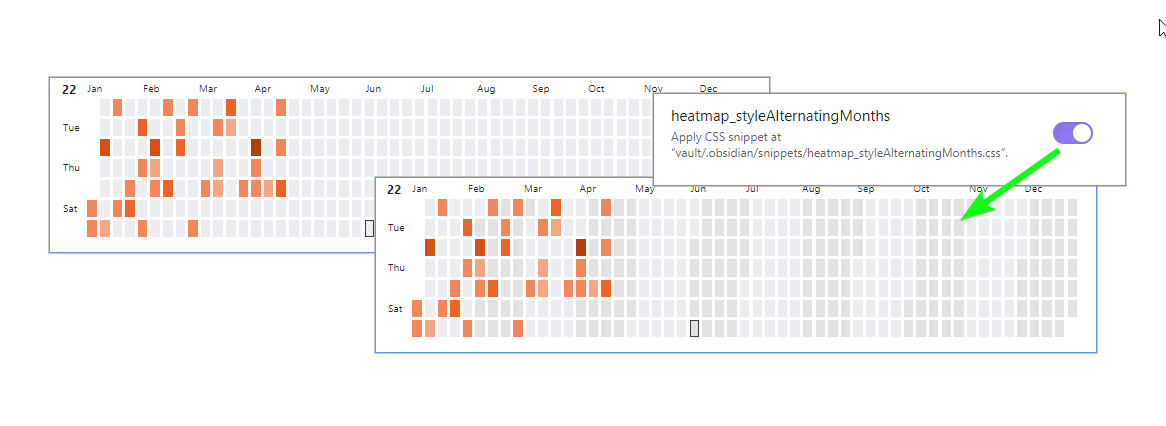

• Use Obsidian CSS snippets for custom styling. See snippet examples.

Development (Windows):

npm run dev - will start an automatic TS to JS transpiler and automatically copy the generated JS/CSS/manifest files to the example vault when modified (Remember to run npm install first).

After the files have been transpiled, the hot-reload plugin (https://github.com/pjeby/hot-reload) then reloads Obsidian automatically. Hot-reload is installed in the example vault by default. its used to avoid restarting obsidian after every change to code.
(remember to add an empty .hotreload file to "EXAMPLE_VAULT/.obsidian/plugins/heatmap-calendar/" if not already present, as this tells hot-reload to watch for changes)

npm run build generates the files ready for distribution.

Tip: ctrl-shift-i opens the devtools inside Obsidian.

Technical Explanation

All the plugin does, is add the function renderHeatmapCalendar() to the global namespace of you vault.

"this.container" is passed as the first argument because the plugin needs to know where to render the calendar. You don't have to worry about this.

"renderHeatmapCalendar()" then takes "calendarData" as the secondary argument. This is the javascript object you have to create yourself in order to give plugin instructions and data. Most of the properties are optional, but you have to supply an entries array as an absolute minimum.

See the beginning of the readme for the full code example.

absolute minimum code example:

\```dataviewjs

const calendarData = {
    entries: [],
}

renderHeatmapCalendar(this.container, calendarData)

```

What's New:

Version [0.7.1] - 2024-06-28

Version [0.7.0] - 2024-06-04

Version [0.6.0] - 2023-04-12

• Feature: Add ability to define global colors via settings @sunyatasattva pull #74
• Feature: Add more versatile custom styling of the "content" passed to date cell @sunyatasattva pull #73

Version [0.5.0] - 2022-06-30

• Feature: Add darkmode support

Version [0.4.0] - 2022-06-25

• Feature: Add hover preview feature courtesy of @arsenty from issue #12.
  to enable - add content: await dv.span([](${page.file.name})) to entries, and enable Settings -> Core Plugins -> Page Preview.
  Optionally install plugin Metatable to display metadata/frontmatter in the preview window aswell.
  See examples for more details. Note: if you enabled Use [[Wikilinks]] under Settings -> Files and links, you have to use the respective link structure: content: await dv.span([[${page.file.name}|]])

Version [0.3.0] - 2022-06-25

• Feature: Can add more intensities in order to increase color resolution. simply supply more colors to calendarData.colors.yourcolor
• Feature: Can set custom range on the intensity scaling using intensityScaleStart and intensityScaleEnd
• Bugfix: Entries from other years would show up in the calendar

Version [0.2.0] - 2022-06-05

• Feature: Add border around todays box to indicate what day it is. Can be removed by setting showCurrentDayBorder to false
• Feature: Add better development solution/workflow by using automated file copying instead of symlinks

Version [0.1.1] - 2022-03-18

• Bugfix: fix major date problem where year would render with incorrect number of days for different timezones issue#4.
• Bugfix: fix problem with certain entries not showing up in the correct month
• Bugfix: fix grid cells not scaling correctly with browser width, especially content in grid cells

Version [0.1.0] - 2022-02-23

• initial release
