Config Drift Watcher

English · Русский

An Obsidian plugin that detects when a server's actual configuration has diverged from what you documented in your notes — read-only, over SFTP.

Problem

Infrastructure documentation rots. You write down how a server should be configured, then a reboot, a manual fix, or someone else's script changes the real file, and your notes silently become wrong. There is no built-in way to know your documentation is out of date until something breaks in production.

What it does

You annotate a drift code block in a note with a server alias and a remote file path. The plugin connects to that server over SSH in read-only mode, fetches the current content of the file via SFTP, and compares it line by line against the code block. If they match, the block is marked in sync. If they differ, the plugin shows which lines are only in your notes and which are only on the real server, and leaves the note untouched.

The plugin never executes commands and never writes to the remote server. It only reads.

Usage

Annotate a drift code block. The first line is target: alias:/absolute/remote/path; everything after it is the documented content that gets compared against the remote file:

```drift
target: gammastack-stfox:/etc/network/interfaces
auto eth0
iface eth0 inet dhcp
iface eth0 inet6 manual
```

Important: the opening ```drift fence must start at the beginning of the line (no leading spaces). An indented code block is rendered as plain Markdown in Reading view and the plugin will not process it.

An optional ignore: directive may follow the target line to override the global ignore settings for this block only. Recognized tokens are whitespace, comments, and none:

```drift
target: gammastack-stfox:/etc/nginx/nginx.conf
ignore: whitespace comments
worker_processes auto;
```

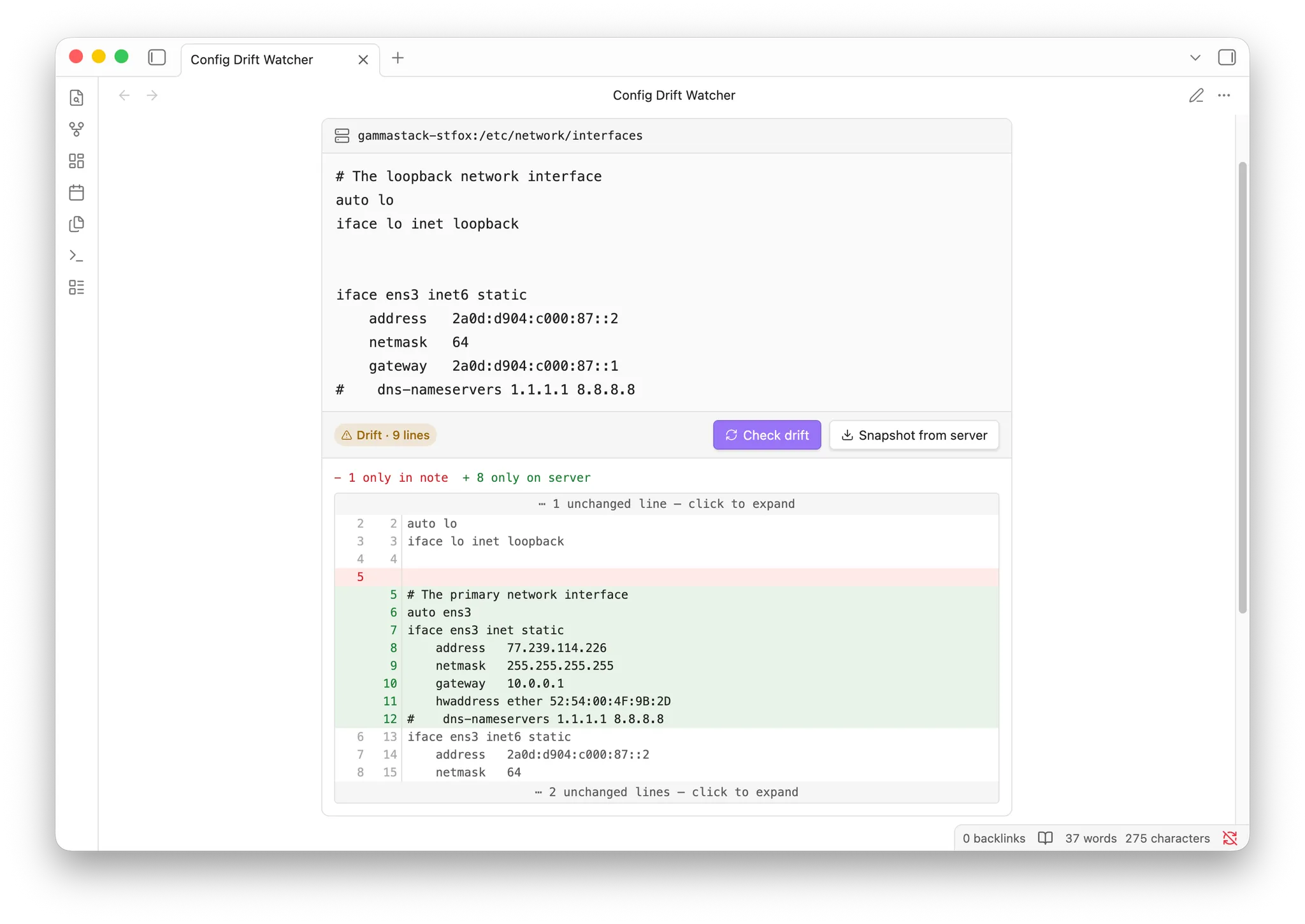

The block renders as a card with a status badge and two actions:

• Check drift — reads the current remote file and compares it against the block content without modifying the note. Differences are shown inline below the block.
• Snapshot from server — reads the current remote file and replaces the block content with it. Use this to capture a baseline, then edit the block manually if you want to document an intended state rather than the current one. If the block already has content, this asks for confirmation first, so a manual edit is never silently overwritten.

Status badges

How comparison works

The comparison is plain text diffing, line by line. There is no interpretation of what a config "should" mean, no AI involved, and no awareness of any specific config format (nginx, sysctl, network interfaces, and so on are all treated as plain text). The plugin is only as correct as what you wrote in the note: if you document the wrong thing, the plugin will faithfully tell you that the wrong thing does not match reality.

Two comparison options are available in settings, to cut noise on real config files:

• Ignore whitespace — ignore differences in leading and trailing whitespace (indentation, trailing spaces, tabs vs spaces). Whitespace between words on a line is still significant.
• Ignore comments — drop comment-only lines (per a configurable list of prefixes, e.g. #, ;, //) before diffing.

These can be overridden per block with an ignore: directive on the line after target: (see Usage), so a noisy file can ignore comments while a strict file compares byte for byte.

Only text files are compared. A binary remote file is detected and reported as an error rather than shown as a meaningless diff.

A trailing newline at the end of the remote file (which the code block never has) is never reported as drift.

When there is drift, long runs of unchanged lines are collapsed into an expandable placeholder so only the changes and a little context are shown (configurable, and can be turned off).

Server profiles

Credentials are never stored inside a note. Each alias used in a code block (for example gammastack-stfox) refers to a connection profile configured once in the plugin settings:

Notes only ever reference the alias, which keeps them safe to sync, share, or commit to version control.

Connection method

Remote files are read over SFTP rather than by executing shell commands. This is a deliberate choice: an SFTP read can only read a file, it cannot run arbitrary code on the remote host, regardless of how the path or alias is manipulated.

Authentication is key-based only. Password authentication is not supported.

Security

This plugin connects to remote servers and handles SSH credentials. Read this before using it.

• Read-only by design. The plugin only performs SFTP reads. It never executes a remote command and never writes to the remote server. It cannot apply a fix or change anything on the host.
• Credentials live in plugin data, not in notes. Profiles (host, username, private key path, and optional passphrase) are stored in .obsidian/plugins/config-drift-watcher/data.json inside your vault. Your notes only contain the alias. If you sync or publish your vault, be aware that data.json contains this connection data — exclude it (or the whole .obsidian folder) from anything public. A key passphrase, if you set one, is stored in data.json in plain text.
• The private key never leaves your machine. The plugin reads the key file from local disk to authenticate, exactly like the ssh command does. The key itself is not copied into the vault.
• Host key verification (trust on first use). The first time you connect to a profile, the server's SHA-256 host key fingerprint is recorded and pinned. On later connections a changed fingerprint aborts the read with a warning, protecting against a machine-in-the-middle or an unexpected server change. Caveat: trust-on-first-use cannot detect interception that is already present on the very first connection — pin the fingerprint up front if you need that guarantee (see below).
• Desktop only. The plugin requires Node APIs (SSH and local file access) and does not run on Obsidian mobile.

Host key verification

The host key is checked in this order: ~/.ssh/known_hosts first (when the Verify against known_hosts setting is on), then a pinned fingerprint, then trust on first use. If your host is already in known_hosts (plain or hashed entries), it is verified against that; otherwise the fingerprint is learned and pinned on first connect and shown in a notice. You can also verify or pin it manually:

• The plugin's fingerprint format matches OpenSSH, so you can compare it with:

  ssh-keygen -lf <(ssh-keyscan -t ed25519 your.host 2>/dev/null)


• To pin strictly from the start, paste a known SHA256:… fingerprint into the profile's Host key fingerprint field before the first connection.

• To re-trust after a legitimate server change, press Forget next to that field; the next connection learns the new key.

Limitations

• Requires Obsidian 1.13 or newer, on desktop.
• Single file per code block. No directory-wide drift detection in the current version.
• Text files only. Binary remote files are rejected rather than diffed.
• Read-only by design. The plugin will never apply a fix to the remote server automatically.
• Requires SSH key-based authentication. Password authentication is not supported.
• No scheduling. Checks run on demand, not on a timer, in the current version.

Roadmap

• Optional scheduled background checks with a notification on drift
• Directory and multi-file watching
• Vault-wide "check all drift blocks" report
• Optional integration with an LLM to suggest a fix command for a detected drift, off by default

Installation

From Obsidian (recommended)

1. Open Settings → Community plugins → Browse.
2. Search for "Config Drift Watcher".
3. Install, then enable it.

Manual

1. Download main.js, manifest.json, and styles.css from the latest release.
2. Create a folder named config-drift-watcher inside <vault>/.obsidian/plugins/.
3. Place the three files inside it.
4. Enable the plugin from Community plugins in Obsidian settings.

BRAT (beta)

If you use the BRAT plugin, add this repository (rixct/config-drift-watcher) to test pre-release builds before they reach the community directory.

Development

npm install        # install dependencies
npm run dev        # watch build
npm run build      # type-check + production bundle
npm test           # run unit tests (parser, diff, snapshot, host key, known_hosts, collapse, binary)

The plugin bundles ssh2 and diff into a single main.js via esbuild.

Contributing

Issues and pull requests are welcome. Before submitting a feature, open an issue describing the use case so the scope can be discussed first, since the plugin intentionally stays read-only and minimal in what it touches on the remote server.

License

MIT. See LICENSE.
