Code References

An Obsidian plugin for writing about code. Give a code block an id, then link any sentence to specific lines of it:

```go title="crypto/seal.go" id="seal"
func Seal(key, plaintext []byte) ([]byte, error) {
    block, err := aes.NewCipher(key)
    ...
}
```

The important part is [a fresh random nonce](#seal:11-14), and [this line](#seal:3) does X.

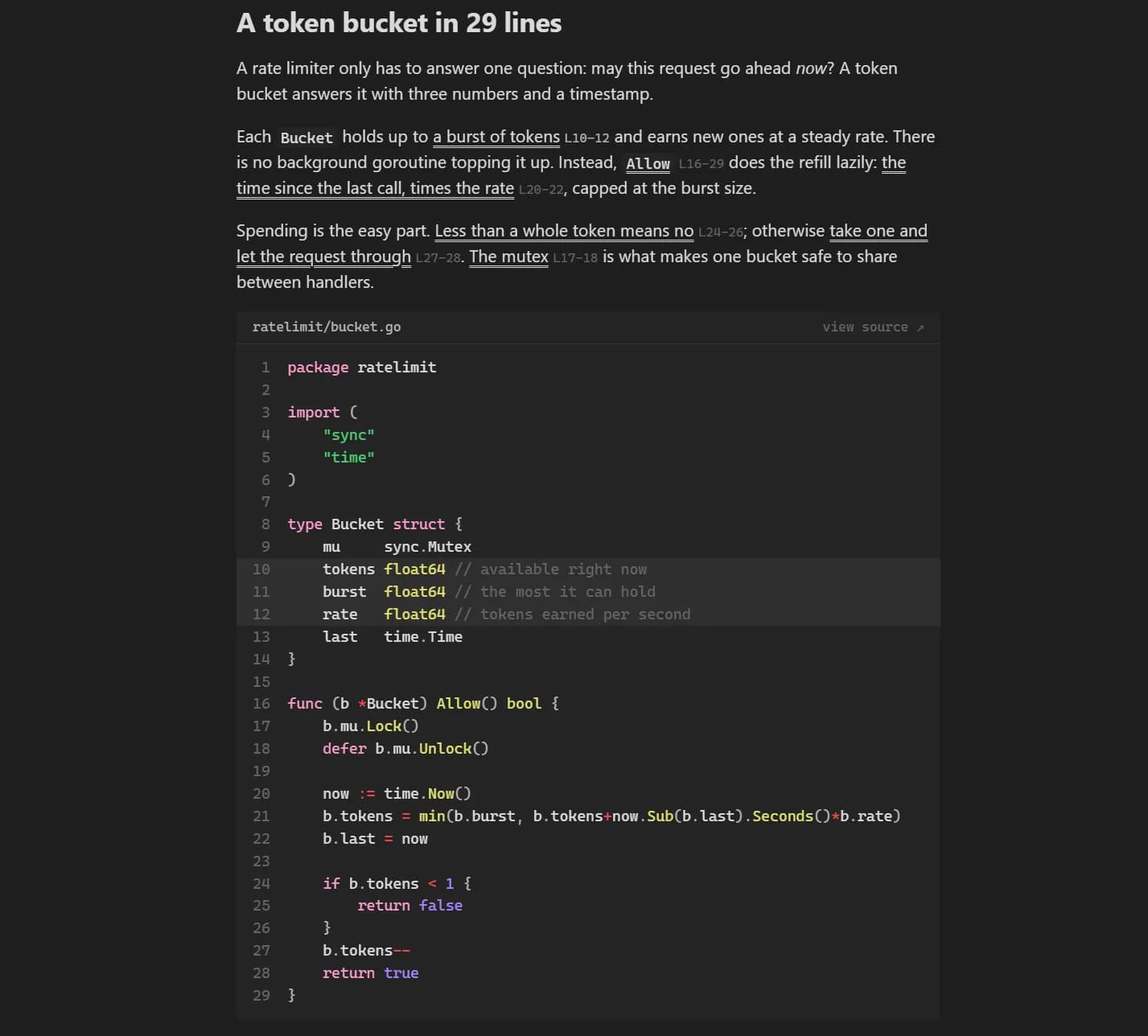

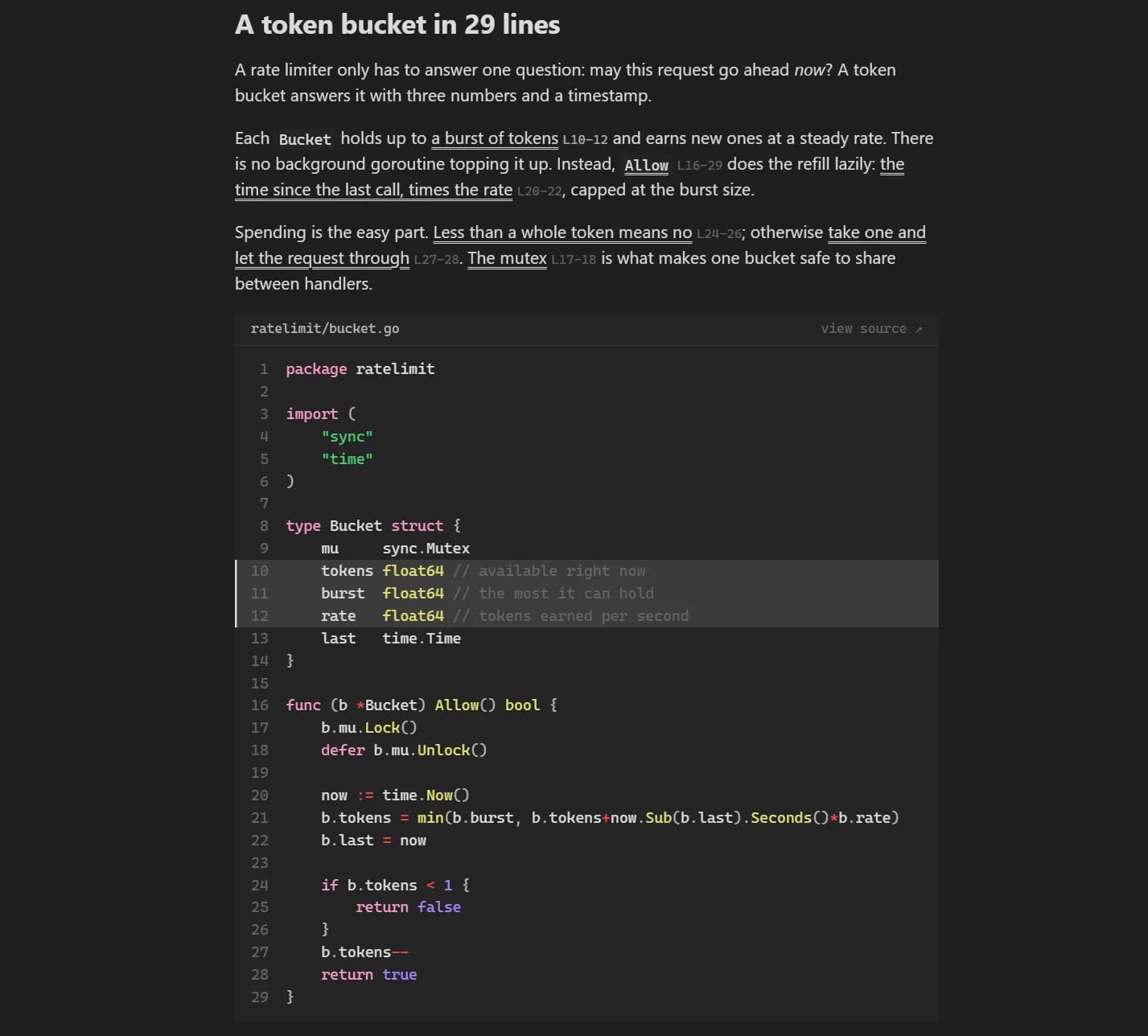

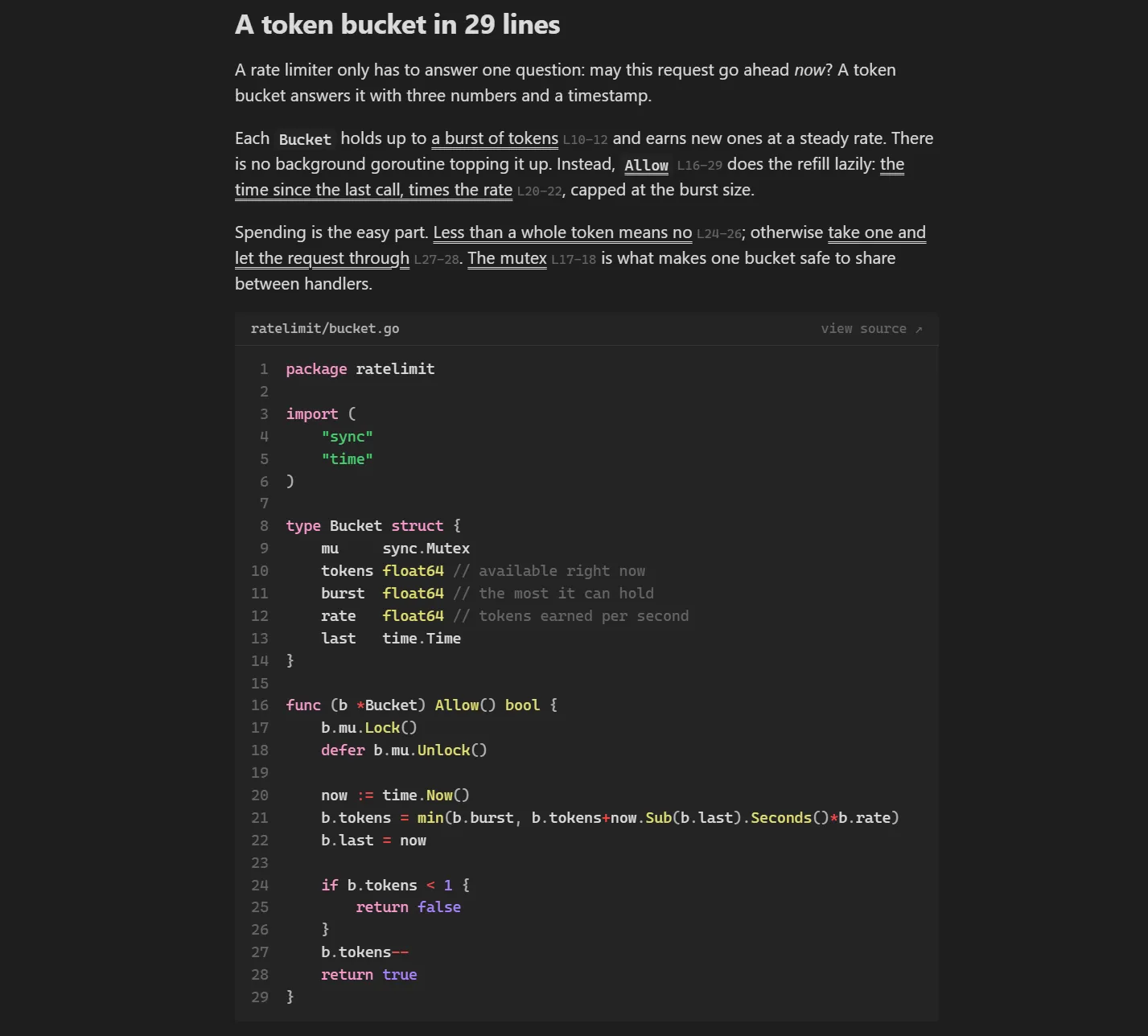

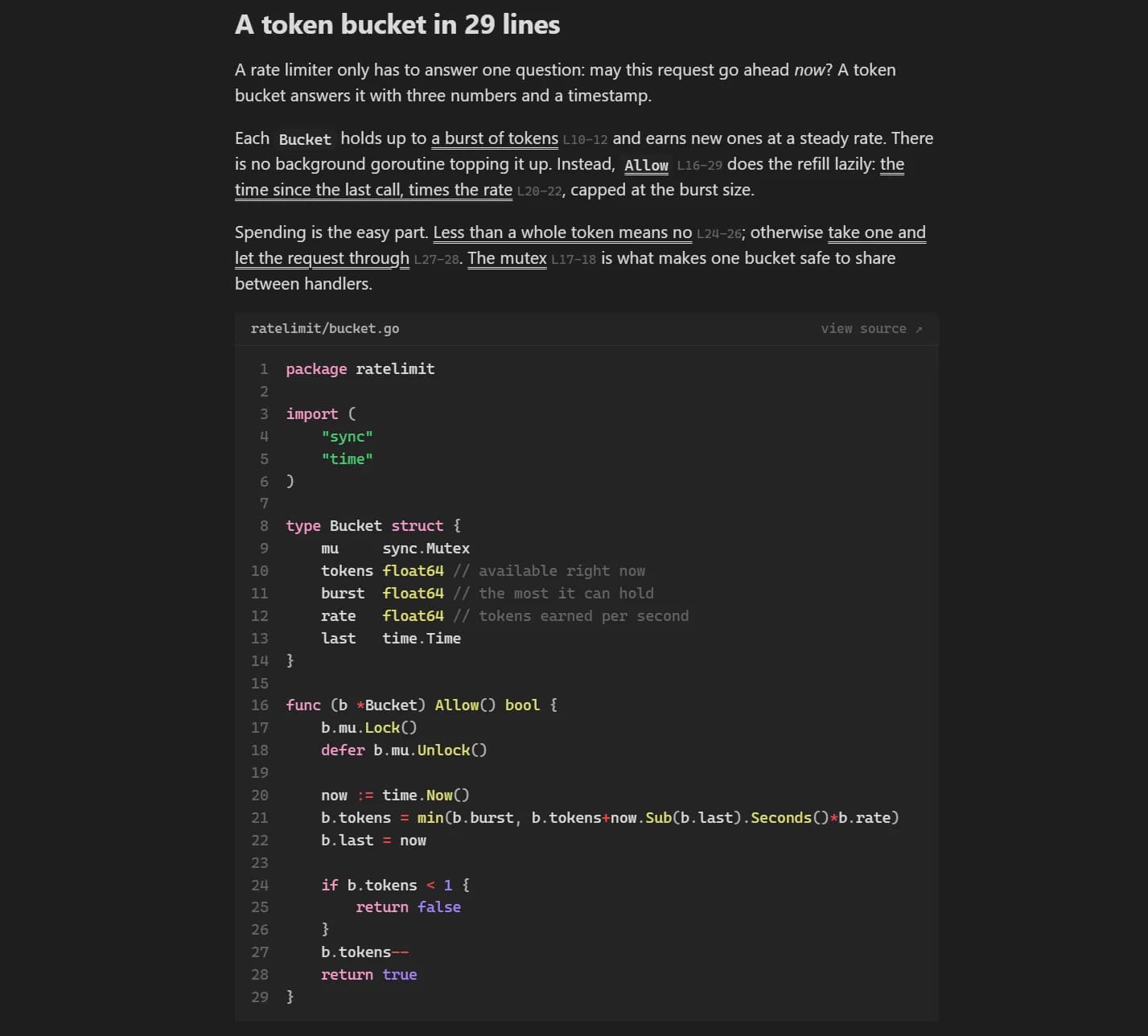

In reading view and Live Preview the link gets a double underline and a small L11-14 label. Hover it and those lines light up in the block; click it and the note scrolls to them and flashes them. Readers of a long write-up never lose their place between the prose and the code.

It is plain Markdown underneath: without the plugin (on GitHub, in other editors, in a static site generator) a reference is just a link to #seal, so nothing breaks.

Features

• Line references: [label](#id:line) or [label](#id:from-to) to any id'd code block in the same note.
• Hover highlight of the referenced lines; click to scroll and flash them (reading view and Live Preview).
• Code block headers for blocks with an id: the title (or language), line numbers, and a view source ↗ link when the block has source="owner/repo@ref:path" (GitHub). Ctrl/Cmd-click a reference to open GitHub at exactly those lines.
• Broken reference warnings: an unknown id or out-of-range lines show a dotted underline with a tooltip.
• Commands (command palette, listed under "Code References:", no default hotkeys):
  • Copy reference for selected lines: select lines inside a code block, run it, paste. If the block has no id yet, it asks for one (with a suggestion) and adds it to the fence.
  • Paste reference: inserts the reference you last copied, without going through the clipboard. Selected text becomes the link label.
  • Insert reference...: pick a block from the note, then a line range.
  • Validate references in current note: lists every broken reference and duplicate id, click to jump.
• Settings: highlight duration, Live Preview decorations on/off, line numbers in reading view, copy to the system clipboard on/off.
• Follows your theme (light and dark); no colours of its own beyond a soft highlight.

Syntax

```<language> id="<id>" title="<shown in the header>" source="<owner/repo@ref:path>"
```

• Attributes come after the language, in any order, as key="value". All are optional; refs need id.
• id: letters, numbers, - and _; unique within the note. Lines count from 1.
• source: BlueBeard63/[email protected]:registry.go links to that file on GitHub at that ref. Use a tag or commit so line numbers never drift. Add private: true to a note's frontmatter to hide source links in that note.
• References: [text](#id:7) for one line, [text](#id:11-14) for a range.

Install

From Obsidian: Settings, Community plugins, Browse, search for "Code References". (Pending review; until then use BRAT or a manual install.)

With BRAT: install the BRAT plugin, choose Add beta plugin and enter BlueBeard63/obsidian-code-references.

Manually: download main.js, manifest.json and styles.css from the latest release into <your vault>/.obsidian/plugins/code-references/, then enable Code References under Community plugins.

Permissions and privacy

• Clipboard: write only, and only when you ask. The single clipboard call is a writeText in the Copy code reference for selected lines command, which puts a string like [](#seal:11-14) on the clipboard. The plugin never reads the clipboard and never handles paste events, so nothing you copied elsewhere is seen. To keep the plugin away from the system clipboard entirely, turn off Copy to system clipboard in its settings; the copy command then keeps the reference inside the plugin and Paste reference inserts it.
• Network: none. view source ↗ links are ordinary links that open in your browser when you click them.
• Files: it only edits the note you are in, and only when you run a command (adding id="..." to a fence, or inserting a reference). Settings are stored in the plugin's own data.json.

Verifying a release

Every release asset carries a GitHub build provenance attestation, which proves it was built from this repository by the release workflow. With the GitHub CLI:

gh attestation verify main.js -R BlueBeard63/obsidian-code-references
gh attestation verify styles.css -R BlueBeard63/obsidian-code-references

Publishing a site from the same notes

The syntax is designed to survive publishing. jack-morrison.dev is built from an Obsidian vault with a small Go static site generator that renders the same code blocks and references (double underline, hover and click highlighting, shareable #id:11-14 URLs). Any generator can support it: parse the fence attributes, give each line an element, and turn #id:a-b links into references.

Development

npm install
npm test        # unit tests for the parser (node --test)
npm run build   # type-check and bundle main.js into the repo root
npm run dev     # watch mode
npm run demo    # demo mode

# build straight into a test vault while you work:
OBSIDIAN_VAULT="/path/to/vault" npm run dev

The parser (src/parse.ts) has no Obsidian or DOM imports and carries all the syntax rules; reading.ts handles reading view, live.ts the editor (CodeMirror 6), commands.ts the commands.

Releasing

npm version 1.0.1         # bumps package.json, manifest.json and versions.json, commits and tags 1.0.1
git push --follow-tags    # the Release workflow builds and attaches main.js, manifest.json, styles.css

Licence

MIT, see LICENSE.
