Cloud WebDAV Sync

中文说明

Cloud WebDAV Sync is an experimental sync plugin that stores notes and attachments in a WebDAV-backed repository. It uses content-addressed objects, validated commit snapshots, server capability checks, conflict detection, and a conflict resolution workspace to reduce accidental overwrites.

Version 0.9.9 still defaults to planning-only mode. Real sync must be explicitly enabled in settings. When enabled, the plugin does not overwrite a plain remote folder file by file. Instead, it writes immutable SHA-256 blobs, verified commits, complete file trees, and a remote HEAD update strategy selected from the WebDAV server's detected capabilities.

Features

• Ribbon command for running a manual sync check.
• Command palette actions for checking sync, opening the sync center, and rescanning the vault.
• Automatic checks while the app is running, including startup, foreground resume, local file changes, and configurable remote polling.
• Cached WebDAV capability reports that are invalidated when the URL, remote folder, username, or password changes.
• Single-flight scheduling so full sync jobs do not overlap.
• Local change queue coalescing for create, modify, delete, and rename events.
• Desktop status bar state and a cross-platform sync center.

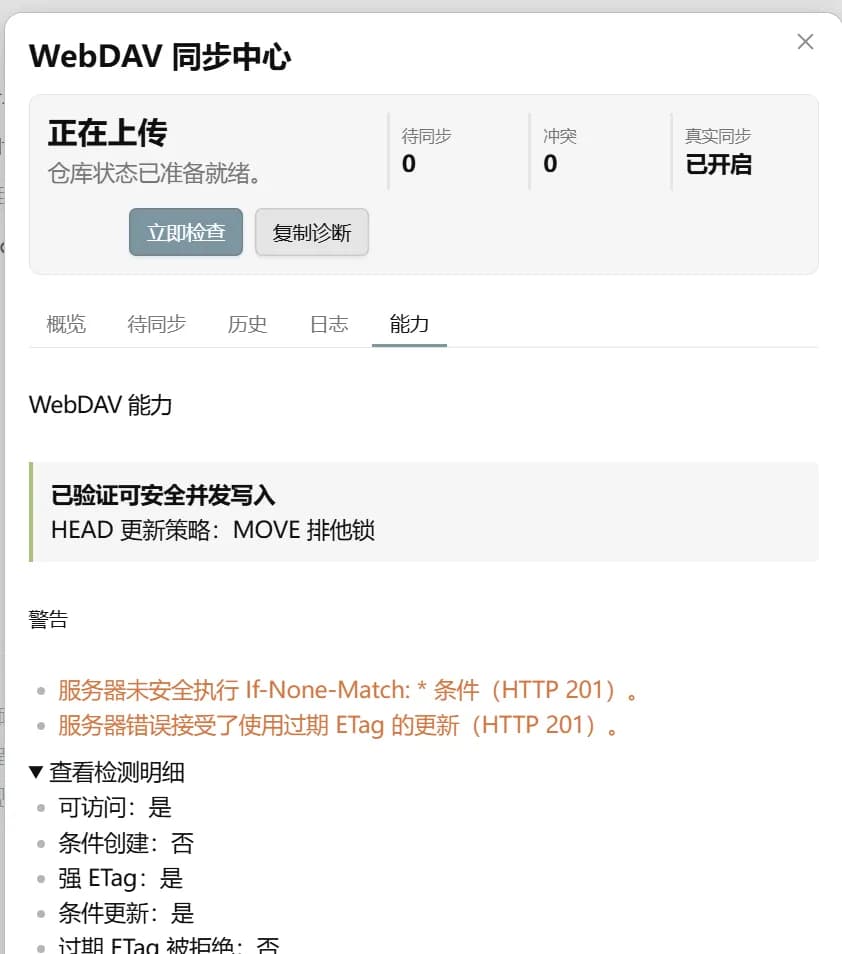

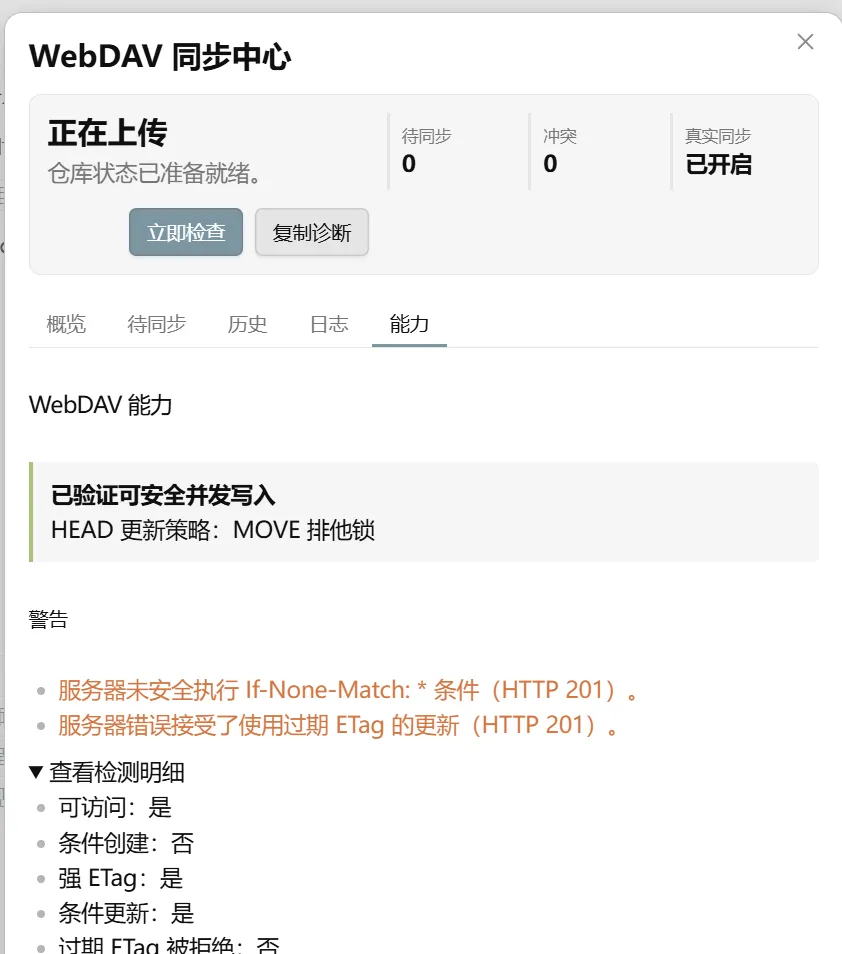

• Sync center sections for overview, pending changes, history, logs, and server capabilities.

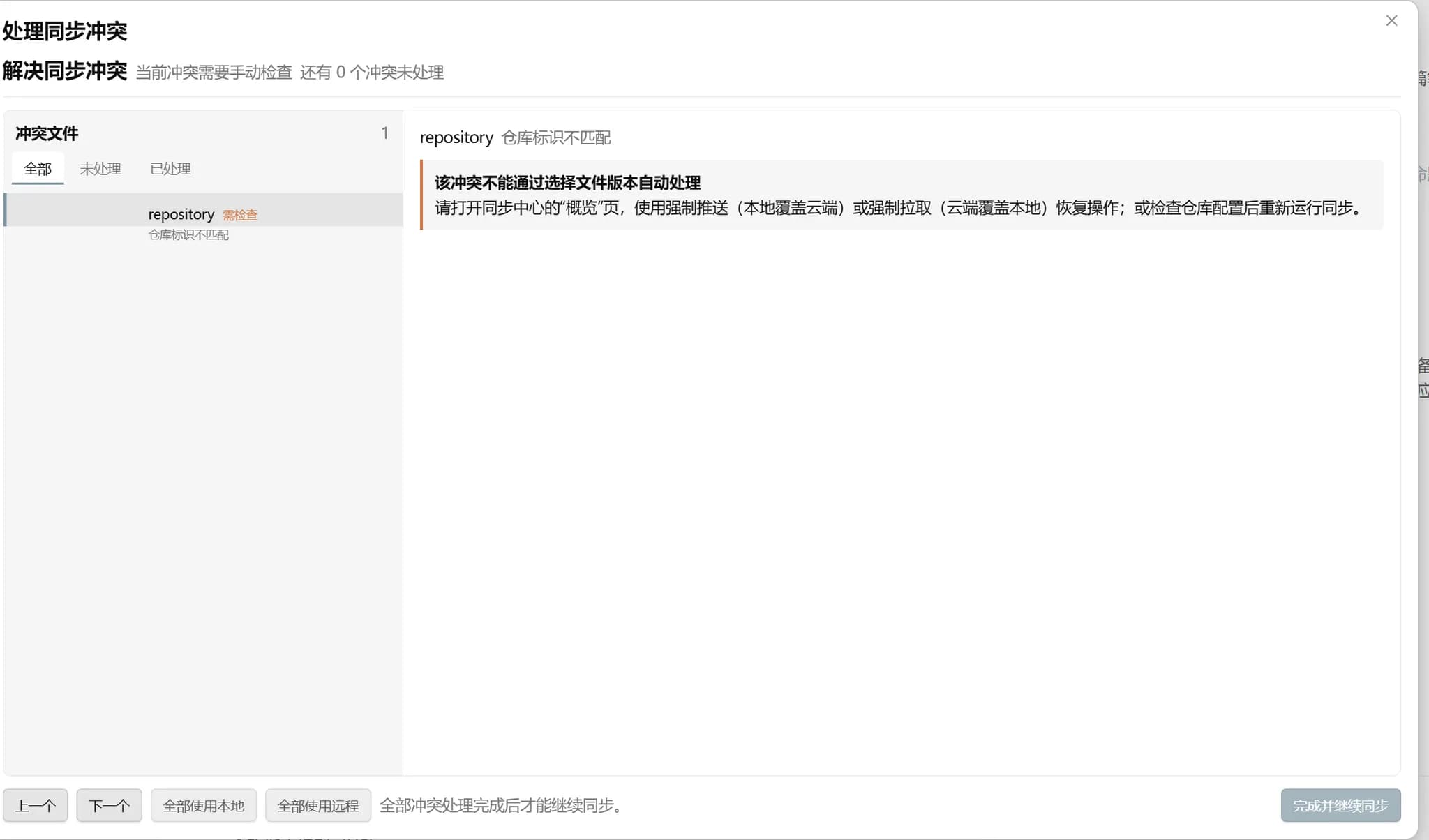

• Conflict workflow for switching between files, filtering unresolved items, and choosing the local or remote version.
• Markdown conflict preview with line numbers, local/remote comparison, diff highlighting, and synchronized scrolling.
• Bounded in-memory logs with recursive credential and token redaction.
• Password storage through the app's SecretStorage API instead of plugin data.json.
• WebDAV capability probes for OPTIONS, conditional create, exclusive MKCOL, atomic MOVE/no-overwrite behavior, ETag reads through HEAD/PROPFIND, stale ETag rejection, and cleanup verification.
• First-device push to an empty repository and empty-device pull from an existing repository.
• Two-way planning from BASE, LOCAL, and REMOTE file trees.
• Three-way Markdown merge for non-overlapping edits without writing conflict markers into notes.
• Deterministic conflict copies for concurrently modified binary files.
• Bounded hashing, upload, and download concurrency; small files may be packed into content-addressed pack files to reduce WebDAV request counts.
• Repository identity checks, commit/blob integrity validation, and large-delete protection.
• Safe handling for file-to-folder and folder-to-file path shape changes.

Safety Model

Real sync is disabled by default. In planning-only mode, the connection test creates a randomly named temporary collection inside the configured remote folder and removes it in a finally cleanup path.

When real sync is enabled, remote data is stored as immutable repository objects. Remote deletes are applied locally by moving files to .trash. Markdown conflicts stop the current commit and keep both sides in the repository until the user chooses a version. Binary conflicts preserve the local file and save the remote side as a deterministic .conflict-<device>-<commit> copy.

Remote HEAD updates are guarded by server capability checks. Servers with correct conditional ETag behavior can use compare-and-swap updates. Servers that do not support that pattern can use an actively probed atomic MOVE/no-overwrite lease strategy.

Development

npm install
npm run check
npm run build

After building, copy or link main.js, manifest.json, and styles.css into a plugin folder named cloud-webdav-sync inside your test vault.

Release

The Build release package GitHub Actions workflow can be triggered manually or by pushing a tag that exactly matches manifest.json's version. For version 0.9.9, use tag 0.9.9, not v0.9.9.

The workflow runs npm ci and npm run build, then uploads main.js, manifest.json, and styles.css directly as GitHub Release assets.

Source Layout

src/core/       Sync state machine
src/sync/       Scheduling and local change queue
src/logging/    Bounded redacted diagnostics
src/webdav/     Transport and capability probing
src/settings/   Settings model and settings tab
src/ui/         Sync center and conflict UI
src/main.ts     Plugin lifecycle integration
tests/          Unit and integration tests

Limitations

• Automatic checks only run while the app is running.
• The app request API returns complete responses and does not support streaming progress or AbortSignal.
• The status bar is desktop-only. Mobile uses ribbon actions, commands, notices, and the sync center.
• The default transfer concurrency limit is 16; mobile runtime paths reduce it further.
• First sync stops when the local vault and existing remote repository both contain unrelated files unless the user explicitly chooses an initial policy.
• The conflict workflow supports local/remote selection, but does not yet provide a full manual merge editor.
• Repository history exists as commits, but history browsing, rollback UI, garbage collection, and large-file chunking are not implemented yet.
• Compatibility has been tested against real cloud WebDAV servers and Windows filesystem integration paths, but broader WebDAV server and mobile-device coverage still needs more validation.

License

MIT License. See LICENSE.
