Understory

Chinese README | Website | Privacy

Understory is a local-first knowledge layer for Obsidian. It builds a private maintenance layer under your vault, driven by Vector, ER, and Graph analysis, so related notes, claims, concepts, conflicts, and orphan pages can be discovered and maintained over time.

The plugin is desktop-only and ships with the local Understory engine in this repository. It is designed for people who want Obsidian to keep a durable, self-refreshing memory layer without sending vault data to a developer-operated service.

What It Does

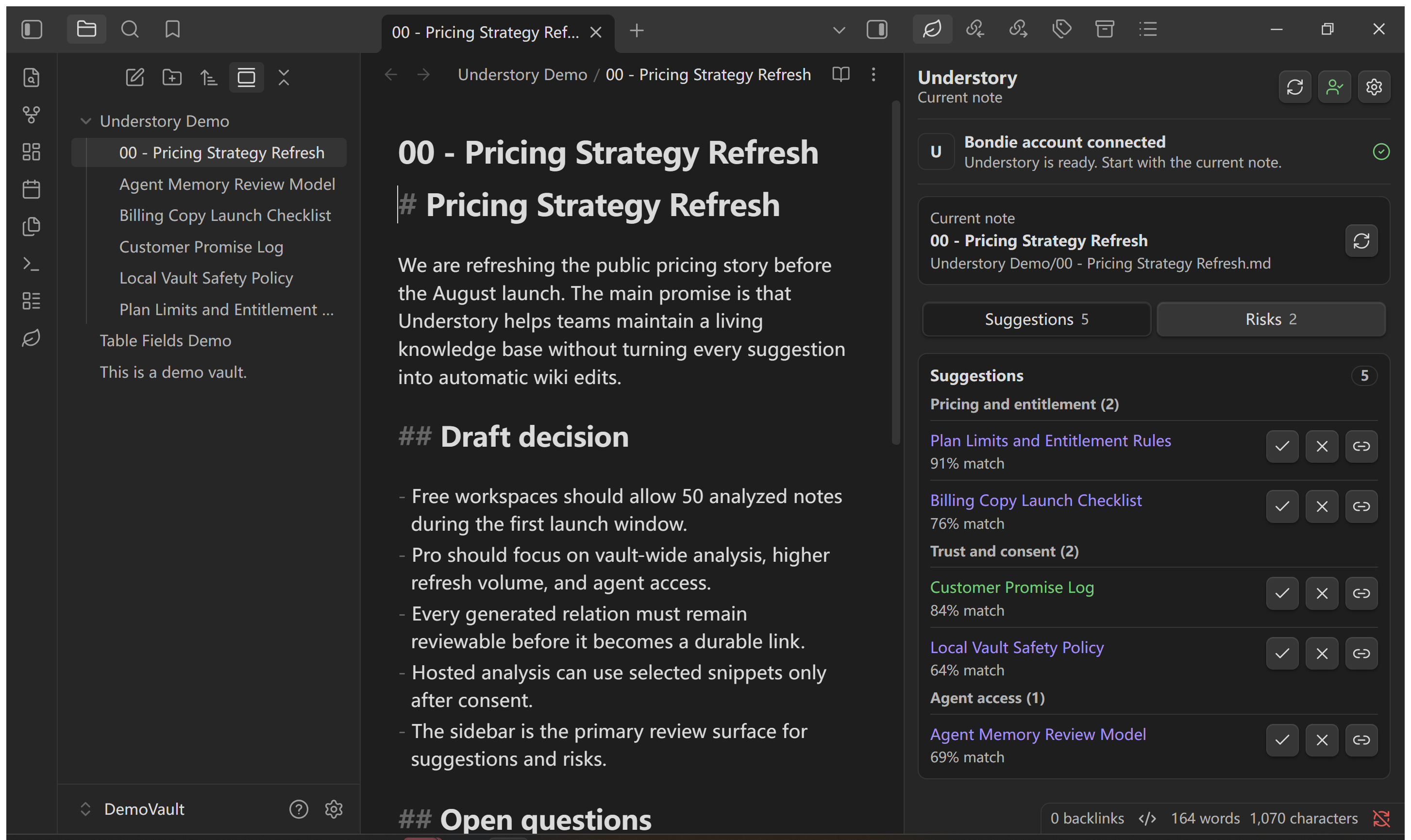

• Shows related-note suggestions in the right sidebar through Show Understory.
• New installs default to Right sidebar only presentation. Understory does not automatically write related-note sections into note bodies unless you choose a note-body presentation mode or explicitly click Insert into body.
• Discovers note relationships with hybrid signals, including local structure, entity facts, graph analysis, and optional model-powered semantic signals.

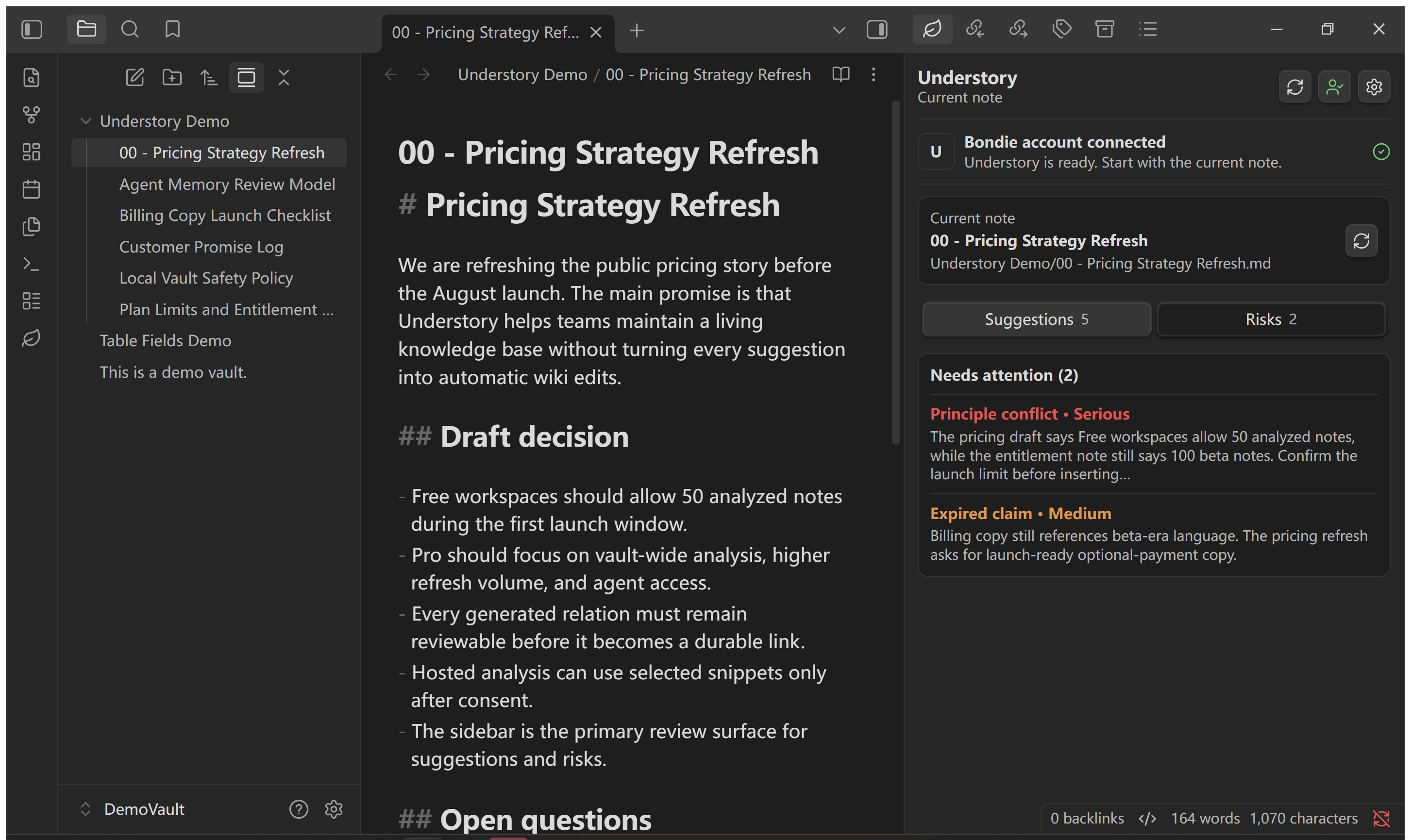

• Flags possible conflicts, stale notes, orphan pages, and broken knowledge paths.
• Maintains local reports and caches in .understory.
• Supports English and Chinese UI text from the plugin settings.
• Lets you choose a privacy mode before configuring any model provider.

Privacy Modes

Understory starts local-first.

Optional cloud features can use OpenAI, Zhipu, Kimi/Moonshot, or a custom OpenAI-compatible endpoint. You provide your own API keys. Bondie Labs does not receive or manage your notes, prompts, embeddings, responses, logs, or API keys.

The Network & privacy settings page lets you choose a provider, paste your API key, and edit the endpoint/base URL and model name. OpenAI, Zhipu, and Kimi/Moonshot presets fill the common endpoints for you, but custom proxies and compatible services are supported.

Plugin logs and short diagnostics redact known API keys, bearer tokens, webhook URLs, and similar secrets. Raw process stdout is not stored in plugin logs by default.

Payment status: Optional payments. The plugin is free to install. Local mode does not require an API key. Provider accounts, API keys, pricing, quotas, privacy terms, and billing are controlled by the provider you choose.

License

Understory is source-available under the PolyForm Perimeter License 1.0.0. You may use, inspect, modify, and redistribute the source, but you may not use it to provide a product that competes with Understory.

The required copyright notice and commercial licensing contact are in NOTICE. Commercial licenses are available from Fuyo AI Tech Co. Limited for competing products, redistributed product bundles, or other uses outside the PolyForm Perimeter terms.

Requirements

• Obsidian desktop app.
• The bundled local Understory engine.
• Python available on your machine.

The plugin is marked isDesktopOnly because it uses local files, Node APIs, and a Python subprocess.

Manual Install

After the plugin is accepted into the Obsidian Community directory, the standard install uses the release assets manifest.json, main.js, and styles.css. Understory embeds the local engine payload inside main.js and extracts it into the plugin folder on first load.

Until the Community directory has picked up the latest release, install the same release assets directly from GitHub:

1. Create this folder in your vault:

   <Your Vault>/.obsidian/plugins/understory/


2. Download these files from the GitHub release and place them in that folder:

   <Your Vault>/.obsidian/plugins/understory/manifest.json
   <Your Vault>/.obsidian/plugins/understory/main.js
   <Your Vault>/.obsidian/plugins/understory/styles.css


3. Restart Obsidian.

4. Enable Understory in Settings -> Community plugins.

5. After the first load, confirm the bundled engine was extracted:

   <Your Vault>/.obsidian/plugins/understory/understory-graphify-engine/api.py


Engine Setup

Understory for Obsidian includes the local engine in this repository under understory-graphify-engine/. Release builds also embed that engine in main.js, so a standard Obsidian install can materialize the engine automatically inside the plugin folder.

cd understory-graphify-engine
python -m pip install -r requirements.txt

Understory tries to install and find the bundled engine automatically from the plugin folder, repository folder, and common local workspace paths. Standard Obsidian installs extract it to <vault>/.obsidian/plugins/understory/understory-graphify-engine/. Most users do not need to set an engine path manually.

If you moved the engine or want to pin a specific copy, set the engine path before launching Obsidian:

$env:UNDERSTORY_ENGINE_DIR="<Your Vault>\.obsidian\plugins\understory\understory-graphify-engine"
$env:UNDERSTORY_PYTHON_PATH="python"

You can also override the engine folder and Python path in Settings -> Understory -> Start here. Understory automatically looks for python3 when python is not available, including common macOS Homebrew paths such as /opt/homebrew/bin/python3. After changing system environment variables, restart Obsidian so the desktop app can read them.

The settings page is split into tabs. Most users only need Start here, Network & privacy, Relation discovery, and Relation maintenance. AI agents comes after the relation workflow, so first-run setup stays focused on the required steps.

The Check setup button checks the local engine, Python, scripts, vault .understory deployment, and permissions. Each problem includes a suggested fix and, when useful, a command you can copy. The panel does not run pip install, git pull, or other repair commands automatically.

Common manual fixes:

python -m pip install -r "<Your Vault>\.obsidian\plugins\understory\understory-graphify-engine\requirements.txt"
$env:UNDERSTORY_ENGINE_DIR="<Your Vault>\.obsidian\plugins\understory\understory-graphify-engine"
$env:UNDERSTORY_PYTHON_PATH="python"

Use Copy diagnostics when you need to share setup details with a maintainer. The copied summary is designed to exclude API keys, webhook URLs, and vault note content.

Embedding Index

Understory now treats local engine readiness and semantic embedding readiness as separate setup states. The local engine can be ready while semantic vector recall is still off or waiting for setup.

• Local only: semantic vector embedding is intentionally off. Understory keeps using local files, keywords, ER, links, and graph structure; a missing Embedding index is not an error.
• Vector model only or Full AI analysis without a vector API key: Settings shows that the Embedding API is not configured yet and points you to Model services.
• Vector mode with a configured provider but no index: Settings shows Build/update Embedding index. This creates or updates a local SQLite cache on your machine; it does not mean a local embedding model is installed.
• Ready state: Settings shows the semantic index status, indexed note count when available, and the local index path.

If the Embedding cache has not been built yet, Understory does not stop with a raw Python exit code. It falls back to local keyword results, shows actionable guidance, and keeps the settings-page setup journey visible. You can also build the index from a terminal:

python "<Your Vault>\.obsidian\plugins\understory\understory-graphify-engine\api.py" init --vault "<Your Vault>"

First Run

1. Open Settings -> Understory.
2. In Start here, confirm the auto-detected Understory engine folder and Python.
3. Click Check setup.
4. In Network & privacy, keep Network mode on Local only, or explicitly choose a cloud mode and configure your own provider key, endpoint/base URL, and model name.
5. If you selected a vector mode, use the semantic index card in Start here or Network & privacy to check readiness and build/update the local Embedding index once the provider is configured.
6. In AI agents, create the local MCP server file, copy the MCP JSON into your agent's MCP settings, and copy the matching Skill prompt if you want an external agent to use this vault as a local knowledge API.
7. Open the command palette and run Show Understory.

Agent API

Understory also exposes a local Agent API for automation. It is not an HTTP server and does not open a port. Agents can call it through a JSON CLI or an MCP stdio server.

For regular Obsidian plugin users, open Settings -> Understory -> AI agents. That page provides:

• A copyable, vault-specific MCP JSON configuration with a server key such as understory-work-notes.
• A local MCP server file created at .understory/agent/understory-mcp-server.js; this is not a cloud server and does not open an HTTP port.
• A use-case selector for Query-only or Agent memory model.
• Agent-specific setup notes for Generic MCP, Codex, Claude Desktop, Cursor, and OpenClaw.
• A copyable Skill prompt that binds the agent to this vault and the selected use case.
• A setup pack that combines the MCP config, Skill, vault identity, and install notes.
• A local diagnostics summary that is designed to avoid API keys, webhook URLs, and vault note content.

Understory identifies only the currently open vault. If you use multiple Obsidian vaults, repeat this flow in each vault and add each generated MCP server entry to your agent config. Do not reuse a single global understory key for every vault.

The Skill has two variants:

• Query-only: the agent calls Understory only when you explicitly ask it to query, search, cite, summarize, or inspect this vault. This mode is read-only and conservative.
• Agent memory model: the agent treats Understory as active local context and a long-term memory layer. For relevant ongoing work, it can retrieve context before planning and propose durable memory or relation updates at the end, but local writes still require user confirmation.

Both variants include a business knowledge-map workflow: the agent should design several focused searches, read scoped context through MCP, group notes by business meaning, identify gaps, and return role-based reading paths instead of pasting raw search hits.

Developer commands are still available from this repository:

node scripts/understory-agent-cli.js status --vault "C:\path\to\vault" --json
node scripts/understory-agent-cli.js get-relations --vault "C:\path\to\vault" --note "Notes/A.md" --json
node scripts/understory-agent-cli.js refresh-relations --vault "C:\path\to\vault" --note "Notes/A.md" --engine-dir "C:\path\to\vault\.obsidian\plugins\understory\understory-graphify-engine" --json
node scripts/understory-agent-cli.js insert-relation --vault "C:\path\to\vault" --note "Notes/A.md" --target "Notes/B.md" --title "B" --json

Multi-vault MCP configuration example after using Create local MCP server file in each vault:

{
  "mcpServers": {
    "understory-work-notes": {
      "command": "node",
      "args": [
        "C:/path/to/work-vault/.understory/agent/understory-mcp-server.js",
        "--vault",
        "C:/path/to/work-vault",
        "--engine-dir",
        "C:/path/to/work-vault/.obsidian/plugins/understory/understory-graphify-engine"
      ]
    },
    "understory-research-vault": {
      "command": "node",
      "args": [
        "C:/path/to/research-vault/.understory/agent/understory-mcp-server.js",
        "--vault",
        "C:/path/to/research-vault",
        "--engine-dir",
        "C:/path/to/research-vault/.obsidian/plugins/understory/understory-graphify-engine"
      ]
    }
  }
}

Developers working from this repository can use scripts/understory-mcp-server.js instead of the exported server path.

All Agent API responses use a JSON envelope with ok, data, error, and meta. The API keeps paths inside the selected vault, does not return full note bodies by default, and reuses Understory secret redaction. See docs/AGENT_API.md for the full tool contract.

Current MCP read tools include status, capabilities, graph summary, note relations, local keyword/relations search, scoped context packages, and note briefs. Write tools remain local-only and should be used only after user confirmation.

Relation metadata is checked against the current vault when read. If a cached relation target moved, search, note brief, relations, and context responses keep the original target and add targetStatus, targetExists, resolvedTarget, and diagnostics so agents do not treat stale paths as facts. Read tools report this drift without rewriting .understory/relations.json.

Build From Source

This repository keeps the reviewable plugin source in src/ and the Obsidian release files at the repository root.

npm run build
npm run check

The build script bundles src/*.js into root main.js.

Release Files

Each GitHub release must attach:

• manifest.json
• main.js
• styles.css

The release main.js embeds the bundled engine payload used by standard Obsidian installs.

Current release: 1.8.11.

The release tag must match manifest.json version exactly, for example 1.8.11.

Links

• Website: https://bondie.io/research/understory
• Bundled engine source: understory-graphify-engine
• Privacy: PRIVACY.md
