MiYo Kado -- Obsidian MCP Gateway

Security-first Model Context Protocol server plugin for Obsidian. Gives AI assistants controlled, granular access to your vault through eight tools: kado-read, kado-write, kado-delete, kado-rename, kado-search, kado-open-notes, kado-graph, and kado-graph-audit.

Part of the MiYo family. The plugin is referred to as MiYo Kado in the Obsidian community-plugin index and in the settings UI; "Kado" alone is used as a short form throughout this README and the source.

Why MiYo Kado?

Letting an AI assistant talk to your vault sounds great until you realize most integrations give the assistant everything -- every note, every file, full read/write. Kado is built around the opposite default:

• Nothing is exposed by default. You opt every path and every data type in, explicitly.
• Per-key scopes. Different assistants get different keys with different permissions. Revoke any key independently.
• Audit trail. Every allowed and denied request is logged so you can see exactly what an assistant touched.
• Local-first. The MCP server runs inside Obsidian on 127.0.0.1 by default. No cloud, no telemetry, no third party.

If you've ever wanted to say "this assistant can read my project notes but not my journal, and can delete drafts but never touch archived material", Kado is for you. For a deeper look at why AI permissioning matters for PKM workflows -- and why guardrails are not the same as real permissions -- see Permissioning your AI.

Features

• Default-deny security -- nothing is accessible until explicitly whitelisted
• Two-tier access control -- global security scope defines what is eligible; per-key scope defines what is permitted
• Five permission gates -- authenticate, global-scope, key-scope, datatype-permission, path-access
• Four data types -- notes (markdown), frontmatter (YAML as JSON), files (binary as base64), Dataview inline fields
• Partial note read/write -- read a slice (firstXChars, firstXWords for a Unicode-aware word preview, section by heading, range by line/char) and write in place (append/prepend, insertUnderHeading, replaceSection/replaceRange) without round-tripping the whole body; omitting the mode is byte-for-byte backward compatible
• Rename & move -- kado-rename renames or moves notes and files with backlinks updated automatically; one folder ⇒ rename (needs update), across folders ⇒ move (needs delete on the source + create on the target). Works best with Obsidian's "Automatically update internal links" on (silent, links updated); with it off the tool is hidden unless you opt in, and then each rename prompts Obsidian's link-update dialog (the file still moves, but inbound links update only when you answer)
• Folder operations -- folders piggyback on the existing tools, no separate directory API: kado-write auto-creates missing parent folders (mkdir -p), kado-delete with operation="folder" trashes an empty folder (non-empty is refused — no recursive delete), and kado-rename with operation="folder" renames a folder in place (same parent). A folder rename is permission-neutral: if moving the subtree under the new name would change any descendant's effective access, the rename is refused rather than silently crossing a permission boundary — and Kado never rewrites your permission rules to make it fit
• Seven search operations -- byName, byTag, byContent, byFrontmatter, listDir, listTags, listNotes. byContent is full-text ranked: it matches notes containing any query term, scores them by term coverage and proximity, and returns relevance snippets (with line numbers), best-first
• Link-graph navigation -- kado-graph traverses the vault's link structure: backlinks, outgoing, neighbors (1-hop), related (2-hop, with the via neighbour), and dangling (unresolved link targets). Resolved nodes outside the key's scope are silently omitted, so a traversal can never disclose a path the key cannot read
• Vault-wide link audit -- kado-graph-audit returns all orphans (notes with no resolved links in or out) and all dead wikilinks across the whole vault in a single call, ACL-filtered and paginated -- the whole-vault counterpart to kado-graph, answered from Obsidian's in-memory link index without per-note reads
• Self-guiding responses -- tool responses may carry an optional, additive _hints array suggesting the sensible next step (re-read after a CONFLICT, fetch the next page when a cursor is present, continue a truncated read). Purely advisory and safe to ignore
• Optimistic concurrency -- timestamp-based conflict detection on writes
• Rate limiting -- configurable per-IP throttle (default 20 requests per 5 s; tunable live, 0 disables)
• Audit logging -- NDJSON log with rotation (metadata only, no content)
• Permission Test panel -- a settings tab that dry-runs any key + operation + path against the real permission chain (in memory, no vault access) and shows ALLOWED/DENIED, the deciding gate, and why -- so you can verify a scope before an assistant connects
• Backup & restore -- export the whole config to a JSON file and import it back with per-section selection (general settings / global security / individual keys); for migrating between vaults or machines and recovering from mistakes
• Status bar indicator -- the 門 gate glyph shows server state at a glance (listening / off / bind error) and throbs on each tool call, colour-coded for reads vs. writes, with the acting key's name in the tooltip; a rejected call lingers red for a few seconds then self-clears. Click it to open Kado's settings

Architecture & the MiYo ecosystem

MiYo Kado is one component of the MiYo multi-repo system. Kado is the Obsidian-side MCP gateway: it owns the vault access-control model (two-layer path eligibility + per-key CRUD scopes) and exposes the MCP tool surface that companion tools such as MiYo Tomo consume. The authoritative record for cross-repo contracts, system-level architecture, and governance decisions lives in MiYo Kokoro; this repo's local design docs (below, and docs/XDD/specs/) defer to Kokoro for project-wide principles. Cross-component contract changes (e.g. new MCP tools) are handed off to Kokoro via _outbox/for-kokoro/.

Internally Kado follows a four-layer clean architecture: MCP boundary (src/mcp/) → permission gates + policy (src/core/) → Obsidian adapters (src/obsidian/) → canonical types (src/types/). See How It Works for the enforcement flow.

Documentation

Roadmap

Tracked as GitHub issues:

• Tag permissions beyond read-only (#81) -- deny permission so tags can exclude matching items from otherwise-allowed paths.
• Granular whitelist / blacklist toggle (#82) -- per-section toggle for mixed strategies. Shipped: Permission Test dry-run panel (#83) and Backup & restore config export/import (#84); sub-path key scopes (narrower sub-paths inside an allowed parent) landed in v0.15.0.

Known edge cases

Editing a note the AI wants access to

• Edit-while-reading gap. If you're actively typing in a note and your AI assistant reads it via Kado at the same moment, the assistant may see the version from up to 2 seconds ago -- Obsidian saves your edits to disk on a ~2 second pause. Pause briefly (or press Cmd/Ctrl+S) before asking the AI about your most recent sentence.
• Write while the same note is open and dirty. If an AI tries to write to a note you are currently editing with unsaved keystrokes, Kado refuses the write with a CONFLICT error and shows a Notice ("Kado wanted to modify <note> ..."). Your typing always wins. The AI client sees the same conflict signal used for any concurrent change and is expected to re-read and retry, so once you pause typing (~2 s Obsidian autosave) and it retries, its write is applied on top of your latest edits.

Quick Start

1. Install the plugin
2. Open Settings > MiYo Kado
3. Add paths to the global security whitelist (e.g. notes/, projects/, or ** for full vault)
4. Create an API key and assign it paths and per-data-type permissions
5. Enable the server
6. Connect your AI client

{
  "mcpServers": {
    "kado": {
      "type": "http",
      "url": "http://127.0.0.1:23026/mcp",
      "headers": {
        "Authorization": "Bearer YOUR_API_KEY"
      }
    }
  }
}

Screenshots

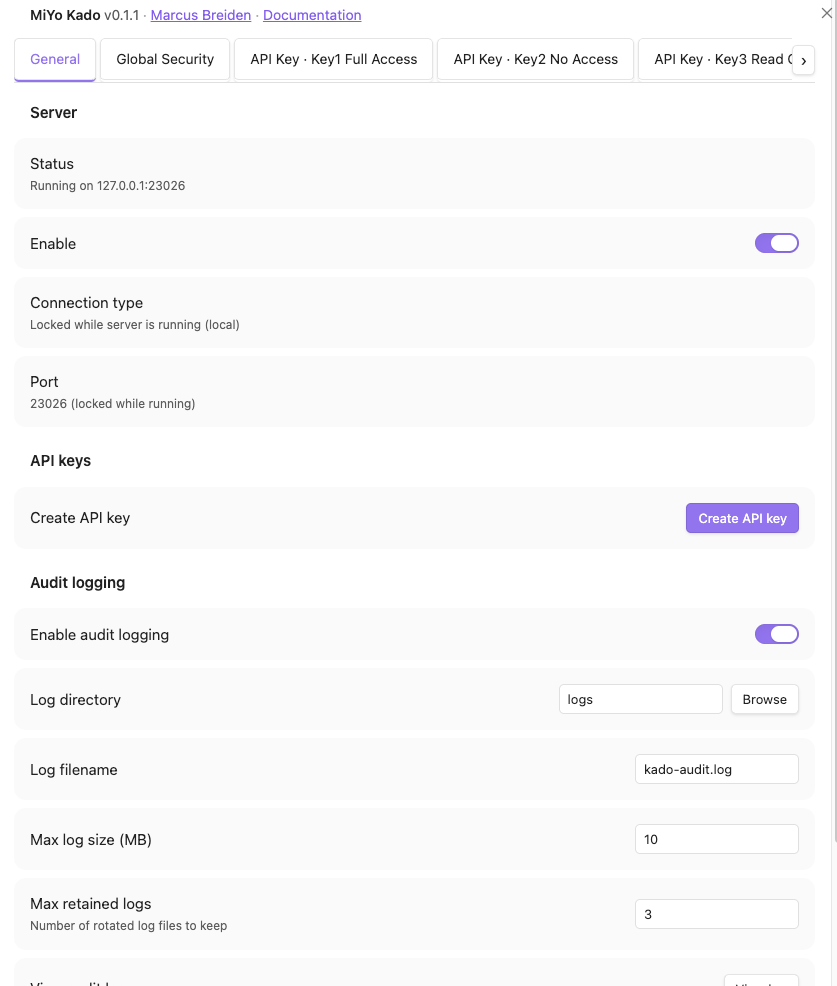

General tab -- server status, port, audit logging, and backup & restore.

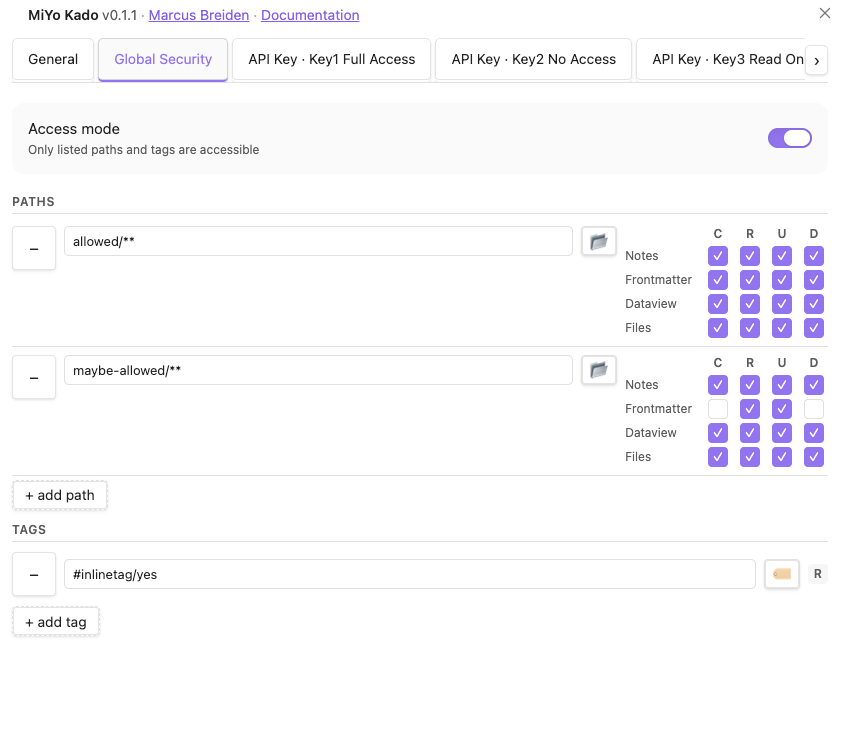

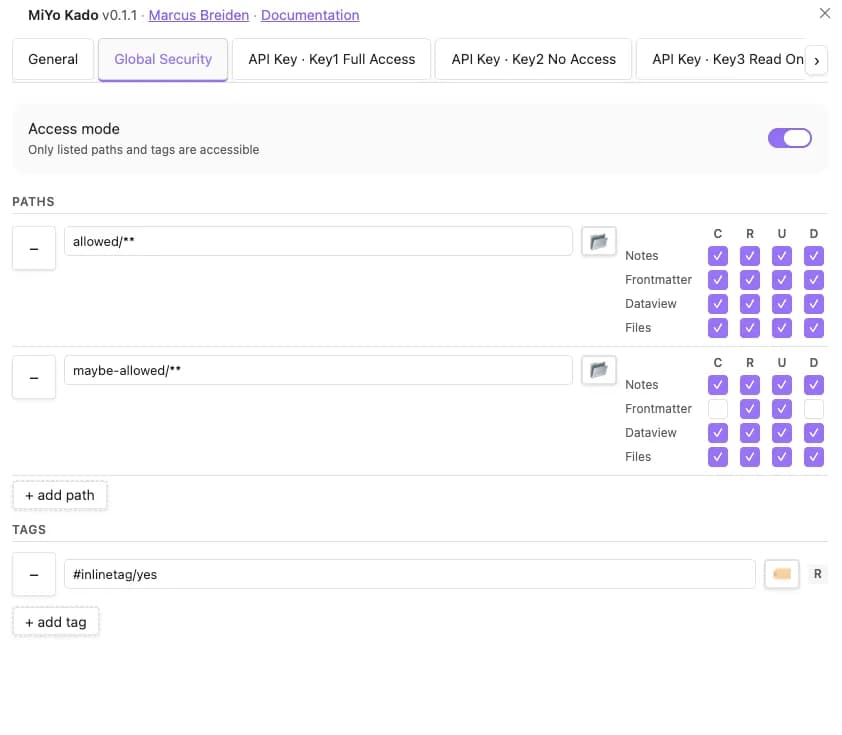

Global Security tab -- whitelist of paths and tags that any key may reference. Permissions are set per data type (Notes, Frontmatter, Dataview, Files) for each path.

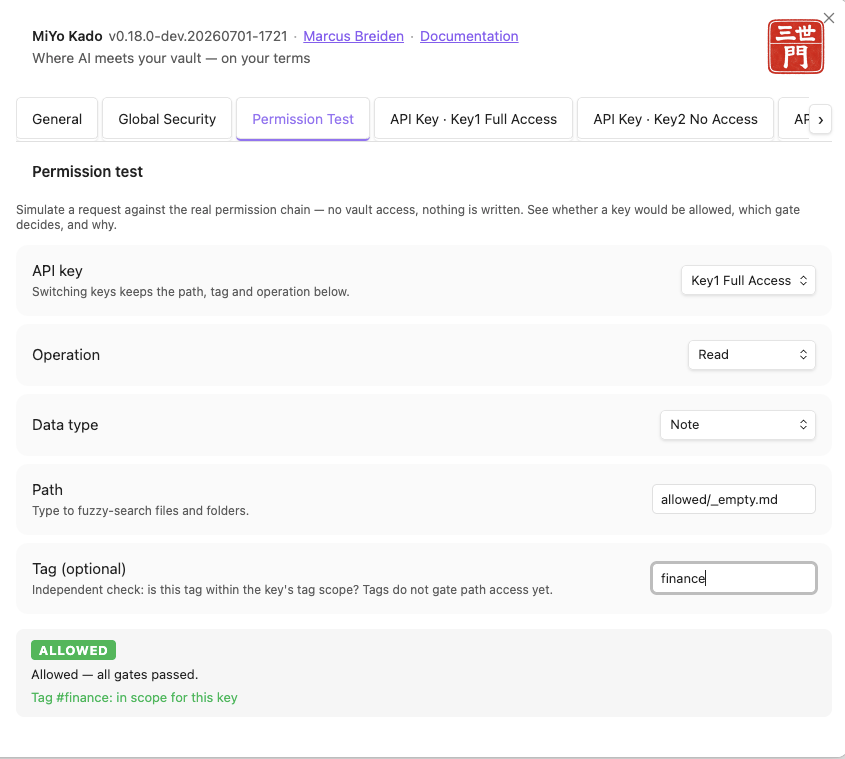

Permission Test tab -- dry-run any key + operation + path against the real permission chain (in memory) and see ALLOWED/DENIED with the deciding gate.

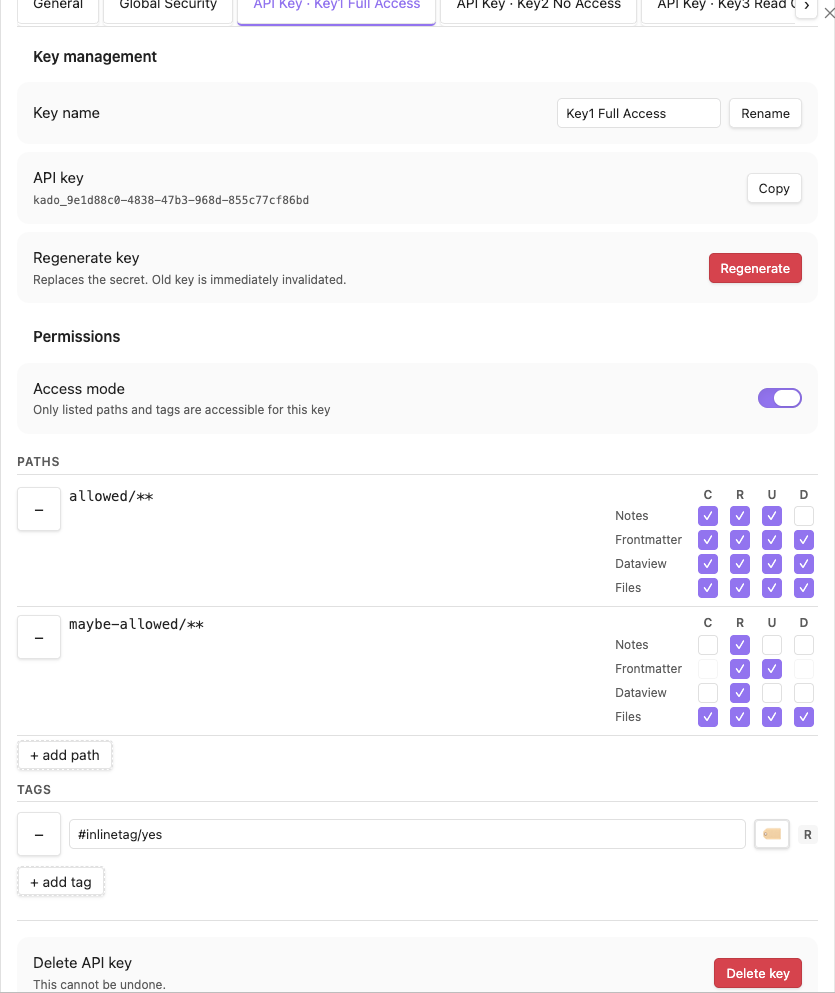

API Key tab -- per-key access. Each key has its own access mode, paths, tags, and permission matrix, all constrained by the global security scope.

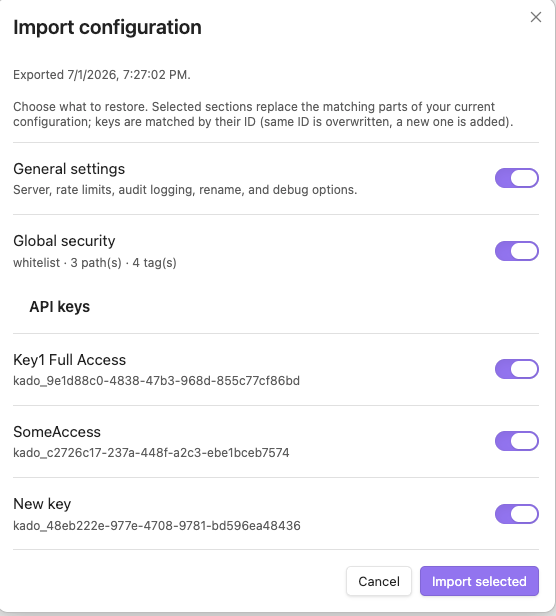

Backup & restore -- export the whole config to a JSON file, or import one and choose per-section (general / global security / each key) what to restore.

Security Model

Every request passes through five gates in order. The first denial stops the chain. For the full enforcement logic, see How It Works.

Architecture

MCP Client -> [MCP API Handler] -> [Kado Core] -> [Obsidian Interface] -> Vault

• MCP API Handler -- Express + Streamable HTTP transport, auth, rate limiting
• Kado Core -- Permission gates, routing, concurrency guard. No MCP or Obsidian imports.
• Obsidian Interface -- Vault adapters for notes, frontmatter, files, inline fields, search

Part of MiYo

Kado is part of MiYo, a small family of Obsidian-adjacent tools focused on giving you control over what your assistants can see and do. MiYo Kado is the gateway component -- the piece that turns your vault into a properly-scoped MCP server. More tools are in the works.

Open tracking

Live issues and upstream references live in GitHub Issues and docs/ai/memory/troubleshooting.md. No open issues at the time of this release.

Support

If MiYo Kado is useful to you and you want to help me keep building, you can support development via:

• Buy Me a Coffee
• GitHub Sponsors

Issues and pull requests are also very welcome.

Contributing

Contributions are welcome. The short version:

1. Open an issue first for anything non-trivial (bugs, features, refactors) so we can align on scope before you invest time.
2. Fork & branch from master. Use a descriptive branch name (e.g. fix/search-tag-case, feat/granular-scopes).
3. Keep changes focused -- one feature or one fix per PR. See Development Guide for build, test, and lint commands.
4. Tests & lint must pass -- run npm run build, npm test, and npm run lint before pushing.
5. Conventional commits -- e.g. feat:, fix:, docs:, refactor:. Release notes are generated from commit history.
6. Open a PR against master and reference the issue. Small, reviewable diffs get merged fastest.

For security issues, please do not open a public issue -- email [email protected] instead.

License

MIT
