Heraldry Weaver

Procedural and custom heraldry for Obsidian — for worldbuilders and TTRPG GMs. Generate or hand-build coats of arms, save them, embed them in notes (block or inline), export to image, and drive it all from templates.

Using it

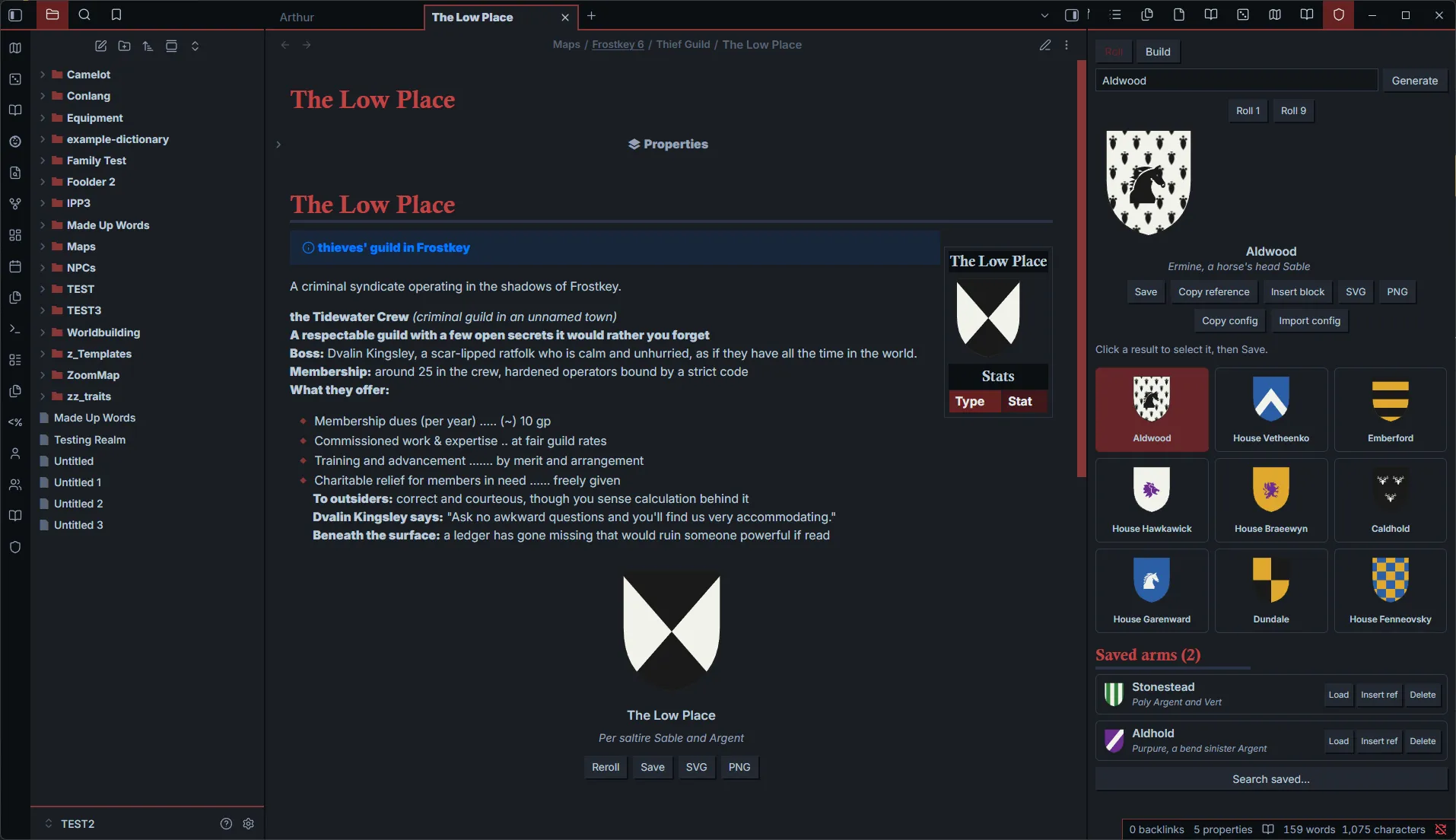

Open the panel from the shield ribbon icon or the command Open Heraldry Weaver panel. The panel has two modes:

• Roll — Generate from a name/seed, or Roll 1 / Roll 9 random named results. Click any result to select it, then Save.
• Build — Manual control: shield shape (heater / French / Spanish / lozenge / round), field (plain / divided / variation) with metal, colour, and fur tinctures — the eight standard furs plus custom recoloured furs via the fur editor — an ordinary, and layered charge groups: add several charges, each with its own tincture, count, arrangement, 3×3 position, scale, X/Y offset, rotation, and horizontal/vertical mirroring. Live preview with a rule-of-tincture hint.
• Custom colours. Every tincture row ends in a colour-wheel swatch that opens your system colour picker, plus a hex box where you can type or paste an exact code, for shades the seven tinctures don't cover. Colours you pick are kept as extra swatches for the rest of the session. A custom colour is blazoned by its hex (#3A7BD5) and, for the rule-of-tincture hint, counts as a metal if it is light and a colour if it is dark.
• Counterchanging. On a divided or varied field, a Counterchanged toggle appears on the ordinary and on each charge group. A counterchanged element takes the field's tinctures in reverse, so every part of it shows the opposite of whatever it lies on — "Per pale Vert and Argent, a mullet counterchanged". It works across every division and variation, keeps fur patterns aligned, and is exempt from the rule-of-tincture hint (it can never be colour-on-colour).
• Flags as well as shields. A Format toggle renders the same arms on a flag instead of a shield — square banner, 3:2 flag, swallowtail, triangular pennon, or gonfalon. Ordinaries and divisions extend to the flag's edges (a fess spans full width, a saltire runs corner to corner) while charges stay undistorted.

Shared actions: Save (to the in-plugin library), Copy reference, Insert block, SVG, PNG, Copy config, Import config.

Saved arms appear in the library beneath the preview (ten most recent). Browse all… opens a searchable grid; the All / Used / Unused dropdown scans your notes so you can find saved arms that aren't referenced anywhere — a quick way to prune. Click any entry to load it; hover to delete.

Displaying arms in notes

Block (full shield + name + blazon + buttons):

```heraldry
name: House Aldori
motto: Strength and honor
```

By default a block shows interactive buttons (Reroll / Save / SVG / PNG). Add controls: false (or a bare static line) to render a fixed shield with no buttons — best for finished notes. Blocks added with Insert block are static by default; change that under Settings → Inserting blocks.

Inline (sized to the text line — works inside tables / ITS infoboxes):

| Ruling house | `heraldry:House Aldori` House Aldori |

Inline syntax is `heraldry:[key][|size]`. An empty key falls back to the note title; size is a px number (e.g. 120) or any CSS length (e.g. 4em), which is what you want for an infobox image slot:

> [!infobox]+
> # {{name}}
> `heraldry:|120`
> ###### Stats
> | Type | Stat |
> | --- | --- |

Because the empty-key inline and a bare block both resolve to the note title, the infobox shield and a content-body block show the same arms automatically.

Random arms, linked across the page

Seeding from the title is deterministic — the same note name always yields the same arms. For random arms that are still identical between the infobox shield and the body block, put a seed in the note's frontmatter (property name set in Settings → Names → Seed property, default heraldry-seed). Every bare reference on the page reads it, so they stay in sync:

---
heraldry-seed: <% Date.now().toString(36) + Math.random().toString(36).slice(2, 6) %>
---
# {{name}}
> [!infobox]+
> # {{name}}
> `heraldry:|120`
...

```heraldry

The Templater expression rolls a fresh seed once at creation, so each note gets
unique arms; both bare references read that one seed, so they match; and because
the seed is saved in frontmatter, the arms stay stable every time the note is
re-rendered. Precedence is: an explicit `seed:` in a block beats the frontmatter
seed, which beats a saved entry / the note title.

A reference resolves to a **saved** entry if one exists, otherwise it is
generated deterministically from the text. A block may also carry an explicit
`seed:` so it reproduces exact rolled arms without being saved.

## Public API

`app.plugins.plugins["heraldry-weaver"].api`

| Method | Returns |
|---|---|
| `generate(seed)` | a spec |
| `generateName(seed)` | a place/house name |
| `generateArms(seed)` | `{ seed, spec, blazon, svg }` |
| `toBlazon(spec)` | blazon string |
| `svg(seedOrName)` | raw SVG string |
| `block(name, { seed?, unique?, motto? })` | a fenced ```heraldry block string |
| `inline(name)` | an inline reference token |
| `saveArms(name, spec)` | persists to the library |
| `getArms(name)` / `listArms()` | library access |
| `encodeConfig(spec)` / `decodeConfig(str)` | shareable config string |

## Town Forge integration (none required)

Town Forge creates a note whose **title is the place name**, so there is nothing
to wire up: a bare block seeds itself from the note it lives in.

Put this in your Town Forge note template (or any note):

````markdown
```heraldry
```

It renders arms seeded from the note's title — open "Restov", get Restov's arms, stable forever, no template code and no saving. Same for an inline shield with an empty key (handy in an infobox):

| Arms | `heraldry:` |

If a saved entry matches the note title, that saved coat is used; otherwise it's generated from the title. Override per-note with an explicit name:/seed: line when you want something other than the title. The api.block(...) / api.inline(...) helpers remain for templates that want to pass an explicit name or bake a unique random seed.

Custom name sources

Rolled names come from the built-in generator by default (deterministic per seed). To pull names from elsewhere, open Settings → Names and switch Name source to Custom script. You get a JavaScript box whose body returns one name; in scope are app, api, and seed, where api is bound to the .api of the plugin named in Connector plugin id (default randomness). For example, to roll a Randomness table:

return (await api.rollUnscoped("TF-ThievesGuildName")).result;

The Run once button tests it and shows the result. Any error falls back to the built-in generator, so rolling never breaks. Scripted names are not deterministic per seed (the arms still are).

For programmatic control, the API also exposes setNameProvider((seed) => name) (sync or async) and clearNameProvider(). Register a provider on load — e.g. from a Templater startup script — and it takes precedence over the setting:

const hw = app.plugins.plugins["heraldry-weaver"].api;
hw.setNameProvider(async () => (await app.plugins.plugins["randomness"].api.rollUnscoped("MyNames")).result);

A provider is a live function, so it isn't persisted — re-register it on load if you want it permanent.

Custom assets (import)

Heraldry Weaver reads standard SVG and WMF vector art, so it works with commercial heraldic art packs such as heraldryclipart.com. No third-party artwork ships with the plugin — it stays free of bundled assets — but anything you purchase there (or any SVG/WMF you already own) drops straight in. WMF is the vector format those sites provide; EPS isn't supported, but their assets ship a WMF twin.

Where files go

Set an asset folder in Settings → Custom assets (default Heraldry Weaver). Inside it, six reserved subfolders each map to one element type:

Click Create subfolders in settings to make them all at once, drop your files into the matching folder, then run Reload custom assets (command or the settings button). Each file appears in the relevant picker by filename, and nested folders within any reserved subfolder become categories in that picker.

Preparing your artwork

Any vector editor works (Inkscape, Illustrator, Affinity, or WMF from a clip art pack). Layer offsets, nested transforms, mm/pt/in page units and non-zero viewBox origins are all understood, so there is no need to flatten or re-origin a file before importing it.

Every shield draws its field inside the same field box: 160 × 198 units, a portrait of roughly 4 : 5. How a file is fitted to that box depends on its folder:

Tips:

• Shields — draw the escutcheon as one closed shape (a path, polygon, rect, circle or ellipse). Every shape in the file counts toward the outline, so remove guides and decorations; text and clones are ignored.
• Fields, variations, furs, charges — the page is the frame. In Inkscape, Document Properties → Resize to content (Shift+Ctrl+R) makes the page match the drawing; in Illustrator use Object → Artboards → Fit to Artwork Bounds.
• Fields that aren't 4 : 5 still work — the size and X/Y offset sliders choose which part shows.
• Charges drawn off-centre on their page can be re-centred by eye with the charge's Offset X / Offset Y sliders, and imported ordinaries have the same pair — though fixing the page is the better cure if you reuse the art.

Colours & rolls

Imported charges and ordinaries are silhouette-recoloured to the chosen tincture by default; turn Recolour imported charges off, or use the per-item Original colours toggle and per-colour remap to keep or recolour the art's own palette. Image fields add a background-tincture control, size and X/Y offset sliders to fine-tune the fit (useful when the art's shape doesn't match the shield), plus the same colour editor, and furs are recolourable tinctures usable on fields and divisions. By default custom content is excluded from random rolls to keep generation's curated look — switch on Include custom content in rolls to let the dice draw from everything in your reserved folders.

Bundled charge pack

Separately, an optional bundled charge pack — ~28 fantasy charges (lion, eagle, wolf, dragon, castle, ship, crown, and more) from game-icons.net under CC BY 3.0, recoloured to the chosen tincture — ships with the plugin and appears in the Build mode Charge dropdown out of the box. Toggle the pack off in settings if you only want your own. See CREDITS.md for attribution.

Charge packs and attribution

Good free sources of fantasy charge SVGs:

• game-icons.net — ~4,000 icons, CC BY 3.0 (attribution required).
• RPG-Awesome (raw SVGs) — derived from game-icons.net, CC BY 3.0; the CSS is MIT and the font is SIL OFL 1.1.

These are usable in a free plugin with credit. If you bundle any of these, keep a CREDITS.md listing each source, its author, and its licence; CC BY 3.0 requires attribution but not share-alike.

Licence

Plugin code: MIT. Bundled artwork (if any) is credited separately per its licence.
